46. REMOVE INPUT SHAFT ASSEMBLY

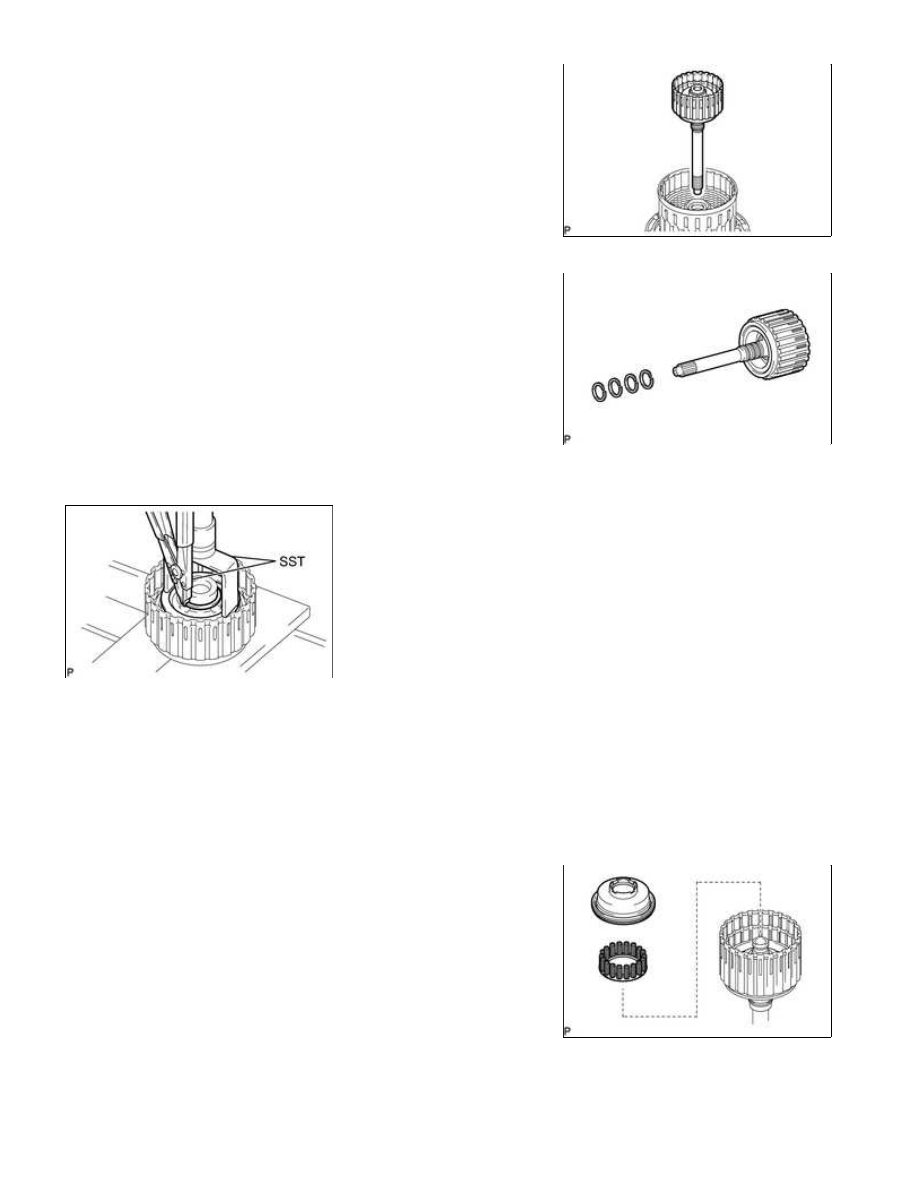

(a) Remove the input shaft from the clutch drum.

47. REMOVE INPUT SHAFT OIL SEAL RING

(a) Remove the 4 oil seal rings from the input shaft.

48. REMOVE COAST CLUTCH PISTON

(a) Place SST on the No. 1 clutch balancer, and compress the return spring with a press.

SST: 09350-30020

09350-07040

(b) Using SST, remove the snap ring.

SST: 09350-30020

09350-07070

spring from the input shaft.

A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

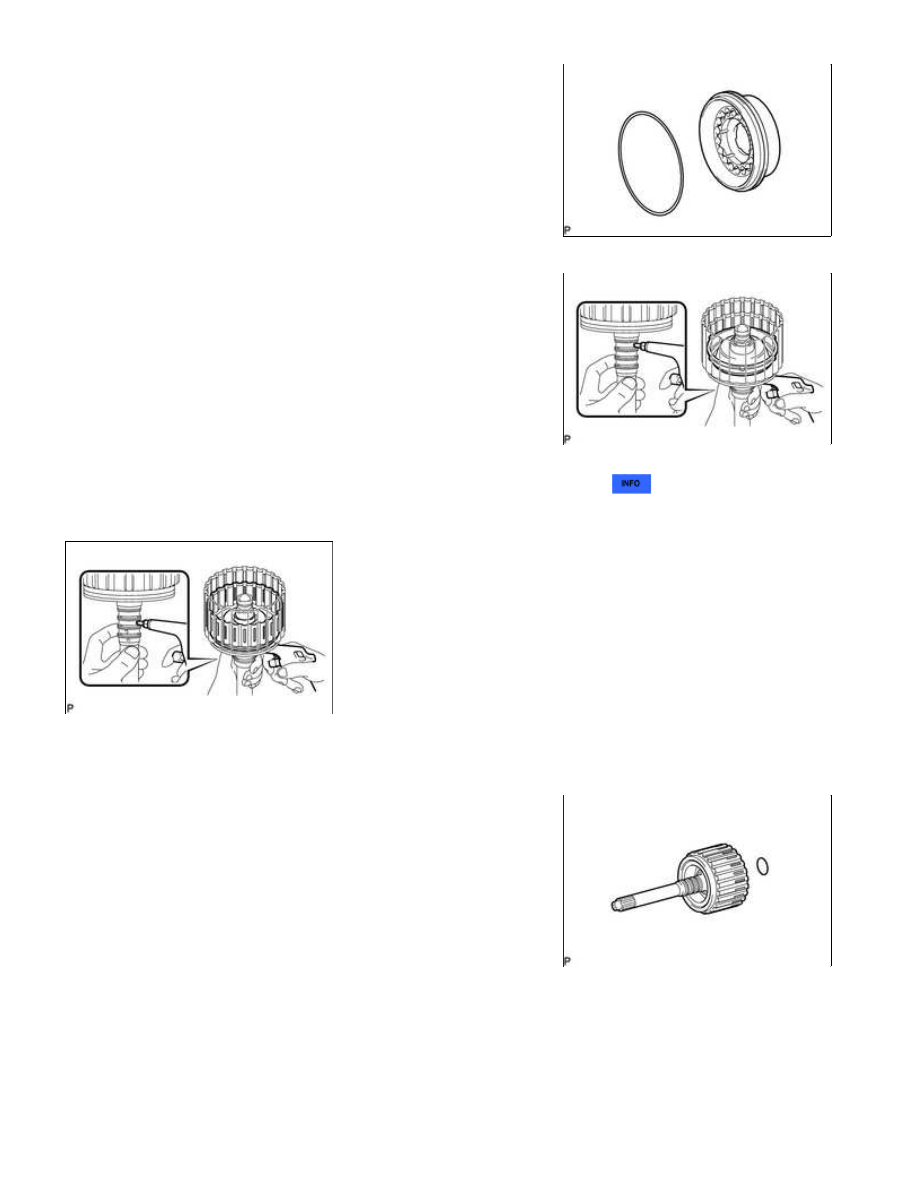

(d) Remove the O-ring from the No. 1 clutch balancer.

(e) Hold the coast clutch piston by hand and apply compressed air

to the input shaft to remove the coast clutch piston.

49. INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY

50. REMOVE FORWARD CLUTCH PISTON

(a) Hold the forward clutch piston by hand and apply compressed air to the input shaft to remove the forward

clutch piston.

(b) Remove the O-ring from the input shaft.

51. REMOVE DIRECT CLUTCH DISC SET

A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

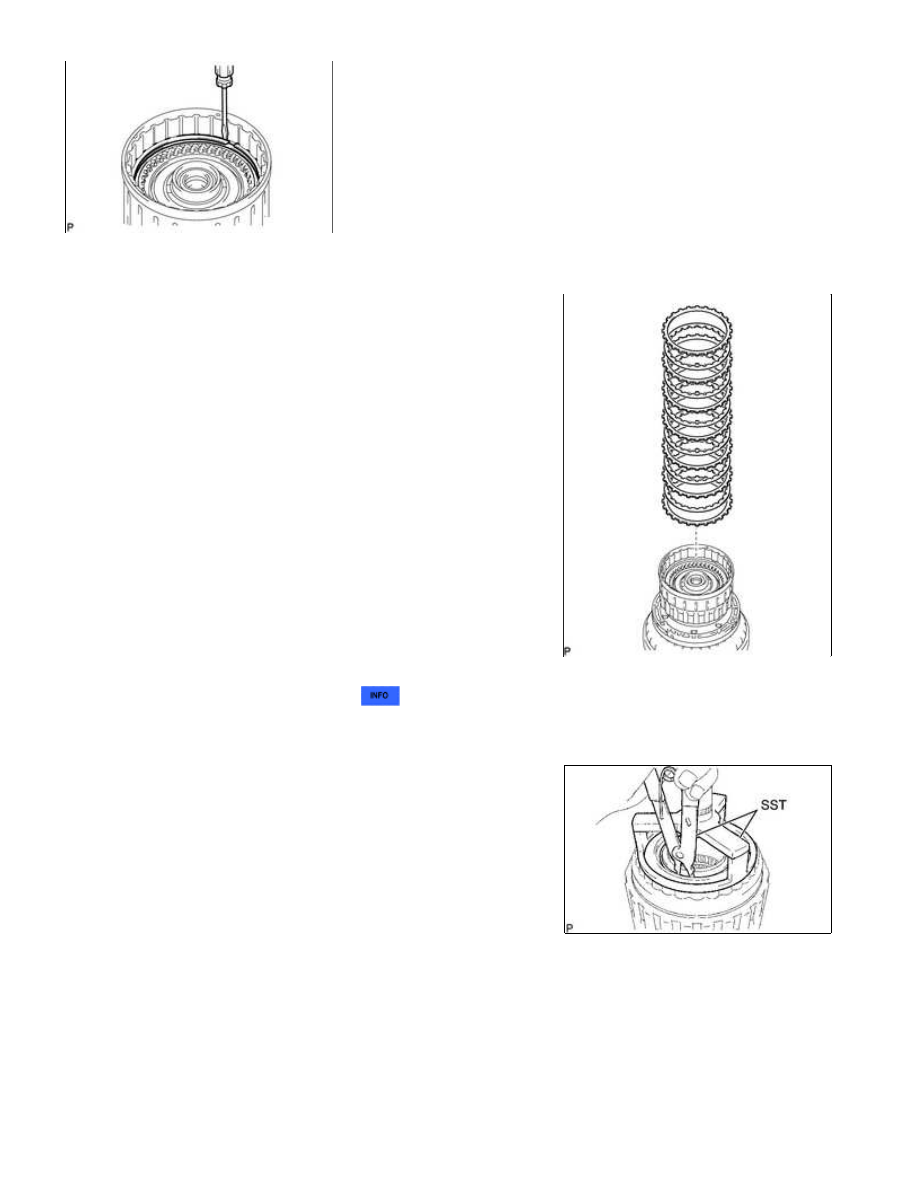

(a) Using a screwdriver, remove the 2 hole snap rings from the clutch drum.

(b) Remove the direct clutch flange, 6 discs and 6 plates from the

clutch drum.

52. INSPECT DIRECT CLUTCH DISC

53. REMOVE NO. 3 CLUTCH BALANCER

(a) Place SST on the No. 3 clutch balancer, and compress the return

spring with a press.

SST: 09387-00070

(b) Using SST, remove the snap ring.

SST: 09350-30020

09350-07070

A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

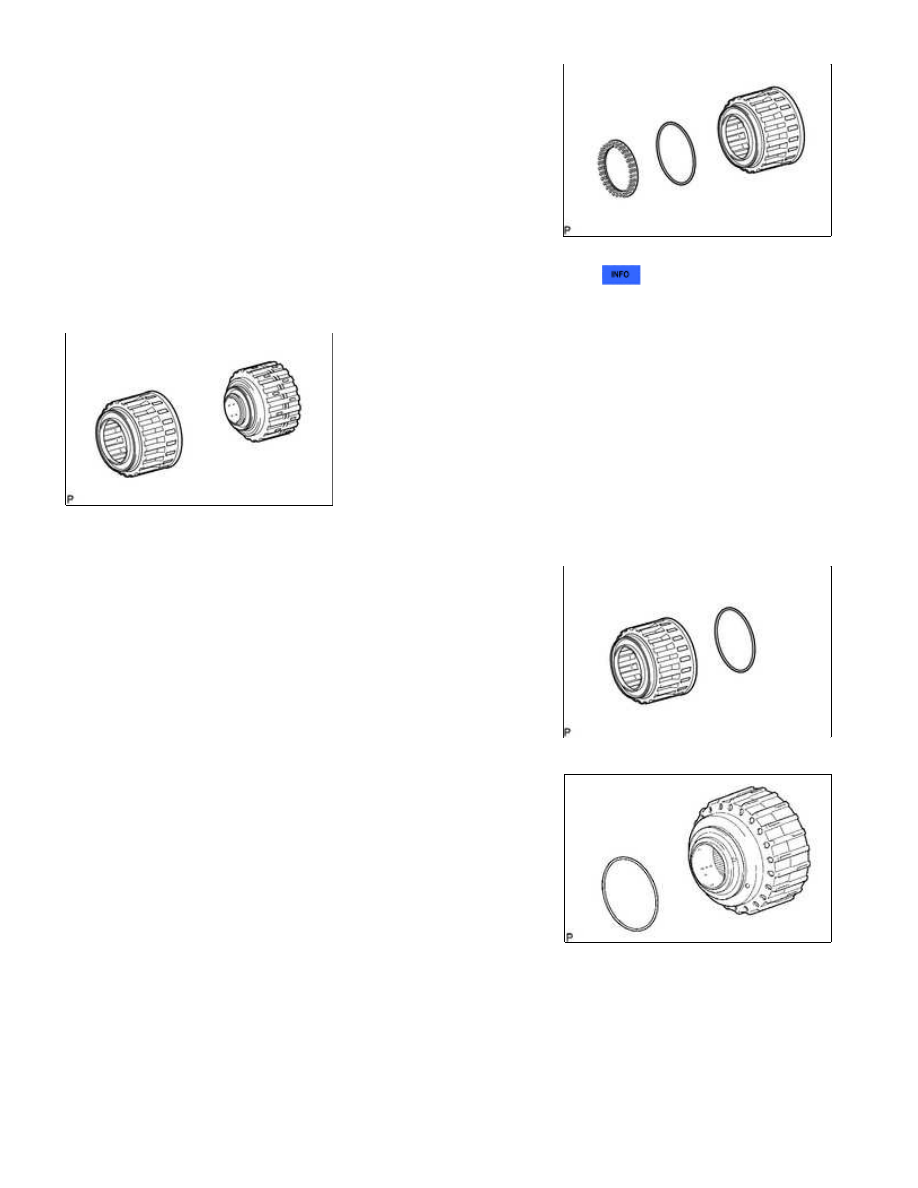

(d) Remove the reverse clutch return spring and O-ring from the

reverse clutch piston sub-assembly.

54. INSPECT REVERSE CLUTCH RETURN SPRING SUB-ASSEMBLY

55. REMOVE REVERSE CLUTCH PISTON SUB-ASSEMBLY

(a) Remove the reverse clutch piston from the clutch drum.

(b) Remove the O-ring from the reverse clutch piston.

56. REMOVE DIRECT CLUTCH PISTON SUB-ASSEMBLY
