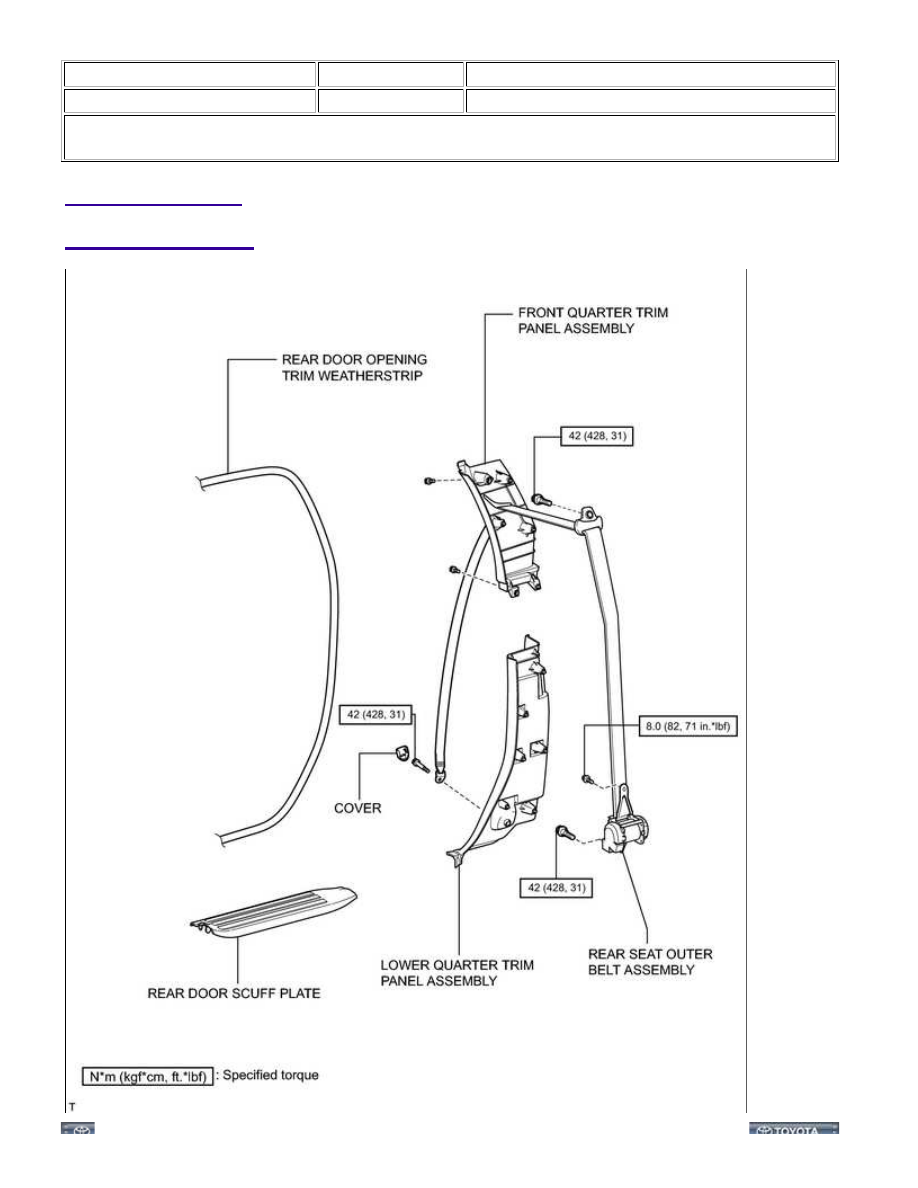

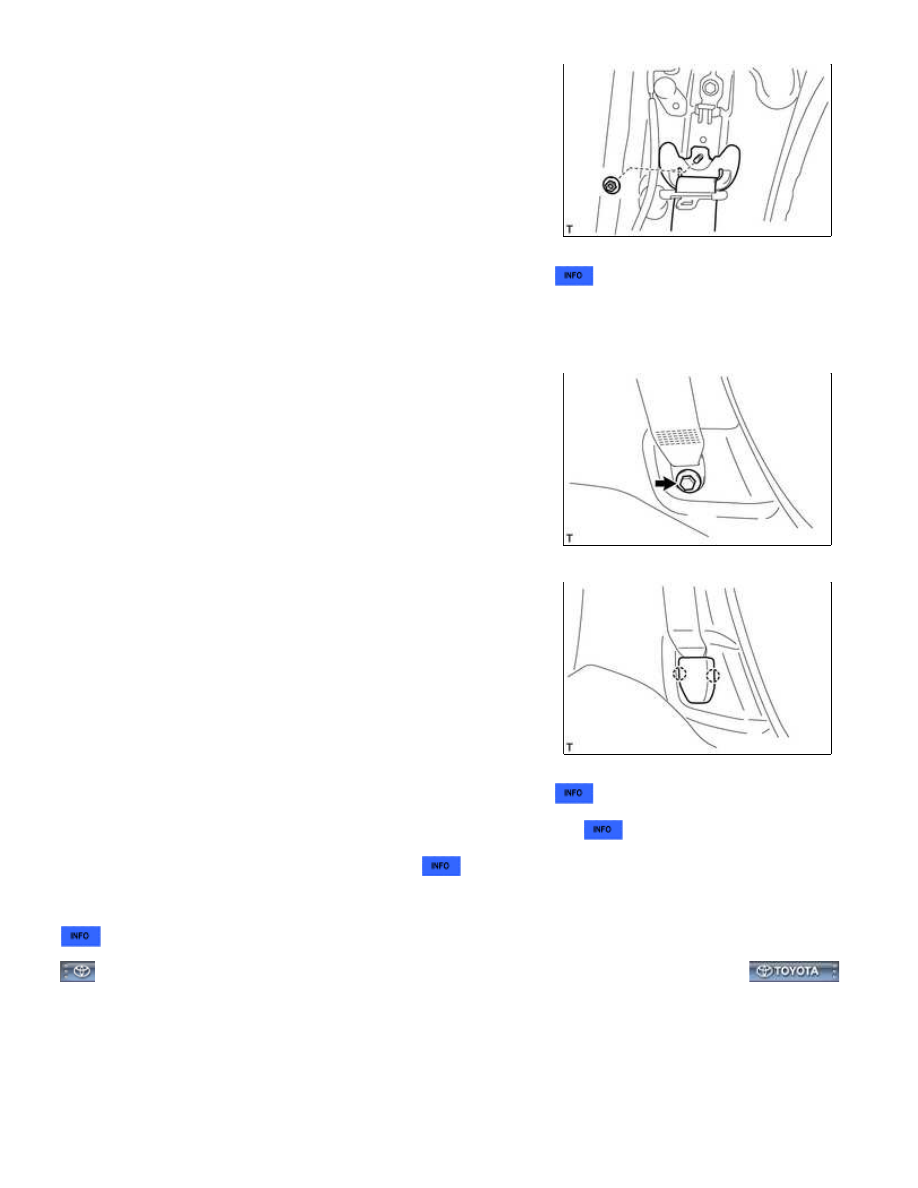

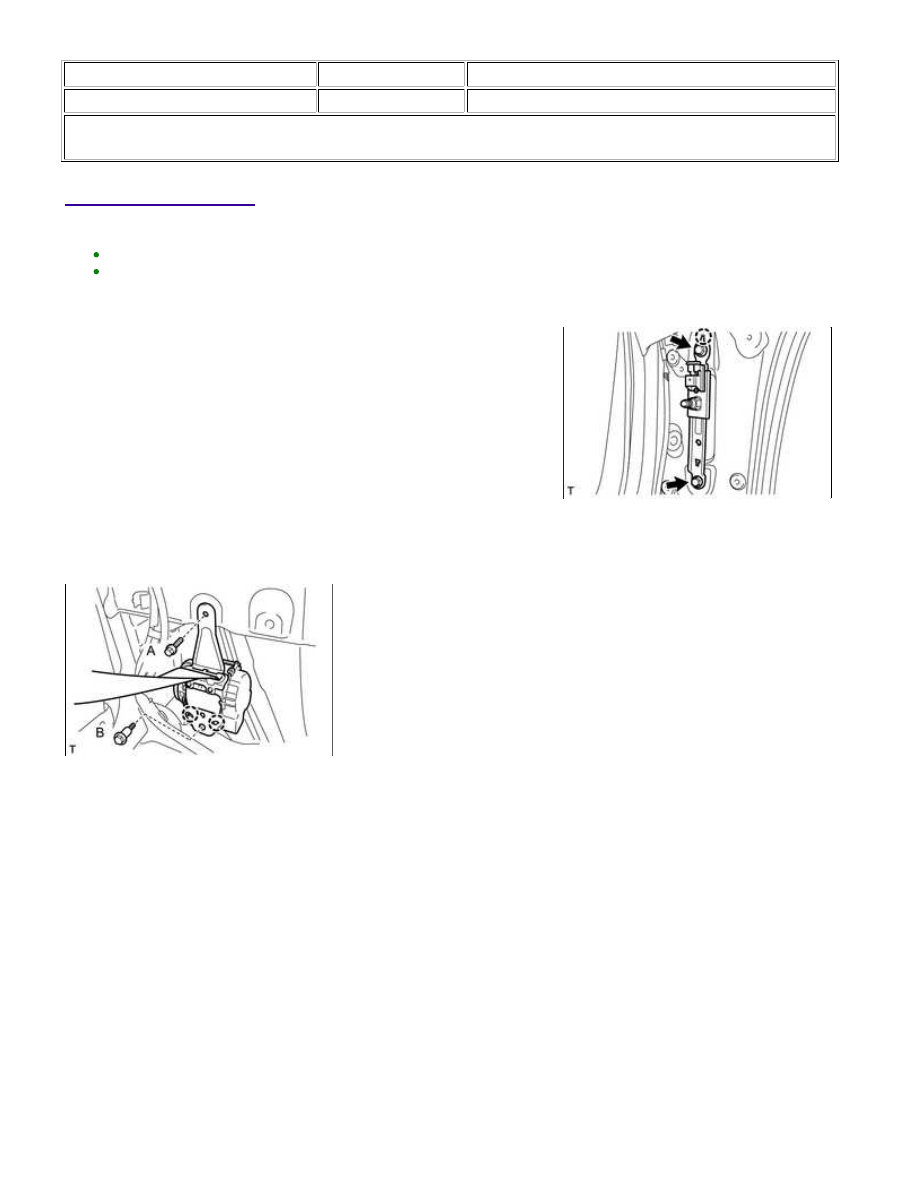

Last Modified: 9-16-2014 6.6 A Doc ID: RM000002LJO04TX Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY (for CrewMax): INSTALLATION; 2015 MY Tundra [08/2014 - ] INSTALLATION HINT: Use the same procedures for the LH side and RH side. 1. INSTALL REAR SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY (a) Align the rear shoulder belt anchor adjuster assembly positioning hole with the claw, and install the rear shoulder belt anchor adjuster assembly with the 2 bolts. HINT: First install the upper bolt, and then install the lower bolt. Torque: 42 N·m {428 kgf·cm, 31ft·lbf} 2. INSTALL REAR SEAT OUTER BELT ASSEMBLY (a) Align the vehicle's claws with the rear seat outer belt assembly retractor positioning holes. (b) Install the rear seat outer belt assembly with the 2 bolts. HINT: First install bolt A, and then install bolt B. Torque: for bolt A - 8.0 N·m {82 kgf·cm, 71in·lbf} for bolt B - 42 N·m {428 kgf·cm, 31ft·lbf} SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY (for CrewMax): ... |
