Use the same procedure described for the LH side.
10. INSTALL FRONT FENDER MAIN SEAL LH
(a) Install the front fender main seal LH.
11. INSTALL FRONT FENDER MAIN SEAL RH
HINT:
Use the same procedure described for the LH side.
12. INSTALL FRONT BUMPER COVER
(a) w/ Fog Light:
(1) Connect the fog light connectors.
(b) w/ Intuitive Parking Assist System:
(1) Connect the ultrasonic sensor connectors.
(2) Attach the 4 clamps to connect the wire harness.
(c) Install the front bumper cover with the 4 bolts.
Torque:
32 N·m {326 kgf·cm, 24ft·lbf}

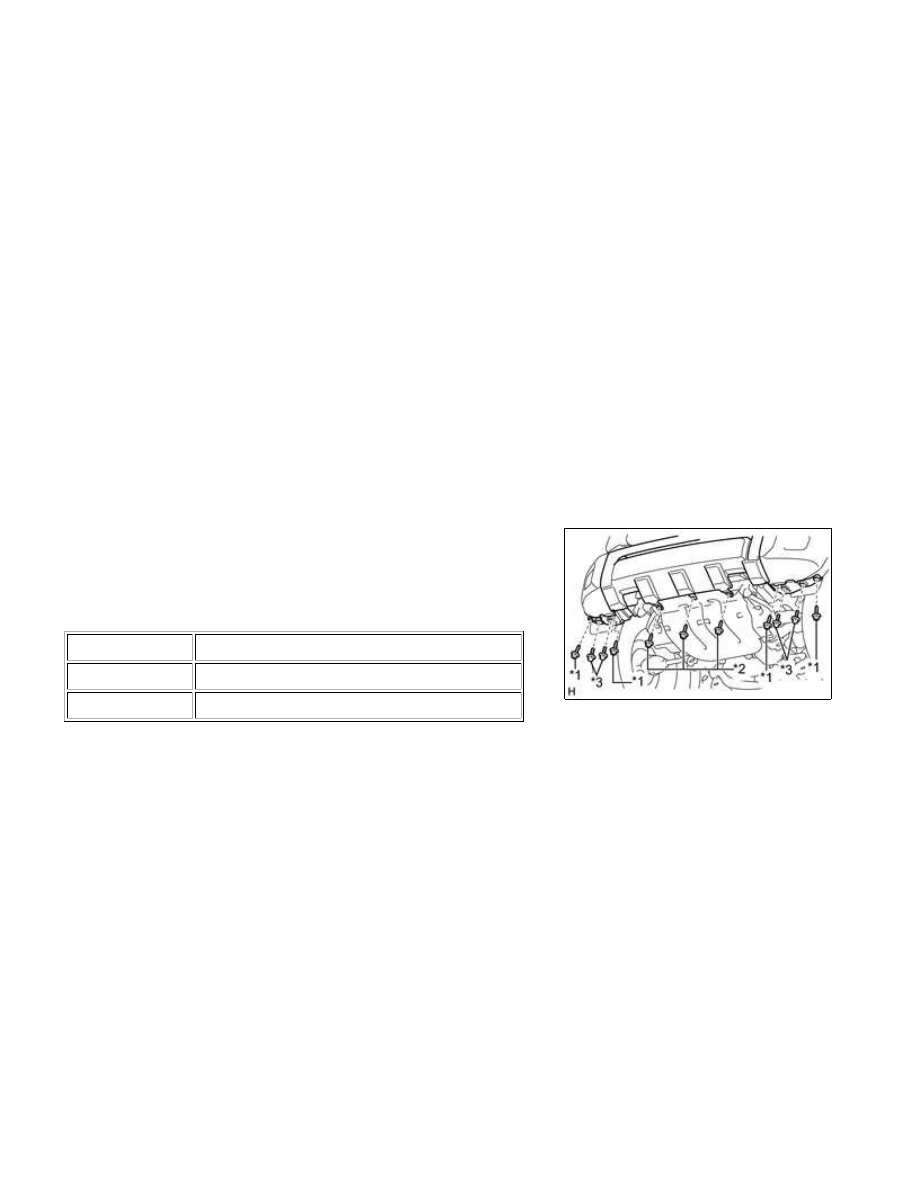

(d) Install the 4 screws labeled A and 3 screws labeled B.
Torque:
for screw B -
3.0 N·m {31 kgf·cm, 27in·lbf}
Text in Illustration
*1
Screw A
*2
Screw B
*3
Bolt
(e) Install the 4 bolts.
Torque:
for bolt -
32 N·m {326 kgf·cm, 24ft·lbf}
(f) for Steel Type Bumper:
(1) Install the 2 pin hold clips.
HINT:
Use the same procedure for the RH and LH sides.
(g) for Resin Type Bumper:
(1) Install the 2 screws.
HINT:
Use the same procedure for the RH and LH sides.
13. INSTALL FRONT BUMPER CENTER UPPER RETAINER
