Title: STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU (for Power Tilt and Power Telescopic

Steering Column): COMPONENTS; 2015 MY Tundra [08/2014 - ]

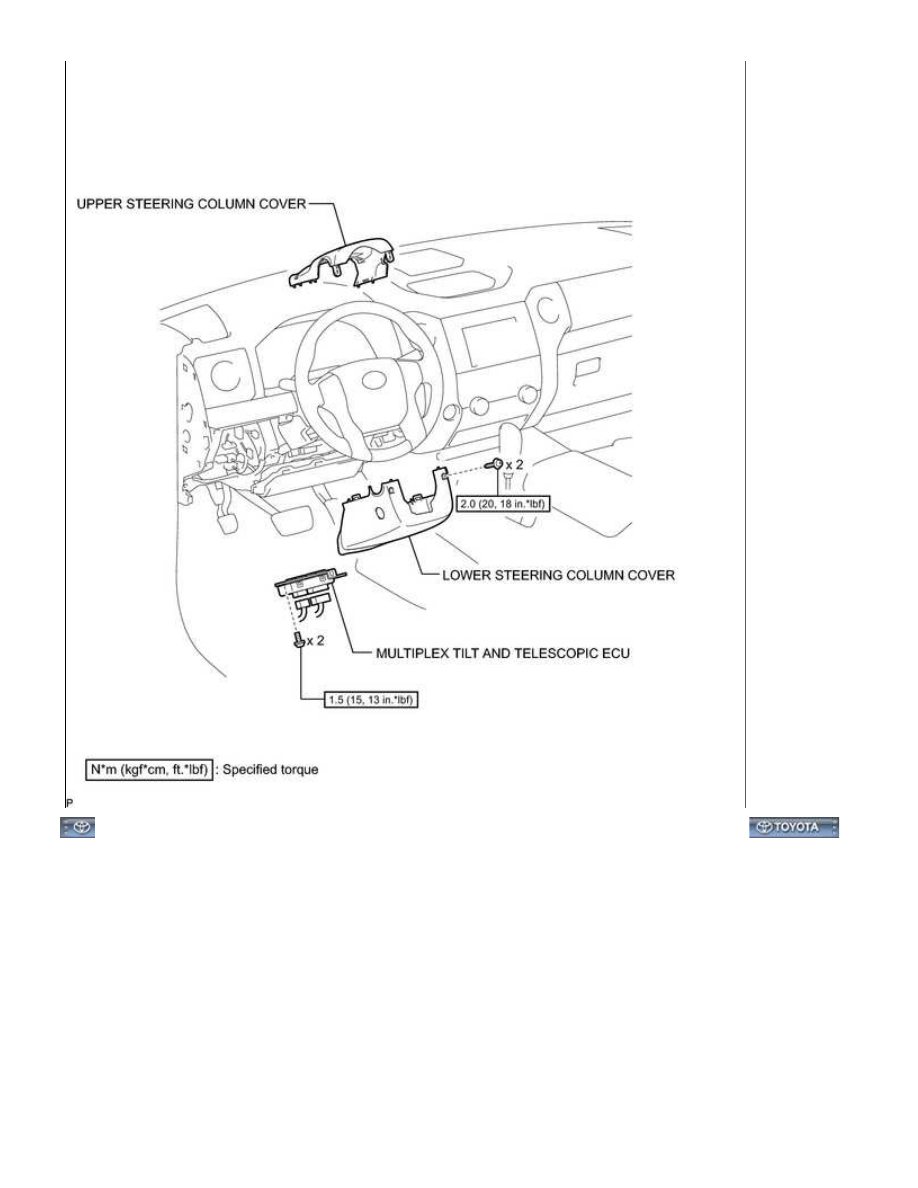

COMPONENTS

ILLUSTRATION

STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU (...

STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU (...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM0000030KU00MX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU (for Power Tilt and Power Telescopic

Steering Column): REMOVAL; 2015 MY Tundra [08/2014 - ]

REMOVAL

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the

battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal

notice before proceeding with work

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent

airbag and seat belt pretensioner activation.

3. REMOVE UPPER STEERING COLUMN COVER

(a) Remove the 2 screws.

HINT:

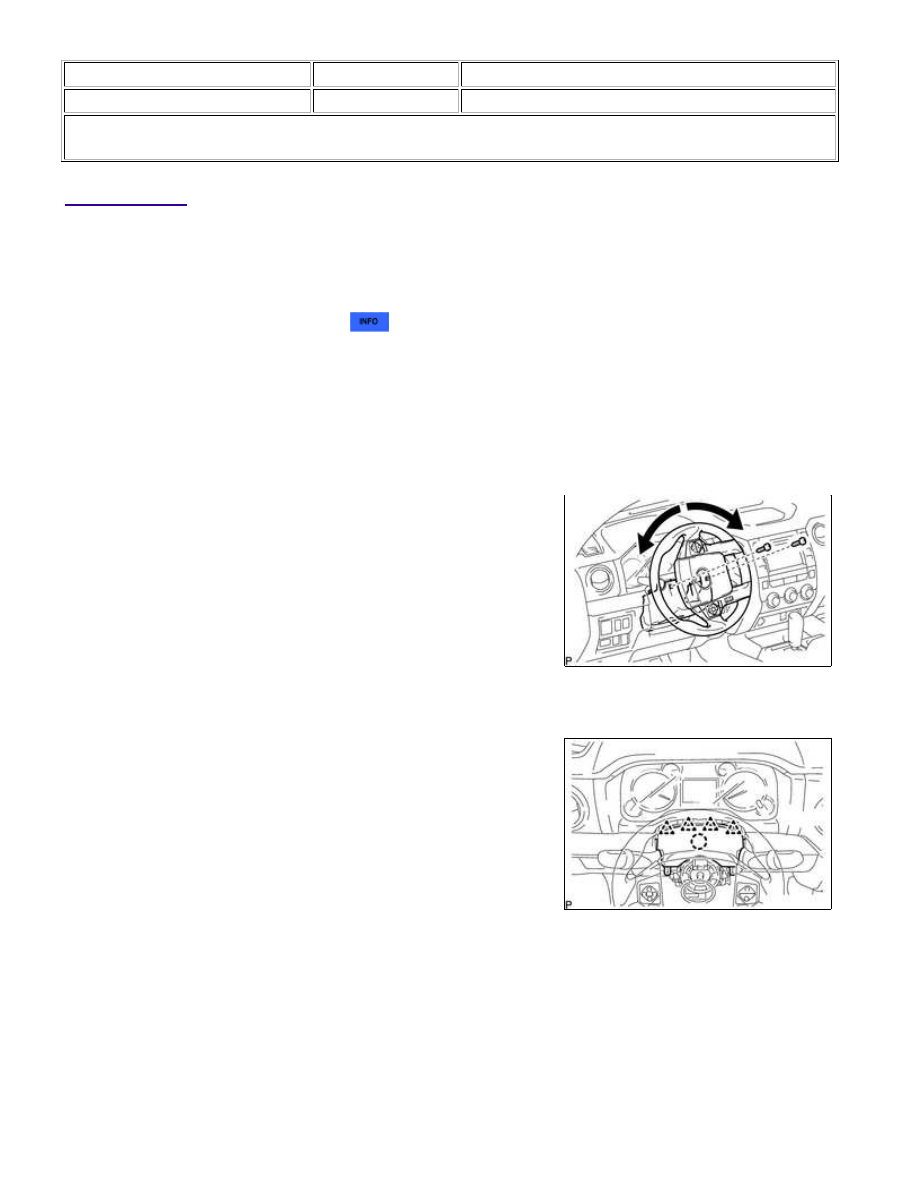

Turn the steering wheel to the right and left as necessary to

remove the 2 screws.

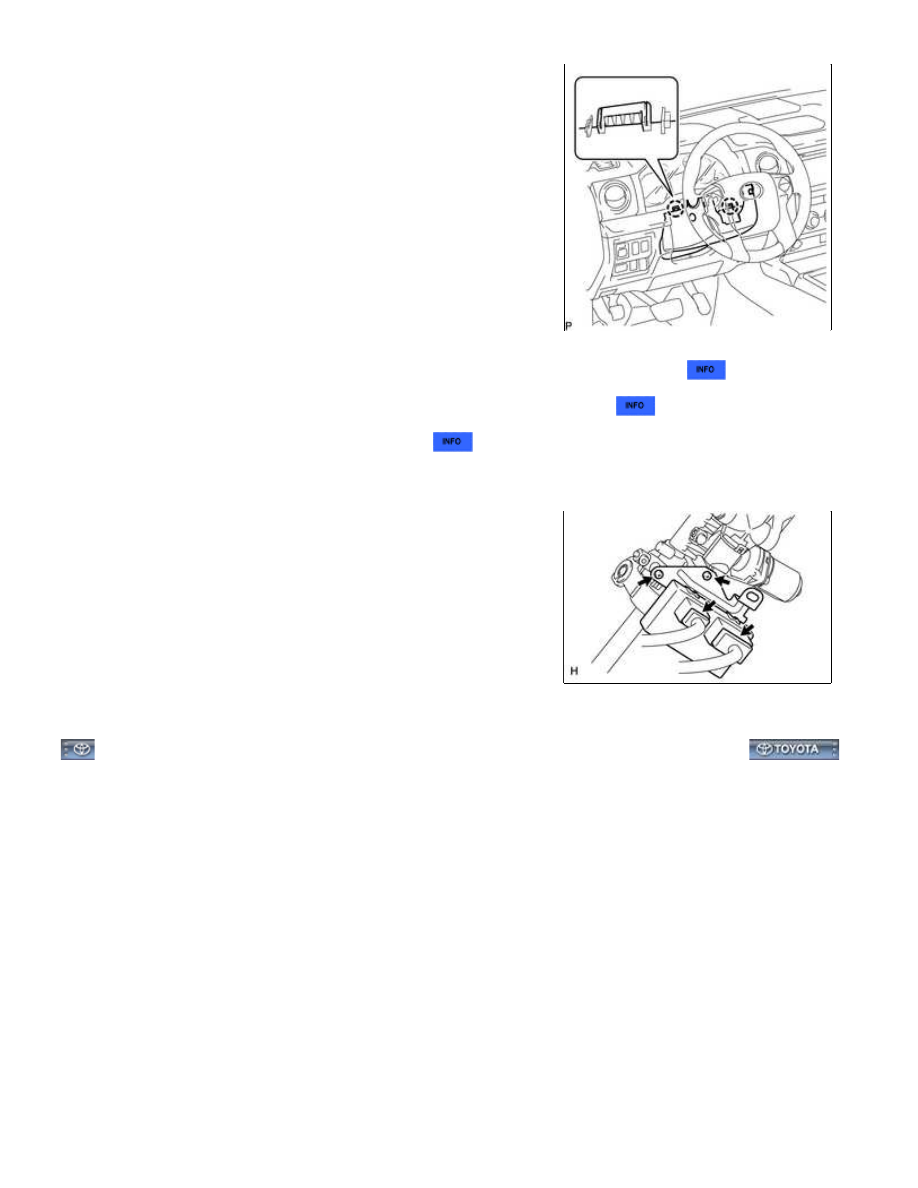

(b) Detach the 4 clips.

4. REMOVE LOWER STEERING COLUMN COVER

STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU (...

(a) Detach the 2 claws to remove the lower steering column cover.

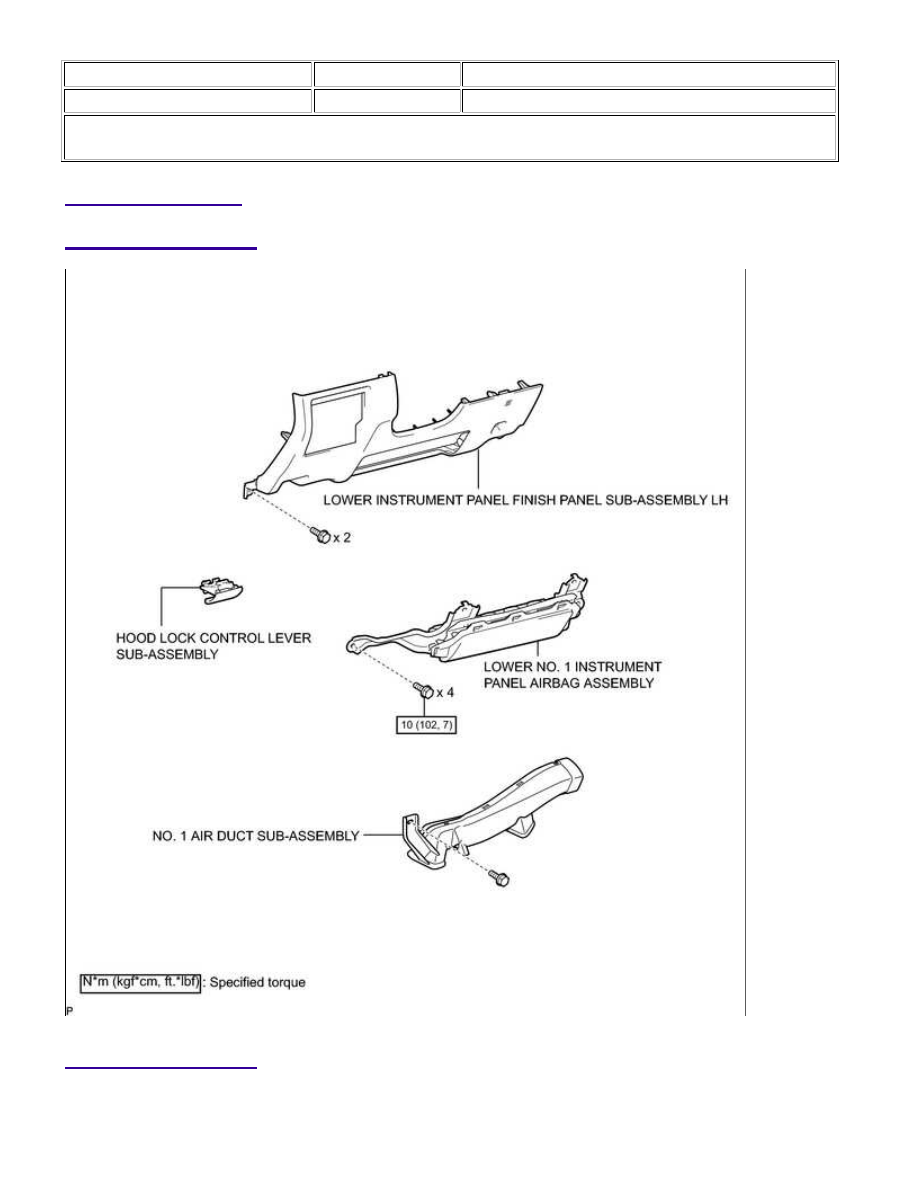

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

6. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

7. REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY

8. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

(a) Disconnect the 2 ECU connectors.

(b) Remove the 2 screws and ECU.
