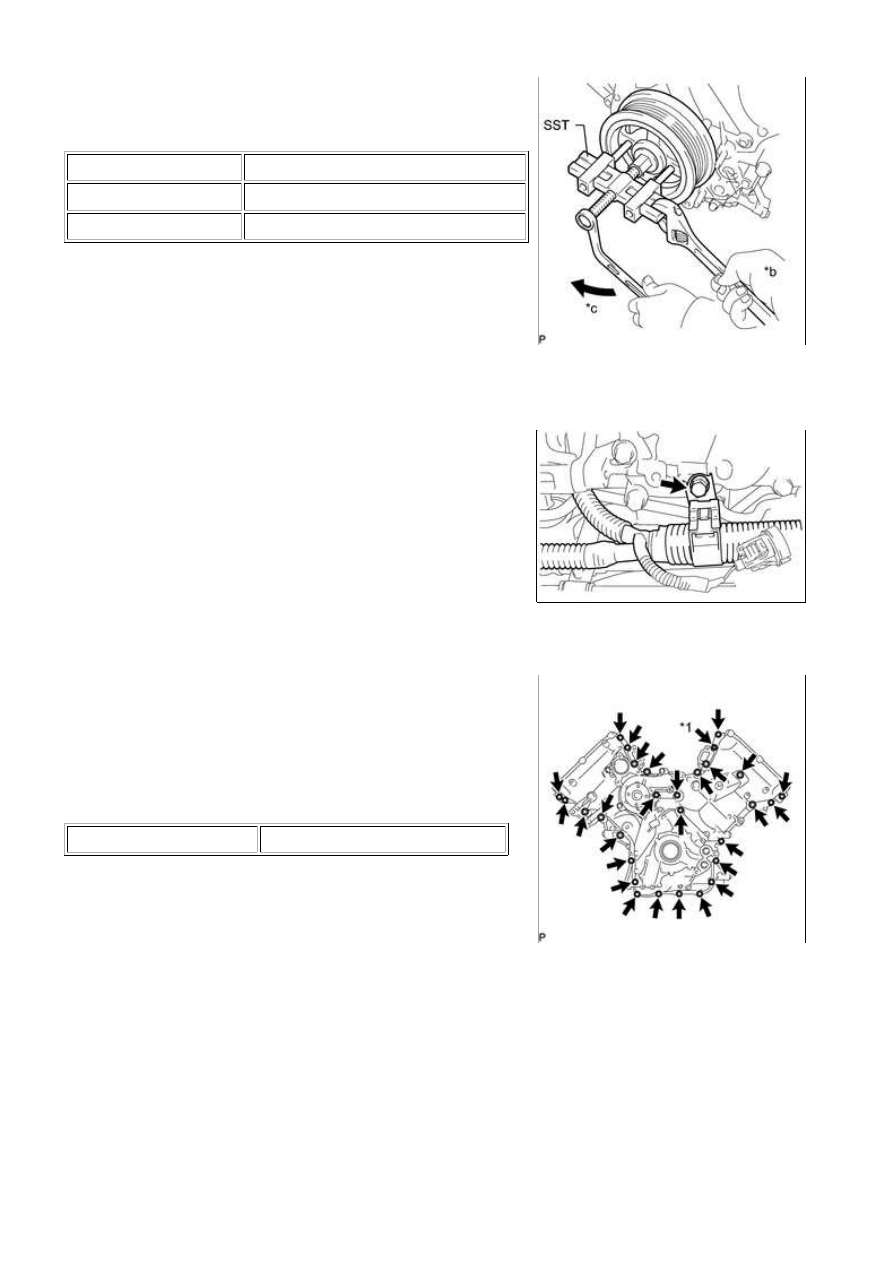

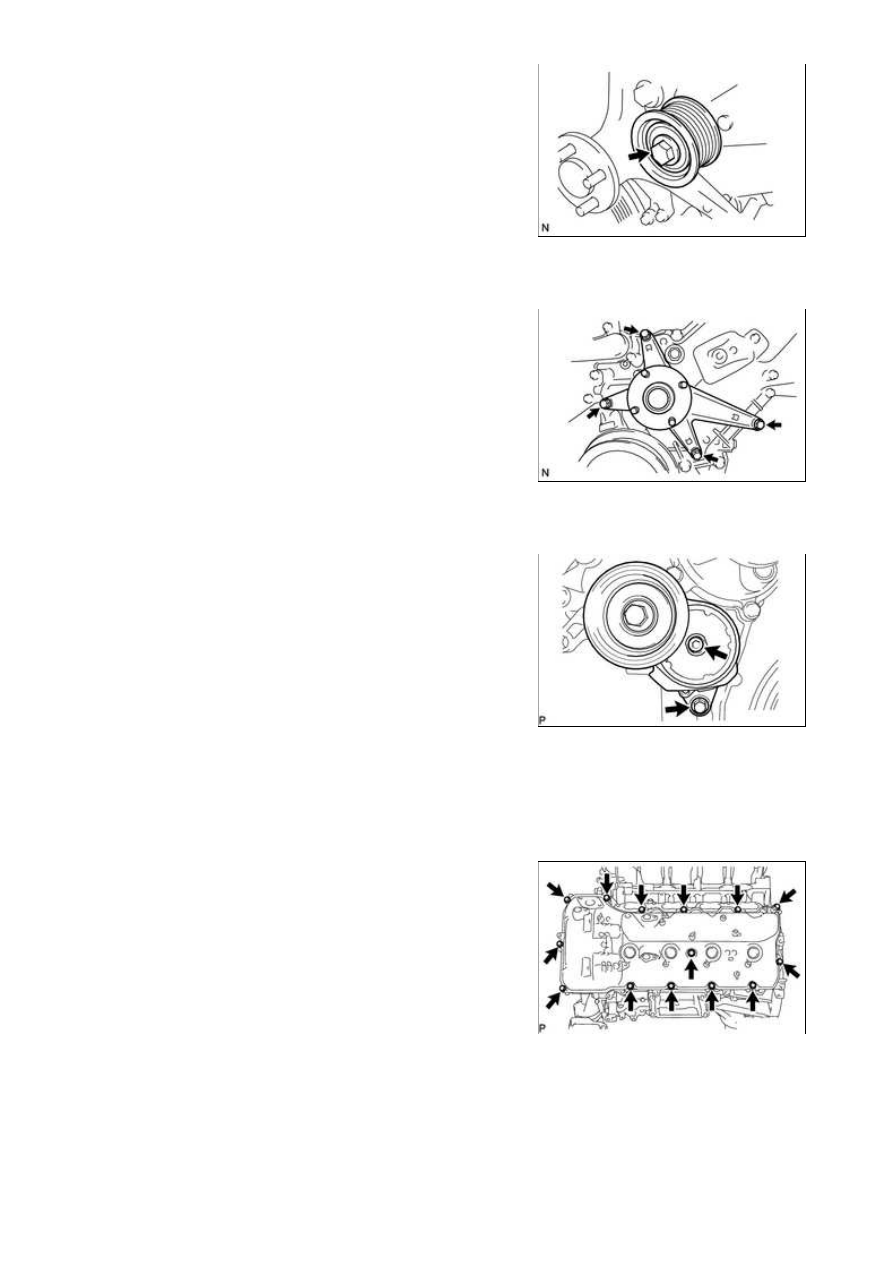

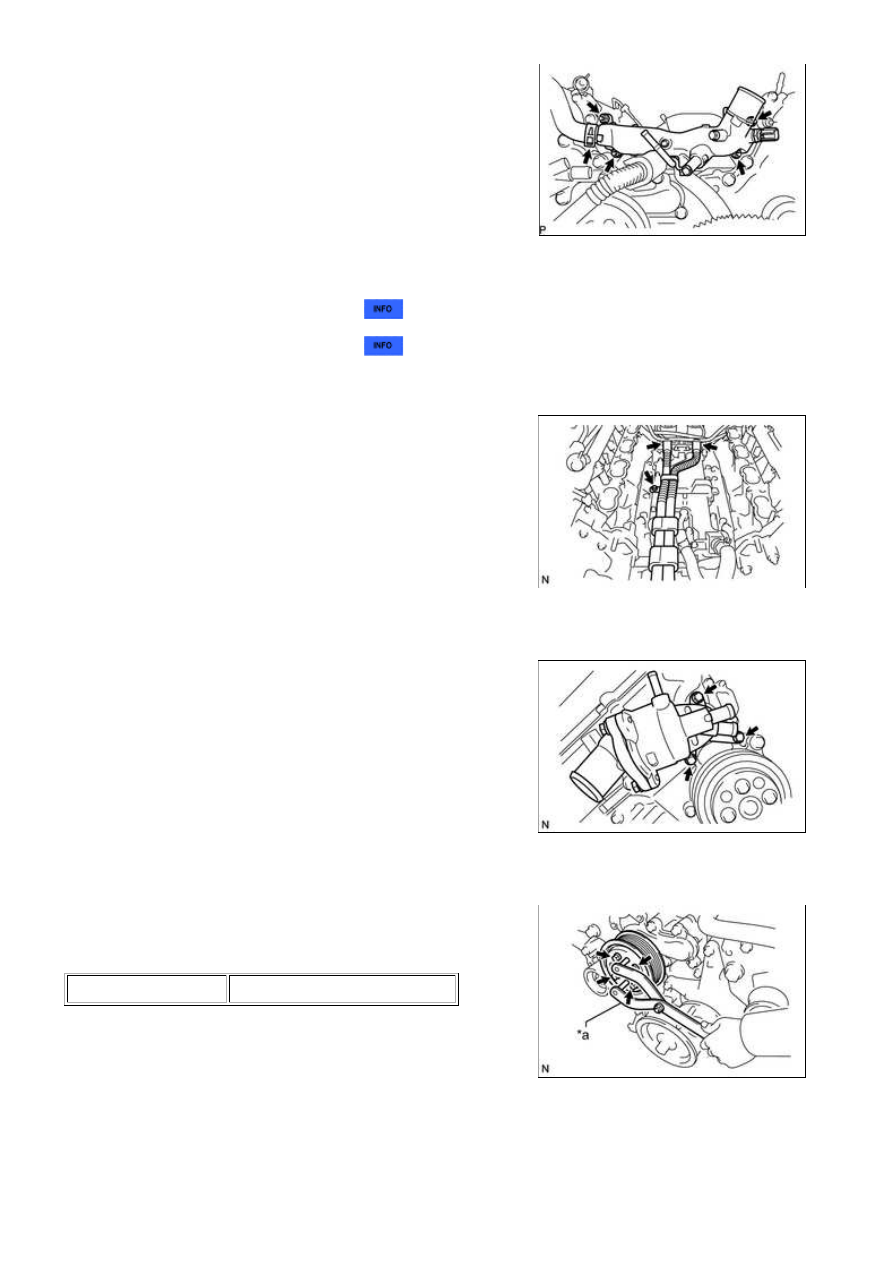

(a) Slide the clamp and disconnect the No. 2 water by-pass hose from the front water by-pass joint. (b) Remove the 4 nuts, front water by-pass joint and 2 gaskets. 29. REMOVE NO. 2 ENGINE COVER 30. REMOVE NO. 1 ENGINE COVER 31. REMOVE AIR TUBE SUB-ASSEMBLY (a) Remove the bolt, disconnect the 2 hoses, and remove the air tube sub-assembly. 32. REMOVE WATER INLET HOUSING (a) Remove the 3 bolts, water inlet housing and gasket. 33. REMOVE WATER PUMP PULLEY (a) Using SST, hold the water pump pulley. Text in Illustration *a SST SST: 09960-10010 09962-01000 09963-01000 (b) Remove the 4 bolts and water pump pulley. 34. REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY 3UR-FE LUBRICATION: OIL PUMP: REMOVAL; 2015 MY Tundra [0... |
