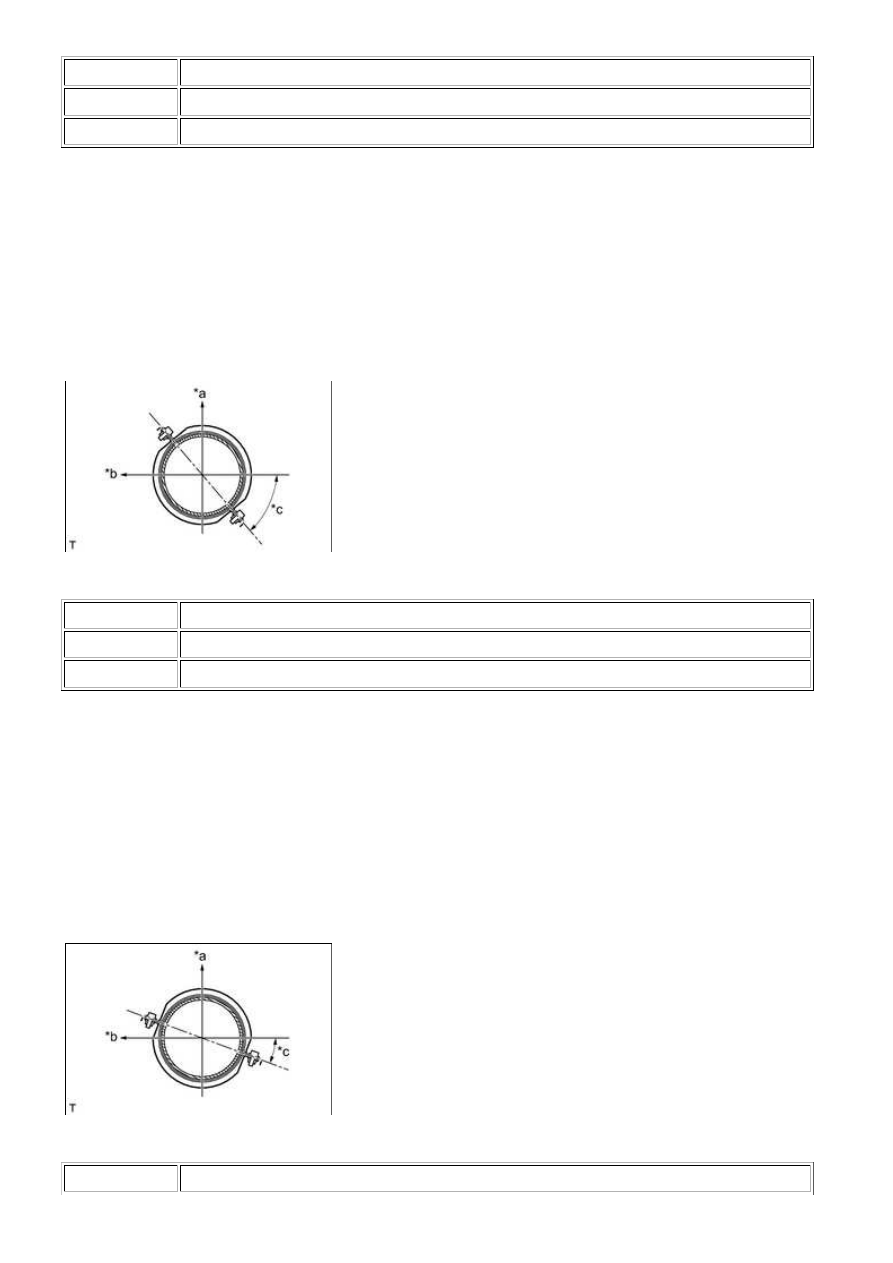

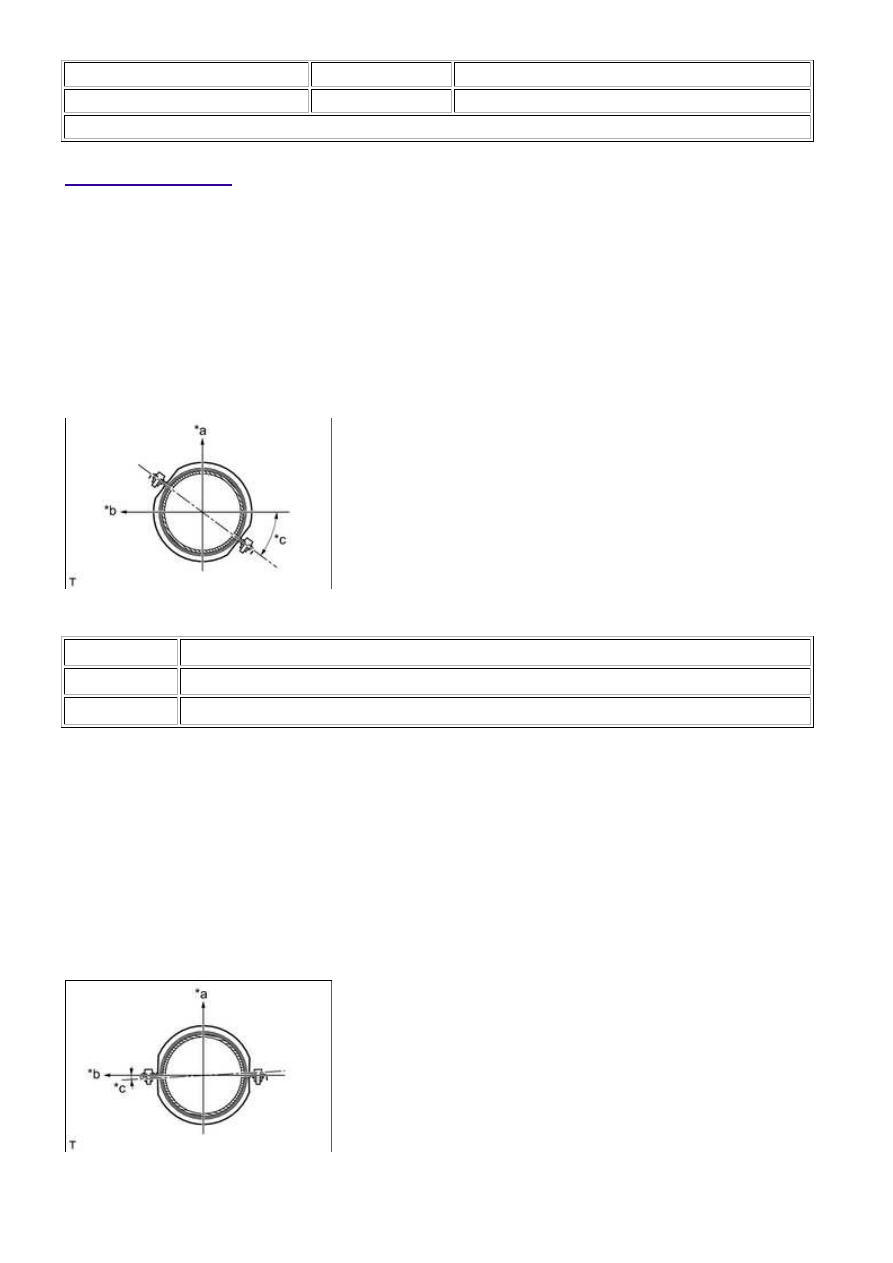

Last Modified: 9-16-2014 6.6 A Doc ID: RM000005KA5008X Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: 3UR-FE EXHAUST: EXHAUST PIPE: REASSEMBLY; 2015 MY Tundra [08/2014 - ] REASSEMBLY 1. INSTALL NO. 1 MONOLITHIC CONVERTER PROTECTOR (for Bank 2) (a) Install the 4 No. 1 converter protector stays to the front exhaust pipe assembly. (b) Install the lower No. 1 monolithic converter protector and upper No. 1 monolithic converter protector with the 4 bolts and 4 nuts. Torque: 11 N·m {107 kgf·cm, 8ft·lbf} HINT: Install the No. 1 monolithic converter protector within the angle range specified in the illustration. Text in Illustration *a Top *b 33.7 to 41.7° 2. INSTALL MONOLITHIC CONVERTER PROTECTOR (for Bank 2) (a) Install the 2 No. 1 converter protector stays and 2 No. 2 converter protector stays to the front exhaust pipe assembly. (b) Install the lower monolithic converter protector and upper monolithic converter protector with the 4 bolts and 4 nuts. Torque: 11 N·m {107 kgf·cm, 8ft·lbf} HINT: Install the monolithic converter protector within the angle range specified in the illustration. Text in Illustration 3UR-FE EXHAUST: EXHAUST PIPE: REASSEMBLY; 2015 MY Tund... |
