Toyota Tundra (2015 year). Manual - part 2425
TERMINAL NO.
(SYMBOLS)
WIRING
COLOR
TERMINAL
DESCRIPTION
CONDITION
SPECIFIED
CONDITION
Ignition switch ON, oil pressure
warning OFF
11 to 14 V
J28-29 (+S) -
Body ground
V - Body
ground
Speed signal (output)
Ignition switch ON, wheel turned
slowly
Pulse generation
J28-30 (SI) -
Body ground
LG - Body
ground
Speed signal (input)
Ignition switch ON, wheel turned
slowly
Pulse generation
J28-31 (P) -
Body ground
GR - Body
ground
A/T shift position
signal P
Ignition switch ON, shift lever is
except P position
Below 1 V
Ignition switch ON, shift lever is P
position
11 to 14 V
J28-32 (R) -
Body ground
BR - Body
ground
A/T shift position
signal R
Ignition switch ON, shift lever is
except R position
Below 1 V
Ignition switch ON, shift lever is R
position
11 to 14 V
J28-33 (N) -
Body ground
L - Body
ground
A/T shift position
signal N
Ignition switch ON, shift lever is
except N position
Below 1 V
Ignition switch ON, shift lever is N
position
11 to 14 V
J28-34 (D) -
Body ground
G - Body
ground
A/T shift position
signal D
Ignition switch ON, shift lever is
except D position
Below 1 V
Ignition switch ON, shift lever is D
position
11 to 14 V
J28-35 (4) -
Body ground
P - Body
ground
A/T shift position
signal S
Ignition switch ON, shift lever is
except S position
Below 1 V
Ignition switch ON, shift lever is S
position
11 to 14 V
J28-36 (MSSL) -
Body ground
V - Body
ground
DISP switch signal
Ignition switch ON, DISP switch
OFF
10 kΩ or higher
Ignition switch ON, DISP switch ON
Below 1 Ω
J28-37 (LP) -
Body ground*2
L - Body
ground
Security indicator light
signal
Immobiliser set status (SET)
Alternating between
11 to 14 V and below
1 V
Immobiliser set status (UNSET)
Below 1 V
*1: w/ Intuitive Parking Assist System
*2: w/ Engine Immobiliser System

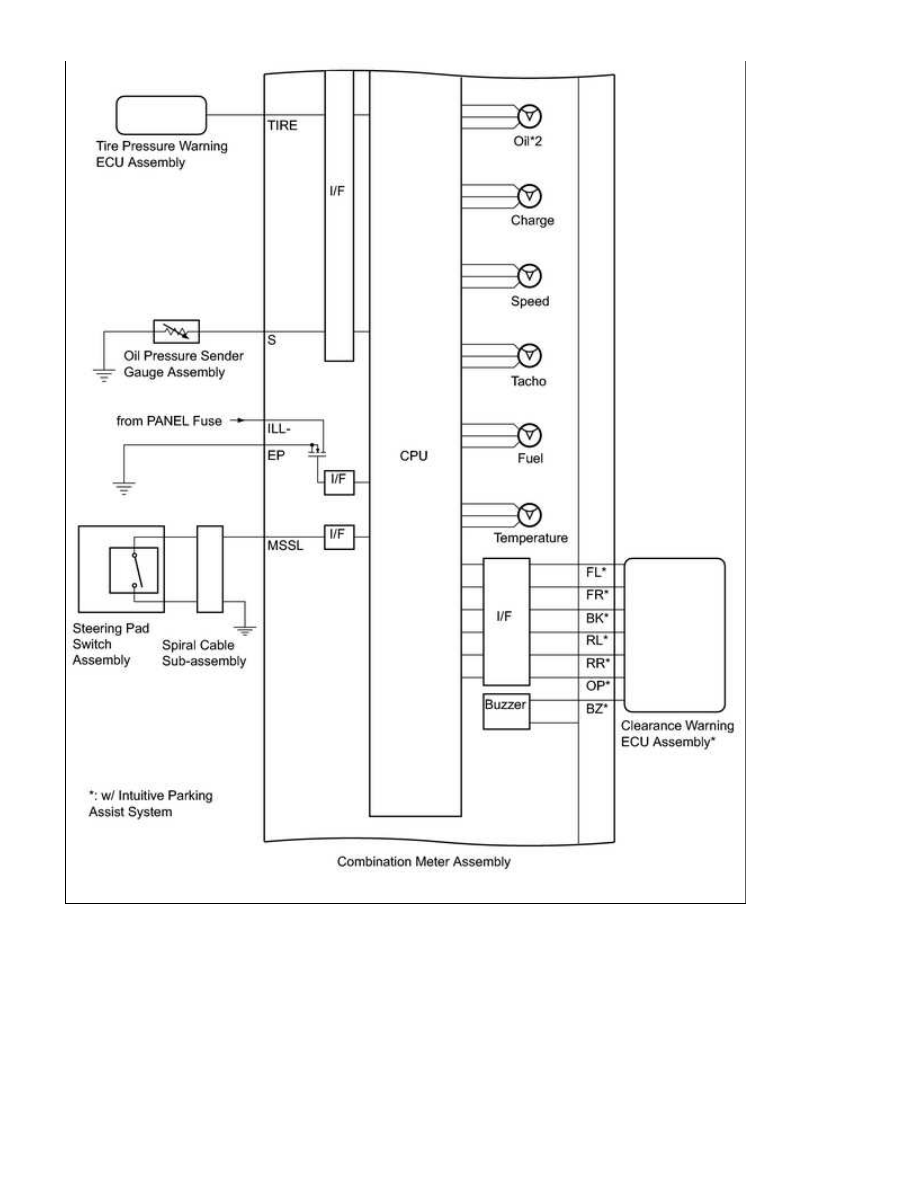

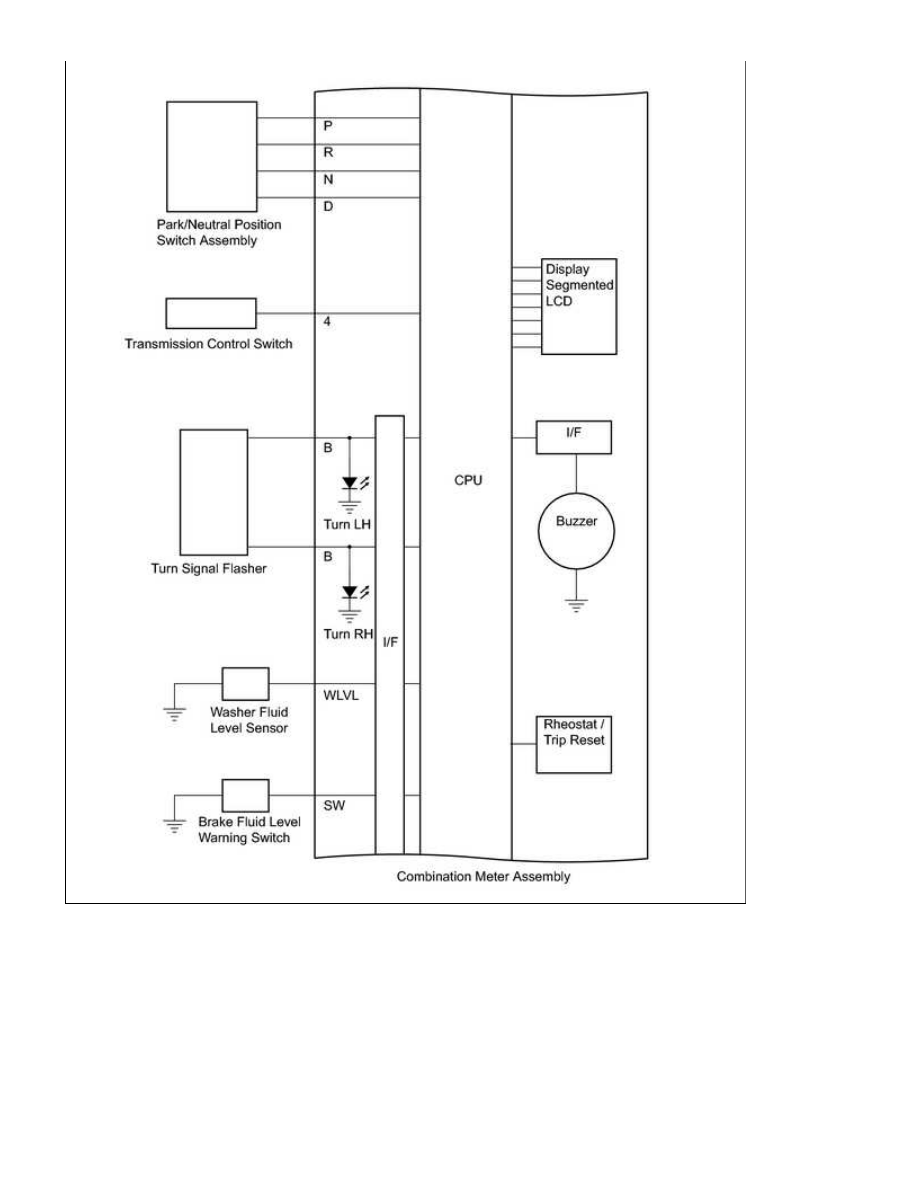

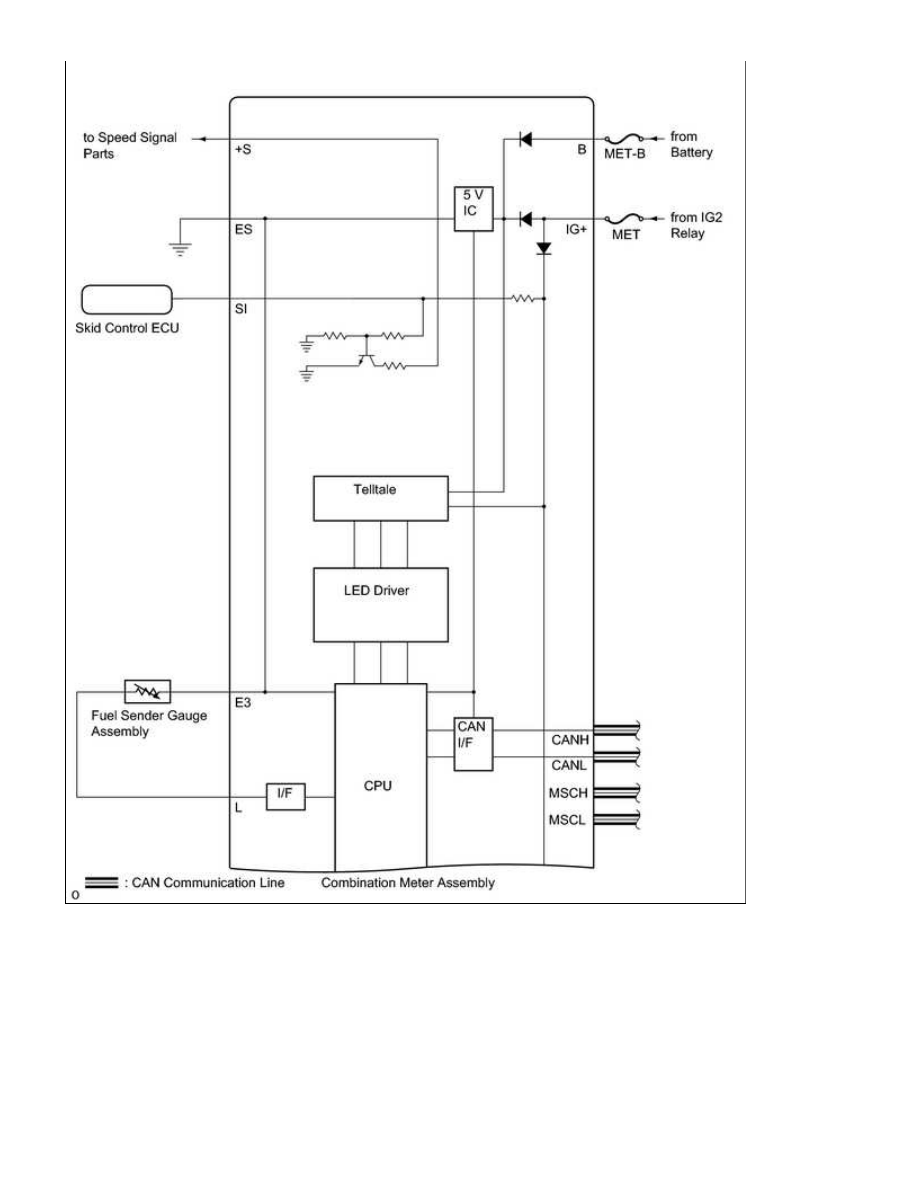

2. CHECK COMBINATION METER INNER CIRCUIT
METER: METER / GAUGE SYSTEM: TERMINALS OF ECU; 2015 M...
