Toyota Tundra (2015 year). Manual - part 2387





42. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected



.

43. RESTORE AUTOAWAY/RETURN FUNCTION (for Power Tilt and Power Telescopic

Steering Column)

(a) Restore the Autoaway/Return function setting to the previous condition by changing the customize

parameter



.

44. CHECK SRS WARNING LIGHT

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD (for Floo...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM0000030T500IX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: INTERIOR: OVERHEAD CONSOLE BOX: REMOVAL; 2015 MY Tundra [08/2014 -        ]

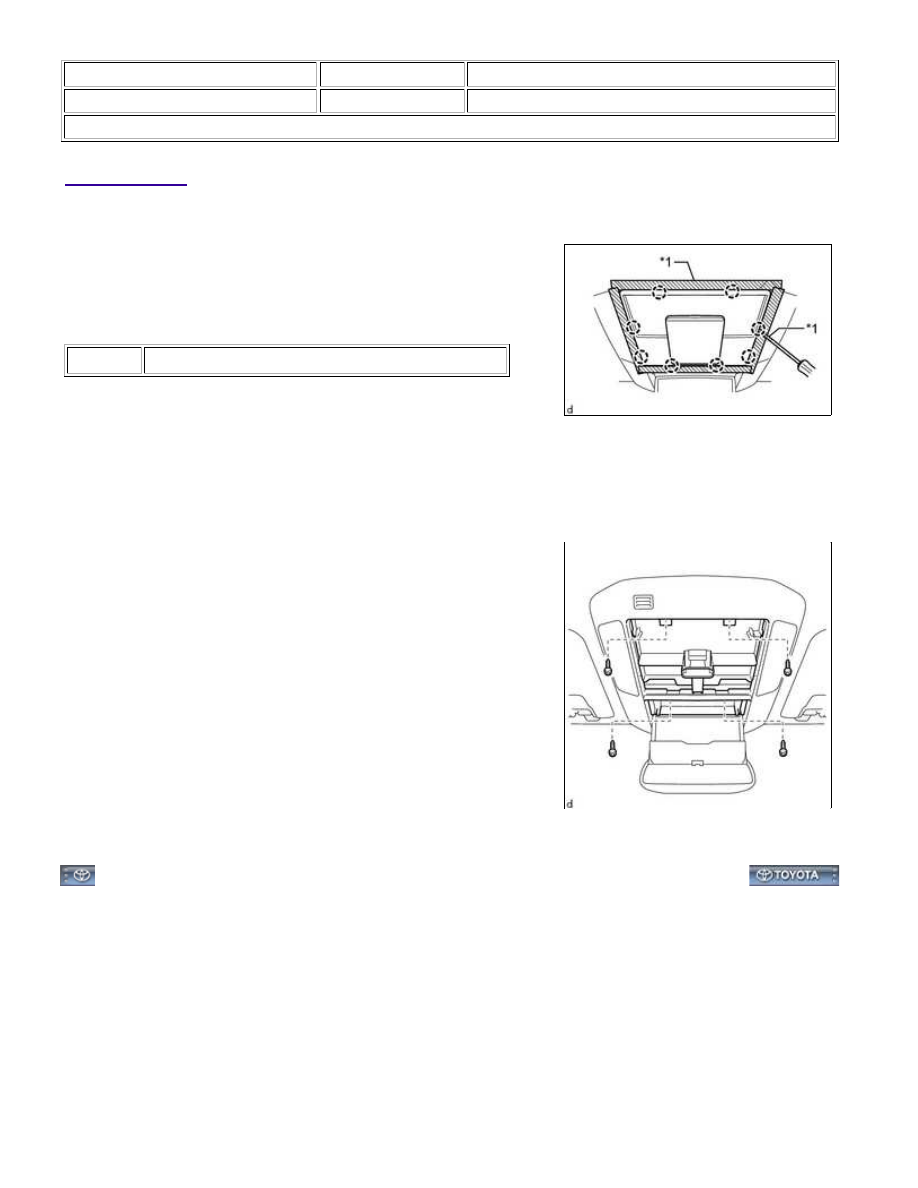

REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

(a) Apply protective tape as shown in the illustration.

Text in Illustration

*1

Protective Tape

Tape the screwdriver tip before use.

(c) Using a T20 "TORX" driver, remove the 4 "TORX" screws and

INTERIOR: OVERHEAD CONSOLE BOX: REMOVAL; 2015 MY Tundr...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM0000030T500IX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: INTERIOR: OVERHEAD CONSOLE BOX: REMOVAL; 2015 MY Tundra [08/2014 -        ]

REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

(a) Apply protective tape as shown in the illustration.

Text in Illustration

*1

Protective Tape

Tape the screwdriver tip before use.

(c) Using a T20 "TORX" driver, remove the 4 "TORX" screws and

INTERIOR: OVERHEAD CONSOLE BOX: REMOVAL; 2015 MY Tundr...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002VHR02SX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD (for Floor Shift Type): INSTALLATION; 2015 MY

Tundra [08/2014 -        ]

INSTALLATION

HINT:

A bolt without a torque specification is shown in the standard bolt chart



.

1. INSTALL NO. 1 INSTRUMENT PANEL CLIP

2. INSTALL NO. 3 INSTRUMENT PANEL STAY

3. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY

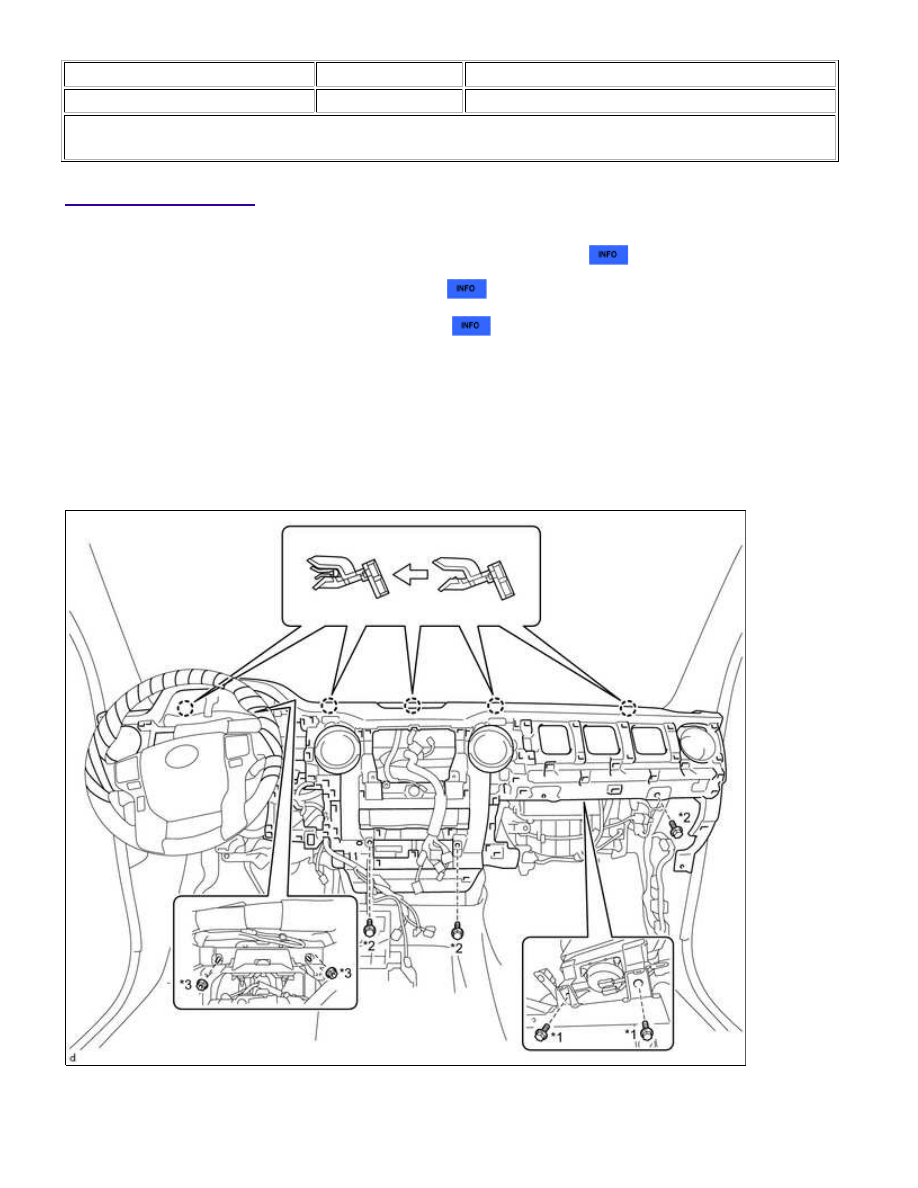

(a) Set the instrument panel sub-assembly and attach the 5 claws.

(b) Install the 2 nuts <C> and 3 bolts <B>.

(c) Install the 2 bolts <G>.

Torque:

20 N·m {204 kgf·cm, 15ft·lbf}

Text in Illustration
