BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: ...

Last Modified: 9-16-2014

6.6 U

Doc ID: RM000001DWX03BX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: SYSTEM DIAGRAM; 2015 MY Tundra [08/2014

-        ]

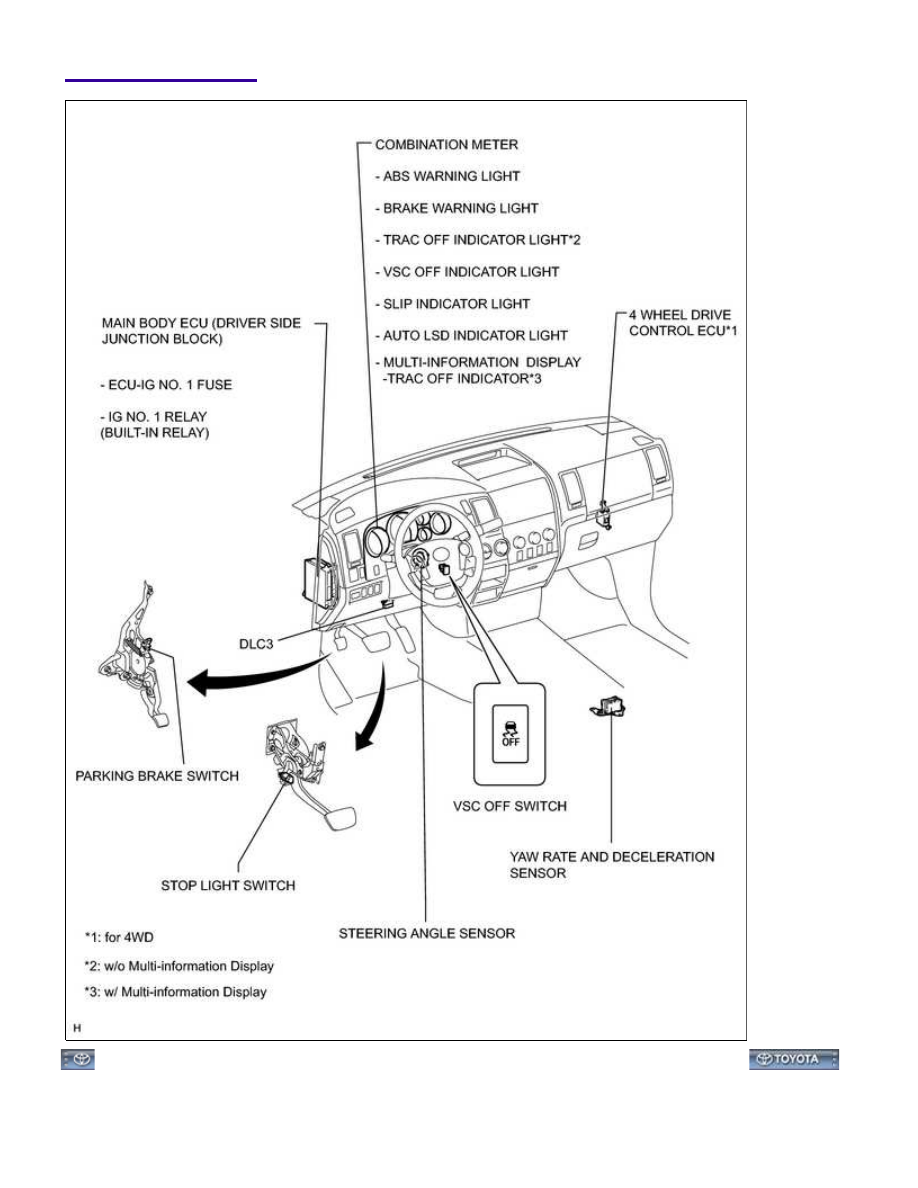

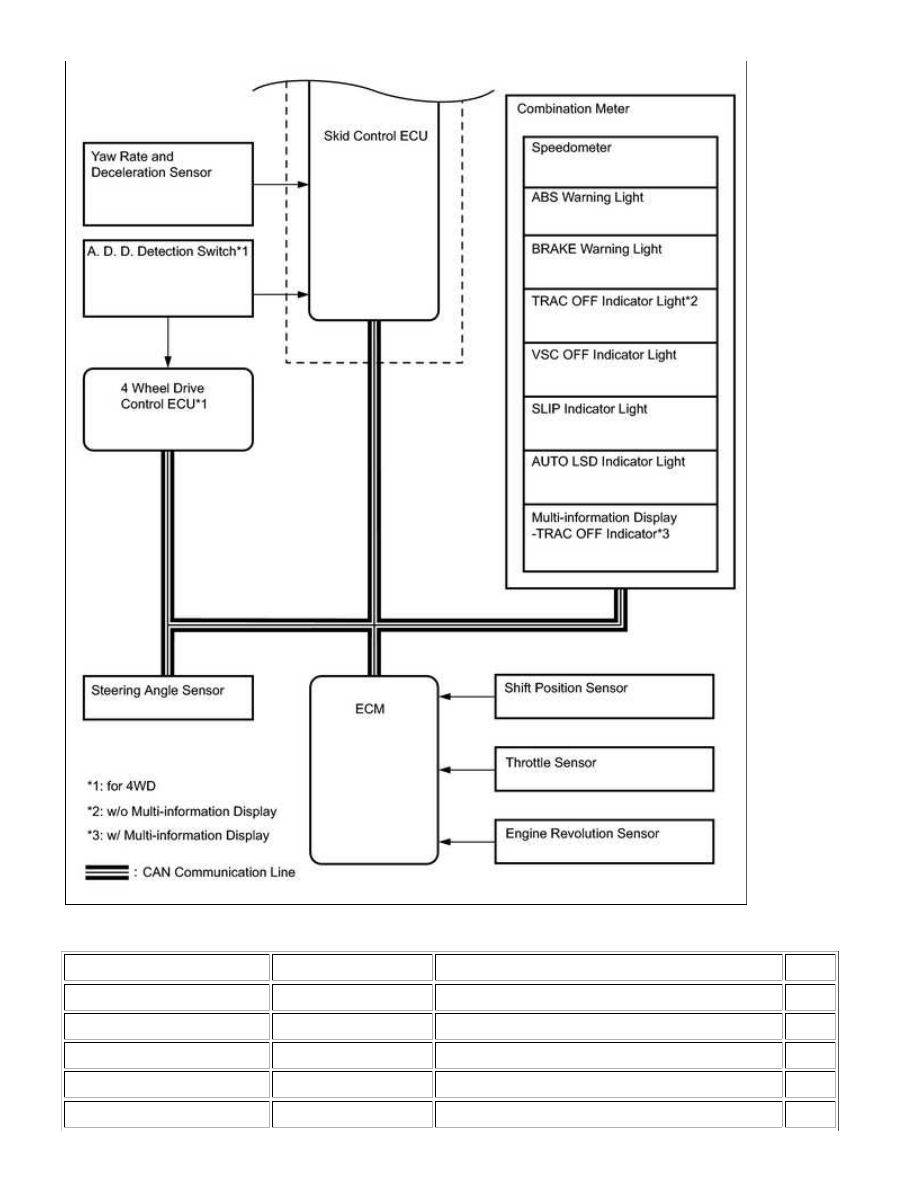

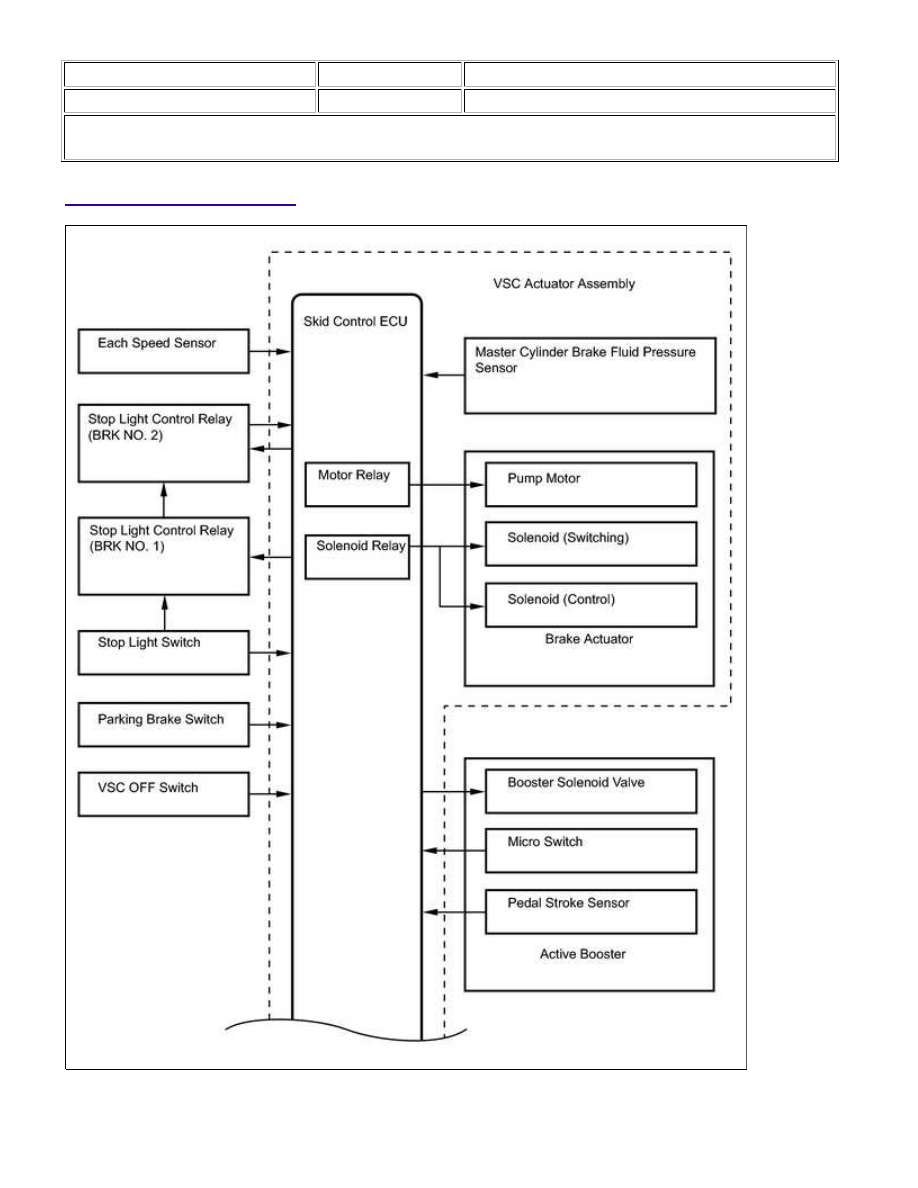

SYSTEM DIAGRAM

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: ...

Communication table:

SENDER

RECEIVER

SIGNAL

LINE

ECM

Skid control ECU

Throttle position signal

CAN

ECM

Skid control ECU

Engine revolution signal

CAN

ECM

Skid control ECU

Accelerator pedal position signal

CAN

ECM

Skid control ECU

Intake temperature sensor signal

CAN

Skid control ECU

ECM

Yaw rate and deceleration signal

CAN

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: ...

SENDER

RECEIVER

SIGNAL

LINE

Steering angle sensor

ECM

Steering angle signal

CAN

Skid control ECU

ECM

Throttle opening angle request signal

CAN

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: ...
