Toyota Tundra (2015 year). Manual - part 2187

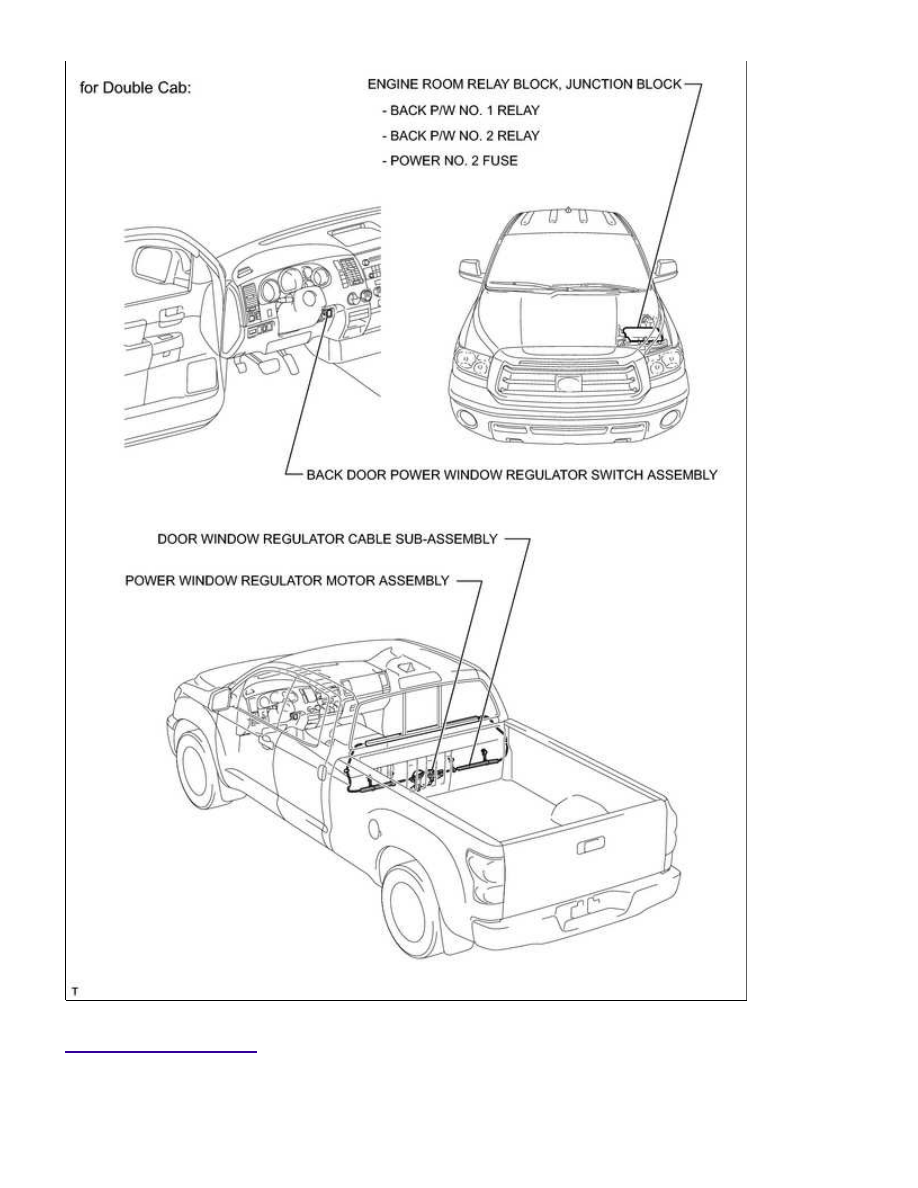

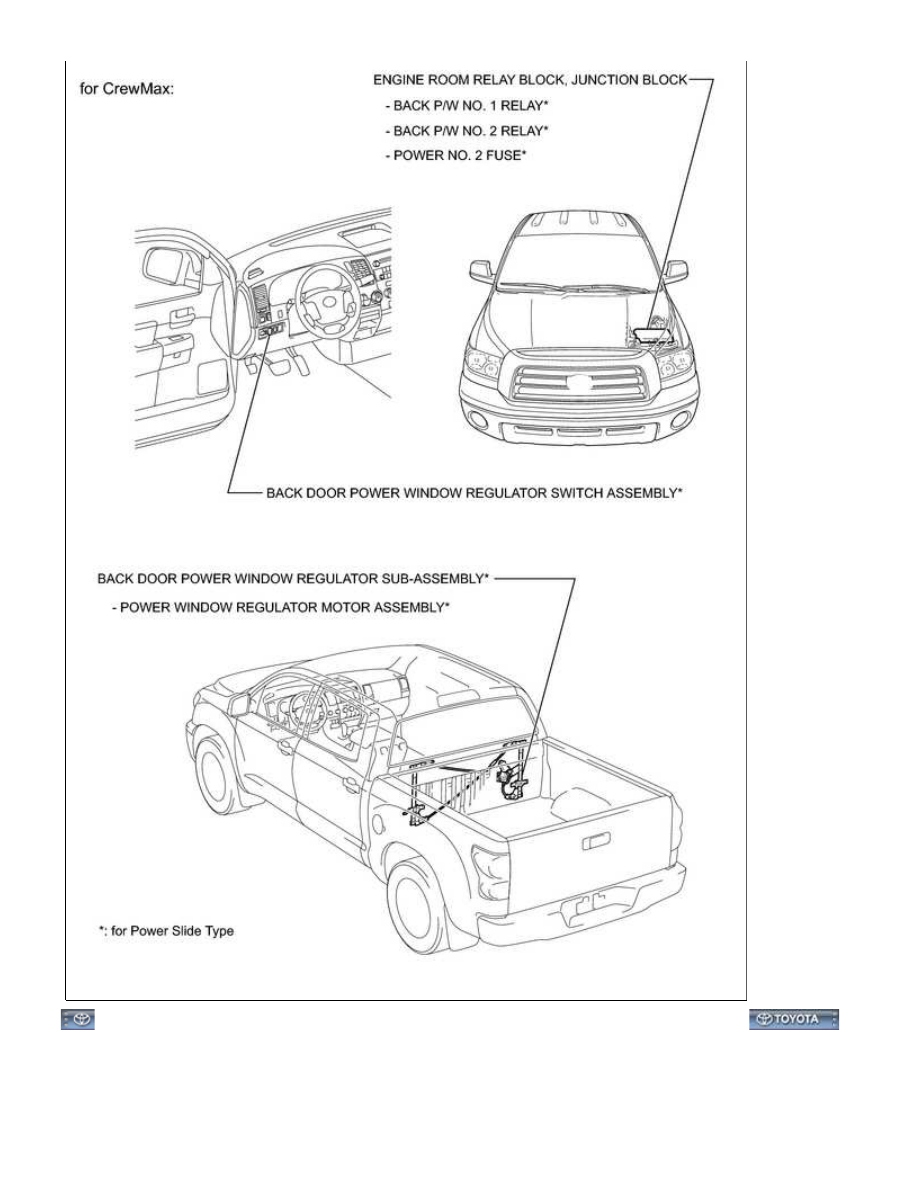

ILLUSTRATION

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL ...

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL ...

Last Modified: 9-16-2014

6.6 U

Doc ID: RM0000027QK02NX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function):

SYSTEM DIAGRAM; 2015 MY Tundra [08/2014 -        ]

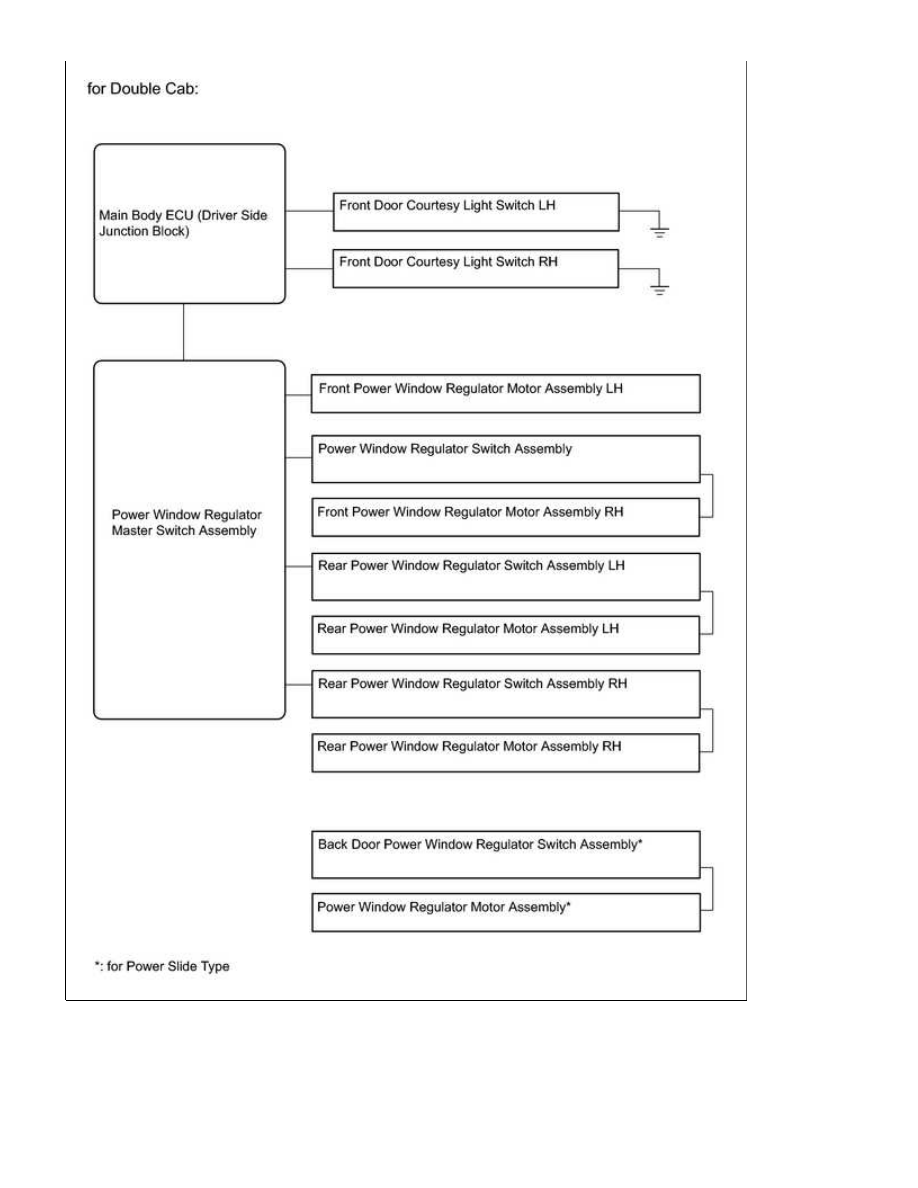

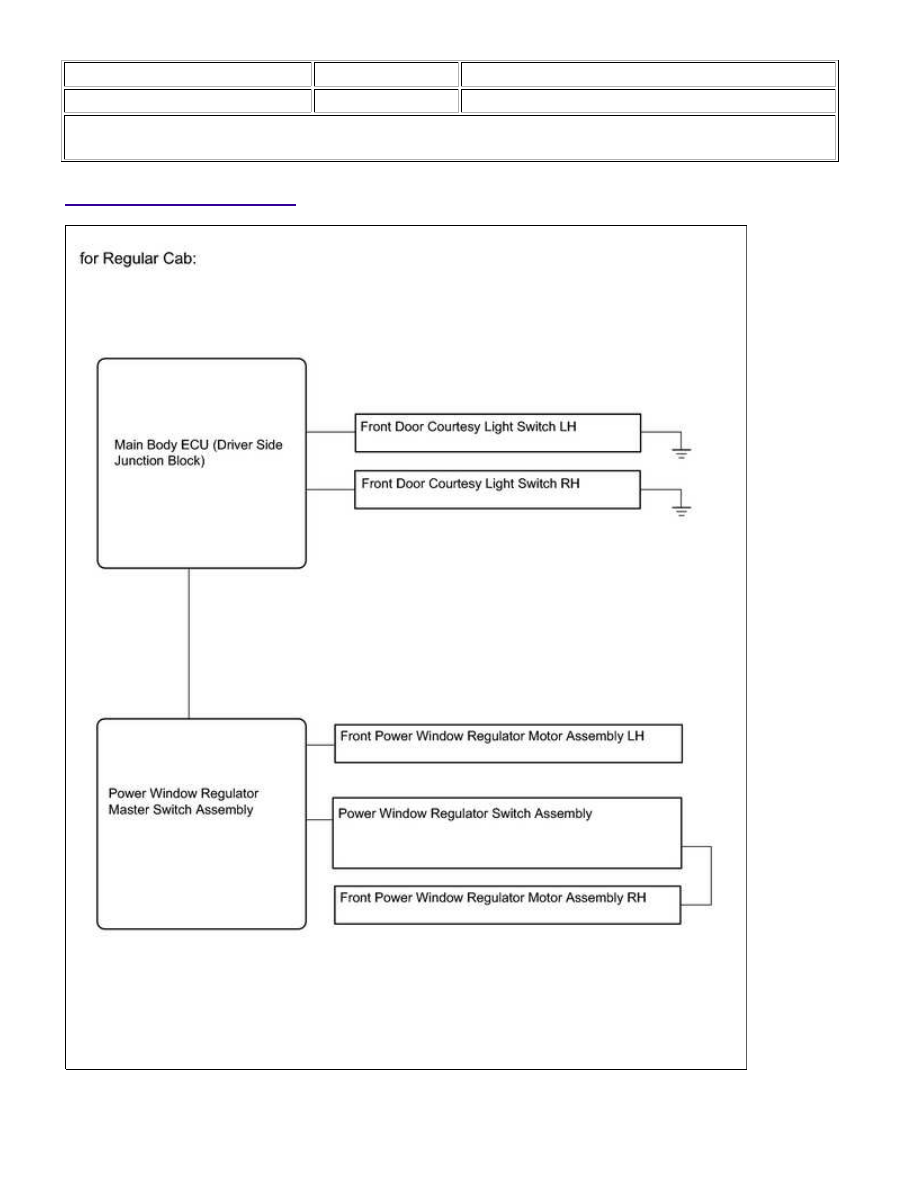

SYSTEM DIAGRAM

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL ...

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL ...
