Toyota Tundra (2015 year). Manual - part 2092





NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN

IN PROBLEM SYMPTOMS TABLE

LIGHTING: LIGHTING SYSTEM: Headlight Dimmer Switch Circuit; ...

Last Modified: 9-16-2014

6.6 J

Doc ID: RM000002WL000LX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: LIGHTING: LIGHTING SYSTEM: DRL Relay Circuit; 2015 MY Tundra [08/2014 -        ]

DRL Relay Circuit

DESCRIPTION

The main body ECU controls the daytime running lights.

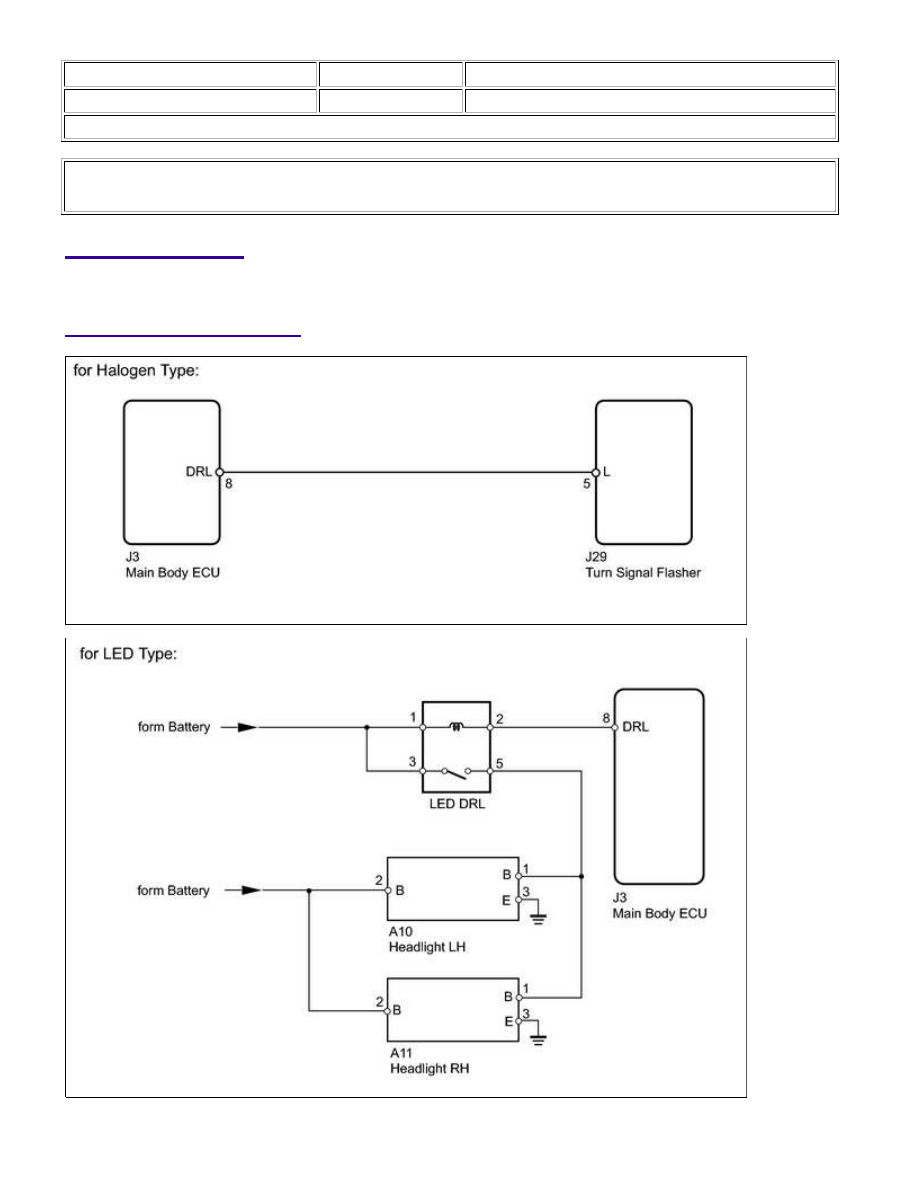

WIRING DIAGRAM

LIGHTING: LIGHTING SYSTEM: DRL Relay Circuit; 2015 MY Tundr...

A

INSPECTION PROCEDURE

HINT:

Inspect the headlights for circuits related to this system before performing the following inspection

procedure.

PROCEDURE

1.

CHECK VEHICLE TYPE

(a) Check vehicle type.

Result

RESULT

PROCEED TO

for Halogen Type

A

for LED Type

B

B

GO TO STEP 4

2.

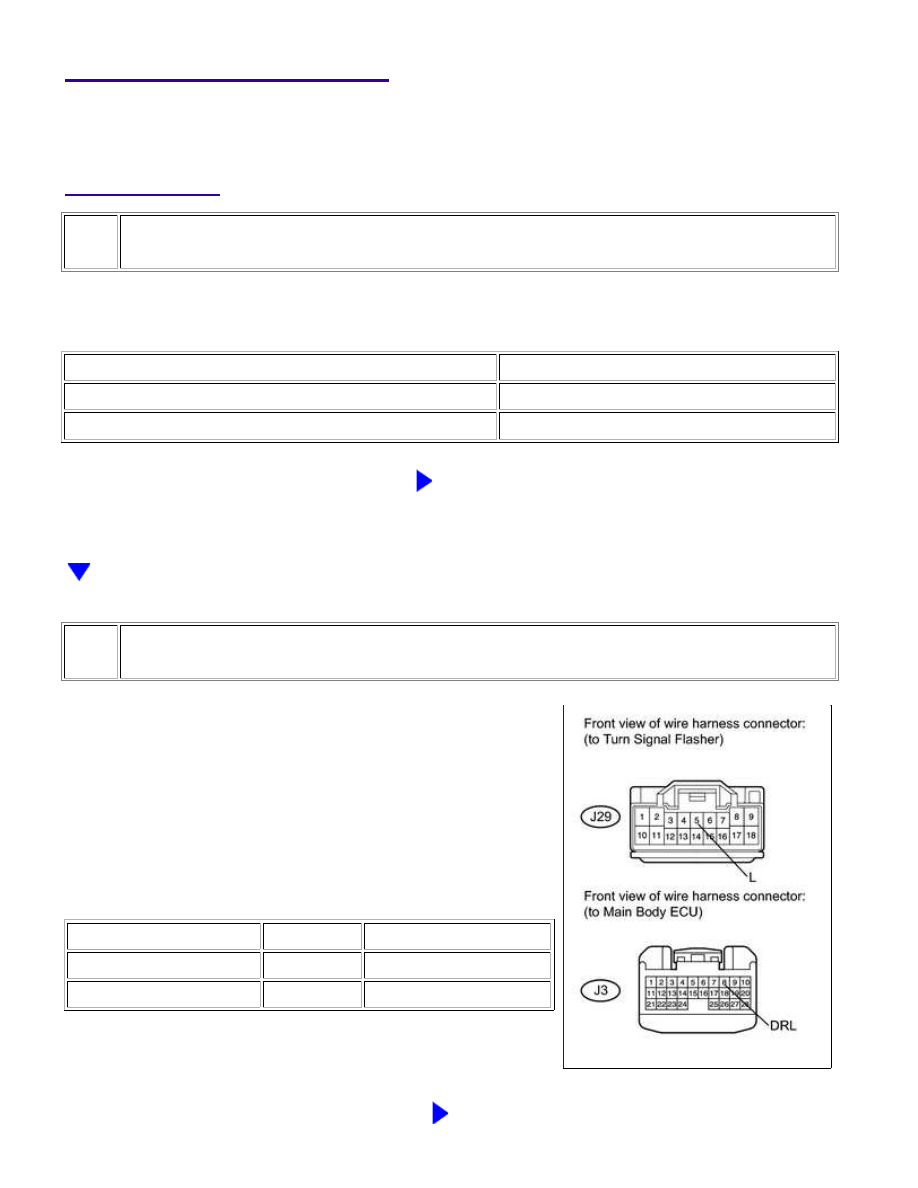

CHECK HARNESS AND CONNECTOR (TURN SIGNAL FLASHER - MAIN BODY ECU)

(a) Disconnect the J29 relay connector.

(b) Disconnect the J3 ECU connector.

(c) Measure the resistance according to the value(s) in the table

below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J29-5 (L) - J3-8 (DRL)

Always

Below 1 Ω

J29-5 (L) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

LIGHTING: LIGHTING SYSTEM: DRL Relay Circuit; 2015 MY Tundr...

OK

3.

CHECK MAIN BODY ECU

(a) Disconnect the J29 relay connector.

(b) Measure the voltage according to the value(s) in the table

below.

Standard voltage:

TESTER CONNECTION SWITCH CONDITION SPECIFIED CONDITION

8 (DRL) - Body ground

Ignition switch ON

11 to 14 V

Ignition switch OFF

Below 1 V

NG

REPLACE MAIN BODY ECU

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN

IN PROBLEM SYMPTOMS TABLE

4.

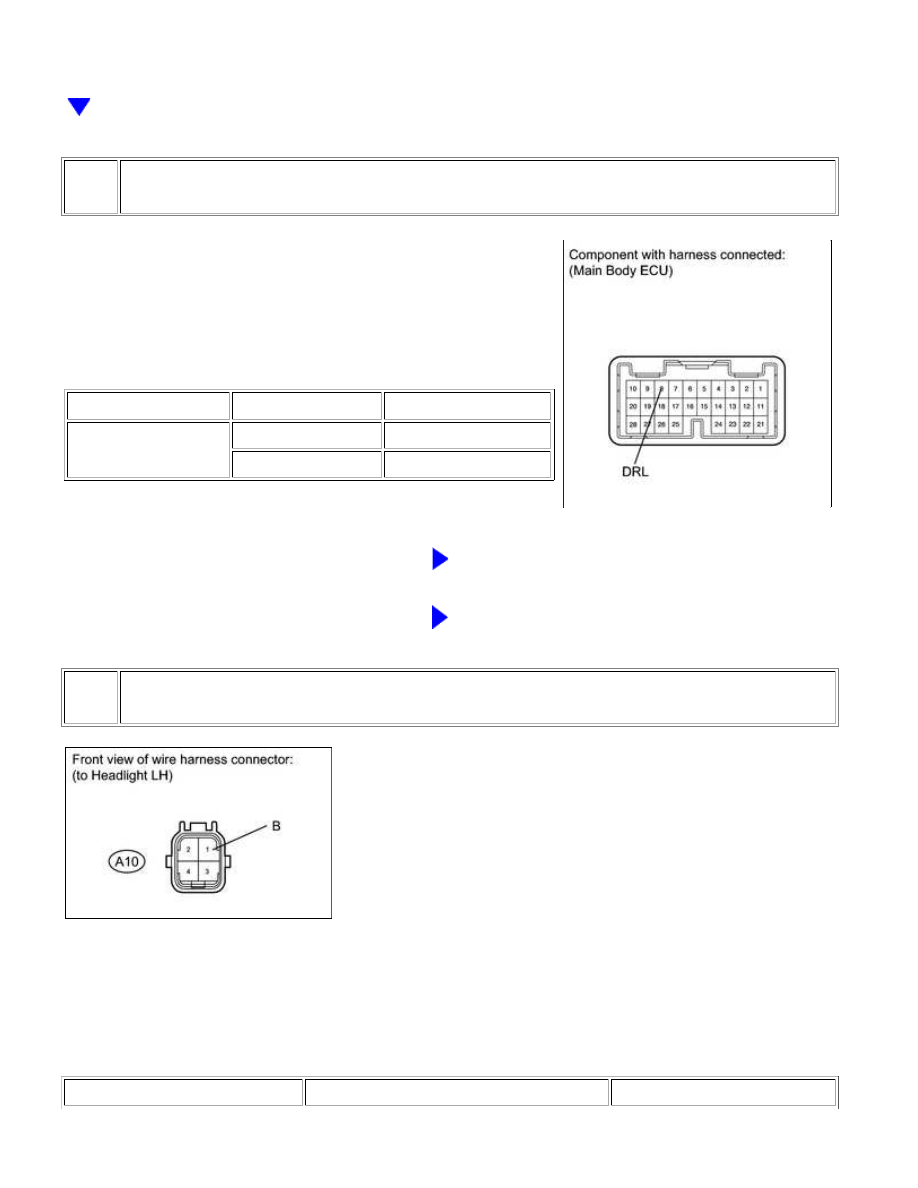

CHECK HARNESS AND CONNECTOR (HEADLIGHT - BATTERY)

(a) for LH:

(1) Disconnect the A10 headlight connector.

(2) Measure the voltage according to the value(s) in the table below.

Standard voltage:

TESTER CONNECTION

SWITCH CONDITION

SPECIFIED CONDITION

LIGHTING: LIGHTING SYSTEM: DRL Relay Circuit; 2015 MY Tundr...
