Toyota Tundra (2015 year). Manual - part 2036





OK

OK

OK

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

D90-1 (APH+) - Body ground

Activate the Air Pump Heater is ON

11 to 14 V

(f) Reconnect the air pump connector.

NG

GO TO STEP 4

3.

INSPECT AIR PUMP ASSEMBLY (BANK 1 OR BANK 2) (HEATER RESISTANCE)

(a) Inspect the air pump assembly (bank 1 or bank 2)



.

NG

REPLACE AIR PUMP ASSEMBLY (BANK 1 OR

BANK 2)

4.

INSPECT AIR PUMP HEATER RELAY

(a) Inspect the air pump heater relay



.

NG

REPLACE AIR PUMP HEATER RELAY

5.

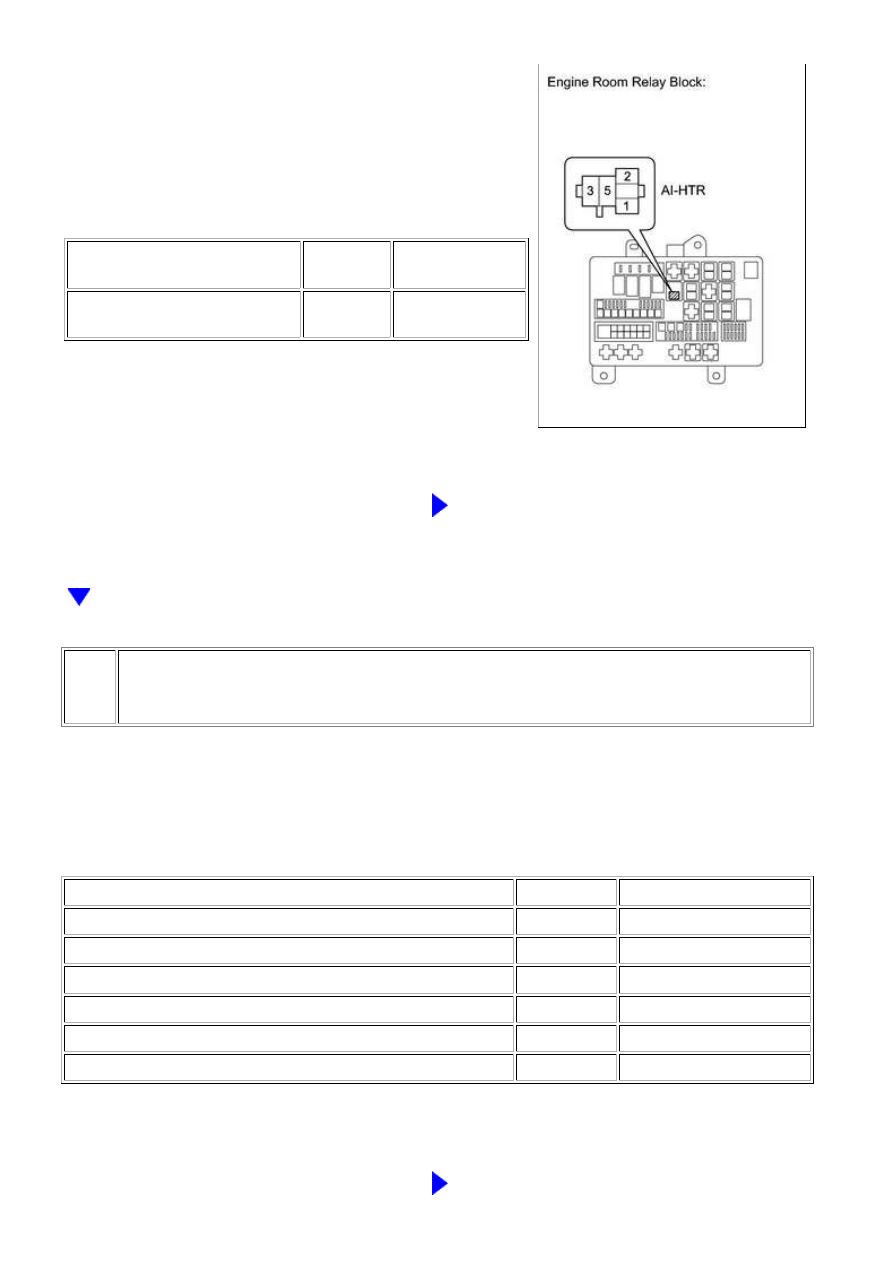

CHECK AIR PUMP HEATER RELAY (POWER SOURCE)

(a) Remove the air pump heater relay (AI-HTR).

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2444-P2447;...

OK

(b) Measure the voltage according to the value(s) in the

table below.

Standard Voltage

TESTER CONNECTION

CONDITION

SPECIFIED

CONDITION

Air pump heater relay terminal 5

- Body ground

Always

11 to 14 V

(c) Reinstall the air pump heater relay (AI-HTR).

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.

CHECK HARNESS AND CONNECTOR (AIR PUMP - AIR PUMP HEATER RELAY,
BODY GROUND)

(a) Remove the air pump heater relay (AI-HTR).

(b) Disconnect the air pump connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

AI-HTR relay terminal 3 - D89-1 (APH+)

Always

Below 1 Ω

AI-HTR relay terminal 3 - D90-1 (APH+)

Always

Below 1 Ω

D89-3 (APHG) - Body ground

Always

Below 1 Ω

D90-3 (APHG) - Body ground

Always

Below 1 Ω

AI-HTR relay terminal 3 or D89-1 (APH+) - Body ground

Always

10 kΩ or higher

AI-HTR relay terminal 3 or D90-1 (APH+) - Body ground

Always

10 kΩ or higher

(d) Reinstall the air pump heater relay (AI-HTR).

(e) Reconnect the air pump connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2444-P2447;...

OK

7.

PERFORM ACTIVE TEST USING TECHSTREAM (SECONDARY AIR INJECTION
SYSTEM OPERATION)

(a) Start the engine and warm it up.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON and turn the Techstream on.

(e) Enter the following menus: Powertrain / Engine and ECT / Utility / Air Injection Check /

Manual Mode / AIR PUMP 1: ON, ASV1: OPEN, AIR PUMP 2: ON, ASV2: OPEN and AIR PUMP 1:
OFF, ASV1: CLOSE, AIR PUMP 2: OFF, ASV2: CLOSE.

HINT:

When Manual Mode is selected, the Techstream initialization (atmospheric pressure measurement) is

performed automatically. The initialization takes 10 seconds. After the initialization, AIR PUMP and ASV
operation can be selected.

(f) Start the engine.

(g) Perform the AIR system intrusive operation while the engine is idling.

(h) Check that the air pump (AIR PUMP), ASV and pressure in the AIR system passage

(PRESSURE) status displayed on the Techstream indicate the conditions shown in the table
below.

Standard:

OPERATION

AIR PUMP

ASV

PRESSURE*

AIR PUMP: ON, ASV: OPEN

ON

OPEN

2.4 kPa or more

AIR PUMP: OFF, ASV: CLOSE

OFF

CLOSE

Less than 2.4 kPa

*: Average pumping pressure. The pressure should be 2.4 kPa or more when the AIR system operates.

(i) Turn the ignition switch off.

NOTICE:

the prohibition (WAIT or ERROR).

If an ERROR is displayed on the Techstream during the test, stop the engine for 10 minutes, and

then try again.

OK

A

NG

GO TO STEP 9

8.

CHECK WHETHER DTC OUTPUT RECURS (DTC P2444, P2445, P2446 AND/OR
P2247)

(a) Start the engine and warm it up.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON and turn the Techstream on.

(e) Clear DTCs (if set)



.

(f) Enter the following menus: Powertrain / Engine and ECT / Utility / Air Injection Check /

Automatic Mode.

(g) Start the engine after the Techstream initialization is finished.

(h) Perform the System Check operation by pressing Next.

(i) After operating the AIR system, perform the following to confirm the AIR system pending

codes: Press the Exit button.

(j) Check pending DTCs.

(k) Turn the ignition switch off.

NOTICE:

When performing the Air Injection Check operation after the battery cable has been reconnected, wait
for 7 minutes with the ignition switch turned to ON or the engine running.
Turn the ignition switch off when the Air Injection Check operation finishes.

Result

RESULT

PROCEED TO

P2444, P2445, P2446 and/or P2447 are output

A

No pending DTC is output

B

B

CHECK FOR INTERMITTENT PROBLEMS

9.

CHECK VACUUM HOSES (PRESSURE SENSOR - AIR SWITCHING VALVE)

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2444-P2447;...
