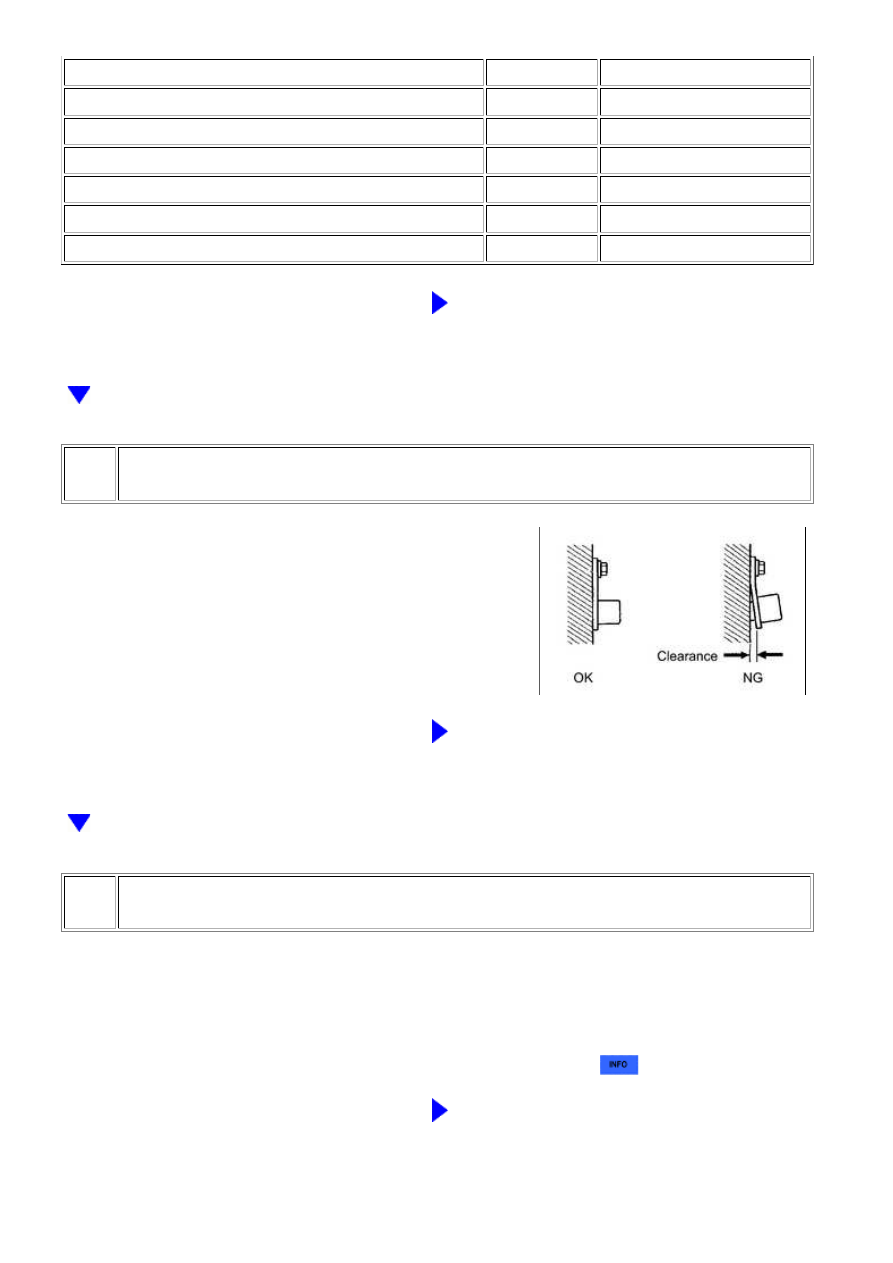

OK OK OK TESTER CONNECTION CONDITION SPECIFIED CONDITION D39-1 (VVR+) - D74-87 (VV2+) Always Below 1 Ω D39-2 (VVR-) - D74-88 (VV2-) Always Below 1 Ω D37-1 (VVL+) or D74-92 (VV1+) - Body ground Always 10 kΩ or higher D37-2 (VVL-) or D74-91 (VV1-) - Body ground Always 10 kΩ or higher D39-1 (VVR+) or D74-87 (VV2+) - Body ground Always 10 kΩ or higher D39-2 (VVR-) or D74-88 (VV2-) - Body ground Always 10 kΩ or higher NG REPAIR OR REPLACE HARNESS OR CONNECTOR 3. CHECK SENSOR INSTALLATION (VVT SENSOR FOR INTAKE CAMSHAFT) (a) Check the VVT sensor installation. OK: Sensor is installed correctly. NG SECURELY REINSTALL SENSOR 4. CHECK INTAKE CAMSHAFT (TEETH) Teeth do not have any cracks or deformation. HINT: Perform "Inspection After Repair" after replacing the camshaft assembly
. NG REPLACE INTAKE CAMSHAFT 3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0340,P0342... |
