Toyota Tundra (2015 year). Manual - part 1716





7. REMOVE CYLINDER HEAD GASKET LH

3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD GASKET (fo...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002S5003RX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: 3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD GASKET (for Bank 1): INSTALLATION; 2015 MY

Tundra [08/2014 -        ]

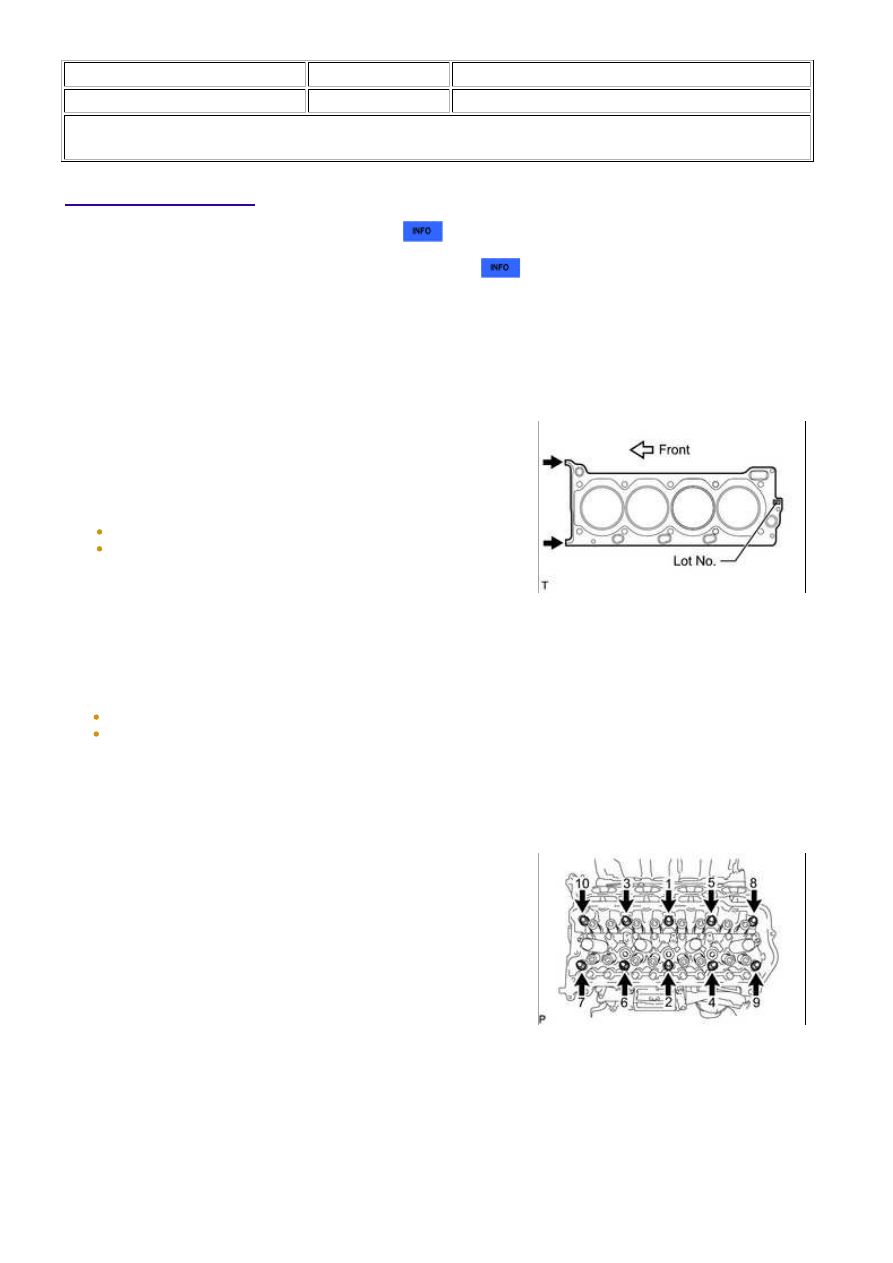

INSTALLATION

1. INSPECT CYLINDER HEAD SET BOLT

2. INSPECT CYLINDER HEAD SUB-ASSEMBLY LH

3. INSTALL CYLINDER HEAD GASKET LH

(a) Check the piston protrusions for each cylinder.

(1) Clean the cylinder block with solvent.

(a) Place the cylinder head on the cylinder block.

NOTICE:

The cylinder head bolts are tightened in 3 progressive steps.

(1) Using a 10 mm bi-hexagon wrench, install and uniformly

tighten the 10 cylinder head bolts with the plate washers

in several steps, in the sequence shown in the illustration.

Torque:

36 N·m {367 kgf·cm, 27ft·lbf}

3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD GASKET (fo...

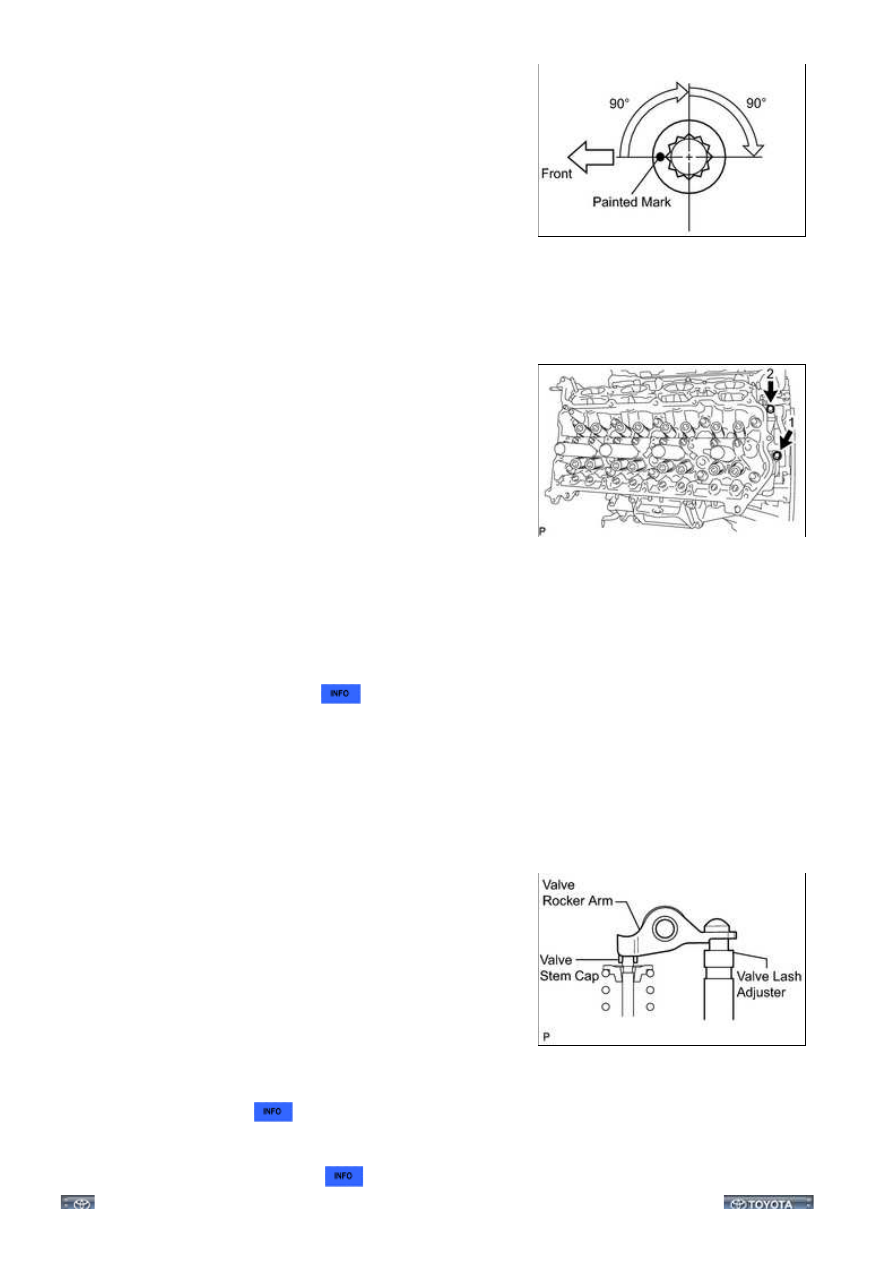

(d) Step 2:

(1) Mark each cylinder head bolt head with paint as shown in

the illustration.

(2) Tighten the cylinder head bolts another 90° in the

sequence shown in step 1.

(e) Step 3:

(1) Tighten the cylinder head bolts an additional 90° in the sequence shown in step 1.

(2) Check that the painted marks are now facing rearward.

(f) Install and uniformly tighten the 2 bolts in the sequence

shown in the illustration.

Torque:

21 N·m {214 kgf·cm, 15ft·lbf}

5. INSTALL VALVE STEM CAP

6. INSTALL VALVE LASH ADJUSTER ASSEMBLY

(a) Inspect the valve lash adjuster



.

(b) Install the 16 valve lash adjusters to the cylinder head.

NOTICE:

Install the lash adjuster at the same place it was removed from.

7. INSTALL NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

(a) Apply engine oil to the lash adjuster tips and valve stem cap ends.

(b) Install the 16 valve rocker arms as shown in the illustration.

8. INSTALL CAMSHAFTS (for Bank 1)

(a) Install the camshafts



.

9. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH

(a) Install the exhaust manifold LH



.

3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD GASKET (fo...

3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD GASKET (fo...
