Toyota Tundra (2015 year). Manual - part 1692





OK

REPLACE FUEL SUCTION WITH PUMP AND

GAUGE TUBE ASSEMBLY

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: Fuel Pressur...

Last Modified: 9-16-2014

6.6 J

Doc ID: RM000000WZ30B4X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: 3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: Cranking Holding Function Circuit; 2015 MY Tundra

[08/2014 -        ]

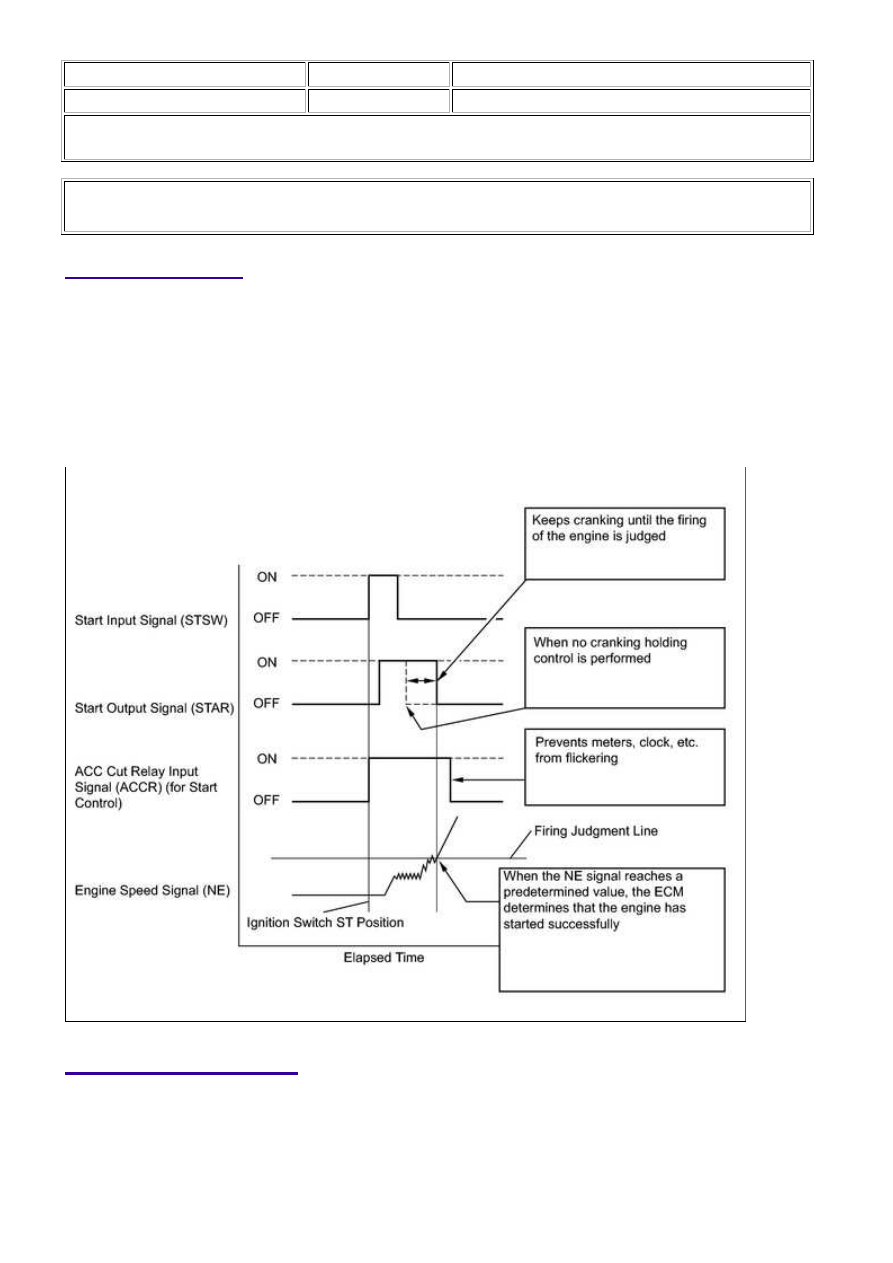

Cranking Holding Function Circuit

DESCRIPTION

The cranking holding control system provides current to the starter when the ECM detects the ignition switch's

start signal (STSW). When the ECM performs a firing judgment, the system cuts current to the starter. When

output signal travels through the Park/Neutral Position (PNP) switch to the ST relay, causing the starter to

activate.

When the engine is cranking, the starter operation signal is sent to the ECM's STA terminal.

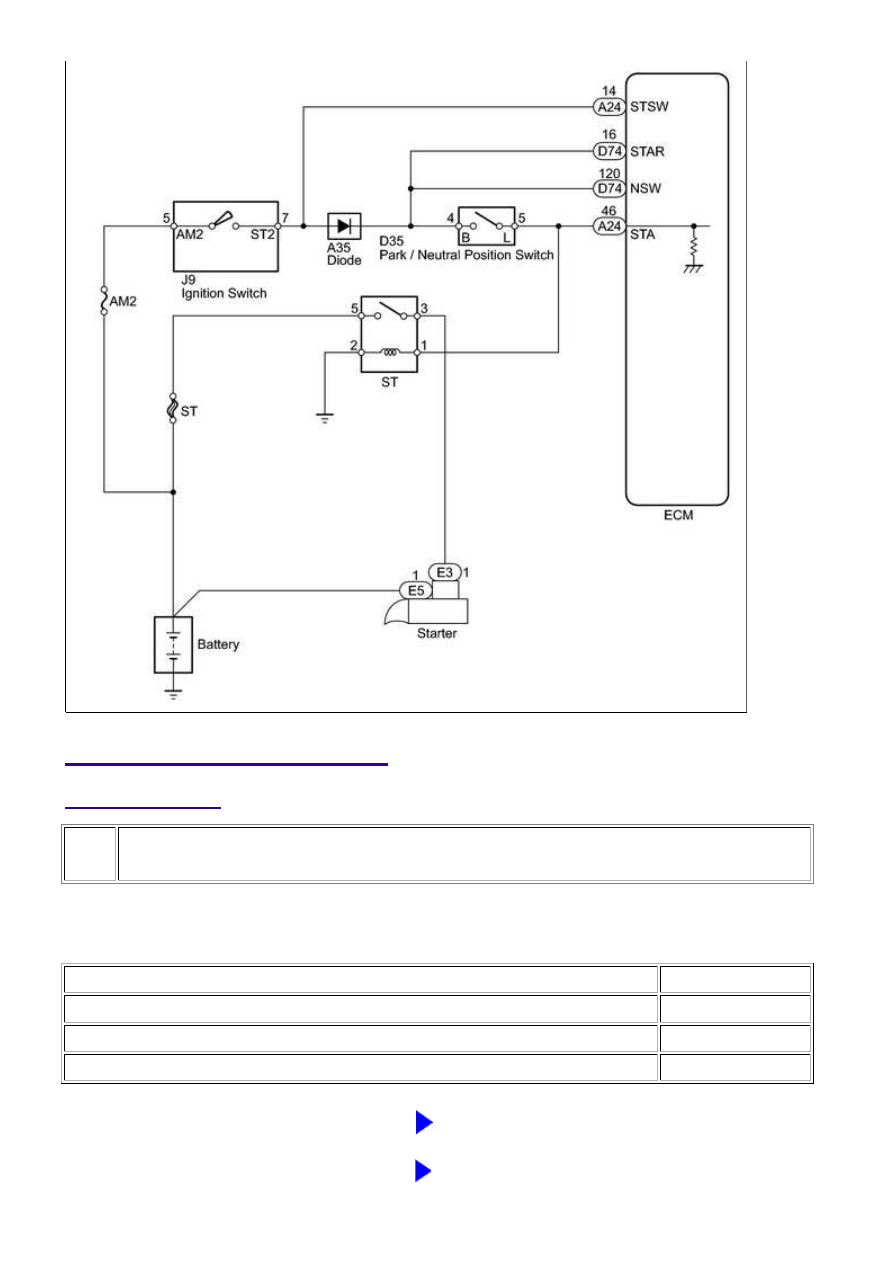

WIRING DIAGRAM

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: Cranking Ho...

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK CRANKING

TEST RESULT

PROCEED TO

Cranking possible and holding control operates

A

Does not crank

B

Cranking possible but holding control does not operate

C

B

GO TO STEP 2

C

GO TO STEP 11

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: Cranking Ho...

OK

A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN

PROBLEM SYMPTOMS TABLE

2.

READ VALUE USING TECHSTREAM (STARTER SIGNAL)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream ON.

(d) Enter the following menus: Powertrain / Engine and ECT / Data List / Starter Signal.

(e) Read values.

(f) Check the result when the ignition switch is turned to ON and when the engine is started.

Standard:

IGNITION SWITCH POSITION

DISPLAY (STARTER SIGNAL)

ON

OFF

START

ON

NG

GO TO STEP 7

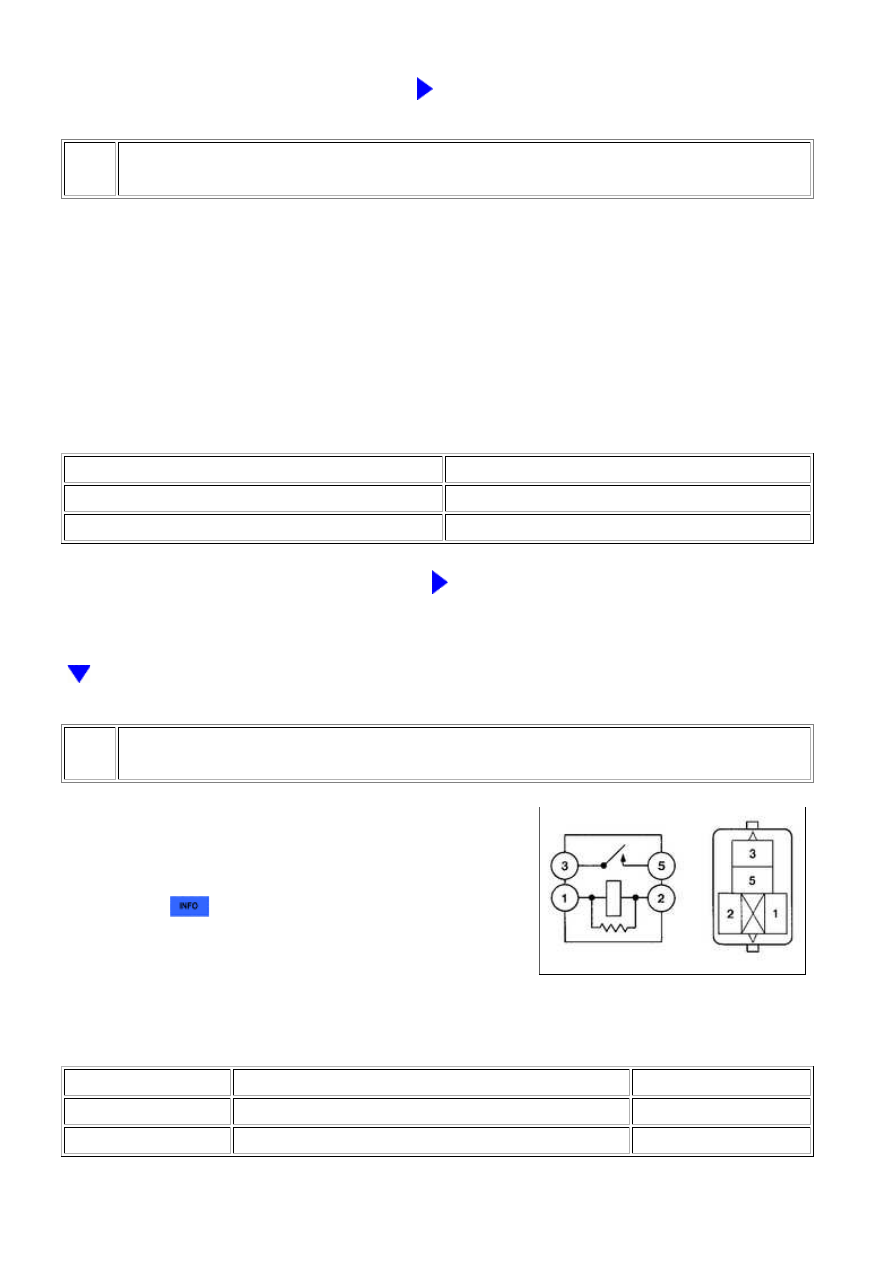

3.

INSPECT STARTER RELAY (ST)

(a) Remove the starter relay (ST) from the engine room

relay block



.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

3 - 5

When no battery voltage applied to terminals 1 and 2

10 kΩ or higher

3 - 5

When battery voltage applied to terminals 1 and 2

Below 1 Ω

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: Cranking Ho...
