OK

OK

NEXT

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

R6-4 (B) or R8-1 (FP) - Body ground

Always

10 kΩ or higher

R6-5 (E) or R8-2 (FP-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.

CHECK HARNESS AND CONNECTOR (FUEL PUMP ECU - ECM AND BODY GROUND)

(a) Disconnect the R7 fuel pump ECU connector.

(b) Disconnect the A24 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

R7-1 (FPC) - A24-52 (FPC)

Always

Below 1 Ω

R7-2 (DI) - A24-18 (DI)

Always

Below 1 Ω

R7-3 (E) - Body ground

Always

Below 1 Ω

R7-1 (FPC) or A24-52 (FPC) - Body ground

Always

10 kΩ or more

R7-2 (DI) or A24-18 (DI) - Body ground

Always

10 kΩ or more

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.

REPLACE FUEL PUMP ECU

(a) Replace the fuel pump ECU



.

6.

CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED

(a) Check the fuel pump operation.

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: Fuel Pump C...

OK

OK:

Malfunction has been repaired successfully.

NG

REPLACE ECM

OK

END

7.

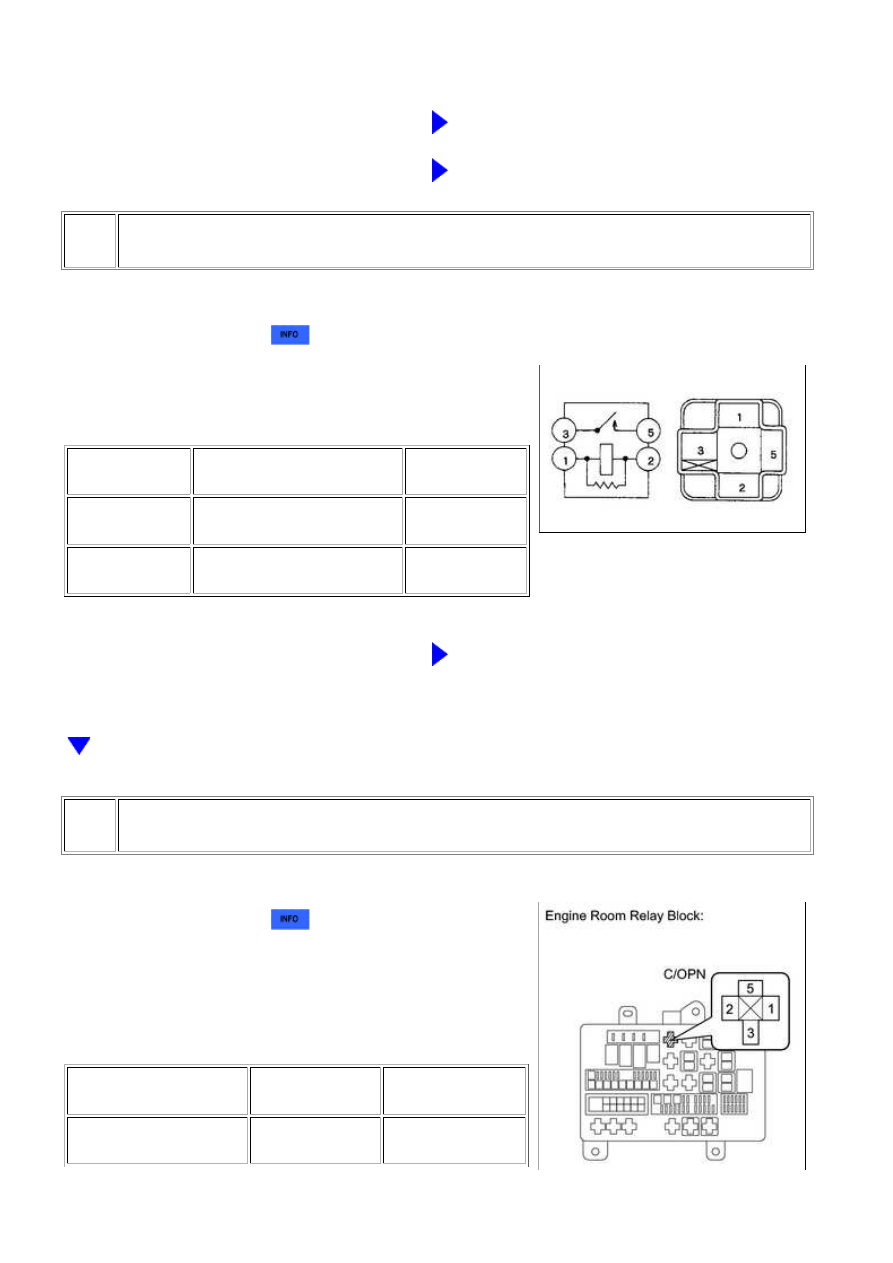

INSPECT CIRCUIT OPENING RELAY (C/OPN)

(a) Remove the circuit opening relay (C/OPN) from the

engine room relay block



.

(b) Measure the resistance according to the value(s) in the

table below.

Standard resistance:

TESTER

CONNECTION

CONDITION

SPECIFIED

CONDITION

3 - 5

When no battery voltage

applied to terminals 1 and 2

10 kΩ or higher

3 - 5

When battery voltage applied

to terminals 1 and 2

Below 1 Ω

NG

REPLACE CIRCUIT OPENING RELAY (C/OPN)

8.

INSPECT CIRCUIT OPENING RELAY (POWER SOURCE VOLTAGE)

(a) Remove the circuit opening relay (C/OPN) from the

engine room relay block



.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the

table below.

Standard voltage:

TESTER CONNECTION

SWITCH

CONDITION

SPECIFIED

CONDITION

C/OPN relay (1) - Body

ground

Ignition switch ON

11 to 14 V

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: Fuel Pump C...

OK

OK

TESTER CONNECTION

SWITCH

CONDITION

SPECIFIED

CONDITION

C/OPN relay (3) - Body

ground

Ignition switch ON

11 to 14 V

NG

GO TO STEP 15

9.

CHECK HARNESS AND CONNECTOR (CIRCUIT OPENING RELAY - ECM AND FUEL
PUMP ECU)

(a) Remove the circuit opening relay (C/OPN) from the engine room relay block



.

(b) Disconnect the A24 ECM connector.

(c) Disconnect the R7 fuel pump ECU connector.

(d) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

C/OPN relay (2) - A24-48 (FC)

Always

Below 1 Ω

C/OPN relay (5) - R7-4 (+B)

Always

Below 1 Ω

C/OPN relay (2) or A24-48 (FC) - Body ground

Always

10 kΩ or higher

C/OPN relay (5) or R7-4 (+B) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.

CHECK HARNESS AND CONNECTOR (FUEL PUMP - FUEL PUMP ECU)

(a) Disconnect the R6 fuel pump connector.

(b) Disconnect the R8 fuel pump ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: Fuel Pump C...

OK

OK

OK

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

R6-4 (B) - R8-1 (FP)

Always

Below 1 Ω

R6-5 (E) - R8-2 (FP-)

Always

Below 1 Ω

R6-4 (B) or R8-1 (FP) - Body ground

Always

10 kΩ or higher

R6-5 (E) or R8-2 (FP-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

11.

INSPECT FUEL PUMP

(a) Inspect the fuel pump



.

NG

REPLACE FUEL PUMP

12.

CHECK HARNESS AND CONNECTOR (FUEL PUMP ECU - ECM AND BODY GROUND)

(a) Disconnect the R7 fuel pump ECU connector.

(b) Disconnect the A24 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

R7-1 (FPC) - A24-52 (FPC)

Always

Below 1 Ω

R7-2 (DI) - A24-18 (DI)

Always

Below 1 Ω

R7-3 (E) - Body ground

Always

Below 1 Ω

R7-1 (FPC) or A24-52 (FPC) - Body ground

Always

10 kΩ or more

R7-2 (DI) or A24-18 (DI) - Body ground

Always

10 kΩ or more

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
