Toyota Tundra (2015 year). Manual - part 1441
Torque:
8.0 N·m {82 kgf·cm, 71in·lbf}
4. INSTALL AIR PUMP ASSEMBLY WITH BRACKET

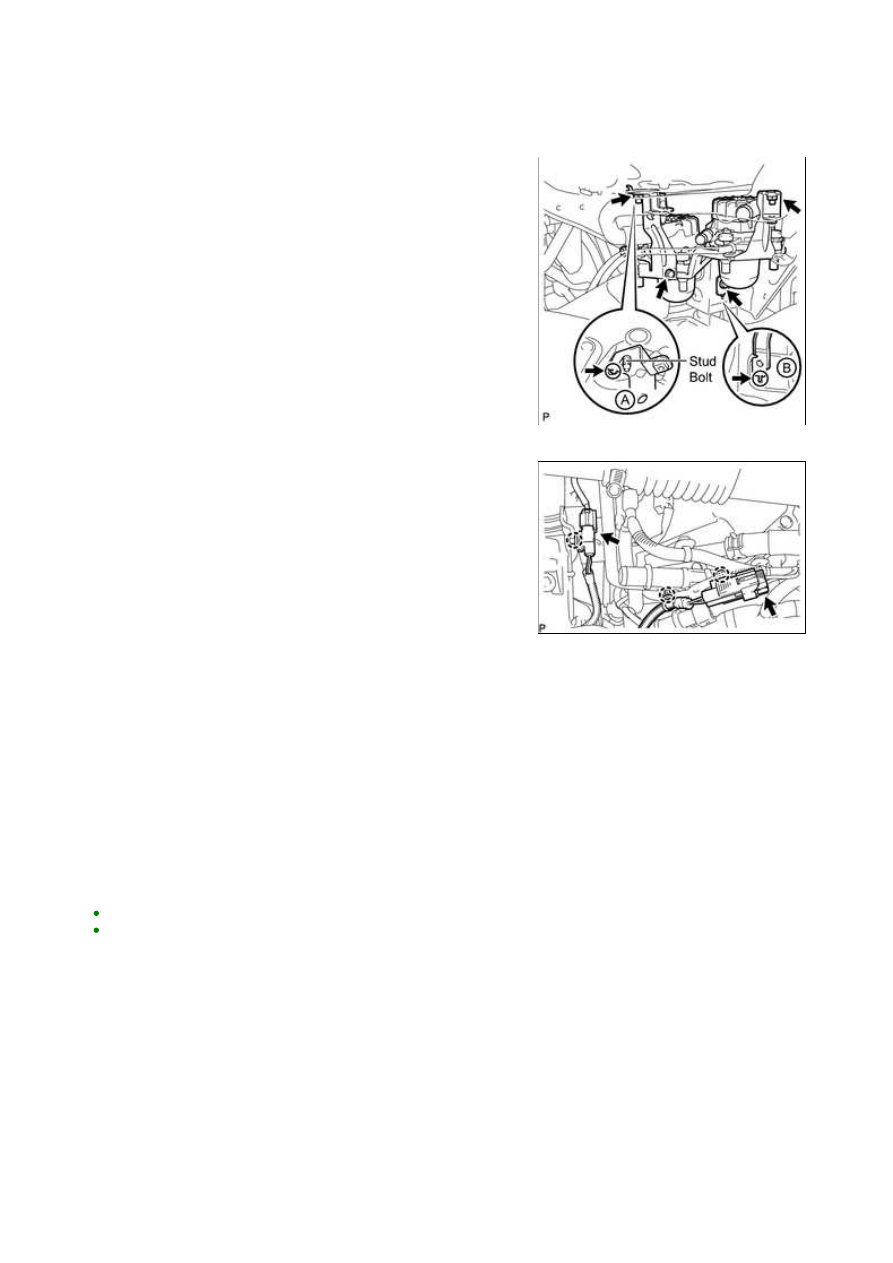

(a) Install the air pump to the vehicle.
(1) Insert the bracket tab into the slot and insert the stud bolt
into the bracket hole as shown in illustration A. Then slide
the bracket.
(2) Insert the bracket tab into the slot shown in illustration B.
(3) Install the 2 bolts and 2 nuts.
Torque:
for bolt -
18 N·m {184 kgf·cm, 13ft·lbf}
for nut -
12 N·m {122 kgf·cm, 9ft·lbf}
(b) Connect the 2 air pump connectors and attach the 3 wire
harness claws.

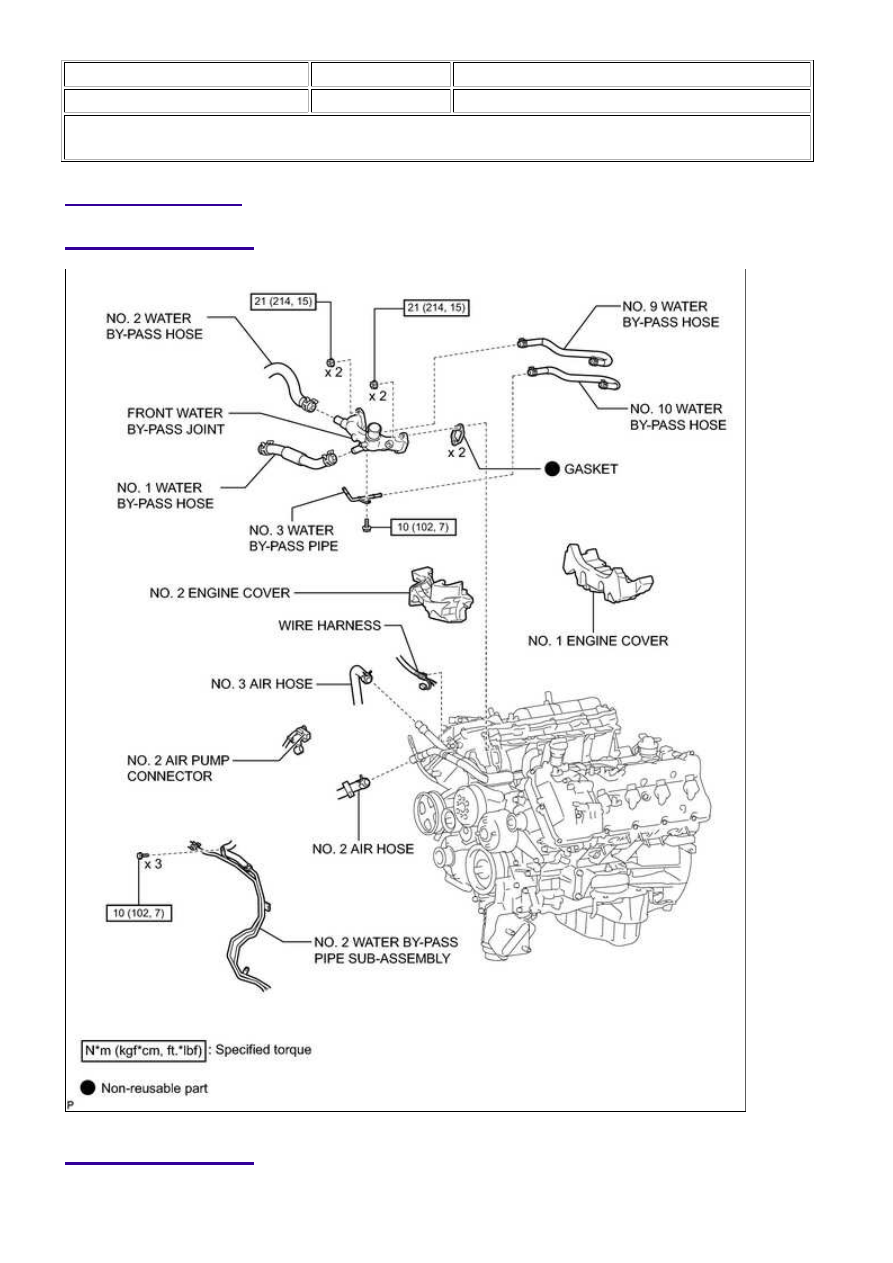

5. INSTALL NO. 3 AIR INJECTION SYSTEM HOSE

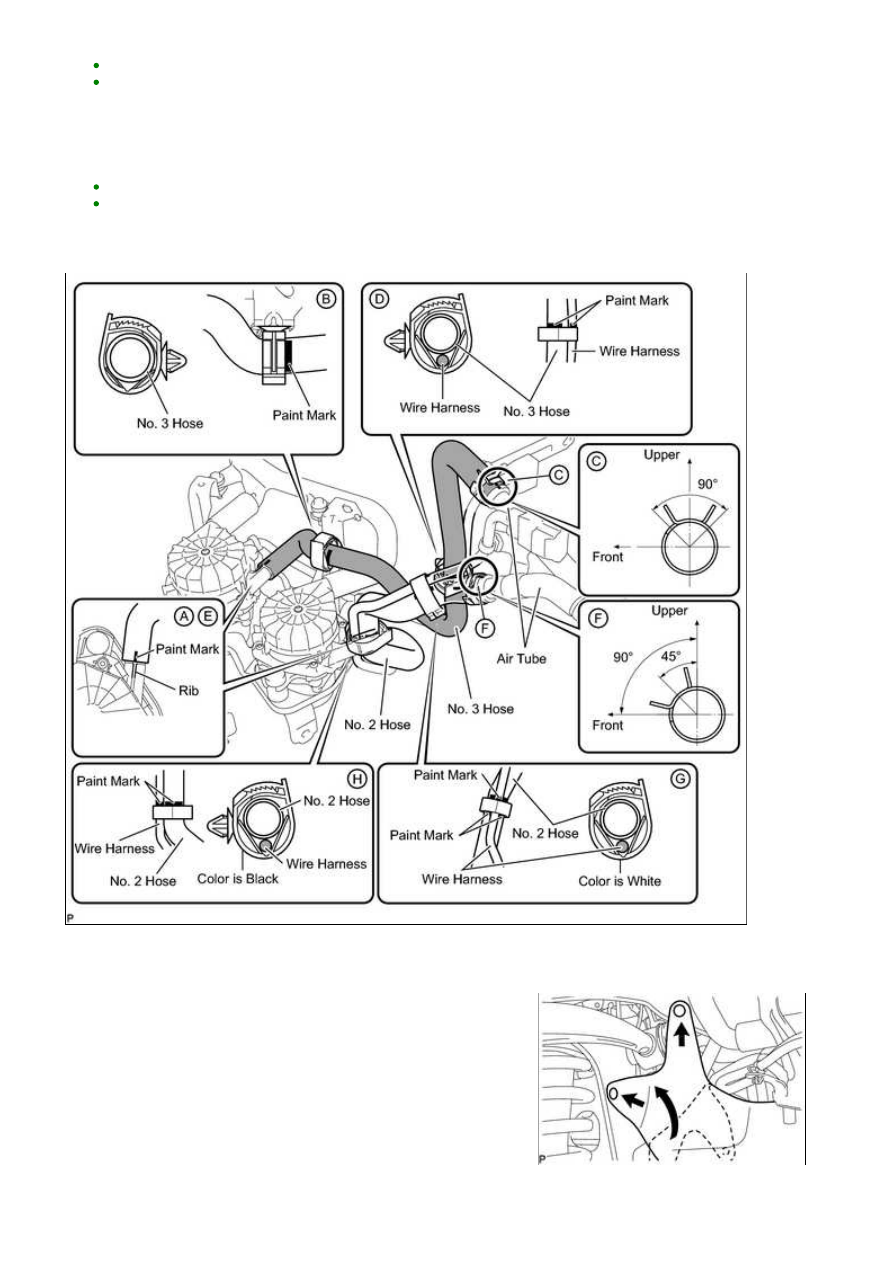

(a) Connect the No. 3 hose so that its paint mark aligns with the air pump's rib as shown in the illustration
below labeled A.
(b) Connect the clamp to the No. 3 hose shown in the illustration below labeled B. Then insert the clamp's
clip into the body hole.
HINT:
HINT:
insert the clamp's clip into the body hole.
HINT:
(a) Connect the No. 2 hose so that its paint mark aligns with the air pump's rib as shown in the illustration
below labeled E.
(b) Connect the No. 2 hose to the air tube shown in the illustration below labeled F.
HINT:
