Toyota Tundra (2015 year). Manual - part 1430

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000002ZQX00OX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: 3UR-FBE COOLING: FAN: COMPONENTS; 2015 MY Tundra [08/2014 - ]

COMPONENTS

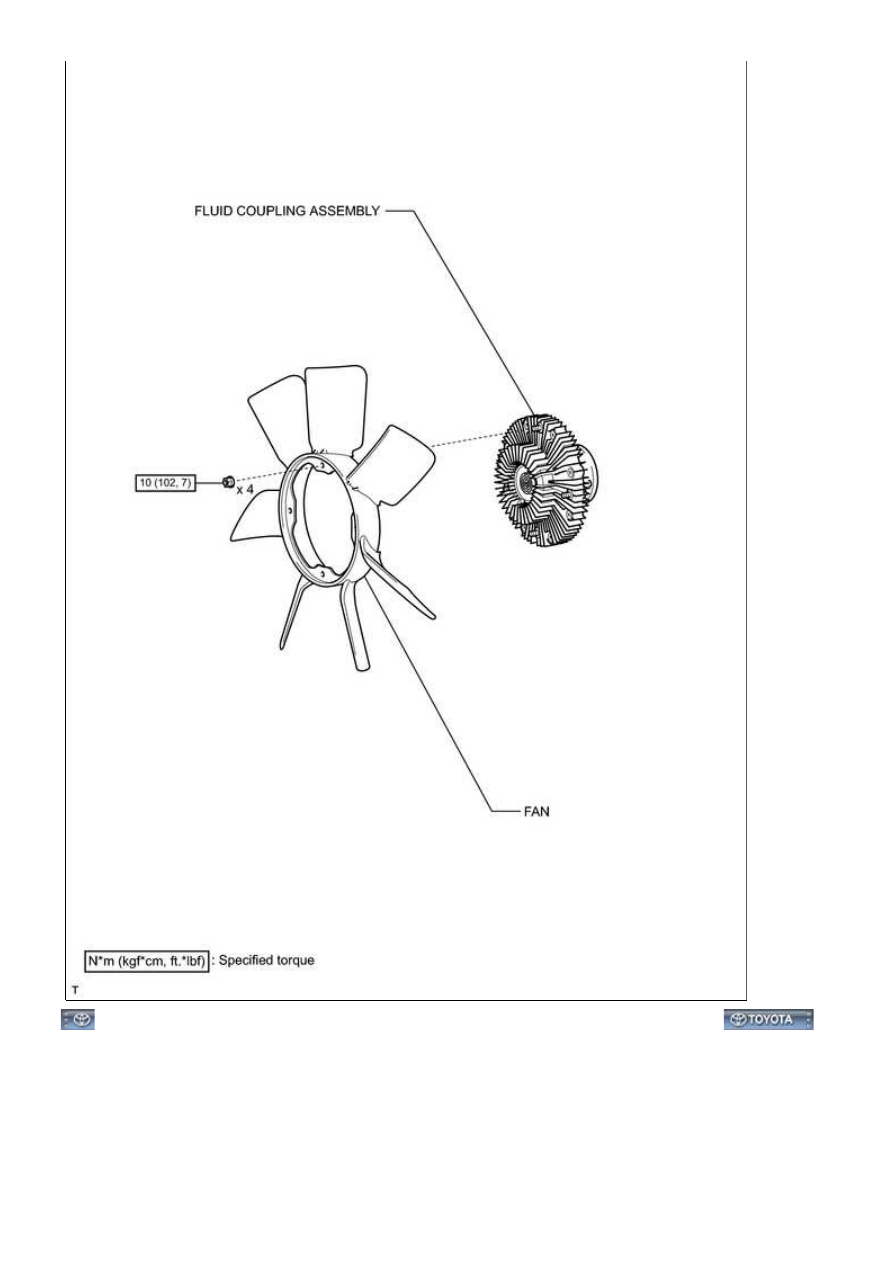

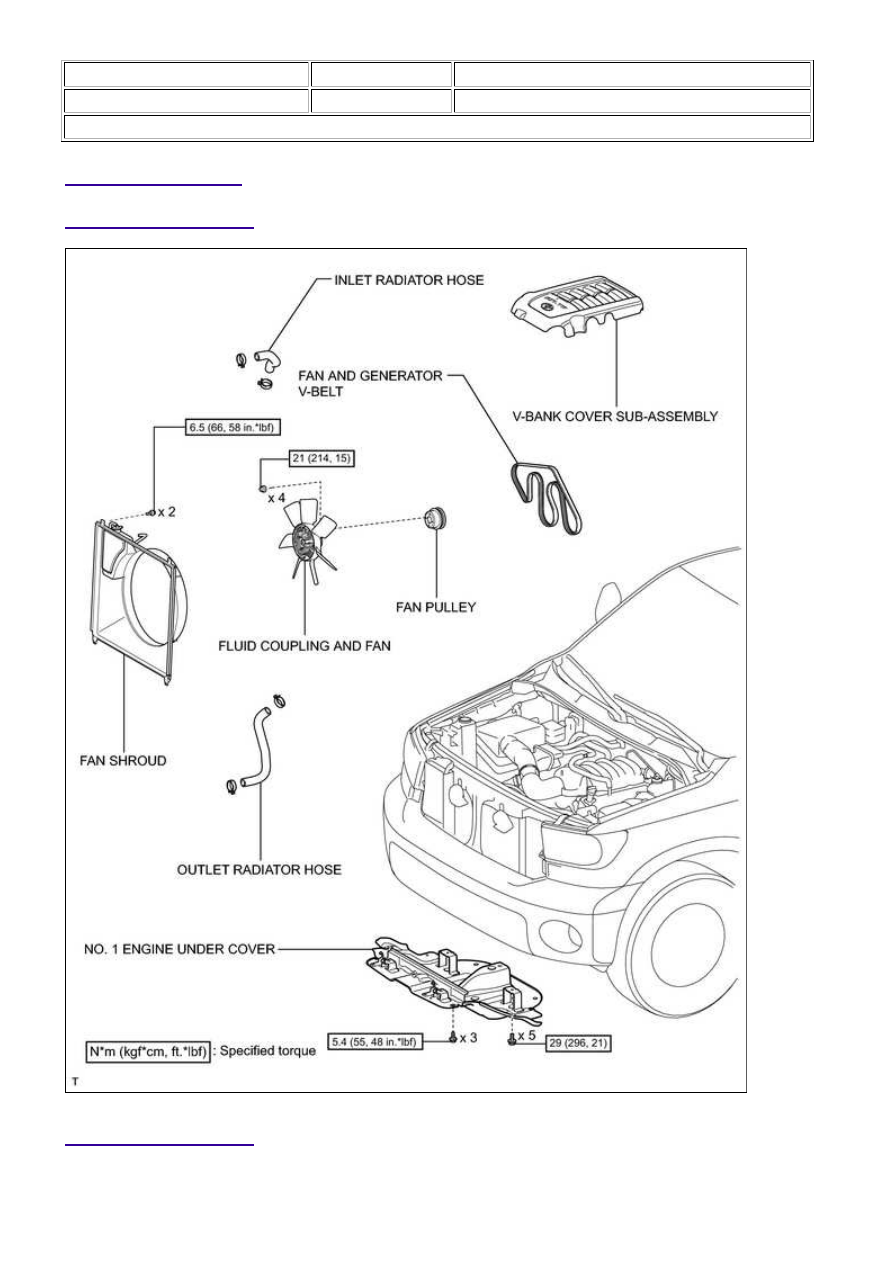

ILLUSTRATION

3UR-FBE COOLING: FAN: COMPONENTS; 2015 MY Tundra [08/20...

3UR-FBE COOLING: FAN: COMPONENTS; 2015 MY Tundra [08/20...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM0000014YB018X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: 3UR-FBE COOLING: FAN: REMOVAL; 2015 MY Tundra [08/2014 - ]

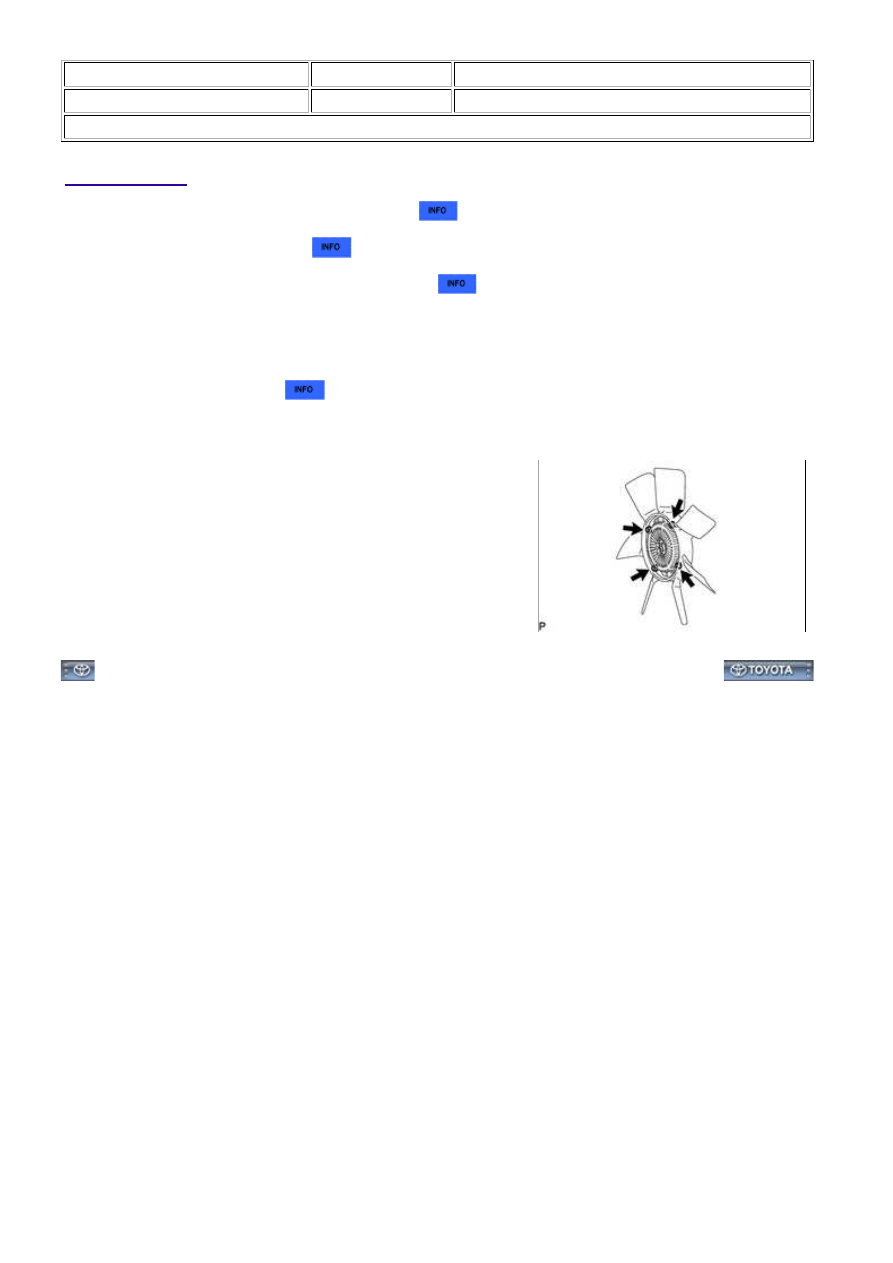

REMOVAL

1. REMOVE NO. 1 ENGINE UNDER COVER

2. DRAIN ENGINE COOLANT

3. REMOVE V-BANK COVER SUB-ASSEMBLY

4. DISCONNECT INLET RADIATOR HOSE

5. DISCONNECT OUTLET RADIATOR HOSE

6. REMOVE FAN SHROUD

7. REMOVE FAN

(a) Remove the 4 nuts and fan from the fluid coupling.

3UR-FBE COOLING: FAN: REMOVAL; 2015 MY Tundra [08/2014 - ...

Last Modified: 9-16-2014

6.6 G

Doc ID: RM0000014Y0025X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: 3UR-FBE COOLING: FAN: INSPECTION; 2015 MY Tundra [08/2014 - ]

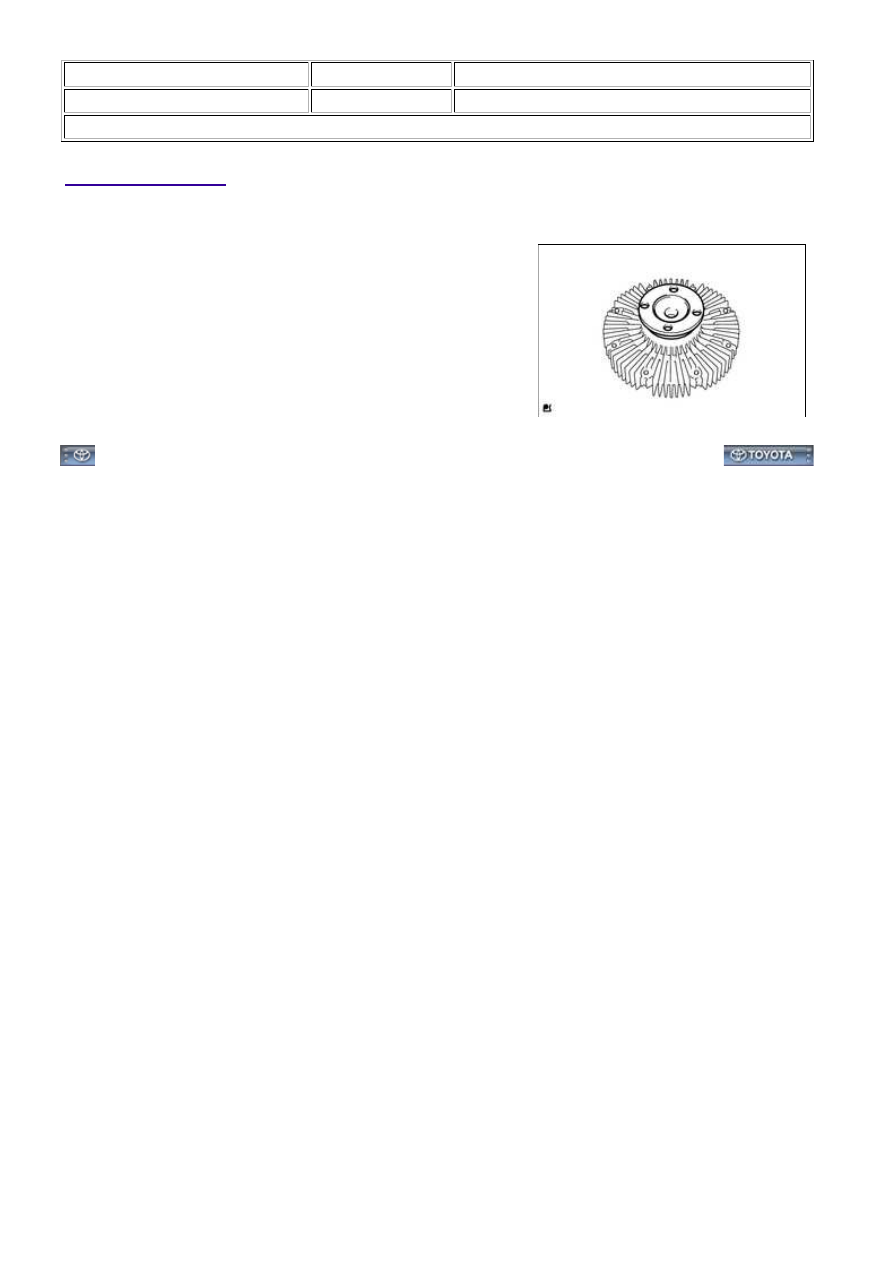

INSPECTION

1. INSPECT FLUID COUPLING ASSEMBLY

(a) Check the fluid coupling for damage or silicon oil leaks.

If necessary, replace the fluid coupling.

3UR-FBE COOLING: FAN: INSPECTION; 2015 MY Tundra [08/2014 -...
