Toyota Tundra (2015 year). Manual - part 107





OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN

PROBLEM SYMPTOMS TABLE

NAVIGATION: NAVIGATION SYSTEM: Steering Pad Switch Circuit;...

Last Modified: 9-16-2014

6.6 J

Doc ID: RM0000011EZ0K0X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: NAVIGATION: NAVIGATION SYSTEM: Illumination Circuit; 2015 MY Tundra [08/2014 -        ]

Illumination Circuit

DESCRIPTION

Power is supplied to the navigation receiver assembly and steering pad switch assembly illumination when the

light control switch is in the tail or head position.

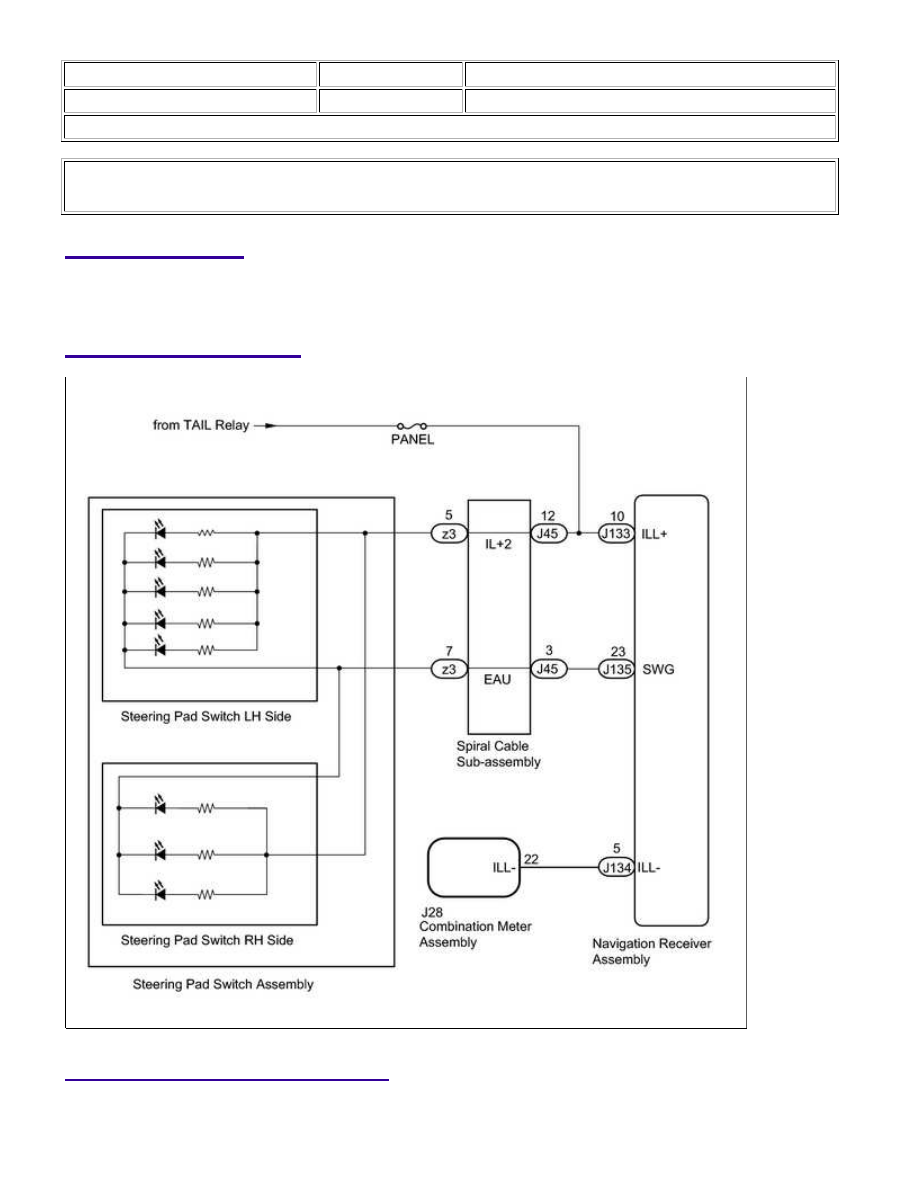

WIRING DIAGRAM

INSPECTION PROCEDURE

CAUTION:

NAVIGATION: NAVIGATION SYSTEM: Illumination Circuit; 2015 ...

A

The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as



.

NOTICE:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1.

CHECK ILLUMINATION

(a) Check if the illumination for the navigation receiver assembly, steering pad switch assembly, heater

control switch or others (hazard switch, transmission control switch, etc.) comes on when the light
control switch is turned to the head or tail position.

Result

RESULT

PROCEED

TO

Illumination comes on for all components except steering pad switch assembly.

A

Illumination comes on for all components except navigation receiver assembly.

B

Illumination comes on for all components except steering pad switch assembly and navigation

receiver assembly.

C

No illumination comes on (navigation receiver assembly, hazard switch, heater control switch,

etc.).

D

B

GO TO STEP 6

C

GO TO STEP 7

D

GO TO LIGHTING SYSTEM

2.

CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BATTERY)

NAVIGATION: NAVIGATION SYSTEM: Illumination Circuit; 2015 ...

OK

OK

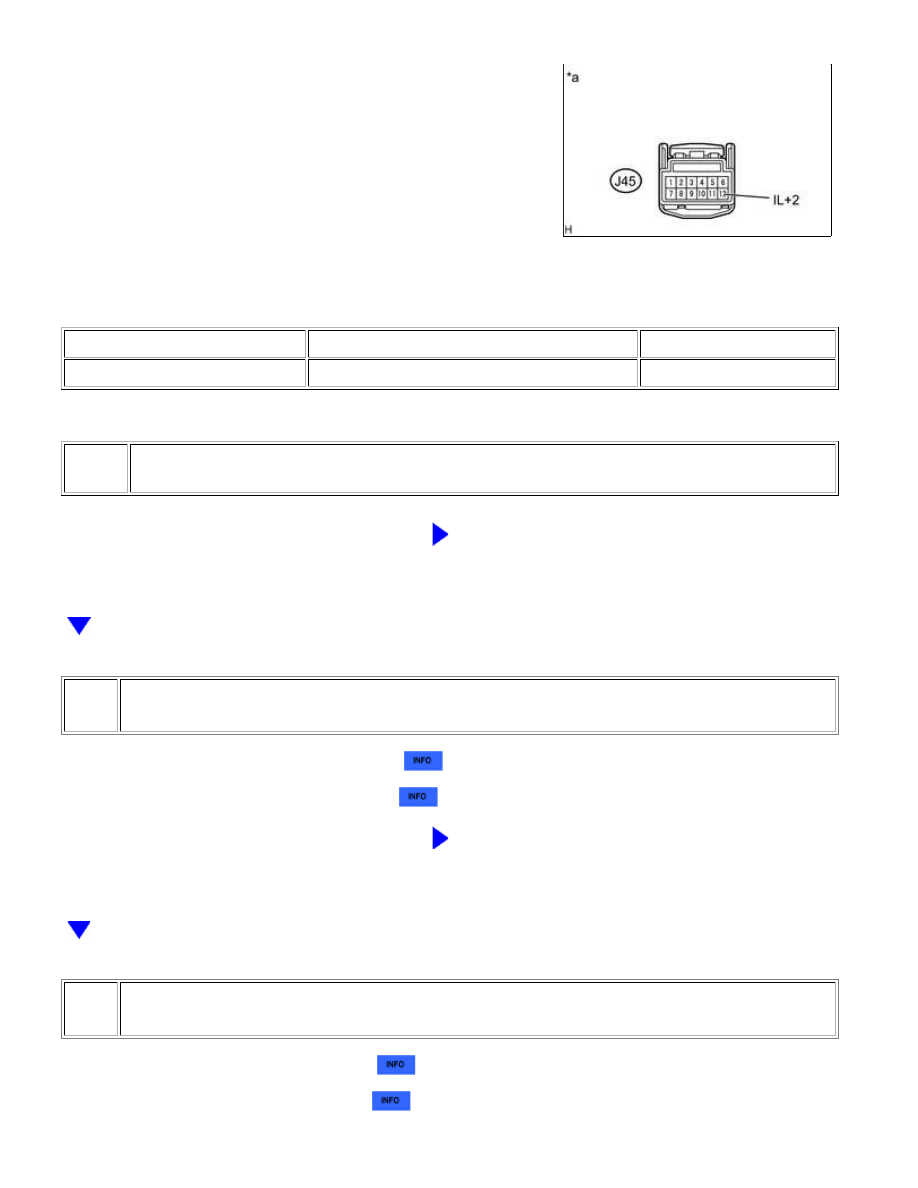

(a) Disconnect the spiral cable sub-assembly connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

TESTER CONNECTION

SWITCH CONDITION

SPECIFIED CONDITION

J45-12 (IL+2) - Body ground

Light control switch tail or head position

11 to 14 V

Text in Illustration

*a

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.

INSPECT STEERING PAD SWITCH ASSEMBLY

(a) Remove the steering pad switch assembly



.

(b) Inspect the steering pad switch assembly



.

NG

REPLACE STEERING PAD SWITCH ASSEMBLY

4.

INSPECT SPIRAL CABLE SUB-ASSEMBLY

(a) Remove the spiral cable sub-assembly



.

(b) Inspect the spiral cable sub-assembly



.

NAVIGATION: NAVIGATION SYSTEM: Illumination Circuit; 2015 ...
