6.6 A
Doc ID: RM0000040KA012X
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: 1UR-FE EMISSION CONTROL: AIR SWITCHING VALVE (for Bank 2): INSTALLATION; 2015 MY Tundra
[08/2014 - ]
INSTALLATION

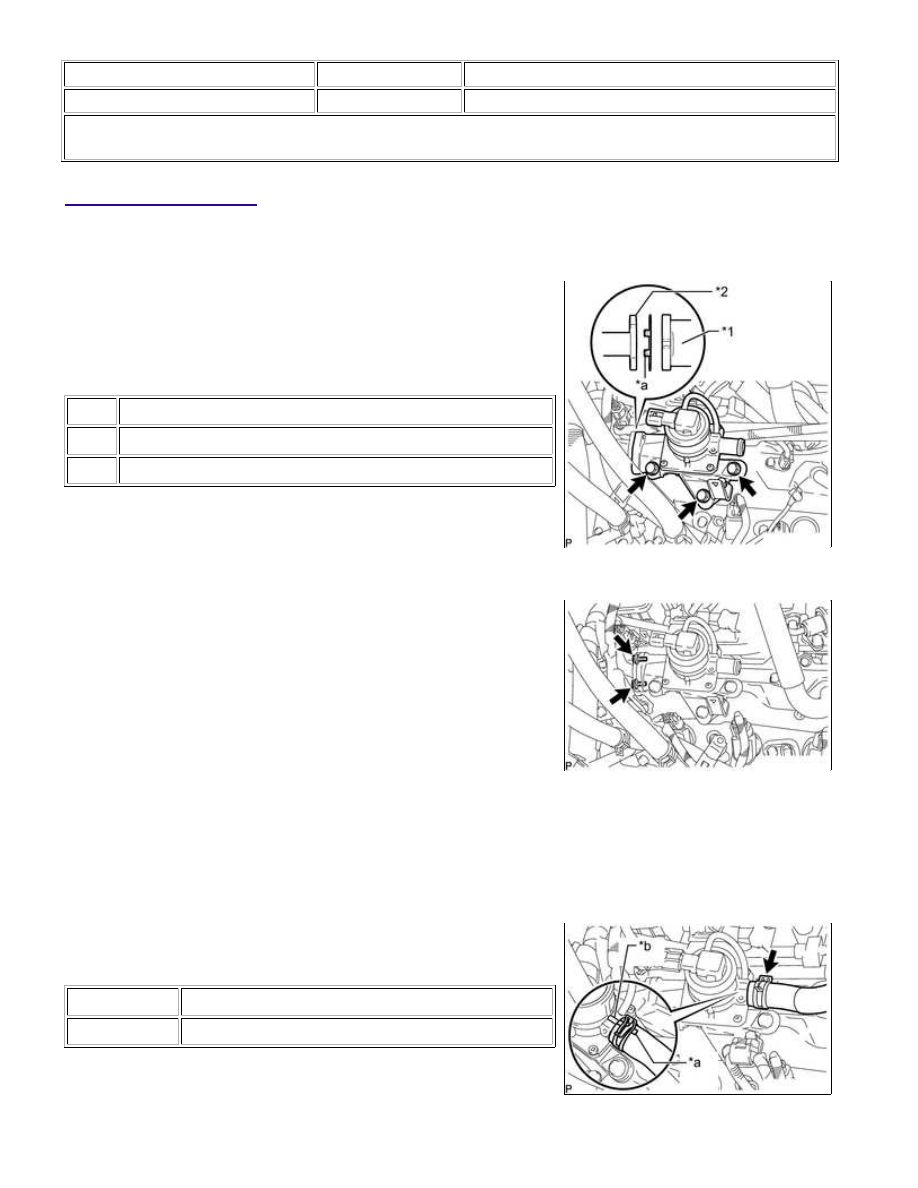

1. INSTALL AIR SWITCHING VALVE ASSEMBLY
(a) Install a new gasket and the air switching valve assembly with
the 3 bolts.
Torque:
24 N·m {245 kgf·cm, 18ft·lbf}
Text in Illustration
*1
Air Switching Valve Assembly
*2
No. 3 Air Tube
*a
Claw
NOTICE:
Make sure the gasket's claws are not caught between the air
switching valve assembly and No. 3 air tube.
(b) Install the 2 bolts.
Torque:
10 N·m {102 kgf·cm, 7ft·lbf}
(c) Attach the wire harness clamp to the air switching valve assembly and connect the air switching valve
assembly connector.

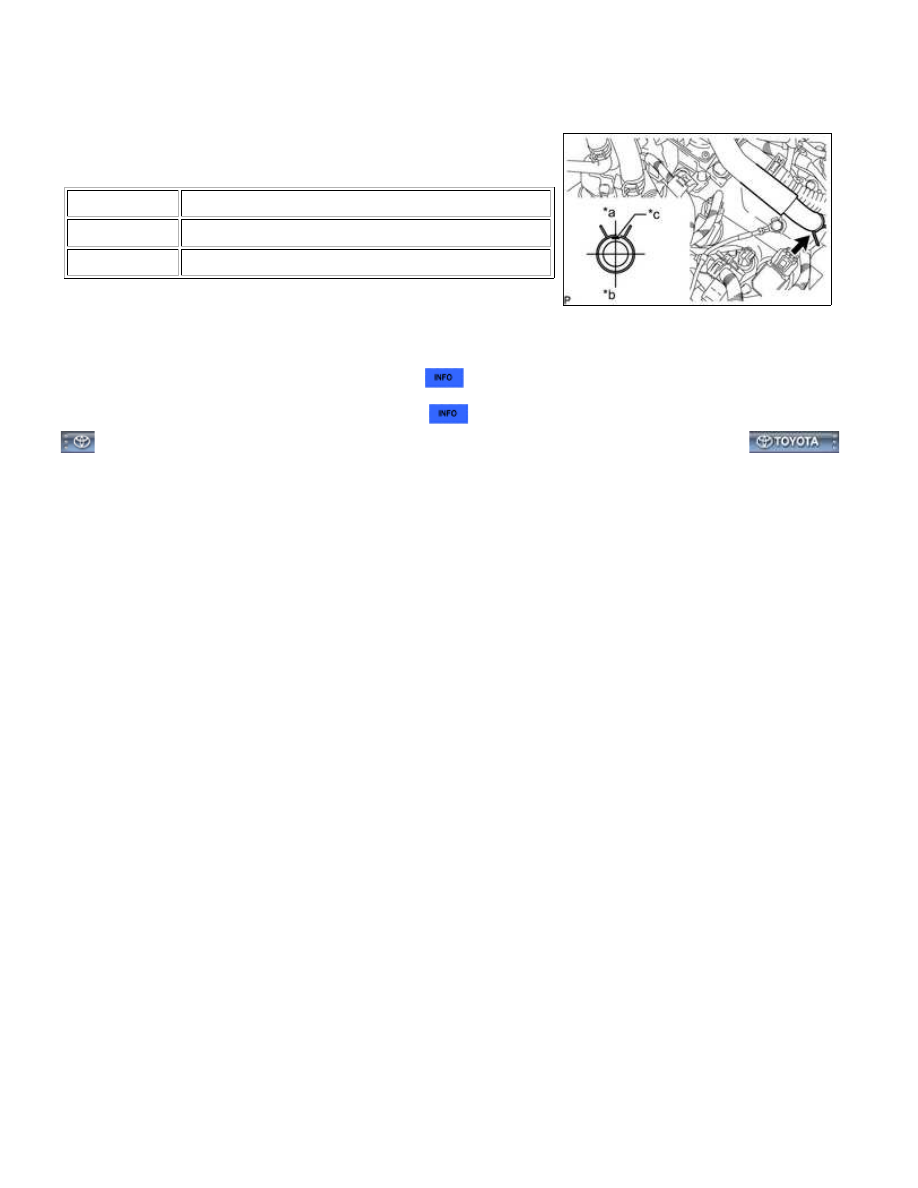

2. CONNECT NO. 1 AIR HOSE
(a) Align the paint mark with the projection and connect the No. 1
air hose, and slide the clamp to secure the hose.
Text in Illustration
*a
Paint Mark
*b
Projection
HINT:
1UR-FE EMISSION CONTROL: AIR SWITCHING VALVE (for Bank 2...
