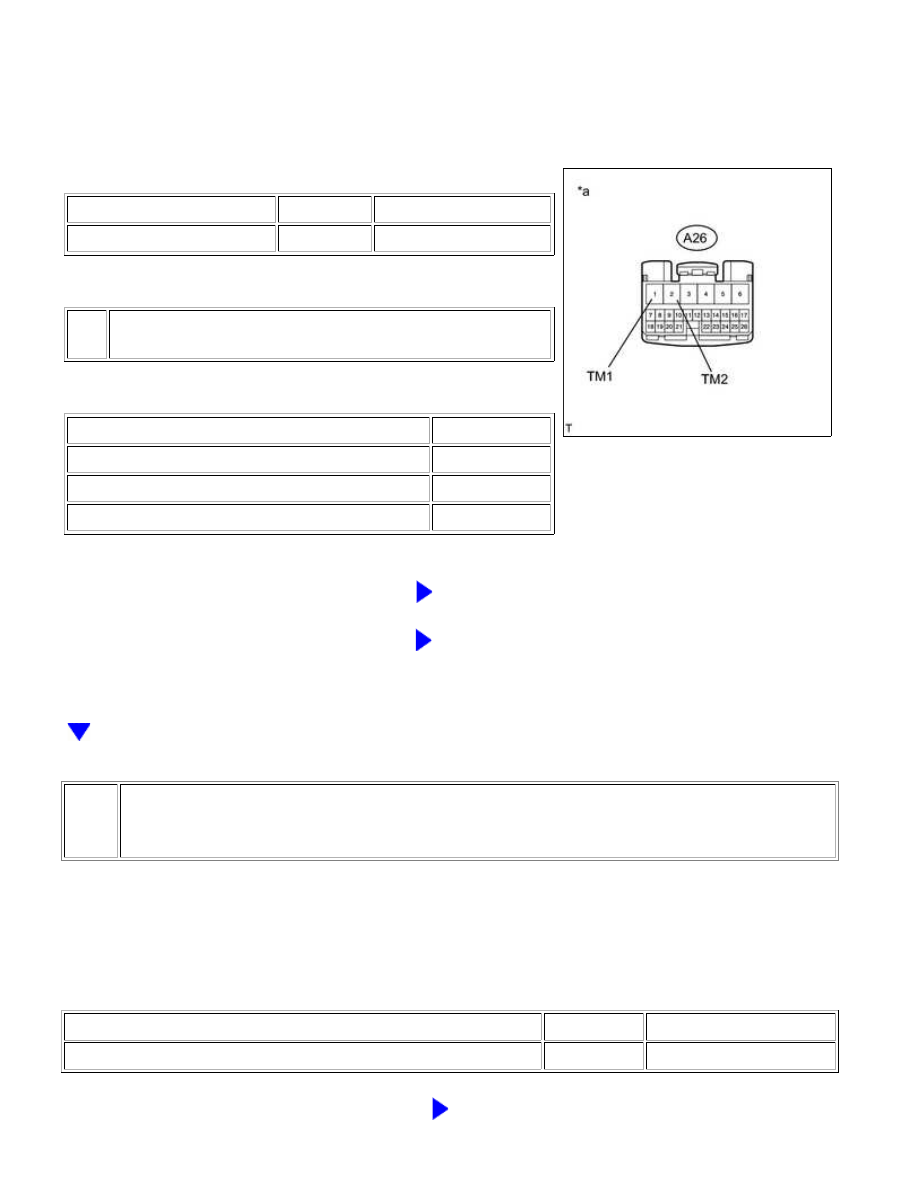

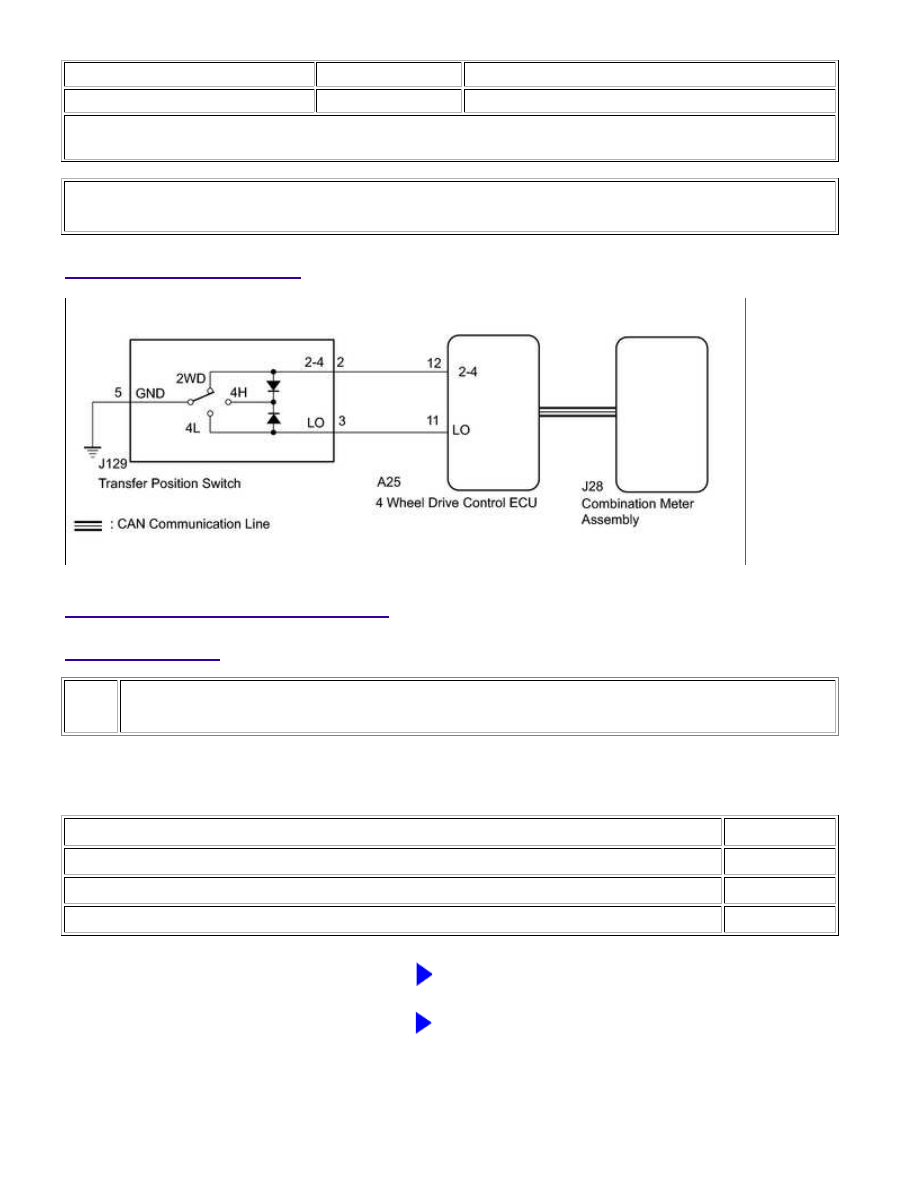

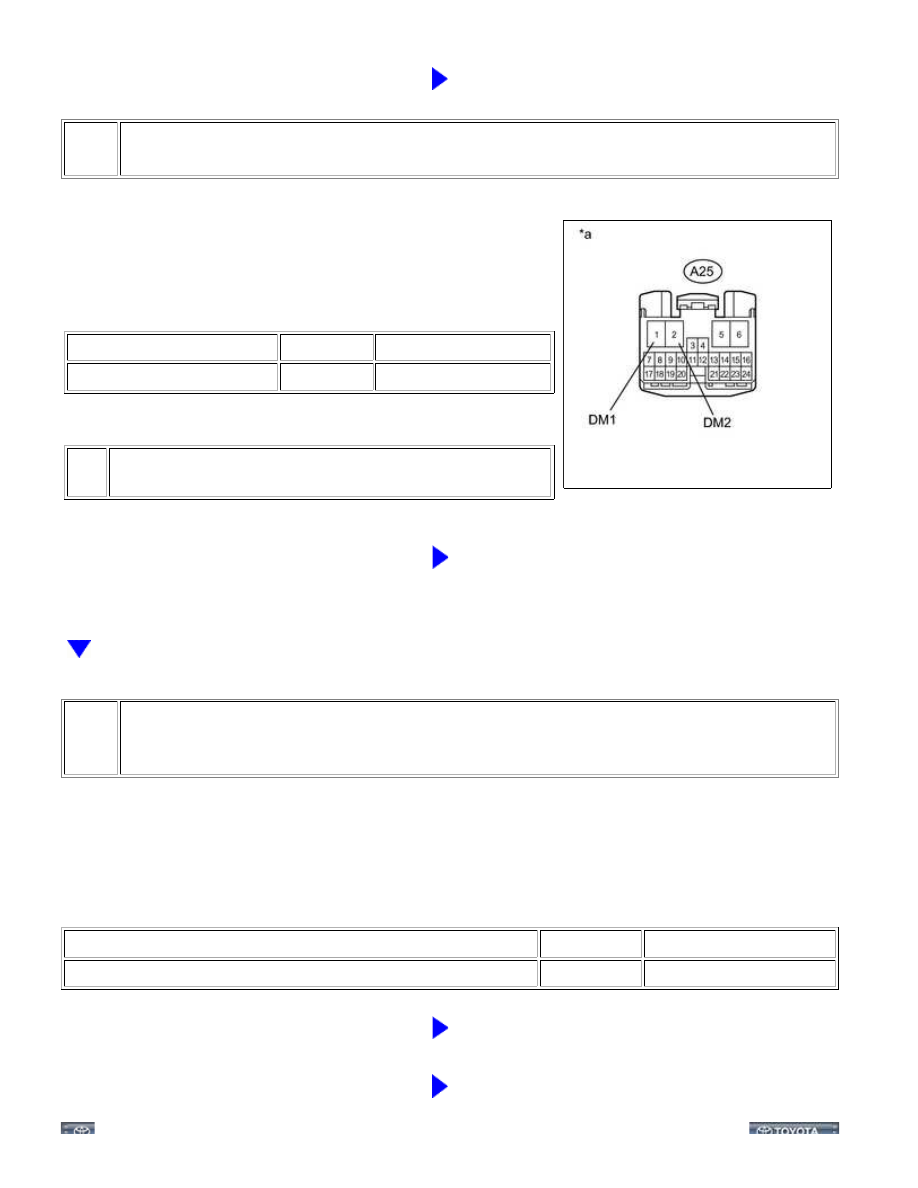

A (a) Disconnect the 4 wheel drive control ECU connector. (b) Measure the resistance according to the value(s) in the table below. Standard Resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION A26-1 (TM1) - A26-2 (TM2) Always 1 Ω or higher Text in Illustration *a Result RESULT PROCEED TO OK A NG (when 4HI indicator light is blinking*) B NG (when 4LO indicator light is blinking*) C B GO TO STEP 5 C REPLACE 4 WHEEL DRIVE CONTROL ECU 4. CHECK HARNESS AND CONNECTOR (4 WHEEL DRIVE CONTROL ECU - TRANSFER SHIFT (a) Disconnect the A26 4 wheel drive control ECU connector. (b) Disconnect the D67 transfer shift actuator assembly connector. (c) Measure the resistance according to the value(s) in the table below. Standard Resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION A26-1 (TM1) or D67-1 (TM1) - A26-2 (TM2) or D67-2 (TM2) Always 10 kΩ or higher NG REPAIR OR REPLACE HARNESS OR CONNECTOR WF1AM TRANSFER: TOUCH SELECT 2-4 AND HIGH-LOW SYS... |
