Toyota Tundra (2015 year). Manual - part 26

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000002ZUJ011X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: AUDIO / VISUAL: RADIO RECEIVER (for Floor Shift Type): COMPONENTS; 2015 MY Tundra [08/2014 -

]

COMPONENTS

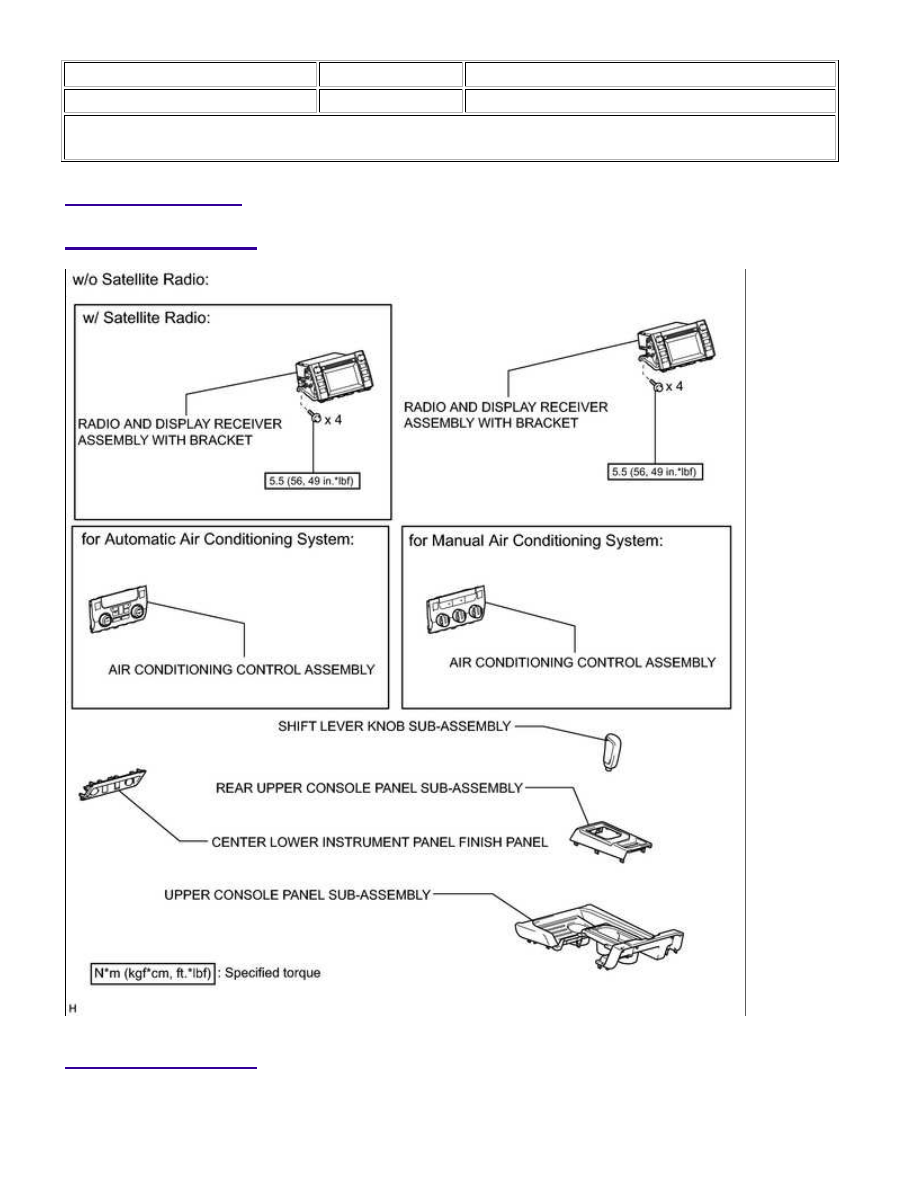

ILLUSTRATION

AUDIO / VISUAL: RADIO RECEIVER (for Floor Shift Type): COM...

AUDIO / VISUAL: RADIO RECEIVER (for Floor Shift Type): COM...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002ZUK022X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: AUDIO / VISUAL: RADIO RECEIVER (for Floor Shift Type): REMOVAL; 2015 MY Tundra [08/2014 - ]

REMOVAL

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the

battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal
notice before proceeding with work

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

4. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

6. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

7. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY

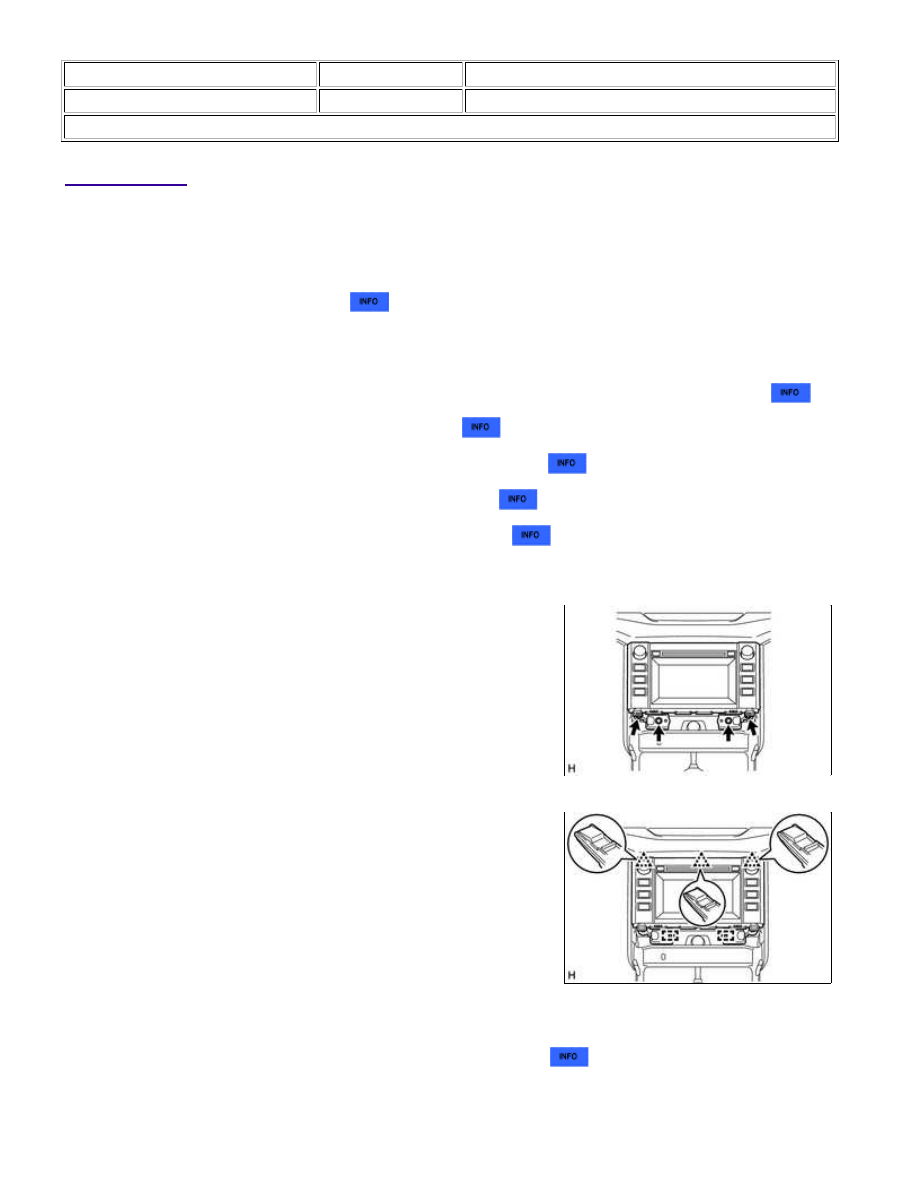

(a) Remove the 4 bolts.

(b) Pull the radio and display receiver assembly with bracket to

8. REMOVE NO. 1 NAVIGATION WIRE (w/ Satellite Radio)

9. REMOVE NO. 1 RADIO RECEIVER BRACKET

AUDIO / VISUAL: RADIO RECEIVER (for Floor Shift Type): REM...

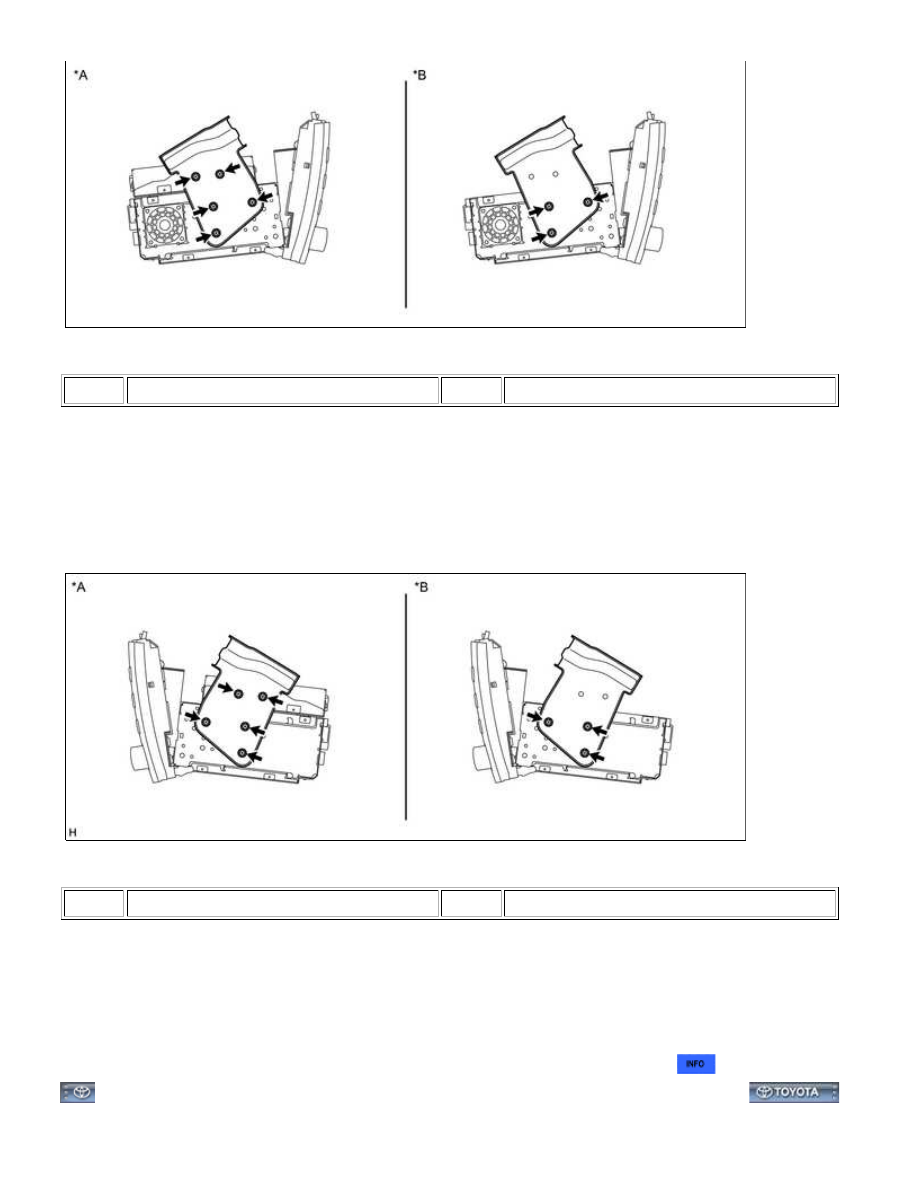

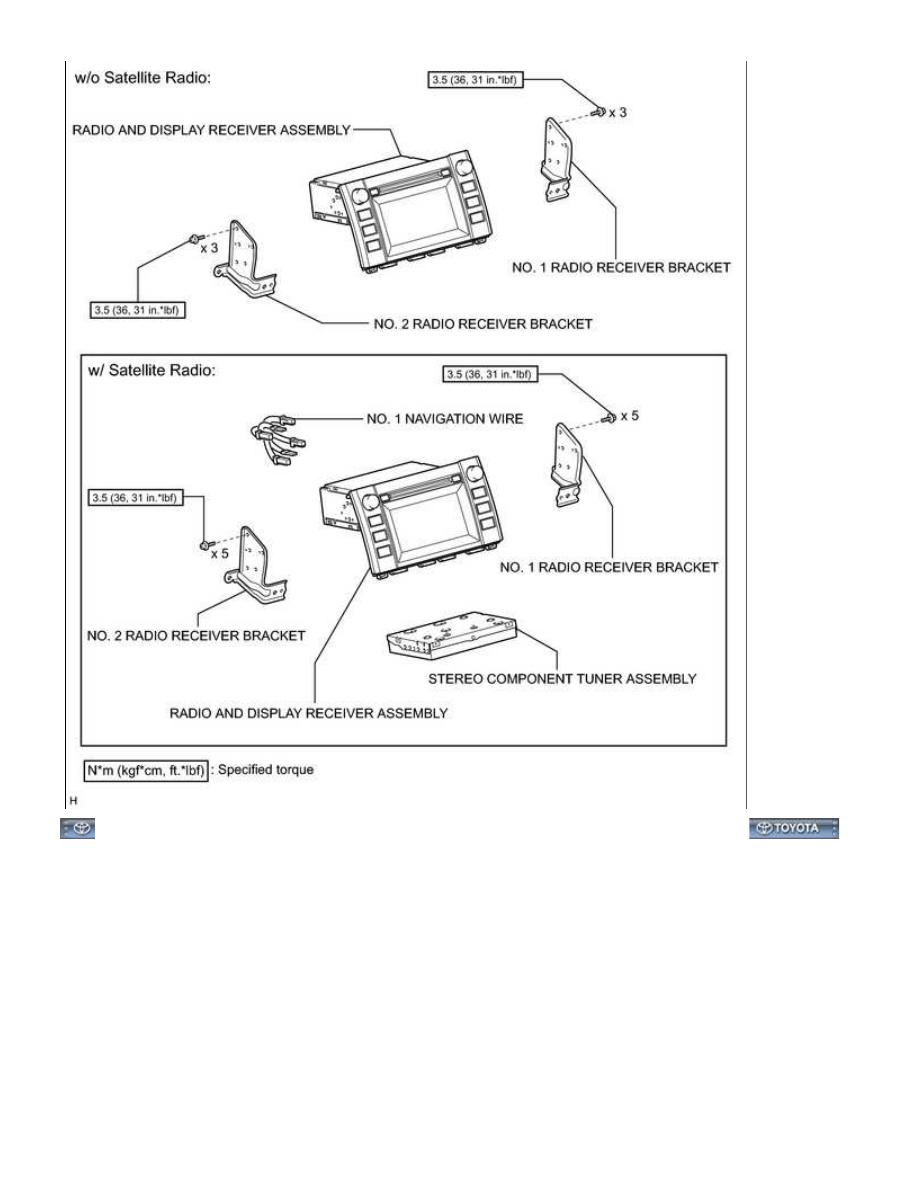

Text in Illustration

w/ Satellite Radio

w/o Satellite Radio

(a) w/ Satellite Radio:

Remove the 5 bolts and No. 1 radio receiver bracket.

(b) w/o Satellite Radio:

Remove the 3 bolts and No. 1 radio receiver bracket.

10. REMOVE NO. 2 RADIO RECEIVER BRACKET
