● Idling stop (if equipped)

Displays the total idling stop time (engine stop time via the Stop &
Start system) after resetting and engine startup. (

→P. 348)

● Eco Driving Indicator Zone Display (if equipped)

Displays Zone of Eco driving with current Eco driving ratio based on
acceleration. (

→P. 126)

● Eco Score (if equipped)

Displays the eco-driving total count to help improve the customer’s
eco driving techniques. (

→P. 141)

● Eco Saving

Displays the fuel consumption comparison, the average fuel con-
sumption after reset, and the cost of the consumed fuel. (

→P. 142)

● Vehicle sway warning (if equipped)

Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The longer the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert) system. The dis-
play is enabled when the operating conditions of the vehicle sway warn-
ing function are met. (

→P. 300)

● Display off

A blank screen is displayed.

*

1

: Can be registered to drive information 1 and 2. (

→P. 140)

*

2

: Use the displayed fuel consumption as a reference.

*

3

: Resetting procedures:

• Select a function to be reset using the meter control switches and then

press and hold

 to reset.

• If there is more than one function that can be reset, check boxes will be

displayed next to those functions.

140

2. Instrument cluster

The settings of the following items can be changed, refer to P. 648
● RSA (Road Sign Assist) (if equipped)

Select to set the followings.

• RSA  on/off
• Notification method (excess speed/others

*

)

• Excess speed notification level

● Idling stop (if equipped)

Select to change the idling stop time when the air conditioning sys-
tem is turned on.

● Language

Select to change the language on the display.

● Units

Select to change the unit for measure of the fuel consumption.

● Eco Driving Indicator Light (if equipped)

Select to activate/deactivate the Eco Driving Indicator Light.
(

→

P. 126)

●

 switch settings

You can register 1 screen as the top screen. To register, press and
hold

 while the desired screen is displayed.

● Drive information 1 and 2

Select to select up to 2 items that will be displayed on a drive infor-
mation screen, up to 2 drive information screens can be set.

● Pop-up display

Select to set the following pop-up displays, which may appear in
some situations, on/off.

• Route guidance display of the navigation system-linked system

(if equipped)

• Incoming call display of the hands-free phone system (if

equipped)

● Accent color

Select to change the accent colors on the screen, such as the cur-
sor color.

Settings display

141

2. Instrument cluster

2

In

st

rum

ent cl

ust
e

r

● Eco Saving

Select to set or change the fuel consumption comparison and fuel
price.

● Initialization

Registered or changed meter settings will be deleted or returned to
their default setting.

*

: No-overtaking notification only.

■

Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily displayed on the multi-information display.
The pop-up display function can be set on/off. (

→P. 650)

■

Eco Score (if equipped)
Driving conditions are displayed in 5 stages and divided into 3 categories:
start, cruise and stop. Every time the vehicle is stopped, the score is dis-
played. (Every time the vehicle is accelerated the score that was last dis-
played is reset. Accumulative scores are not calculated.)

Eco cruise
Displays the eco level calculated from acceleration operation amount when
driving the vehicle
Eco stop
Displays the eco level calculated from time between releasing the accelera-
tor pedal and vehicle stop

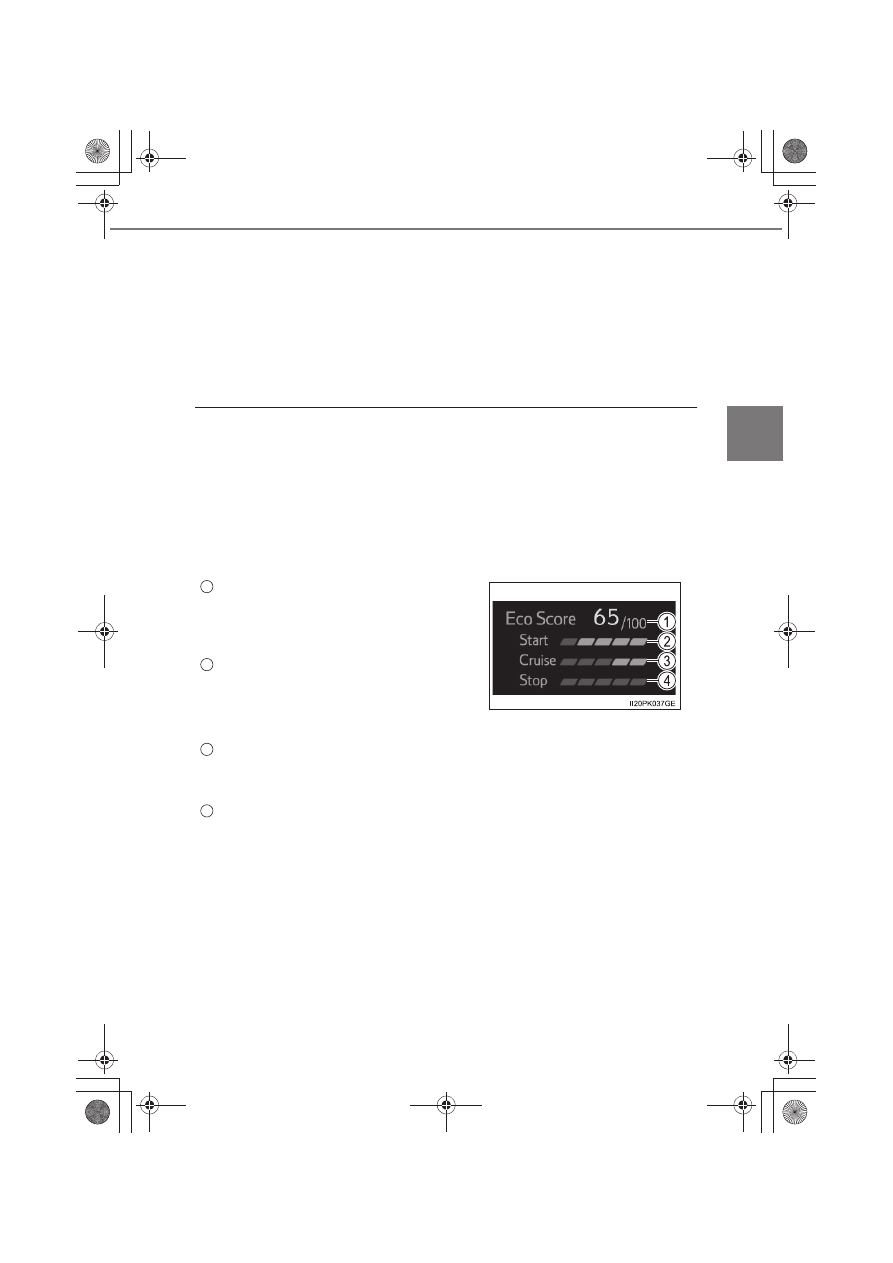

Eco Score
Totals the counts of the eco start, eco
cruise and eco stop, and displays the
result.
Eco start
Displays the eco level calculated from
degree of acceleration when starting
the vehicle

1

2

3

4

142

2. Instrument cluster

If the accelerator pedal is not depressed, such as when the vehicle is driven
using cruise control (if equipped), the driven distance is not included in the
Eco Score.
The Eco Score evaluation differs depending on the driving conditions and
environmental factors. The Eco Score may not be linked to fuel consumption.
The Eco Score will not operate in the following conditions:

●

The vehicle speed is approximately 130 km/h (80 mph) or higher.

●

The shift lever is in a position other than D. (vehicles with automatic trans-
mission)

●

Front-wheel drive control switch is in L4. (if equipped)

●

Downhill assist control system is operating. (if equipped)

●

The vehicle is in the power mode. (if equipped)

■

Eco Saving
Displays the fuel consumption comparison, the average fuel consumption
after reset, and the cost of the consumed fuel.

• The function can be reset by pressing

 more than 1 second when the

average fuel consumption after reset is displayed

• Use the average fuel consumption as a reference
Savings/fuel cost
Displays the possible savings if the fuel consumption comparison is set,
and displays the actual fuel cost if the fuel consumption comparison is not
set.

Use the displayed fuel cost and savings as a reference. Depending on refuel-
ing methods, driving conditions and environmental factors, the displayed fuel
cost may differ from the actual fuel cost, and in some cases, the fuel cost and
savings may not be linked to the Eco Score evaluation.

■

Eco Saving setting
The fuel price and fuel consumption comparison settings can be set in the
settings display. Use the meter control switches to select

 while the vehicle

is stopped and press

, and select “Eco Saving” and press

.

Fuel consumption comparison
Displays the set fuel consumption that
is compared with the actual fuel con-
sumption.
Average fuel consumption after reset
Displays the average fuel consumption
since the function was reset.

1

2
