2. Instrument cluster

2

In

st

rum

ent cl

ust
e

r

X

Vehicles with multi-information display

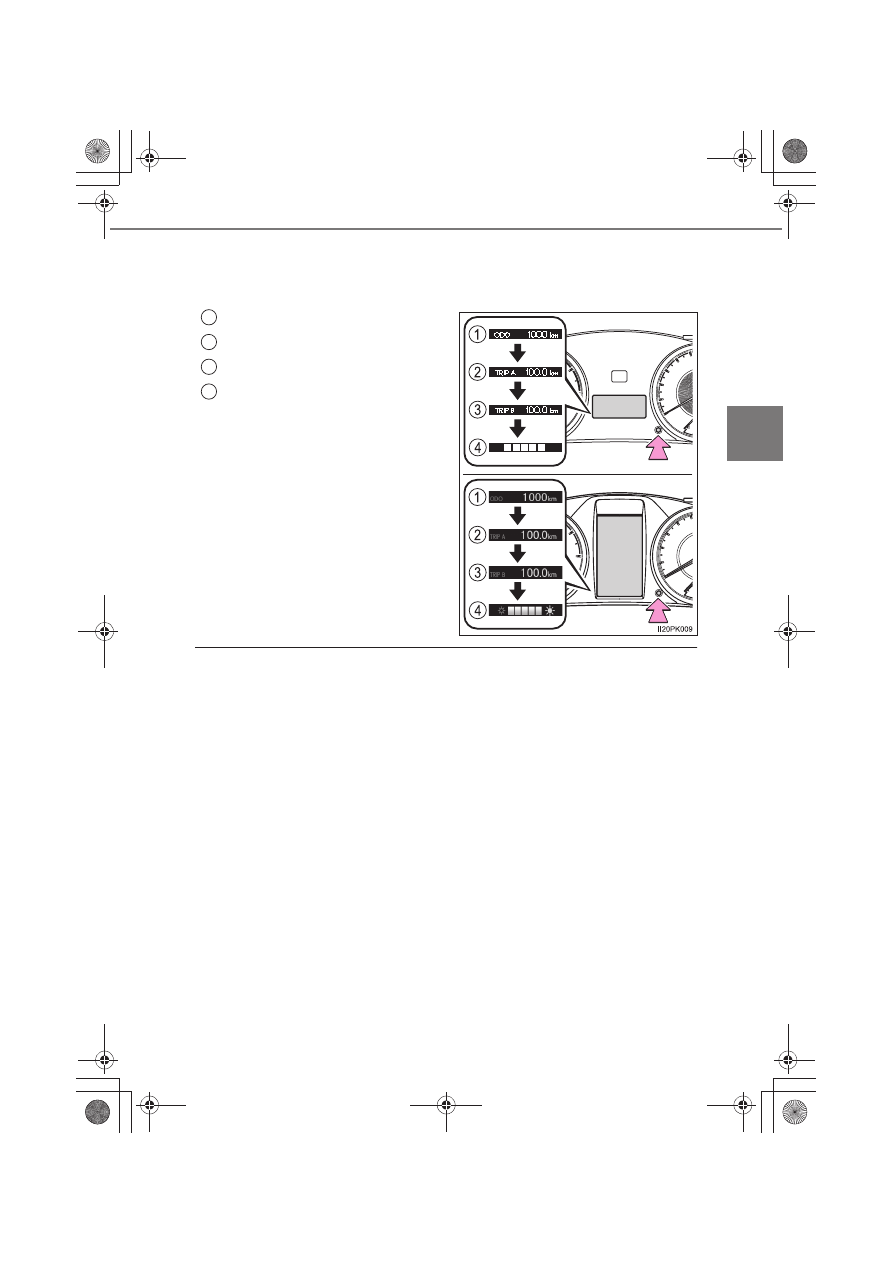

Pressing this button switches among odometer, trip meter and instru-
ment panel light control displays.

Odometer
Trip meter A

*

1

Trip meter B

*

1

Instrument panel light control
display

*

2

*

1

: Pressing and holding the button

will reset the trip meter.

*

2

: Pressing and holding the button

will adjust brightness of the instru-
ment panel lights.

For vehicles with multi-information
display type A: Only the meter
panel brightness can be adjusted.

■

The meters illuminate when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).

■

The brightness of the instrument panel lights (vehicles with multi-infor-
mation display)
The instrument panel brightness levels when the tail lights are on and off can
be adjusted individually. (on vehicles with multi-information display type A,
only the meter panel brightness can be adjusted)
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the instrument panel brightness level is set to the brightest set-
ting.

■

When disconnecting and reconnecting battery terminals
The trip meter data will be reset.

1
2
3
4

132

2. Instrument cluster

■

Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:

●

When the vehicle is stopped, or moving at low speeds (less than 20 km/h
[12 mph])

●

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

■

When “--” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

WARNING

■

The information display at low temperatures (vehicles with multi-infor-
mation display type B)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For vehicles with automatic transmission: For example, there is a lag
between the driver’s shifting and the new gear number appearing on the
display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or
injury.

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (

→P. 613)

■

The information display at low temperatures (vehicles with multi-infor-
mation display type A)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.

133

2

2. Instrument cluster

In

st

rum

ent cl

ust
e

r

Multi-information display (Type A)

∗

The multi-information display presents the driver with a variety of driv-
ing-related data.
● Trip information (→P. 134)

Displays driving range, fuel con-
sumption and other cruising-
related information.

● Setting (→P. 649)

The settings of the following items
can be changed.

• Language

Select to change the language
on the display.

• Units

Select to change the units for measure of the fuel consumption.

• Eco Driving Indicator Light

Select to activate/deactivate the Eco Driving Indicator Light.

● LDA (Lane Departure Alert) (→P. 300)

Displays the lane departure alert function display when the system is
turned on.

● Warning messages (→P. 577)

Displays warning messages and measures to be taken if a malfunction is
detected.

∗

: If equipped

Display contents

134

2. Instrument cluster

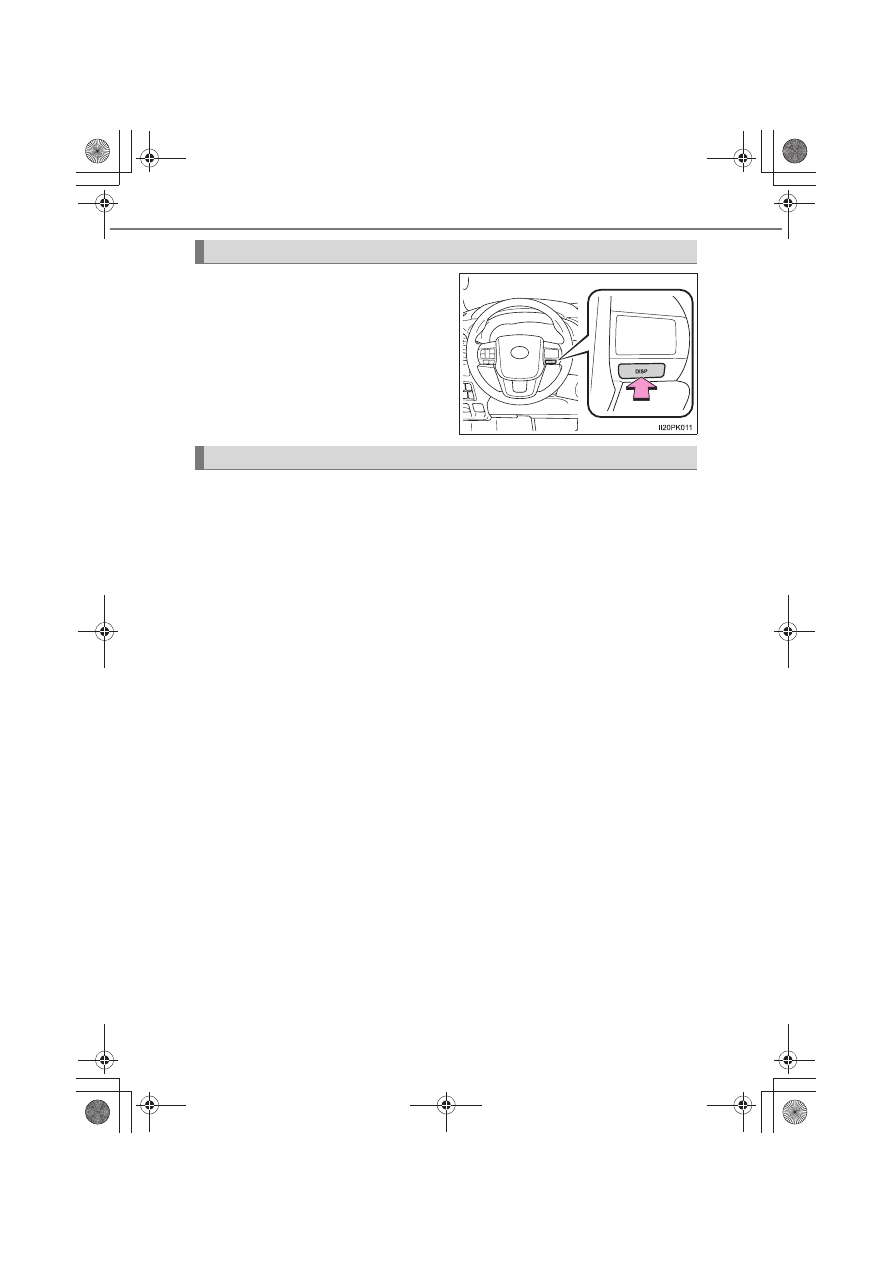

“DISP”



button

Items displayed can be switched
by pressing the “DISP” button.

■

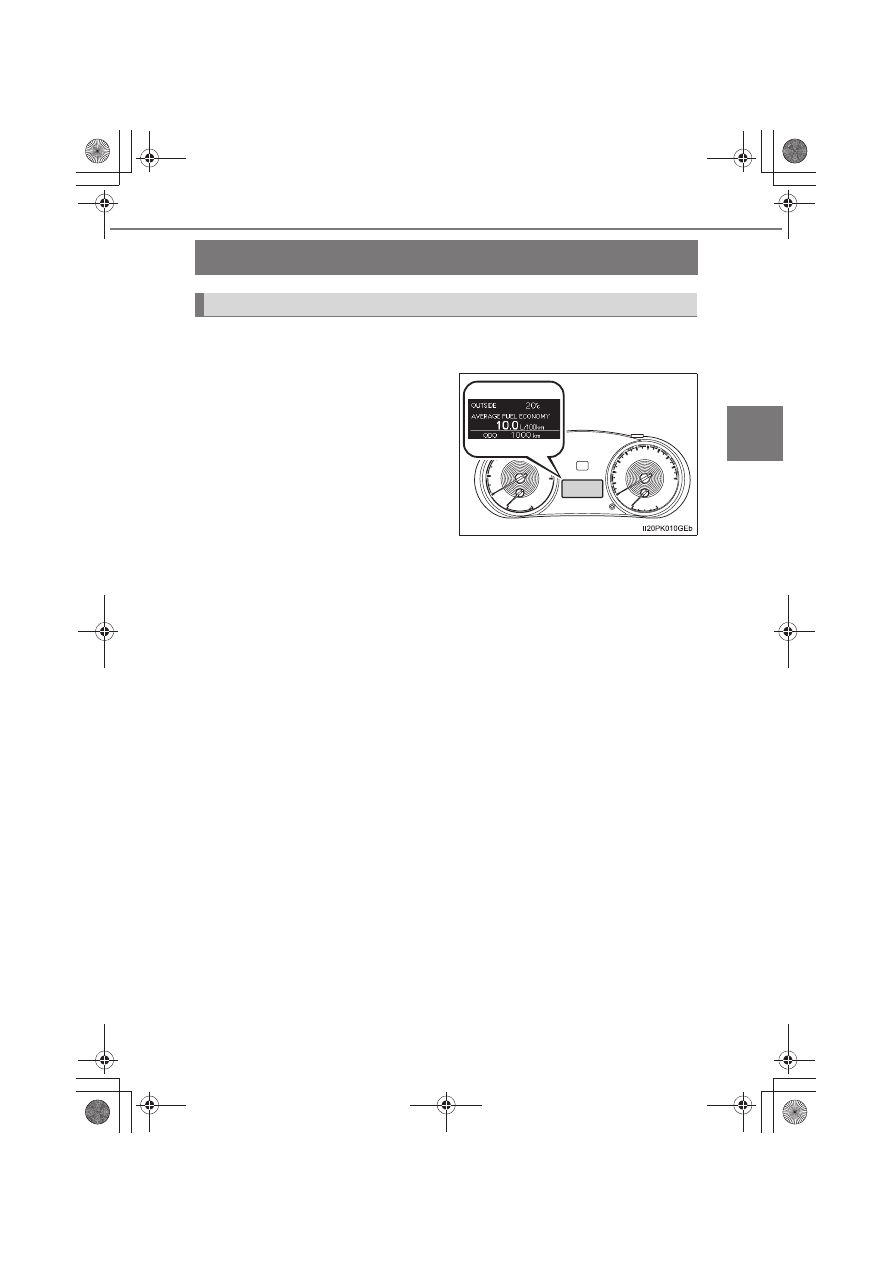

Current fuel consumption
Displays the current rate of fuel consumption.

■

Average fuel consumption
Displays the average fuel consumption since the engine switch is
turned to the “ON” position (vehicles without smart entry & start sys-
tem) or IGNITION ON mode (vehicles with smart entry & start sys-
tem).

• The function can be reset by pressing the “DISP” button for longer than

1 second when the average fuel consumption is displayed.

• Use the displayed average fuel consumption as a reference.

■

Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.

• This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

• When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch to the “LOCK” position (vehicles
without smart entry & start system) or off (vehicles with smart entry &
start system). If the vehicle is refueled without turn the engine switch to
the “LOCK” position or off, the display may not updated.

Switching the display

Trip information
