123

2. Instrument cluster

2

In

st

rum

ent cl

ust
e

r

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.

*

2

: The light turns on or flashes to indicate a malfunction.

*

3

: The light flashes rapidly to indicate a malfunction.

*

4

: The light flashes to indicate a malfunction.

*

5

: Vehicles with multi-information display type B.

*

6

: The light illuminates in yellow to indicate a malfunction.

*

7

: The lights illuminate on the center panel.

*

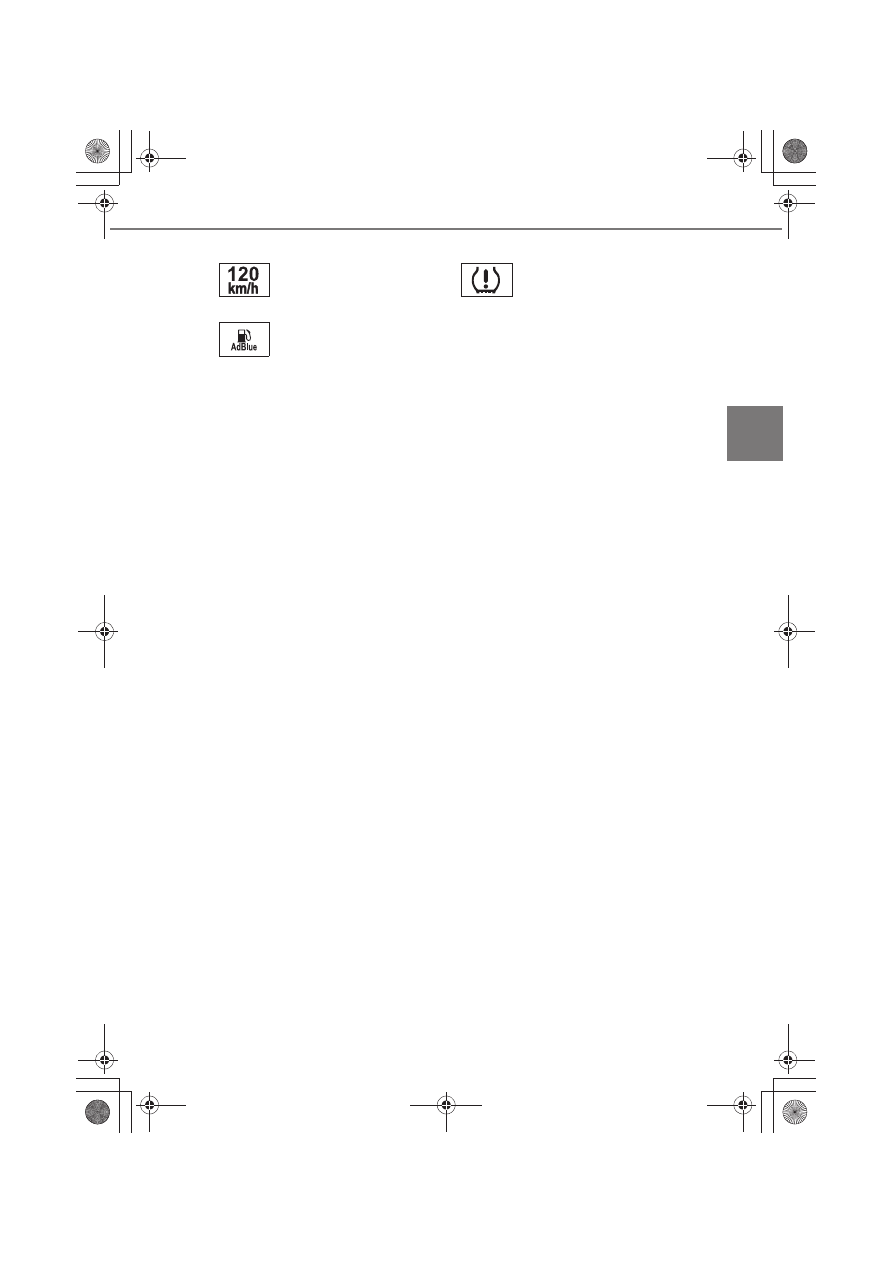

1

(if equipped)

Speed warning light
(

→P. 572)

*

1

(if equipped)

Tire pressure warning
light (

→P. 572)

(if equipped)

Low AdBlue™ level
warning light (

→P. 572)

124

2. Instrument cluster

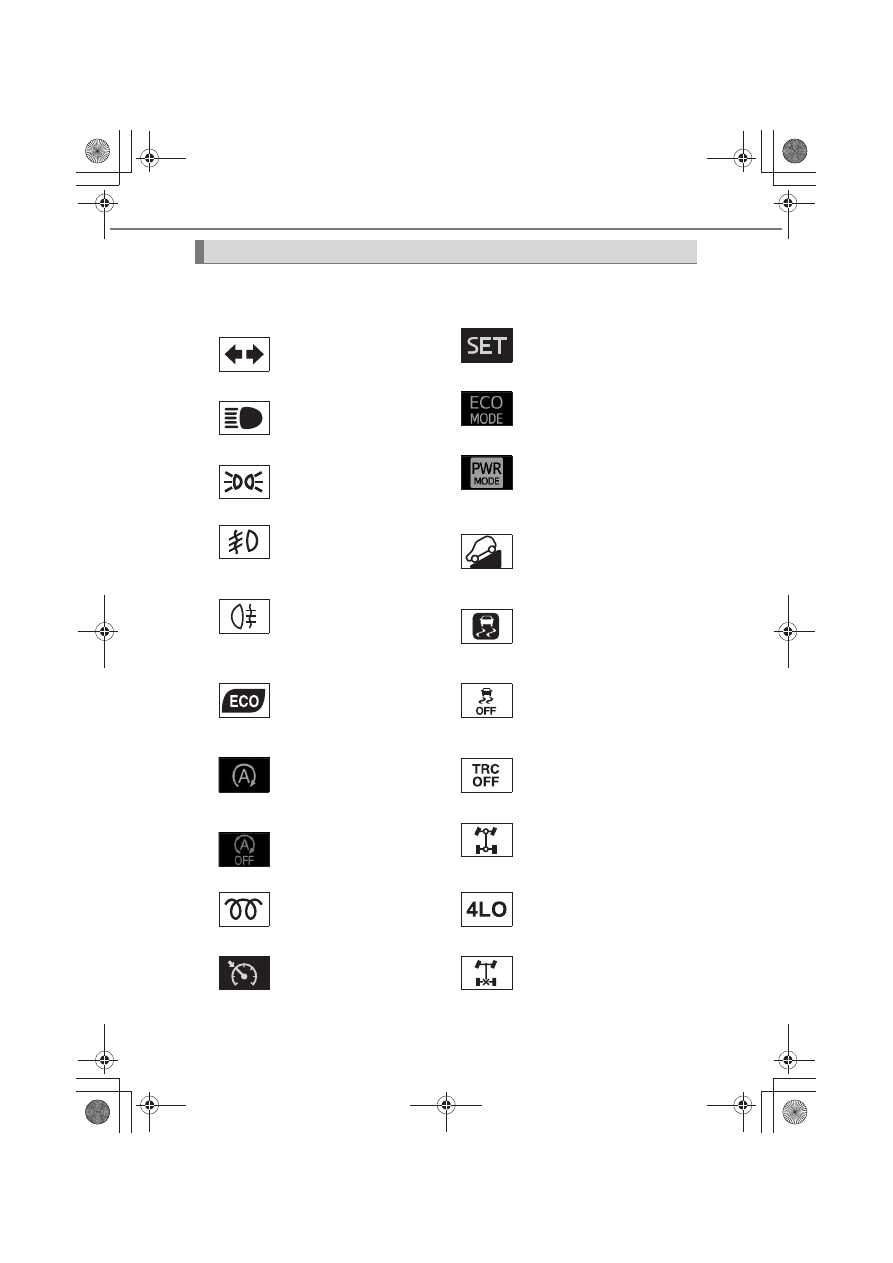

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(

→P. 260)

(if equipped)

“SET” indicator
(

→P. 314)

Headlight high beam
indicator (

→P. 264)

(if equipped)

“ECO MODE” indicator
(

→P. 249, 255)

Tail light indicator
(

→P. 262)

(if equipped)

“PWR MODE” indicator
(

→P. 249, 255)

(if equipped)

Front fog light indicator
(

→P. 269)

*

1

(if equipped)

Downhill assist control
system indicator
(

→P. 361)

(if equipped)

Rear fog light indicator
(

→P. 270)

*

1, 2

(if equipped)

Slip indicator (

→P. 354)

*

1

(if equipped)

Eco Driving Indicator
Light (

→P. 126)

*

1

(if equipped)

VSC OFF indicator
(

→P. 355)

*

1

(if equipped)

Stop & Start indicator
(

→P. 343)

*

1

(if equipped)

“TRC OFF” indicator
(

→P. 355)

*

1

(if equipped)

Stop & Start cancel
indicator (

→P. 344)

(4WD models)

Four-wheel drive
indicator (

→P. 329)

(diesel engine)

Engine preheating
indicator (

→P. 236, 239)

(4WD models)

Low speed four-wheel
drive indicator light
(

→P. 329)

(if equipped)

Cruise control indicator
(

→P. 314)

(if equipped)

Rear differential lock
indicator (

→P. 339)

125

2. Instrument cluster

2

In

st

rum

ent cl

ust
e

r

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.

*

2

: The light flashes to indicate that the system is operating.

*

3

: The light turns on when the system is turned off.

*

4

: The light illuminates in green when the system is operating. When the lane

departure alert function is operating, the light illuminates in green (vehicles
with multi-information display type A) or flashes in yellow (vehicles with
multi-information display type B).

*

5

: The light illuminates on the center panel.

*

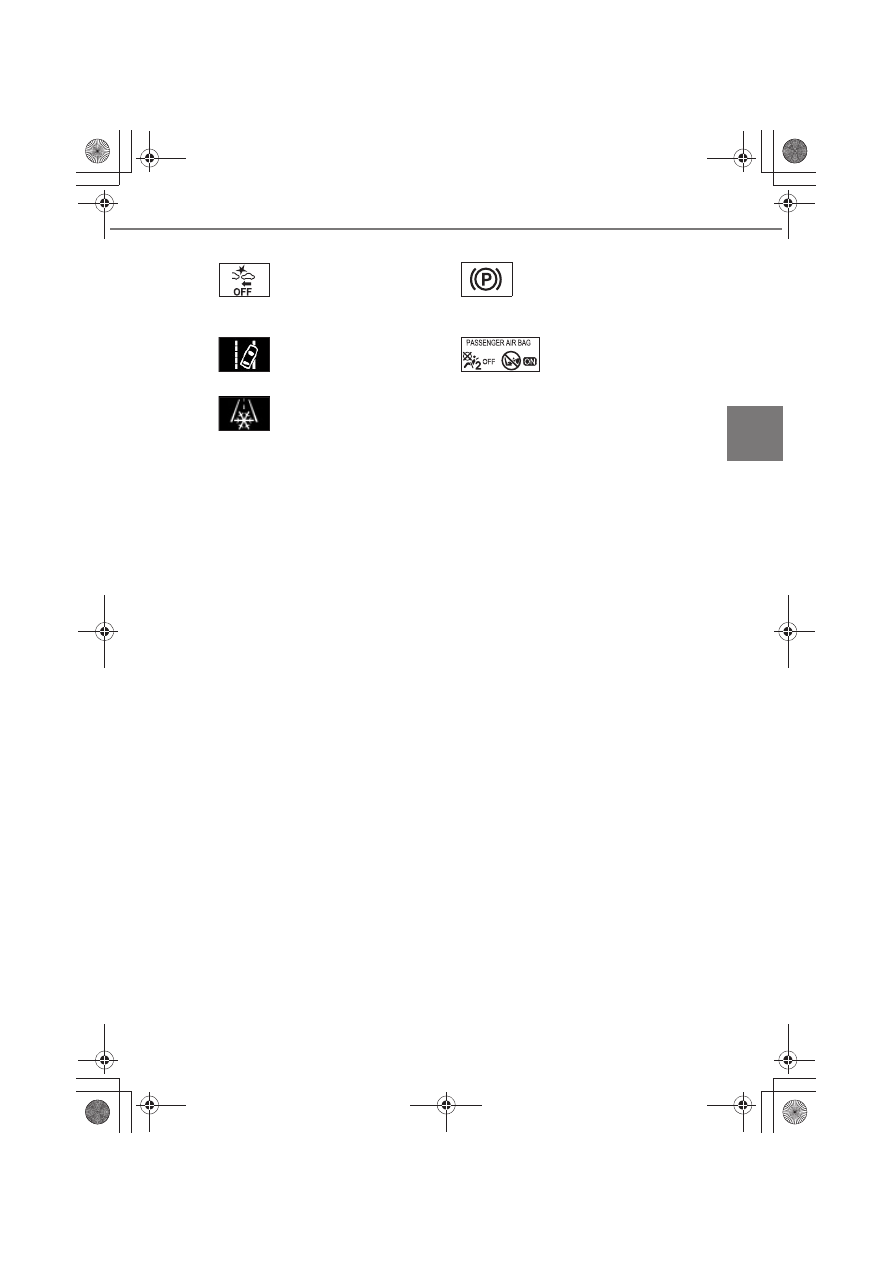

1, 3

(if equipped)

PCS warning light
(

→P. 291)

Parking brake indicator
light (

→P. 261)

*

4

(if equipped)

LDA indicator (

→P. 303)

*

1, 5

(if equipped)

“PASSENGER AIR
BAG” indicator
(

→P. 57, 62)

(if equipped)

Low outside
temperature indicator
(

→P. 129)

126

2. Instrument cluster

■

Eco Driving Indicator (if equipped)

If the vehicle exceeds Zone of Eco driving, the right side of Eco Driving Indi-
cator Zone Display will blink (vehicles with multi-information display type A)
or illuminate (vehicles with multi-information display type B).

Eco Driving Indicator Light and Eco Driving Indicator Zone Display will not
operate in the following conditions:

●

The shift lever is in anything other than D. (vehicles with automatic transmis-
sion)

●

The shift lever is in R. (vehicles with manual transmission)

●

The vehicle is in the power mode. (if equipped) (

→P. 249, 255)

●

Downhill assist control system is operating. (if equipped) (

→P. 361)

●

Front-wheel drive control switch is in L4. (if equipped) (

→P. 329)

●

The vehicle speed is approximately 130 km/h (81 mph) or higher.

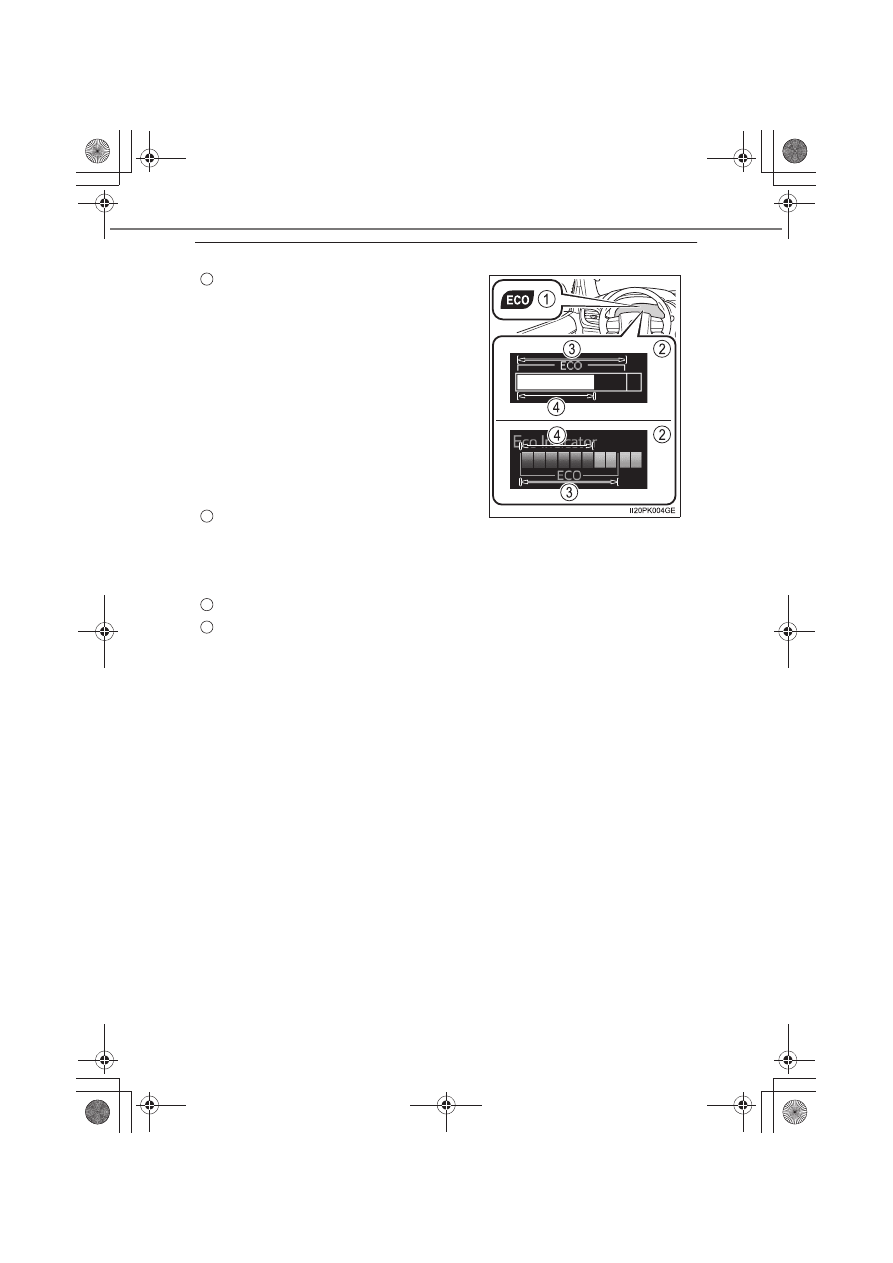

Eco Driving Indicator Light
Vehicles with automatic transmission:
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Vehicles with manual transmission:
During Eco-friendly acceleration or in
Eco-friendly shift position (Eco driving),
Eco Driving Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Eco Driving Indicator Zone Display (if
equipped)
Suggests Zone of Eco driving with cur-
rent Eco driving ratio based on acceler-
ation.
Zone of Eco driving
Eco driving ratio based on acceleration

1

2

3

4
