9L-3 Paint / Coatings:

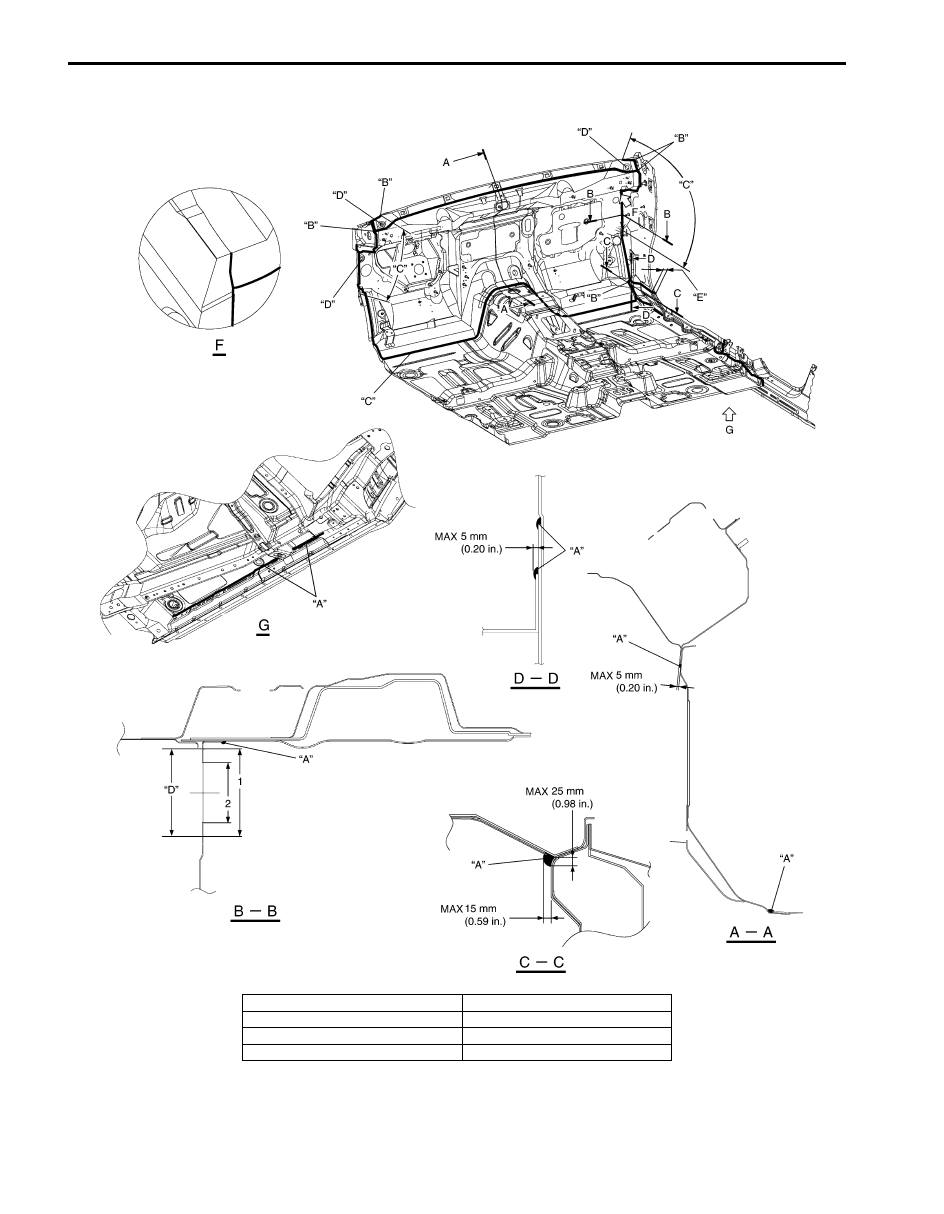

Dash Panel and Front Floor Panel

I6JB019C0003-01

“A”: Apply sealant.

“E”: Flatten sealant.

“B”: Fill gap / hole with sealant.

1. 88 mm (3.46 in.) diameter

“C”: Smooth out sealant with a brush.

2. 60 mm (2.36 in.) diameter hole

“D”: Do not apply sealant.

Paint / Coatings:  9L-4

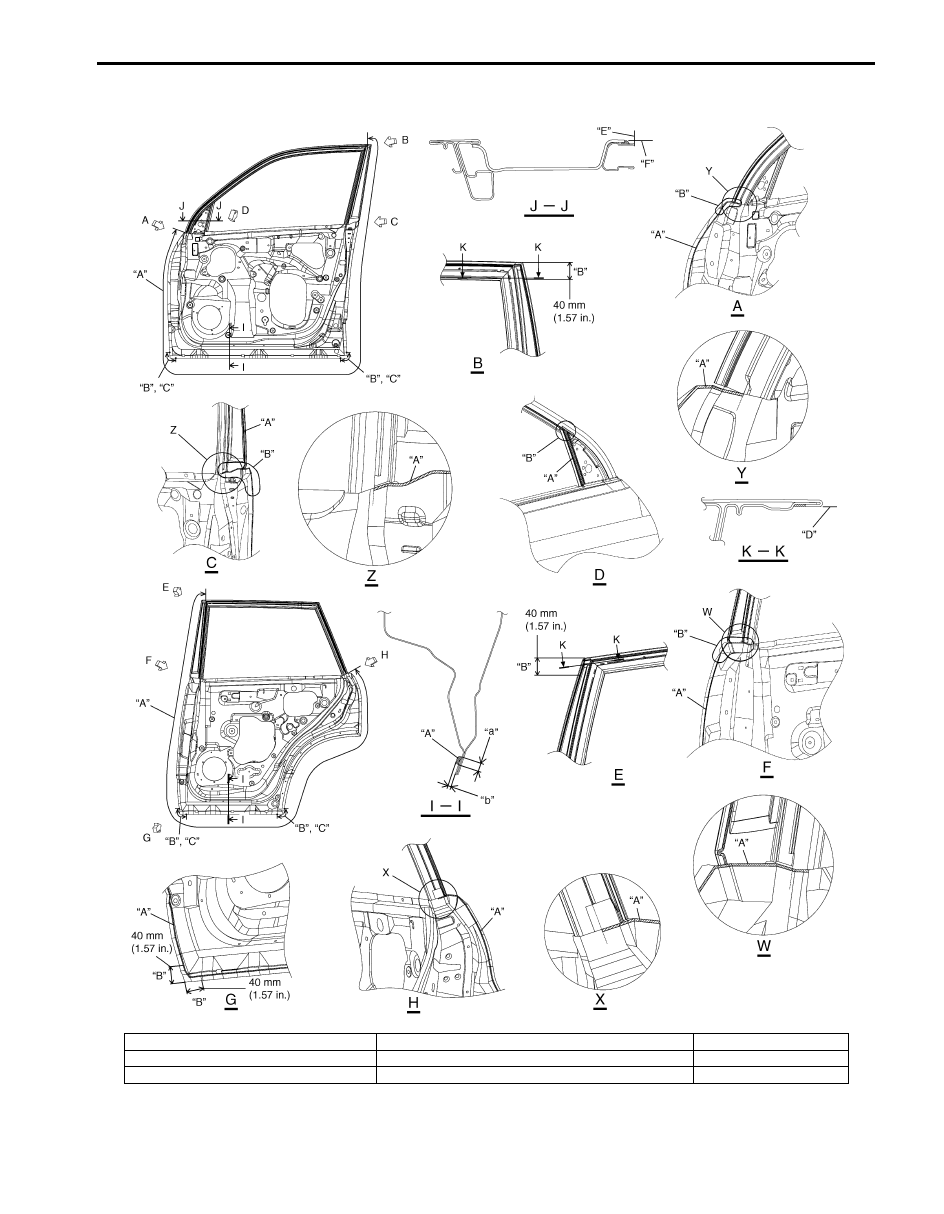

Front and Rear Door Panels

I6JB019C0004-01

“A”: Apply sealant.

“D”: Wipe off sealant so as not to protrude from this surface.

“a”: Min. 6 mm (0.24 in.)

“B”: Wipe off excess sealant after application.

“E”: Do not protrude sealant backward from this line.

“b”: Max. 3 mm (0.12 in.)

“C”: Do not fill up drain hole.

“F”: Do not protrude sealant outside from this line.

9L-5 Paint / Coatings:

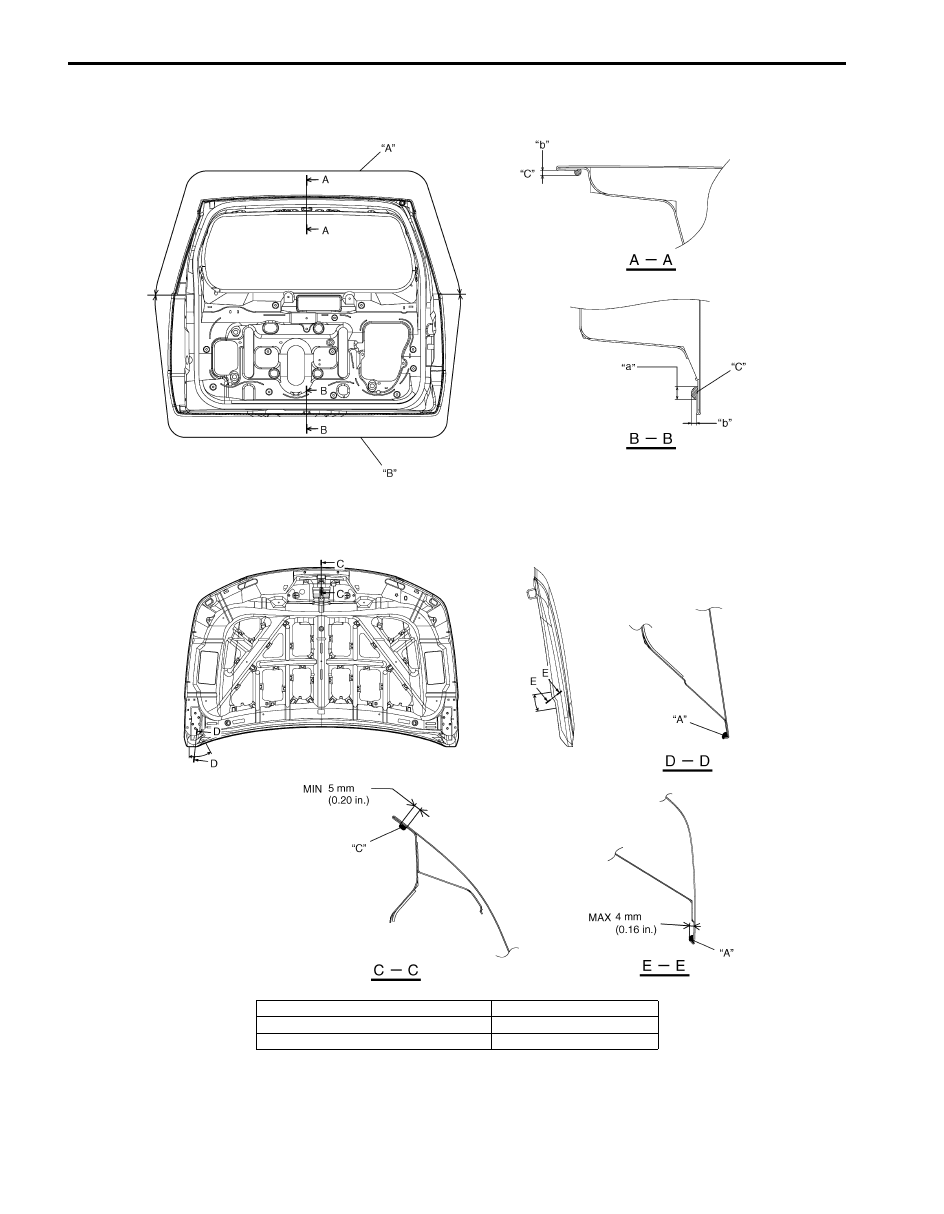

Rear End Door Panel and Hood Panel

I6JB019C0005-01

“A”: Apply sealant.

“a”: Min. 6 mm (0.24 in.)

“B”: Apply wide sealant.

“b”: Max. 3 mm (0.12 in.)

“C”: Apply sealant covering flange end.

Paint / Coatings:  9L-6

Rear Structure Panel

I5JB0A9C0007-04

“A”: Apply sealant.

“C”: Do not apply sealant.

“E”: Apply masking tape

“B”: Smooth out sealant with a brush.

“D”: Flatten sealant
