Suzuki Grand Vitara JB627. Manual - part 186

4E-25 ABS:

DTC Detecting Condition
The ABS (ESP

®) control module monitors the power source voltage at terminal “E03-14” (or “E53-1”). When the

power source voltage becomes extremely high or low while vehicle is running at more than 20 km/h (13 MPH), this
DTC will be set. As soon as the power source voltage becomes normal, the ABS warning light will be turned off and
the ABS (ESP

®) control module will return to normal operation, but the set DTC will be remain.

DTC Troubleshooting

Step

Action

Yes

No

1

Was “ABS Check” performed?

Go to Step 2.

Go to “ABS Check”.

2

1) Disconnect ABS (ESP

®) hydraulic unit / control module

connector with ignition switch turned OFF.

2) Check for proper connection to ABS (ESP

®) hydraulic

unit / control module connector at terminals “E03-14”
and “E03-13” (or “E53-1” and “E53-16”).

3) If OK, then turn ignition switch to ON position and

measure voltage between terminals “E03-14” and “E03-
13” (or “E53-1” and “E53-16”).

Is voltage 9.7

±

 0.3 V or more?

Go to Step 5.

Go to Step 3.

3

1) Turn ignition switch to OFF.
2) Check for proper connection to ABS (ESP

®) hydraulic

unit / control module connector at terminals “E03-13”
and “E03-26” (or “E53-16” and “E53-47”).

3) If OK then turn ignition switch to ON and measure

resistance between each terminal of “E03-13” and “E03-
26” (or “E53-16” and “E53-47”) and vehicle body ground.

Is resistance less than 2

Ω

?

Go to Step 4.

“BLK” wire circuit in
open or high resistance.

4

1) Measure voltage between positive battery terminal and

vehicle body ground with engine running.

Is voltage 9.7

±

 0.3 V or more?

Imperfect short between
“WHT/RED” wire circuit
and body ground.

Check charging system
referring to “Generator
Test (Undercharged
Battery Check) in
Section 1J”.

5

1) Measure voltage between terminals “E03-14” and “E03-

13” (or “E53-1” and “E53-16”) with engine running.

Is voltage 18

±

 1.0 V or less?

Poor connection of
“E03-14” and/or “E03-
13” (or “E53-1” and/or
“E53-16”) terminals. If
the terminals are in
good condition,
substitute a known-
good ABS (ESP

®)

hydraulic unit / control
module and recheck.

Check charging system
referring to “Generator
Test (Overcharged
Battery Check) in
Section 1J”.

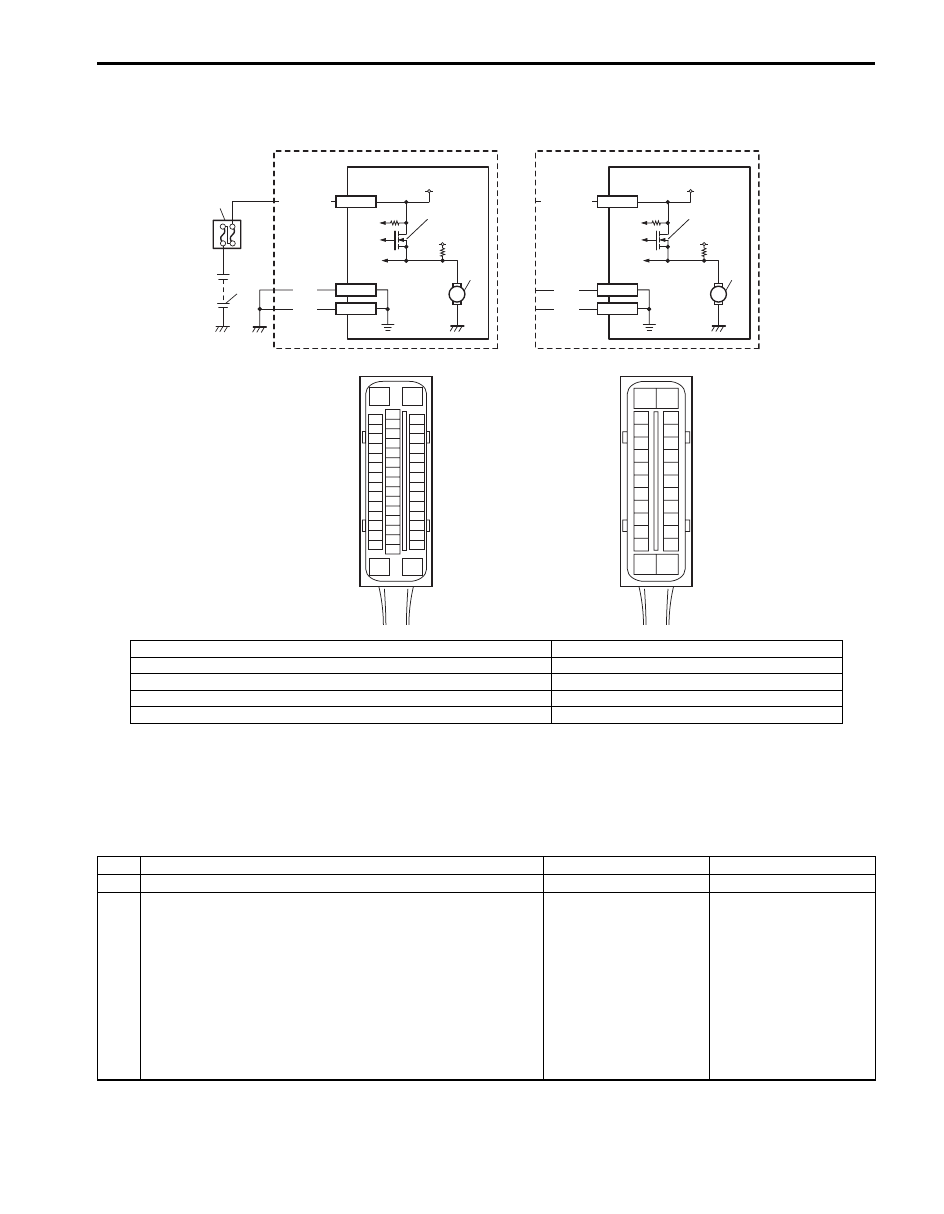

ABS: 4E-26

DTC C1061: ABS Pump Motor and/or Motor Driver Circuit Failure

S6JB0B4504016

Wiring Diagram

DTC Detecting Condition
The ABS (ESP

®) control module monitors the voltage at monitor terminal of pump motor circuit constantly with the

ignition switch turned ON. It sets this DTC when the voltage at the monitor terminal does not become high / low
according to ON/OFF commands to the motor driver (transistor) of the module (does not follow these commands).

DTC Troubleshooting

4

5

1

2

WHT/BLU

3

12V

M

12V

BLK

BLK

E53-16

E53-47

E53-32

4

6

WHT/BLU

3

12V

M

12V

BLK

BLK

E03-13

E03-26

E03-1

[D]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

[C]

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

[B]

[A]

I6JB01450010-01

[A]: ESP

® model

2. Main fuse box

[B]: Non-ESP

® model

3. Pump motor driver (transistor)

[C]: ESP

® hydraulic unit / control module connector (viewed from terminal side)

4. ABS pump motor

[D]: ABS hydraulic unit / control module connector (viewed from terminal side)

5. ESP

® hydraulic unit / control module assembly

1. Battery

6. ABS hydraulic unit / control module assembly

Step

Action

Yes

No

1

Was “ABS Check” performed?

Go to Step 2.

Go to “ABS Check”.

2

1) Turn Ignition switch to OFF position.
2) Disconnect ABS (ESP

®) hydraulic unit / control module

connector.

3) Check for proper connection to ABS (ESP

®) hydraulic

unit / control module connector at terminal “E03-1” (or
“E53-32”).

4) If OK, then measure voltage between terminal “E03-1” of

module connector and body ground.

Is it 10 – 14 V?

Go to Step 3.

“WHT/BLU” circuit
open.

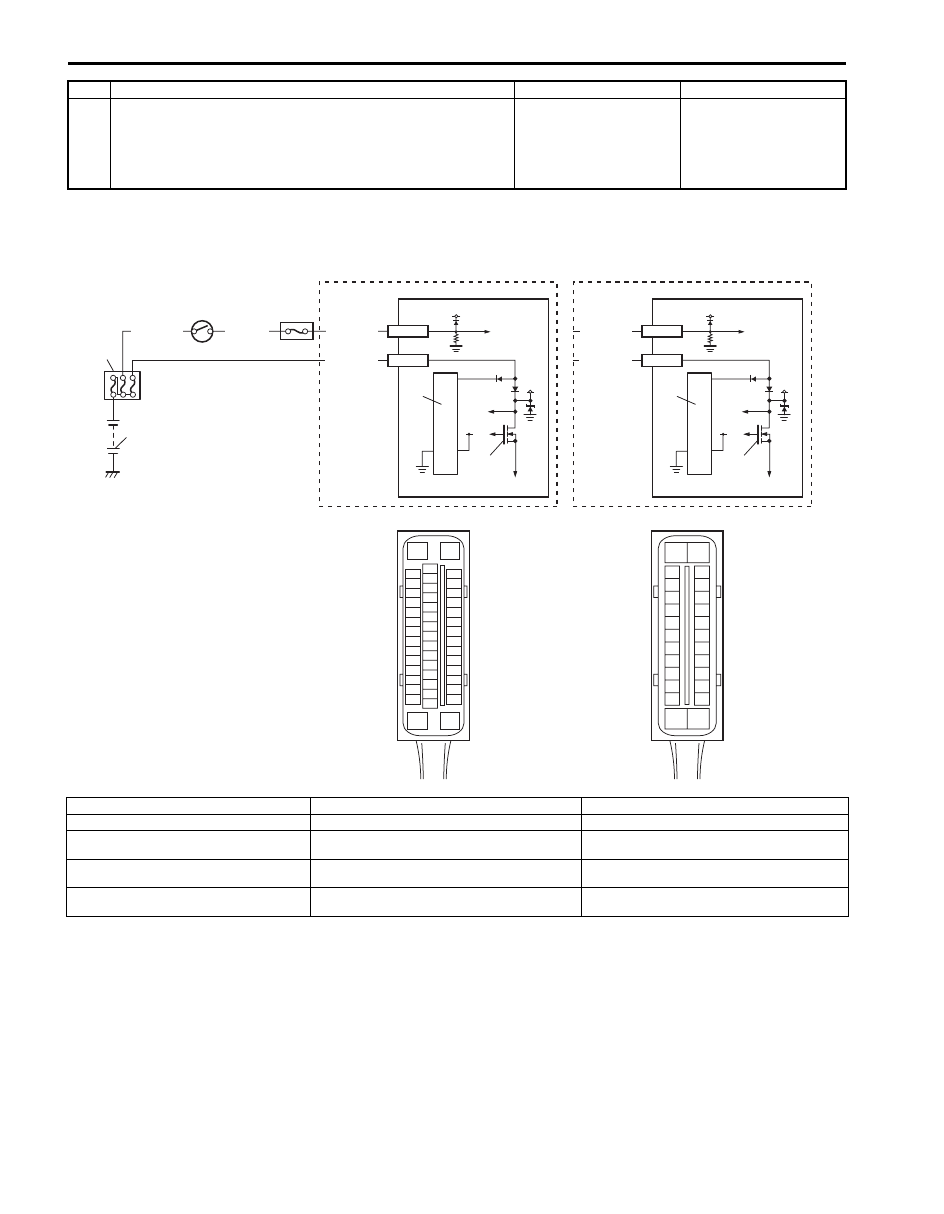

4E-27 ABS:

DTC C1063: Solenoid Valve Power Supply Driver Circuit Failure

S6JB0B4504017

Wiring Diagram

DTC Detecting Condition
ABS (ESP

®) control module monitors the voltage at the terminal of solenoid circuit constantly with ignition switch

turned ON. Also, immediately after ignition switch is turned ON, perform initial check as follows.
Switch solenoid valve power supply driver (transistor) in the order of OFF

→ ON and check if voltage changes to Low

→ High. If anything faulty is found in the initial check and when the voltage is low with ignition switch turned ON, this
DTC will be set.

3

Measure resistance between terminal “E03-13” and “E03-
26” (or “E53-16” and “E53-47”) of ABS (ESP

®) hydraulic unit

/ control module connector and vehicle body ground.

Is resistance less than 1

Ω

?

Substitute a known-
good ABS (ESP

®)

hydraulic unit / control
module assembly and
recheck.

Ground circuit for ABS
(ESP

®) hydraulic unit /

control module open or
high resistance.

Step

Action

Yes

No

3

4

12V

GRN/ORN

BLK/YEL

8

5V

12V

WHT/GRN

E53-35

E53-1

WHT/RED

5

7

9

1

2

12V

GRN/ORN

8

5V

12V

E03-7

E03-14

WHT/RED

6

7

9

[D]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

[C]

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

[A]

[B]

I6JB01450011-02

[A]: ESP

® model

2. Main fuse box

7. Power control unit

[B]: Non-ESP

® model

3. Ignition switch

8. Solenoid valve power supply driver (transistor)

[C]: ESP

® hydraulic unit / control module

connector (viewed from terminal side)

4. Circuit fuse box (in junction block assembly)

9. To solenoid valve

[D]: ABS hydraulic unit / control module

connector (viewed from terminal side)

5. ESP

® hydraulic unit / control module assembly

1. Battery

6. ABS hydraulic unit / control module assembly

assembly

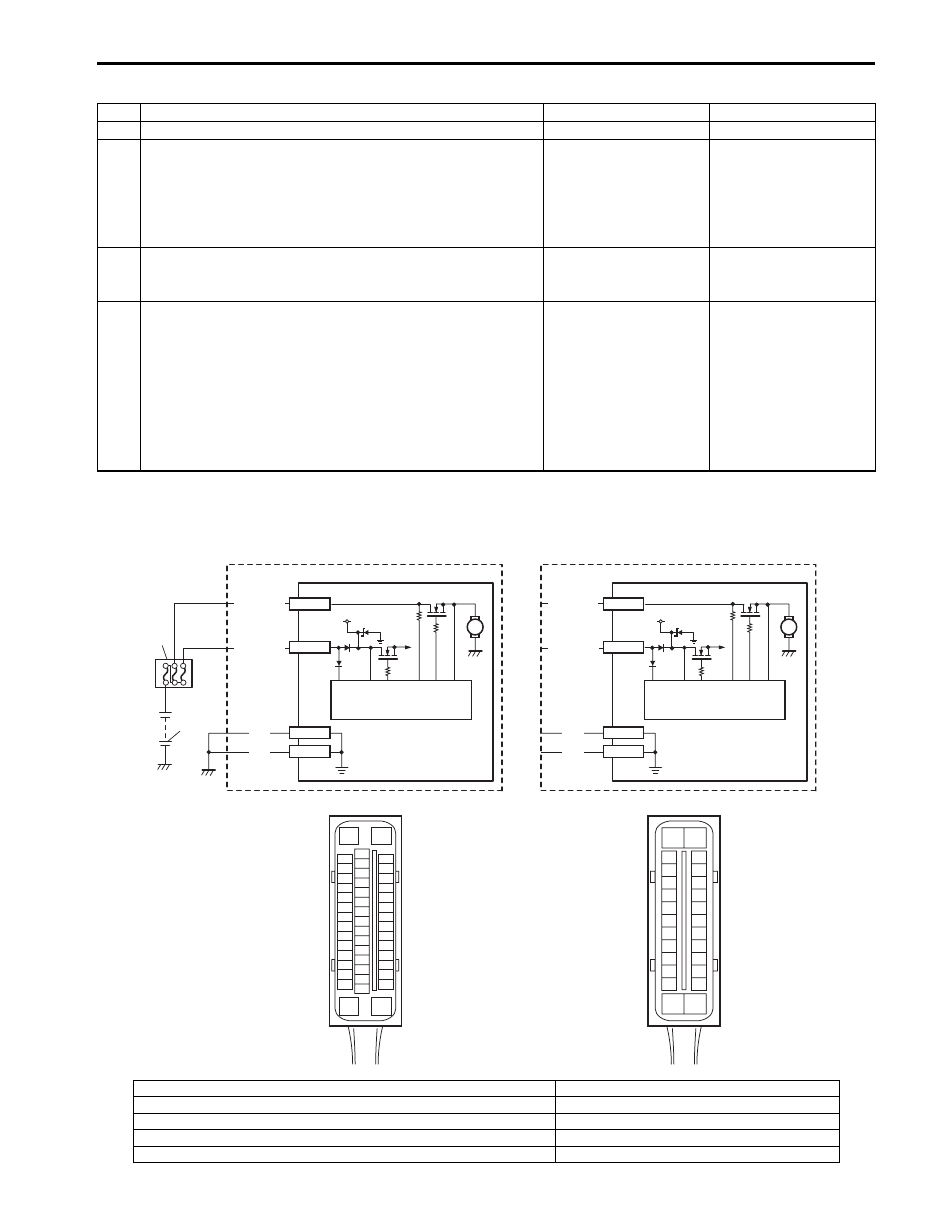

ABS: 4E-28

DTC Troubleshooting

DTC C1071: ABS (ESP

®) control module Internal Detect

S6JB0B4504018

Wiring Diagram

Step

Action

Yes

No

1

Was “ABS Check” performed?

Go to Step 2.

Go to “ABS Check”.

2

Check battery voltage.

Is it about 11 V or higher?

Go to Step 3.

Check charging system
referring to “Battery
Inspection in Section
1J” and “Generator Test
(Undercharged Battery
Check) in Section 1J”.

3

Check main fuse for ABS solenoid and its terminal.

Is it in good condition?

Go to Step 4.

Replace fuse and check
for short circuit to
ground.

4

1) Turn ignition switch to OFF position.
2) Disconnect ABS (ESP

®) hydraulic unit / control module

connector.

3) Check for proper connection to ABS (ESP

®) hydraulic

unit / control module at terminal “E03-14” (or “E53-1”).

4) If OK, then measure voltage between connector terminal

“E03-14” (or “E53-1”) and body ground.

Is it 10 – 14 V?

Substitute a known-
good ABS (ESP

®)

hydraulic unit / control
module assembly and
recheck.

“WHT/RED” circuit
imperfect short to
ground.

1

2

WHT/BLU

12V

M

3

4

E53-32

E53-1

BLK

BLK

E53-16

E53-47

WHT/RED

WHT/BLU

12V

M

3

5

E03-1

E03-14

BLK

BLK

E03-13

E03-26

WHT/RED

[D]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

[C]

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

[A]

[B]

I6JB01450012-02

[A]: ESP

® model

2. Main fuse box

[B]: Non-ESP

® model

3. Power control unit

[C]: ESP

® hydraulic unit / control module connector (viewed from terminal side)

4. ESP

® hydraulic unit / control module assembly

[D]: ABS hydraulic unit / control module connector (viewed from terminal side)

5. ABS hydraulic unit / control module assembly

1. Battery
