北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

– Temperature gauge
– AT OIL TEMP warning light

If any of the following conditions occur,

immediately turn off the air conditioner and
stop the vehicle in the nearest safe
location. Refer to “If you park your vehicle
in an emergency” F9-2 and “Engine
overheating” F9-14.

– Temperature gauge needle ap-
proaches the OVERHEAT zone. Refer
to “Temperature gauge” F3-11.
– AT OIL TEMP warning light illumi-
nates. Refer to “AT OIL TEMP warning
light” F3-17.

Do not use the accelerator pedal to stay

stationary on an uphill slope instead of
using the parking brake or foot brake. That
may cause the transmission fluid to over-
heat.

Parking on a grade

Always block the wheels under both
vehicle and trailer when parking. Apply
the parking brake. You should not park on
a hill or slope. If parking on a hill or slope
cannot be avoided, you should take the
following steps:

1. Apply the brakes and hold the pedal
down.
2. Have someone place wheel blocks
under both the vehicle and trailer wheels.
3. When the wheel blocks are in place,
release the regular brakes slowly until the
blocks absorb the load.
4. Apply the regular brakes and then
apply the parking brake; slowly release
the regular brakes.
5. Shift into “P” and shut off the engine.

Driving tips/Trailer towing (Outback)

8-30

(389,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

If you park your vehicle in an emergency ............ 9-2
Temporary spare tire .............................................. 9-2
Maintenance tools................................................... 9-3

Legacy................................................................... 9-4
Outback ................................................................. 9-5

Flat tires................................................................... 9-5

Changing a flat tire ................................................ 9-5
Storing a flat tire .................................................... 9-9

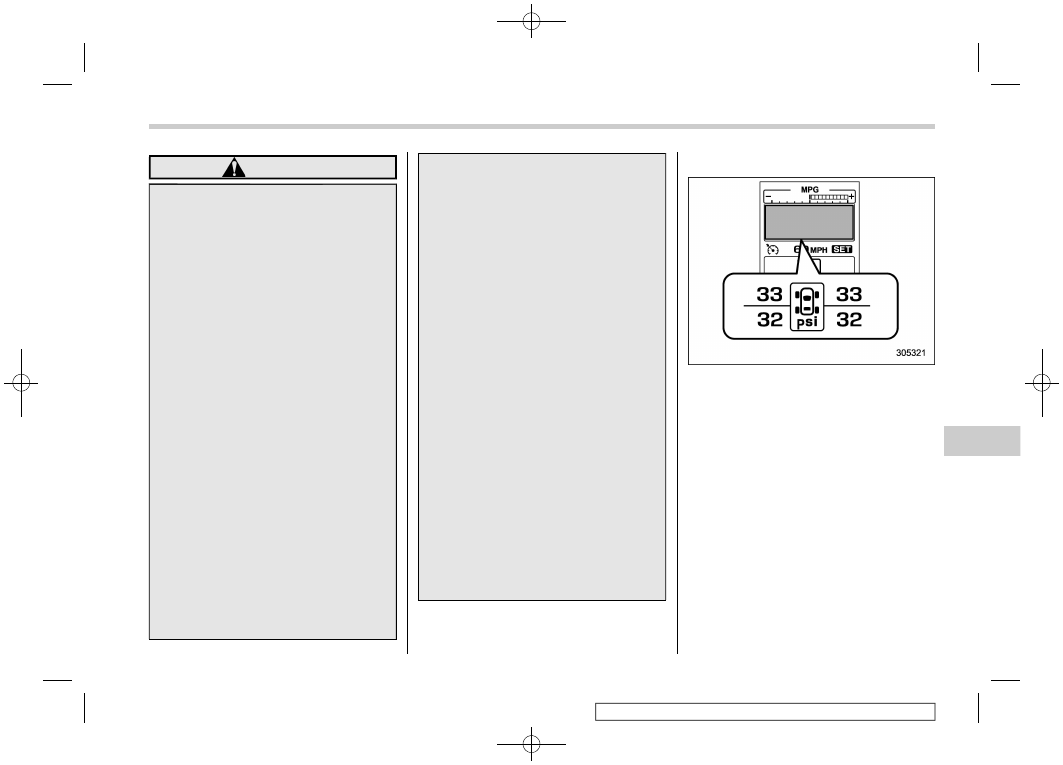

Tire pressure monitoring system (TPMS)

(if equipped) ....................................................... 9-10

TPMS screen ........................................................ 9-11

Jump starting ........................................................ 9-12

How to jump start ................................................. 9-12

Engine overheating............................................... 9-14

If steam is coming from the engine

compartment ...................................................... 9-14

If no steam is coming from the engine

compartment ...................................................... 9-14

Towing ................................................................... 9-14

Towing hook and tie-down hooks/holes ................. 9-15

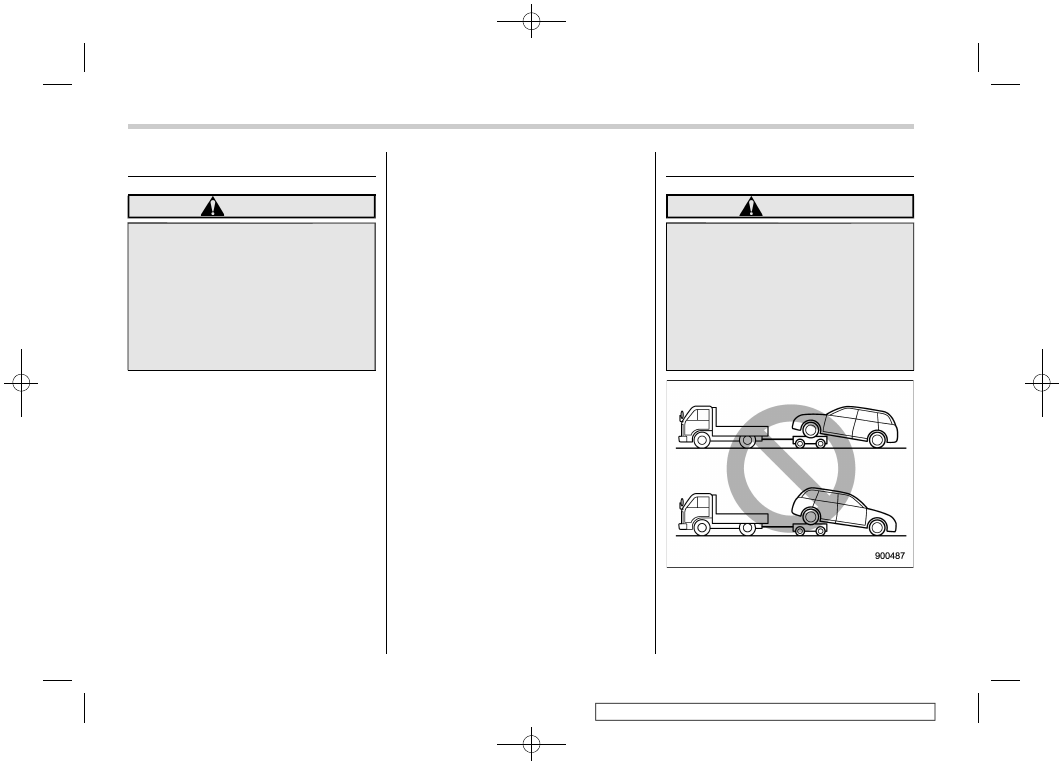

Using a flat-bed truck............................................ 9-18
Towing with all wheels on the ground ................... 9-18

Electronic parking brake – if the electronic

parking brake cannot be released.................... 9-19

Access key fob – if access key fob does not

operate properly ................................................ 9-19

Locking and unlocking ......................................... 9-19
Switching power status ........................................ 9-20
Starting engine ..................................................... 9-20

Trunk lid (Legacy) – if the trunk lid cannot be

opened................................................................ 9-21

Rear gate (Outback) – if the rear gate cannot

be opened .......................................................... 9-21

Power rear gate – if power rear gate does not

operate properly ................................................ 9-22

When the power rear gate is deactivated............... 9-22
When the rear gate cannot be opened................... 9-23
When the rear gate cannot be closed .................... 9-23

If your vehicle is involved in an accident........... 9-24

To restart the engine when involved in an

accident ............................................................ 9-24

Auto lock/unlock operation when involved in an

accident ............................................................ 9-24

In case of emergency

(390,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

If you park your vehicle in an
emergency

The hazard warning flasher should be
used in day or night to warn other drivers
when you have to park your vehicle under
emergency conditions.
Avoid stopping on the road. It is best to
safely pull off the road if a problem occurs.

The hazard warning flasher can be acti-
vated regardless of the ignition switch
position.

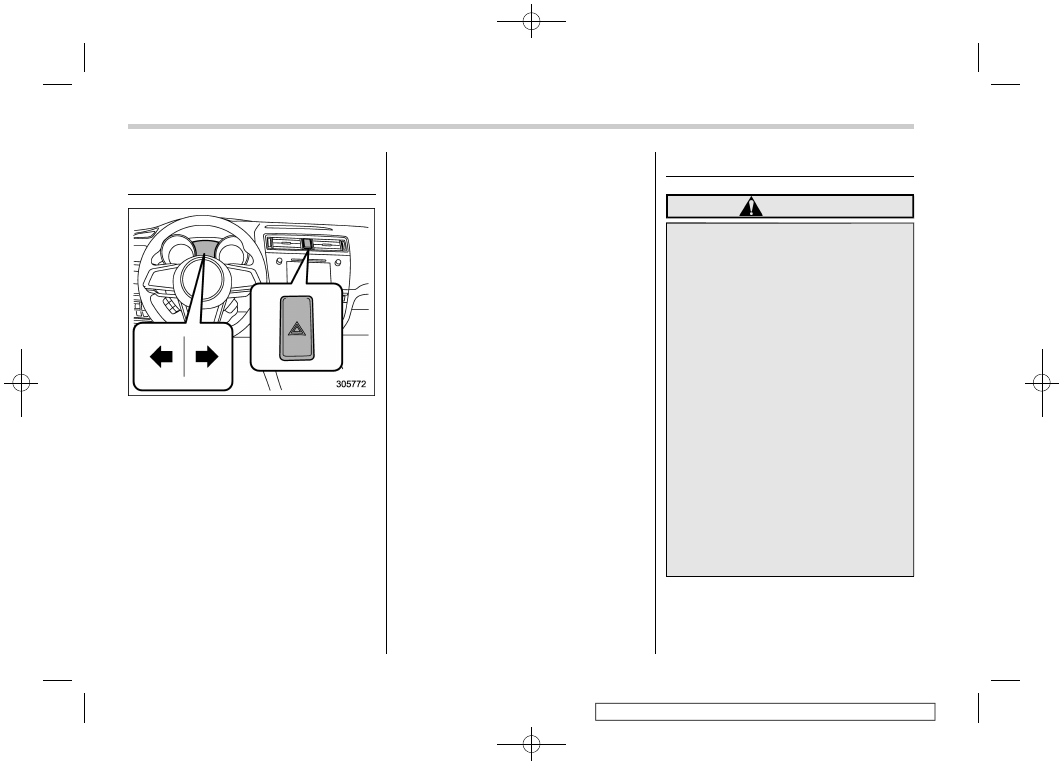

Turn on the hazard warning by pressing
the hazard warning flasher switch. Turn it
off by pressing the switch again.
When the hazard warning flasher are
flashing, the corresponding turn signal
indicator will also flash.

NOTE

When the hazard warning flasher is on,
the turn signals do not work.

Temporary spare tire

WARNING

Never tow a trailer when the

temporary spare tire is used.
The temporary spare tire is not
designed to sustain the towing
load. Use of the temporary spare
tire when towing can result in
failure of the spare tire and/or
less stability of the vehicle and
may lead to an accident.

When a spare tire is mounted or a

wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the tire pressure
monitoring system (TPMS) is un-
able to monitor all four road
wheels. Contact your SUBARU
dealer as soon as possible for
tire and sensor replacement and/
or system resetting.

In case of emergency/If you park your vehicle in an emergency

9-2

(391,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

CAUTION

Never use any temporary spare tire
other than the original. Using other
sizes may result in severe mechan-
ical damage to the drive train of your
vehicle.

The temporary spare tire is stored under
the under-floor storage compartment.

The temporary spare tire is smaller and
lighter than a conventional tire and is
designed for emergency use only. Re-
move the temporary spare tire and re-
install the conventional tire as soon as
possible because the spare tire is de-
signed only for temporary use.

Check the inflation pressure of the tem-
porary spare tire periodically to keep the
tire ready for use. For the correct tire
pressure, refer to “Tires” F12-9.

When using the temporary spare tire, note
the following precautions.
.

Do not exceed 50 mph (80 km/h).

Do not put a tire chain on the temporary

spare tire. Because of the smaller tire size,
a tire chain will not fit properly.
.

Do not use two or more temporary

spare tires at the same time.
.

Do not drive over obstacles. This tire

has a smaller diameter, so road clearance
is reduced.

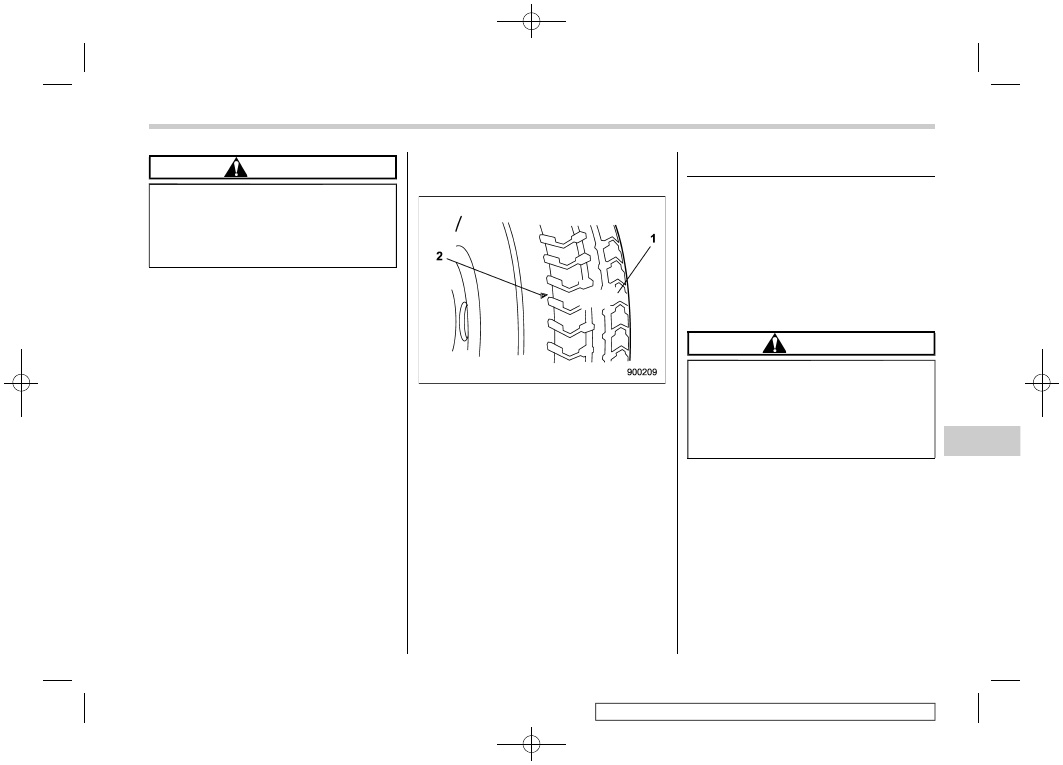

Tread wear indicator bar

Indicator location mark

When the wear indicator appears on

the tread, replace the tire.
.

The temporary spare tire must be used

only on a rear wheel. If a front wheel tire
gets punctured, replace the wheel with a
rear wheel and install the temporary spare
tire in place of the removed rear wheel.

Maintenance tools

Your vehicle is equipped with the following
maintenance tools.
.

Jack

Jack handle

Screwdriver

Towing hook (eye bolt) (Outback)

Wheel nut wrench

Torque wrench (Outback)

CAUTION

The torque wrench is designed to be
used only when changing the posi-
tion of the crossbar. Do not use the
torque wrench in other cases. Other-
wise, the torque wrench may be
deformed.

– CONTINUED –

In case of emergency/Maintenance tools

9-3

(392,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

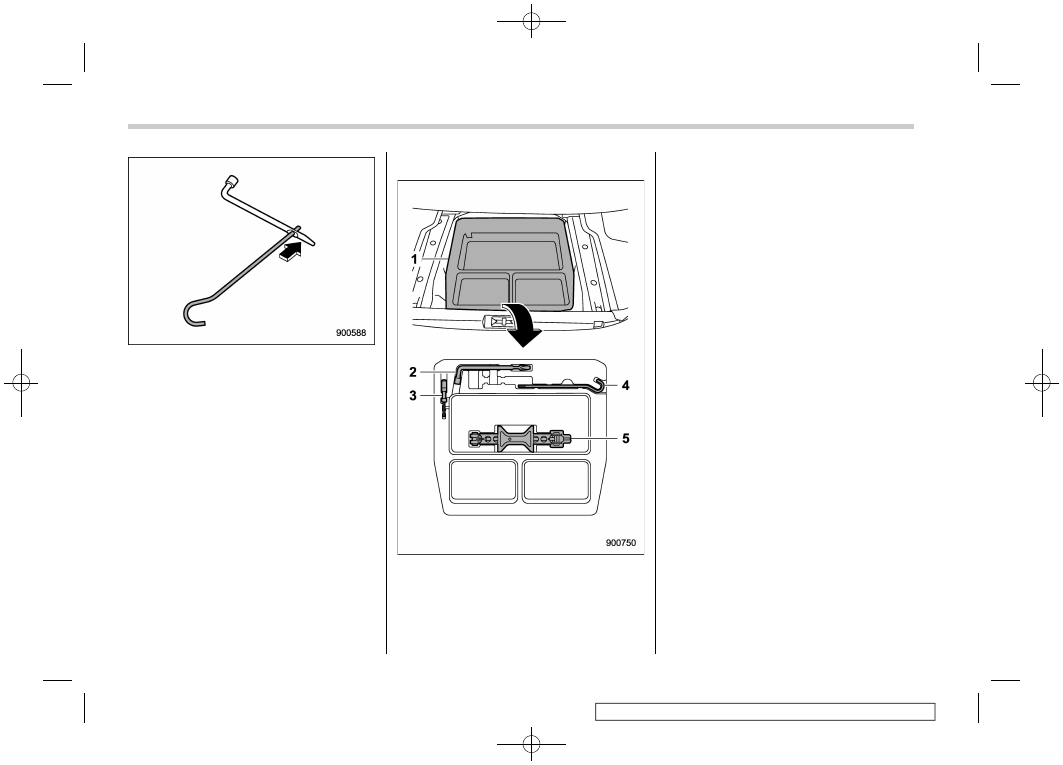

NOTE

To use the jack handle, insert the jack
handle into the hole of the wheel nut
wrench.

Legacy

Under-floor storage compartment (Refer
to “Under-floor storage compartment”
F6-20.)

Wheel nut wrench

Screwdriver

Jack handle

Jack

The maintenance tools are stored in the
under-floor storage compartment.
For the method to use the jack, refer to
“Flat tires” F9-5.

In case of emergency/Maintenance tools

9-4

(393,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

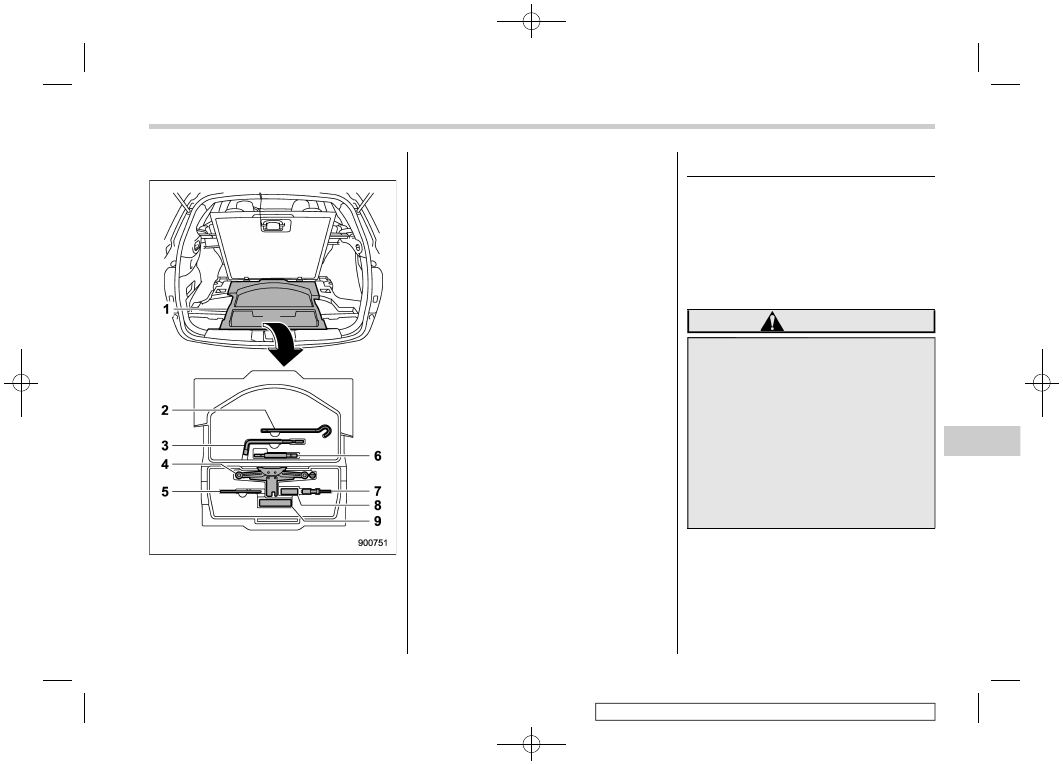

Outback

Under-floor storage compartment (Refer
to “Under-floor storage compartment”
F6-20.)

Jack handle

Wheel nut wrench

Jack

Torque wrench

Towing hook (eye bolt)

Screwdriver

Tire fixing band

Tire bag

The maintenance tools are stored in the
under-floor storage compartment.
For the method to use the jack, refer to
“Flat tires” F9-5.

Flat tires

If you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place.

Changing a flat tire

WARNING

Use only the jack provided with

your vehicle. The jack supplied
with the vehicle is designed only
for changing a tire. Never get
under the vehicle while support-
ing the vehicle with this jack.

Do not jack up the vehicle on an

incline or a loose road surface.
The jack can come out of the
jacking point or sink into the
ground and this can result in a
serious accident.

– CONTINUED –

In case of emergency/Flat tires

9-5

(394,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Always turn off the engine before

raising the flat tire off the ground
using the jack. Never swing or
push the vehicle supported with
the jack. The jack can come out of
the jacking point due to a jolt and
this can result in a serious acci-
dent.

1. Park on a hard, level surface, when-
ever possible, then stop the engine.
2. Apply the parking brake and shift the
select lever in the “P” (Park) position.
3. Turn on the hazard warning flasher and
unload all occupants and luggage from the
vehicle.

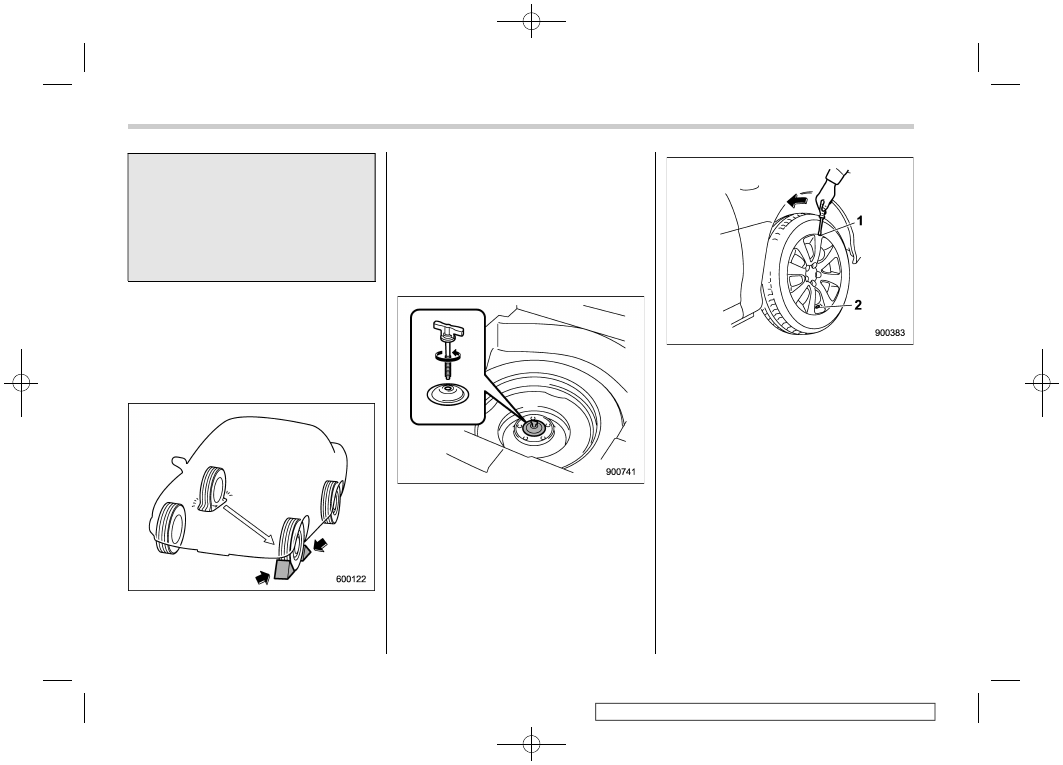

4. Put wheel blocks at the front and rear
of the tire diagonally opposite the flat tire.
5. Take out the jack, jack handle and

wheel nut wrench.
The tools and the spare tire are stored
under the floor of the trunk (Legacy) or the
cargo area (Outback). Refer to “Mainte-
nance tools” F9-3.

NOTE

Make sure that the jack is well lubri-
cated before using it.

6. Take out the under-floor storage com-
partment and turn the attaching bolt
counterclockwise, then take the spare tire
out.

NOTE

Carefully read “Temporary spare tire”
F9-2 and strictly follow the instruc-
tions.

Notch

Valve hole

7. If your vehicle has wheel covers, insert
a flat-head screwdriver into the notch on
the opposite side of the valve hole and pry
the wheel cover to remove it.

In case of emergency/Flat tires

9-6

(395,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

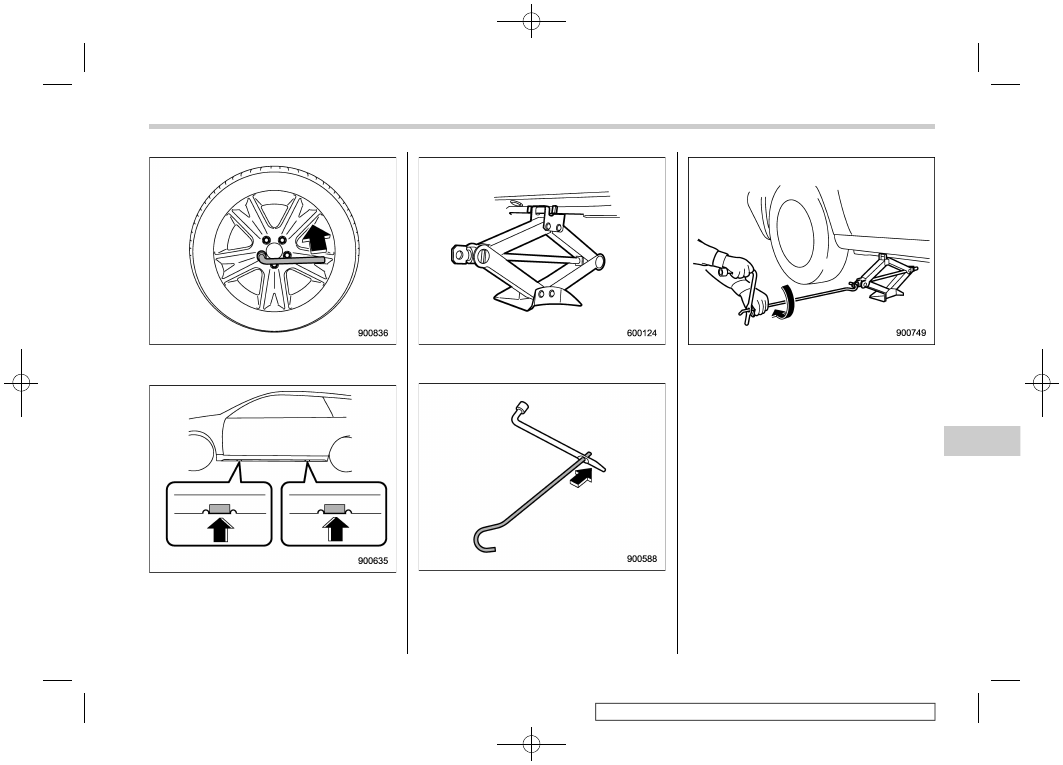

8. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.

9. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.

Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.

10. Insert the jack handle into the hole of
the wheel nut wrench.

11. Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.
12. Remove the wheel nuts and the flat
tire.

– CONTINUED –

In case of emergency/Flat tires

9-7

(396,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

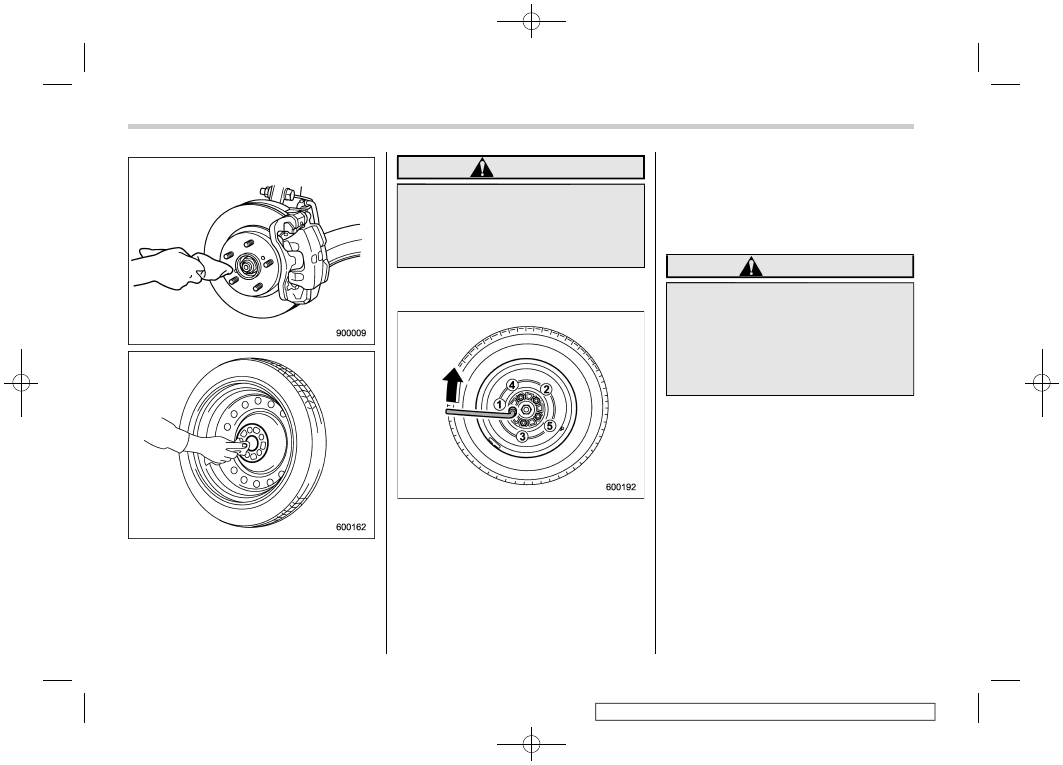

13. Before putting the spare tire on, clean
the mounting surface of the wheel and hub
with a cloth.
14. Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.

WARNING

Do not use oil or grease on the wheel
studs or nuts when the spare tire is
installed. This could cause the nuts
to become loose and lead to an
accident.

15. Turn the jack handle counterclockwise
to lower the vehicle.

16. Use the wheel nut wrench to securely
tighten the wheel nuts to the specified
torque, following the tightening order in the
illustration.
For the wheel nut tightening torque, refer
to “Tires” F12-9. Never use your foot on
the wheel nut wrench or a pipe extension
on the wrench because you may exceed
the specified torque. Have the wheel nut

torque checked at the nearest automotive
service facility.
17. Store the flat tire. For details, refer to
“Storing a flat tire” F9-9. Also store the
jack and jack handle in their storage
locations.

WARNING

Never place a tire or tire changing
tools in the passenger compartment
after changing wheels. In a sudden
stop or collision, loose equipment
could strike occupants and cause
injury. Store the tire and all tools in
the proper place.

In case of emergency/Flat tires

9-8

(397,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

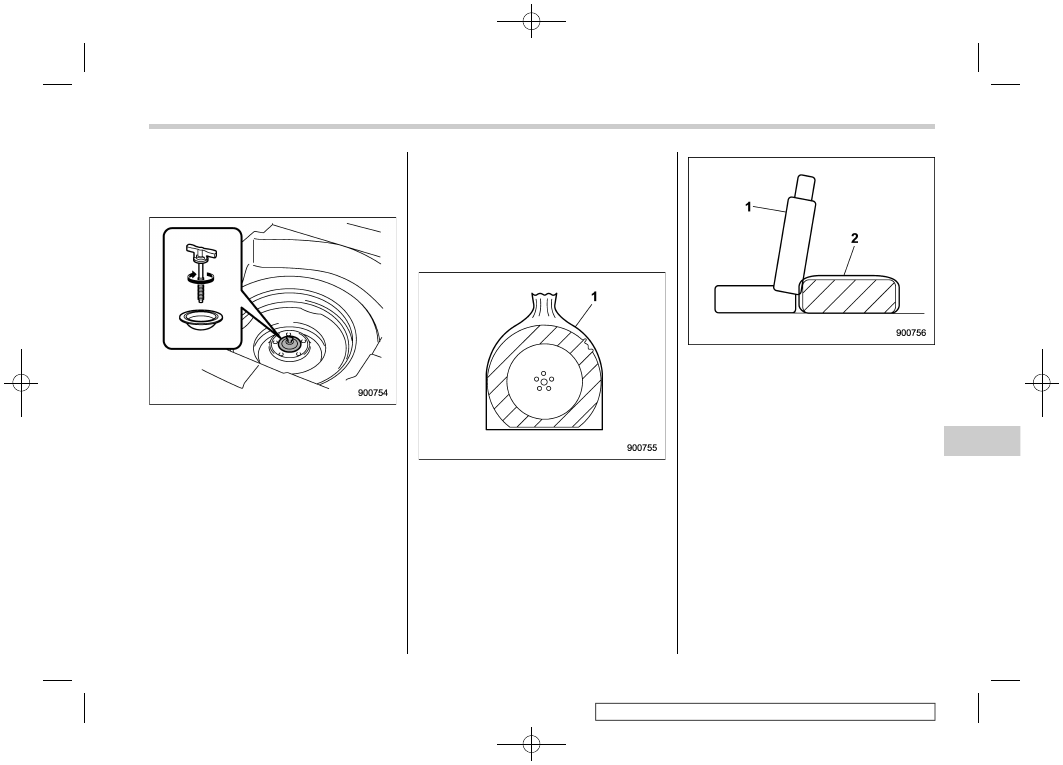

Storing a flat tire

Storing in the spare tire compart-
ment (Legacy)

Store the flat tire in the spare tire compart-
ment. Put the spacer and tighten the
attaching bolt firmly.

Storing with the tire bag (Outback)

1. If your vehicle has wheel covers, keep
the wheel cover removed.
2. Take out the tire bag and tire fixing
band from the under-floor storage com-
partment. For details, refer to “Outback”
F9-5.

Tire bag

3. Place the flat tire in the tire bag.

Rear seatback

Tire bag

4. Place the tire bag against the rear
seatback.

– CONTINUED –

In case of emergency/Flat tires

9-9

(398,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

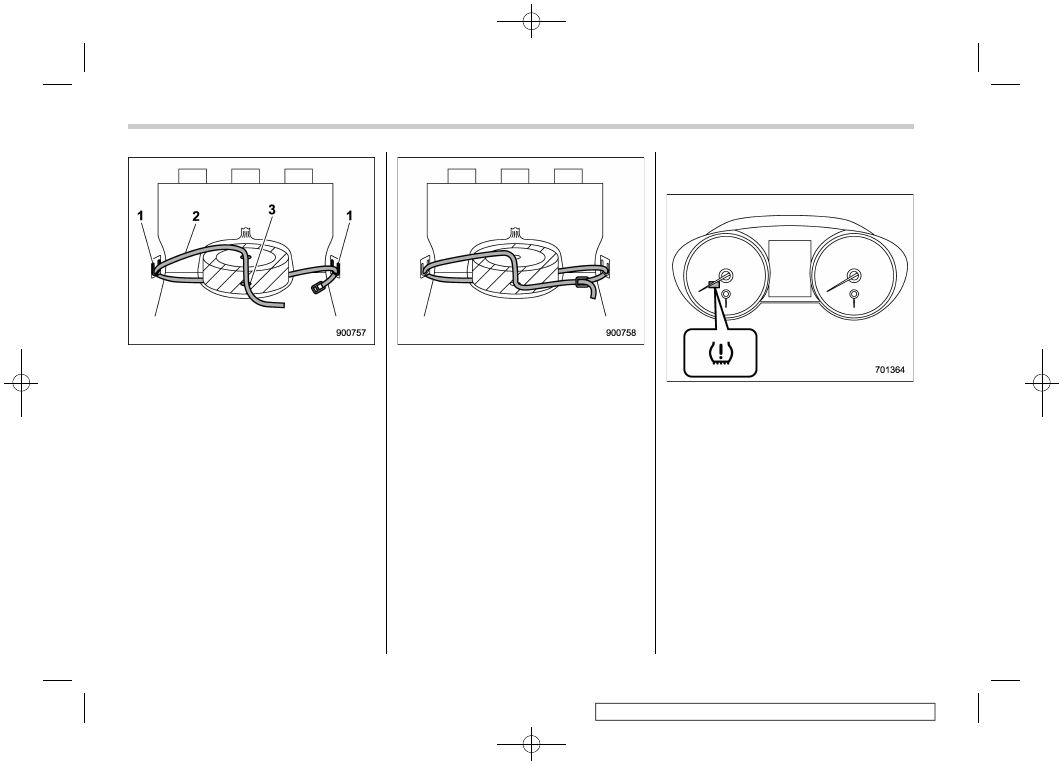

Convenient tie-down hook

Tire fixing band

Center of the wheels

5. Pass the tire fixing band through the
center of the wheels and the convenient
tie-down hooks.

6. Fasten the tire fixing band to secure
the tire bag.

Tire pressure monitoring
system (TPMS) (if equipped)

Low tire pressure warning light

The tire pressure monitoring system pro-
vides the driver with the warning message
indicated by sending a signal from a
sensor that is installed in each wheel when
tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven.
Also, this system may not react immedi-
ately to a sudden drop in tire pressure (for
example, a blow-out caused running over
a sharp object).

In case of emergency/Flat tires

9-10

(399,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

WARNING

If the low tire pressure warning

light illuminates while driving,
never brake suddenly. Instead,
perform the following procedure.
Otherwise an accident involving
serious vehicle damage and ser-
ious personal injury could occur.

(1) Keep driving straight ahead

while gradually reducing
speed.

(2) Slowly pull off the road to a

safe place.

(3) Check the pressure for all four

tires and adjust the pressure
to the COLD tire pressure
shown on the vehicle placard
on the door pillar on the
driver’s side.

If this light still illuminates while

driving after adjusting the tire
pressure, a tire may have signifi-
cant damage and a fast leak that
causes the tire to lose air rapidly.
If you have a flat tire, replace it
with a spare tire as soon as
possible.

When a spare tire is mounted or a

wheel rim is replaced without the
original pressure sensor/trans-

mitter being transferred, the low
tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or sys-
tem resetting.

When a tire is repaired with liquid

sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid sea-
lant is used, contact your nearest
SUBARU dealer or other qualified
service shop as soon as possi-
ble. Make sure to replace the tire
pressure warning valve and
transmitter when replacing the
tire. You may reuse the wheel if
there is no damage to it and if the
sealant residue is properly
cleaned off.

If the light illuminates steadily
after blinking for approximately
one minute, promptly contact a
SUBARU dealer to have the sys-
tem inspected.

TPMS screen

This screen displays each tire pressure.
Refer to “Basic screens” F3-39.

In case of emergency/Flat tires

9-11

(400,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Jump starting

WARNING

Battery fluid is SULFURIC ACID.

Do not let it come in contact with
the eyes, skin, clothing or the
vehicle.

If battery fluid gets on you, thor-
oughly flush the exposed area
with water immediately. Get med-
ical help if the fluid has entered
your eyes.

If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water,
and obtain immediate medical
help.

Keep everyone including chil-
dren away from the battery.

The gas generated by a battery

explodes if a flame or spark is
brought near it. Do not smoke or
light a match while jump starting.

Never attempt jump starting if the

discharged battery is frozen. It
could cause the battery to burst
or explode.

Whenever working on or around a

battery, always wear suitable eye

protectors, and remove metal
objects such as rings, bands or
other metal jewelry.

Be sure the jumper cables and

clamps on them do not have
loose or missing insulation.

Do not jump start unless cables in

suitable condition are available.

A running engine can be danger-

ous. Keep your fingers, hands,
clothing, hair and tools away
from the cooling fan, belts and
any other moving engine parts.
Removing rings, watches and
ties is advisable.

Jump starting is dangerous if it is

done incorrectly. If you are un-
sure about the proper procedure
for jump starting, consult a com-
petent mechanic.

When your vehicle does not start due to a
run down (discharged) battery, the vehicle
may be jump started by connecting your
battery to another battery (called the
booster battery) with jumper cables.

How to jump start

1. Make sure the booster battery is 12
volts and the negative terminal is
grounded.
2. If the booster battery is in another
vehicle, do not let the two vehicles touch.
3. Turn off all unnecessary lights and
accessories.
4. Connect the jumper cables exactly in
the sequence illustrated.

In case of emergency/Jump starting

9-12

(401,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

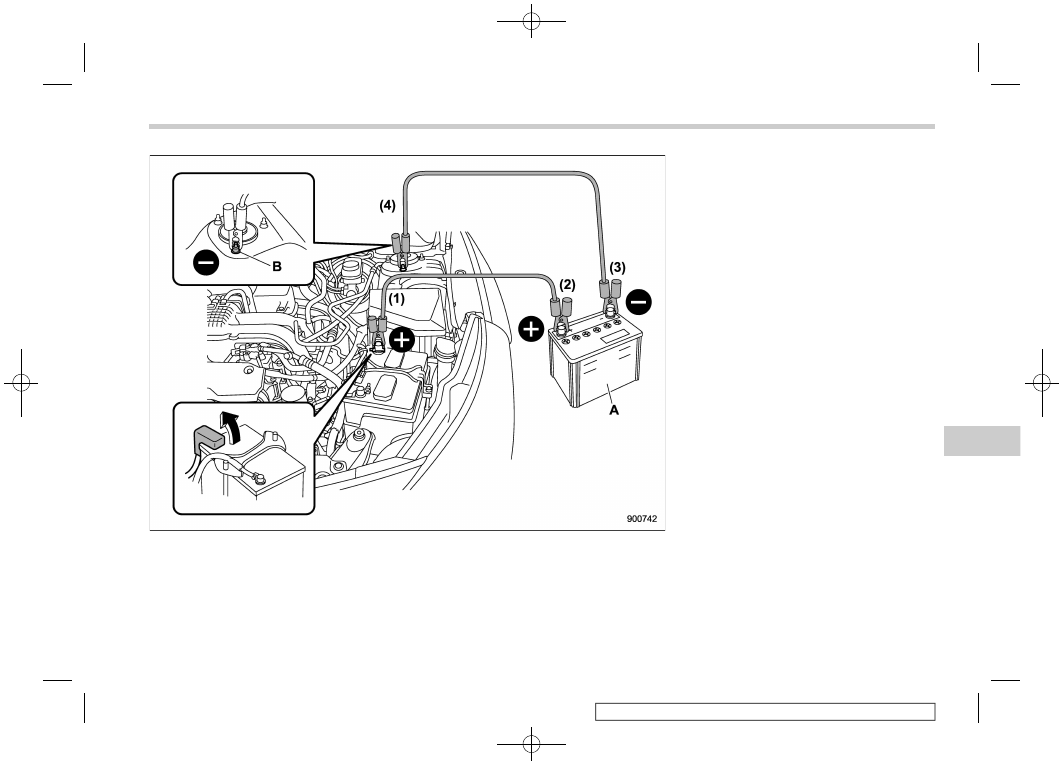

Booster battery

Strut mounting nut

Connect one jumper cable to the positive
(+) terminal on the discharged battery.

Connect the other end of the jumper
cable to the positive (+) terminal of the
booster battery.

Connect one end of the other cable to the
negative (−) terminal of the booster
battery.

Connect the other end of the cable to the
strut mounting nut.

Make sure that the cables are not near any
moving parts and that the cable clamps are
not in contact with any other metal.

5. Start the engine of the vehicle with the
booster battery and run it at moderate
speed. Then start the engine of the vehicle
that has the discharged battery.
6. When finished, carefully disconnect
the cables in exactly the reverse order.

In case of emergency/Jump starting

9-13

(402,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Engine overheating

WARNING

Never attempt to remove the radiator
cap until the engine has been shut
off and has fully cooled down. When
the engine is hot, the coolant is
under pressure. Removing the cap
while the engine is still hot could
release a spray of boiling hot cool-
ant, which could burn you very
seriously.

If the engine overheats, pull off the road
safely and stop the vehicle in a safe place.

If steam is coming from the
engine compartment

Turn off the engine and get everyone away
from the vehicle until it cools down.

If no steam is coming from the
engine compartment

NOTE

For details about how to check the
coolant level or how to add coolant,
refer to “Engine coolant” F11-15.

1. Keep the engine running at idling
speed.

2. Open the hood to ventilate the engine
compartment. Refer to “Engine hood”
F11-8.
Confirm that the cooling fan is turning. If
the fan is not turning, immediately turn off
the engine and contact your authorized
dealer for repair.
3. After the engine coolant temperature
has dropped, turn off the engine.
If the temperature gauge stays in the
overheated zone, turn off the engine.
4. After the engine has fully cooled down,
check the coolant level in the reserve tank.
If the coolant level is below the “LOW”
mark, add coolant up to the “FULL” mark.
5. If there is no coolant in the reserve
tank, add coolant to the reserve tank. Then
remove the radiator cap and fill the radiator
with coolant.

If you remove the radiator cap from a hot
radiator, first wrap a thick cloth around the
radiator cap, then turn the cap counter-
clockwise slowly without pressing down
until it stops. Release the pressure from
the radiator. After the pressure has been
fully released, remove the cap by pressing
down and turning it.

Towing

WARNING

Never tow AWD vehicles with the
front wheels raised off the ground
while the rear wheels are on the
ground, or with the rear wheels
raised off the ground while the front
wheels are on the ground. This will
cause the vehicle to spin away due
to the operation or deterioration of
the center differential.

If towing is necessary, SUBARU recom-
mends it be done by your SUBARU dealer
or a commercial towing service.

In case of emergency/Engine overheating

9-14

(403,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Towing hook and tie-down
hooks/holes

The towing hooks should be used only in
an emergency.
A towing hook is supplied with Outback
only. Legacy is not supplied with a towing
hook (it is available as an accessory). On
Legacy, the towing access cover is on the
rear bumper only.
SUBARU recommends towing be done
by your SUBARU dealer or a commer-
cial towing service.

CAUTION

Use only the specified towing

hook and tie-down hooks/holes.
Never use suspension parts or
other parts of the body for towing
or tie-down purposes.

Never use the tie-down hole clo-

sest to the muffler under the
vehicle for towing purposes.

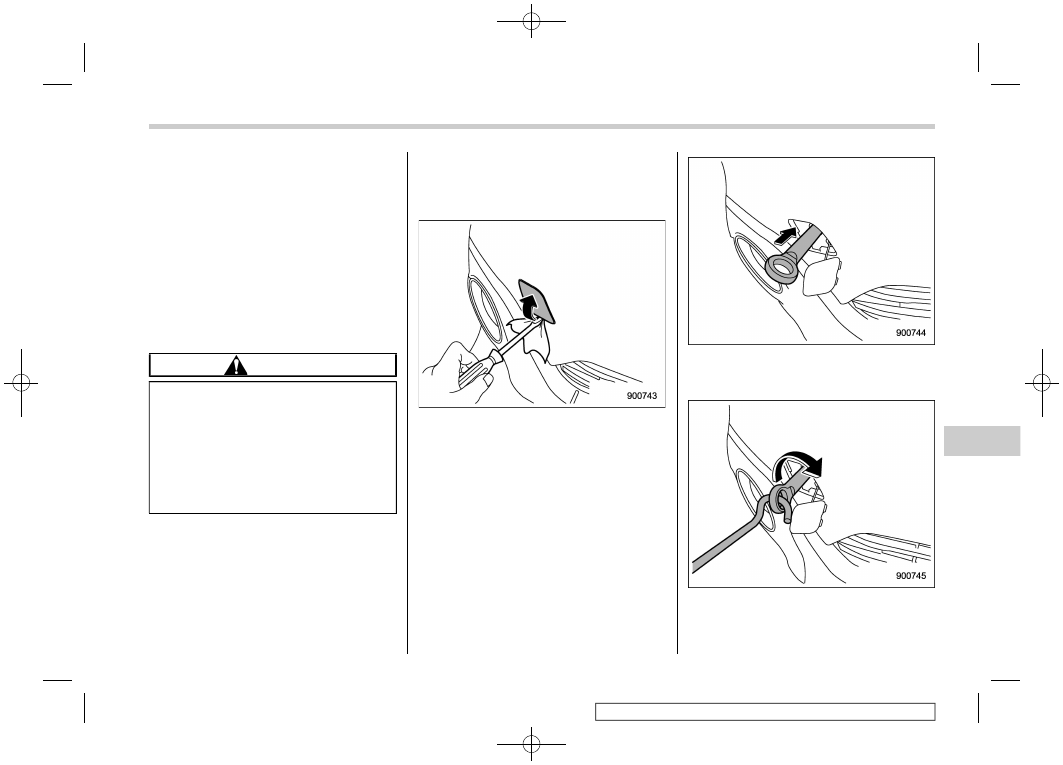

Front towing hook (Outback):
1. Take out the screwdriver, towing hook,
wheel nut wrench and jack handle from the
under-floor storage compartment.

2. Pry off the towing access cover on the
front bumper using a screwdriver, and you
will find a threaded hole for attaching the
towing hook.

3. Screw the towing hook into the
threaded hole until the threads can no
longer be seen.

4. Tighten the towing hook securely using
the jack handle and wheel nut wrench.

– CONTINUED –

In case of emergency/Towing

9-15

Content .. 22 23 24 25 ..
