hazard warning flashers flash three times.
The electronic chirp and the flashing
hazard warning flashers confirm the se-
lected rear gate height has been regis-
tered.

NOTE

To change the registered height,

press the memory switch to select the
“OFF” status and perform the register-
ing procedure again.
.

It is possible to register the height

from approximately 2 in (5 cm) or more
from the completely closed position.

Retrieval of the rear gate height:
To open the rear gate and stop it at the
registered height, perform the following
procedure.
1. Press the memory switch to select the
ON status.
2. Press and hold any of the power rear
gate switches.

Even if any of the power rear gate switches
are pressed and held while the memory
switch is in the OFF status, you can stop it
at the registered height by pressing the
memory switch to select the ON status
before the rear gate reaches the registered
height.

NOTE

The rear gate will open to the position
that is stored in the memory function
even if the rear gate is opened by the
reverse function.

Reverse function

WARNING

Do not let parts of your body get

caught when operating the re-
verse function. If the reverse
function does not operate for
some reason, this may lead to
serious injury or accidents.

The reverse function may not

operate if foreign objects are
caught in the rear gate just before
it closes completely. Be careful
not to catch your fingers and
other body parts.

The reverse function may not

operate depending on the object
shape and the manner in which it
was caught. Be careful not to
catch your fingers and other
body parts.

CAUTION

If the reverse function is operated

3 times consecutively, automatic
opening and closing of the power
rear gate function will be can-
celed and the rear gate will stop
opening or closing suddenly.
However, the rear gate may open
or close depending on the rear
gate height when automatic op-
eration is ceased. Be careful that
the rear gate does not hit any-
one’s head or face, etc. and that
fingers and baggage, etc. are not
caught in it.

Take care not to damage the

touch sensors. Otherwise, the
reverse function may cease to
operate.

If, while opening or closing using power
rear gate, the rear gate catches persons or
baggage or hits an obstacle, an electronic
chirp will sound 3 times and the rear gate
will operate as follows.

When opening the rear gate: The rear
gate will automatically close.

When closing the rear gate: The rear
gate will automatically open.

Keys and doors/Rear gate (Outback)

2-46

(153,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

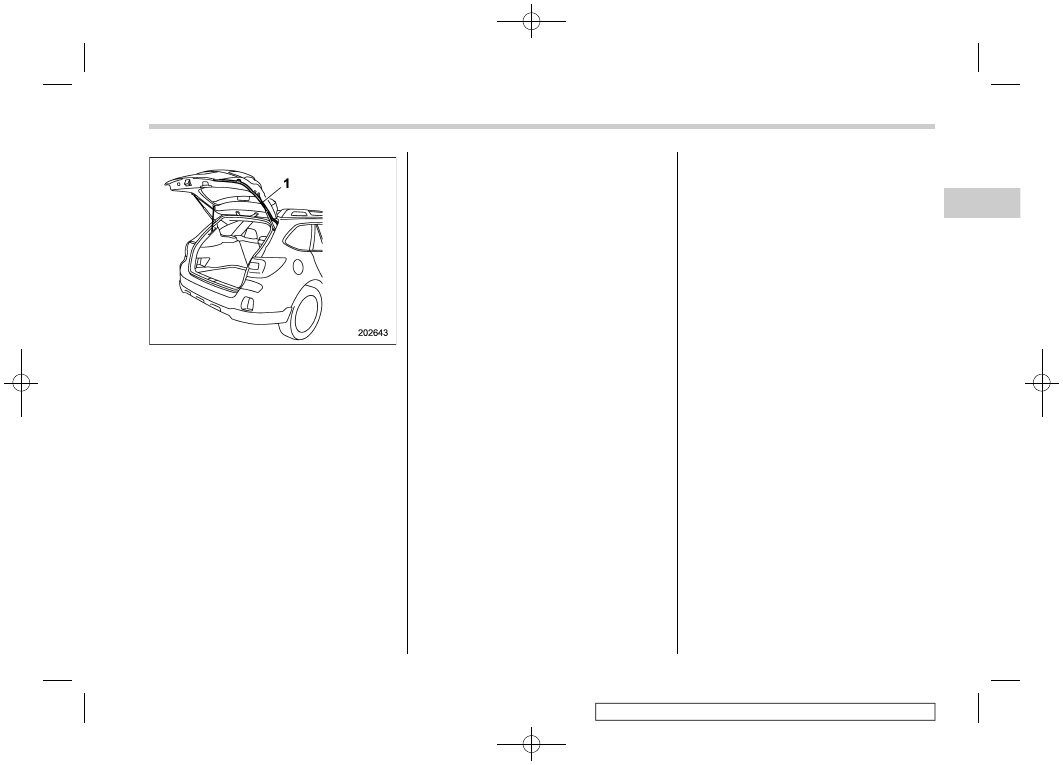

Touch sensor

Touch sensors are attached on the left and
right edges of the rear gate. If the touch
sensors detect fingers, baggage, etc.
while closing by the power rear gate
function, an electronic chirp will sounds 3
times and the rear gate will open auto-
matically.

NOTE

When the rear gate is opened using the
reverse function, it will be opened fully
or to the height registered in the
memory function.

Rear gate drop prevention function

If, while fully opened via the power rear
gate function, the rear gate is lowered by
the weight of snow and such, an electronic
chirp will sound and the rear gate drop
prevention function will apply braking to
the rear gate so that it prevents a rapid
closure of the rear gate.

NOTE

If there is snow on the rear gate, only

use the power rear gate function after
removing the snow.
.

If you close the rear gate manually

just after the rear gate is fully opened
using the power rear gate function, the
rear gate drop prevention function will
detect a rapid closure of the rear gate
and apply braking to the rear gate. In
this case, this is not a malfunction.

Selecting audible signal operation

Using an electronic chirp, the power rear
gate will give you an audible signal before
starting its operation. If desired, the audi-
ble signal can be turned off by a SUBARU
dealer. Consult your SUBARU dealer for
details.

For models with “keyless access with
push-button start system”, you can turn
the audible signal off by operating the
combination meter display. For details,

refer to “Keyless Entry System” F3-47.

The ON/OFF setting of the audible signal
also works as the audible signal settings
for the “remote keyless entry system” and
the “keyless access with push-button start
system”. However, for the warning chime
such as that caused by “Reverse function”
F2-46 or “Rear gate drop prevention
function” F2-47, it cannot be set as non-
operational.

Keys and doors/Rear gate (Outback)

2-47

(154,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Moonroof (if equipped)

WARNING

Never let anyone’s hands, arms,
head or any objects protrude from
the moonroof. A person could be
seriously injured if the vehicle stops
suddenly or turns sharply or if the
vehicle is involved in an accident.

To avoid serious personal injury
caused by entrapment, you must
conform to the following instruc-
tions without exception.

Before closing the moonroof,

make sure that no one’s hands,
arms, head or other objects will
be accidentally caught in the
moonroof.

Before leaving the vehicle, al-

ways remove the key from the
ignition switch for safety (models
without “keyless access with
push-button start system”) and
never allow an unattended child
to remain in the vehicle. Failure to
follow this procedure could re-
sult in injury to a child operating
the moonroof.

Never try to check the anti-en-

trapment function by deliberately
placing part of your body in the
moonroof.

CAUTION

Do not sit on the edge of the open

moonroof.

Do not operate the moonroof if

falling snow or extremely cold
conditions have caused it to
freeze shut.

The anti-entrapment function

does not operate when the moon-
roof is being tilted down. Be sure
to confirm that it is safe to do so
before tilting the moonroof down.

If the moonroof does not close,

we recommend that you have the
system checked by a SUBARU
dealer.

The moonroof has both tilting and sliding
functions.

The moonroof operates only when the
ignition switch is in the “ON” position.

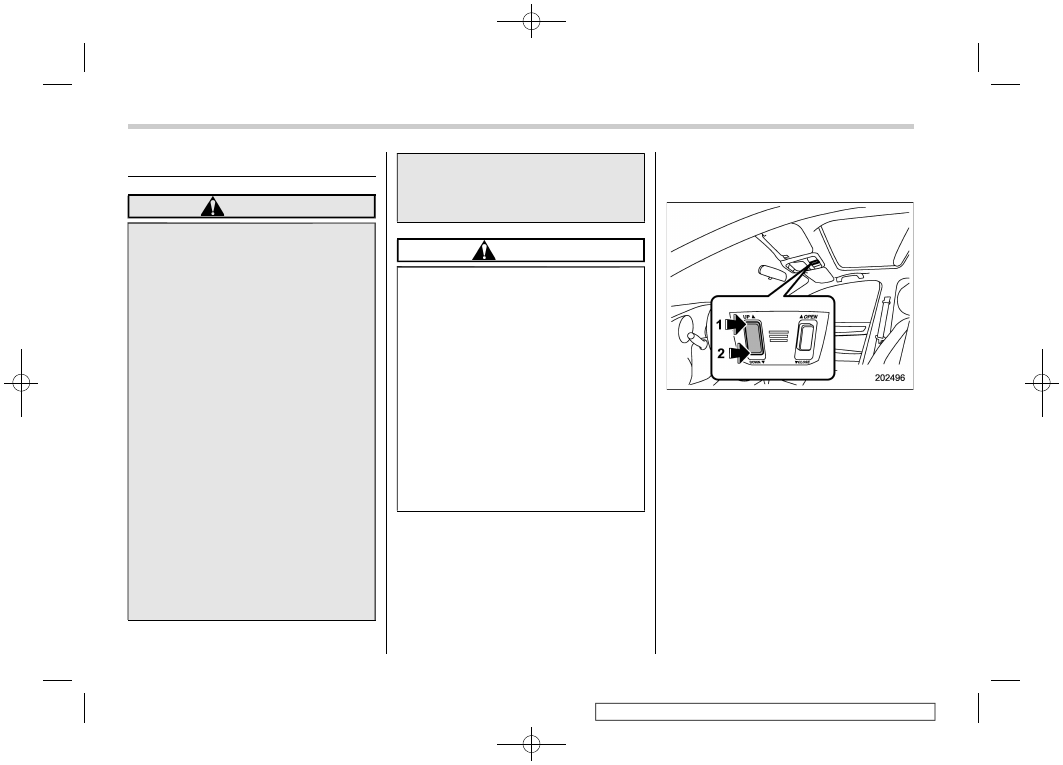

Moonroof switches

Tilting moonroof

“UP/DOWN” switch
1)

Tilting up

Laying down

The tilting up function will only operate
when the moonroof is fully closed. The
laying down function will only operate
when the moonroof is tilted.

Press the rear side of the “UP/DOWN”
switch to tilt up the moonroof.
Press the front side of the “UP/DOWN”
switch to lay down the moonroof.

Release the switch after the moonroof has
been tilted or has been laid down com-
pletely. Pressing the switch continuously
may cause damage to the moonroof.

Keys and doors/Moonroof

2-48

(155,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

NOTE

One-touch operation does not take
place when the moonroof is lowered.
Press the switch continuously to lower
the moonroof.

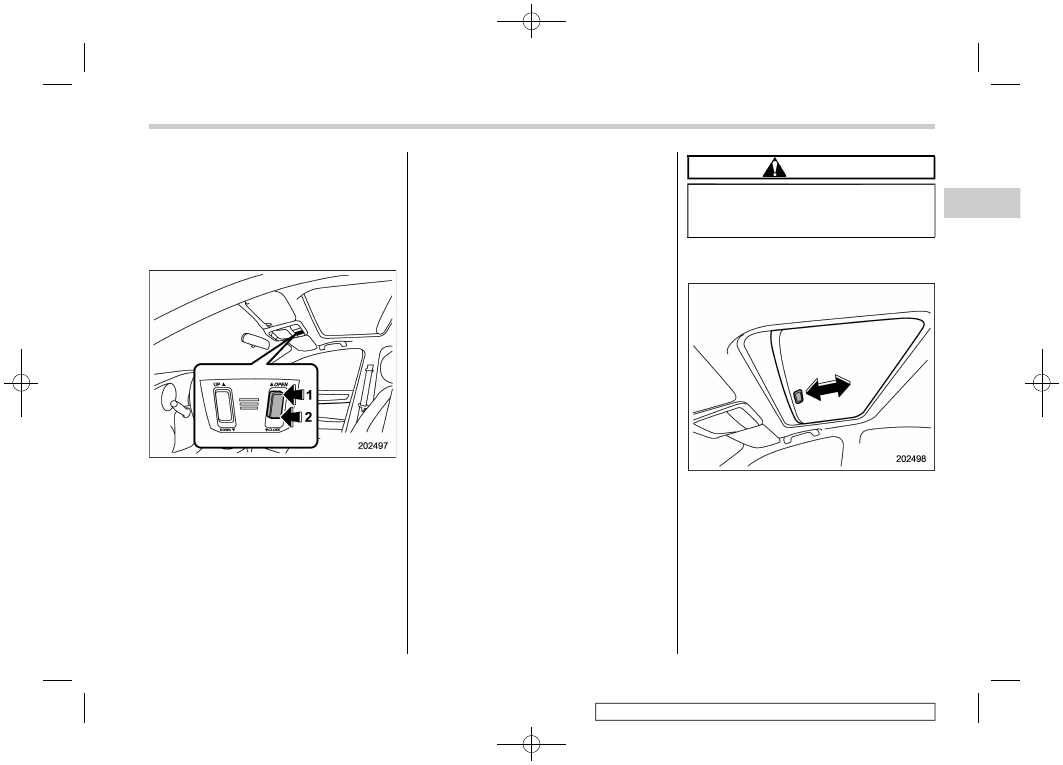

Sliding moonroof

“OPEN/CLOSE” switch
1)

Open

Press the rear side of the “OPEN/CLOSE”
switch to open the moonroof. The sun
shade will also be opened together with
the moonroof. The moonroof will stop at a
position approximately 3 in (8 cm) away
from the fully opened position. Press the
switch again to open the moonroof com-
pletely.

Press the front side of the “OPEN/CLOSE”
switch to close the moonroof.
To stop the moonroof at a selected mid-
way position while opening or closing it,
momentarily press the front side or rear
side of the switch.

After washing the vehicle or after it rains,
wipe away water on the roof prior to
opening the moonroof to prevent drops of
water from falling into the passenger
compartment.

NOTE

For the sake of safety, it is recom-
mended that you avoid driving with the
moonroof fully opened.

Anti-entrapment function

When the moonroof senses a substantial
enough object trapped between its glass
and the vehicle’s roof during closure, it
automatically moves back to the fully open
position and stops there. The anti-entrap-
ment function may also be activated by a
strong shock on the moonroof even when
there is nothing trapped.

CAUTION

Never attempt to test this function
using fingers, hands or other parts
of your body.

Sun shade

The sun shade can be slid forward or
backward by hand while the moonroof is
closed.
If the moonroof is opened, the sun shade
also moves back.

Keys and doors/Moonroof

2-49

(2,1)

Model "ALL_MODEL_MEMO" EDITED: 2017/ 11/ 6

Left Page

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

(159,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Ignition switch (models without push-button

start system) ........................................................ 3-4

LOCK..................................................................... 3-4
ACC....................................................................... 3-5
ON......................................................................... 3-5
START ................................................................... 3-5
Key reminder chime ............................................... 3-5
Ignition switch light ............................................... 3-5

Push-button ignition switch (models with push-

button start system) ............................................ 3-6

Safety precautions ................................................. 3-6
Operating range for push-button start system ........ 3-6
Switching power status .......................................... 3-7
When access key fob does not operate properly .... 3-8

Hazard warning flasher .......................................... 3-8
Meters and gauges ................................................. 3-8

Combination meter illumination.............................. 3-8
Canceling the function for meter/gauge needle

movement upon turning on the ignition switch ..... 3-9

Speedometer ......................................................... 3-9
Odometer............................................................... 3-9
Double trip meter .................................................. 3-10
Tachometer ........................................................... 3-10
Fuel gauge............................................................ 3-11
Temperature gauge ............................................... 3-11
ECO gauge ........................................................... 3-12

Warning and indicator lights................................ 3-12

Seatbelt warning light and chime .......................... 3-13
SRS airbag system warning light........................... 3-14

Front passenger’s frontal airbag ON and OFF

indicators .......................................................... 3-15

CHECK ENGINE warning light/Malfunction

indicator light .................................................... 3-15

Charge warning light ............................................ 3-16
Oil pressure warning light..................................... 3-16
Engine low oil level warning indicator ................... 3-16
AT OIL TEMP warning light ................................... 3-17
Low tire pressure warning light (U.S. spec.

models) ............................................................. 3-17

ABS warning light................................................. 3-18
Brake system warning light................................... 3-19
Electronic parking brake indicator light................. 3-21
Hill Holder indicator light ...................................... 3-22
Low fuel warning light .......................................... 3-22
Door open indicator.............................................. 3-22
Windshield washer fluid warning light................... 3-22
All-Wheel Drive warning light ................................ 3-22
Power steering warning light ................................ 3-23
Vehicle Dynamics Control warning light/Vehicle

Dynamics Control operation indicator light ........ 3-23

Vehicle Dynamics Control OFF indicator light ....... 3-24
Warning chimes and warning indicator of the

keyless access with push-button start system
(if equipped) ...................................................... 3-25

Security indicator light.......................................... 3-29
Select lever/gear position indicator ....................... 3-30
Turn signal indicator lights ................................... 3-30
High beam indicator light...................................... 3-30
High beam assist indicator (green) (if equipped) ... 3-30

Instruments and controls

(160,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

High beam assist warning indicator (yellow)

(if equipped) ....................................................... 3-30

Cruise control indicator ........................................ 3-30
Cruise control set indicator ................................... 3-31
Automatic headlight beam leveler warning light

(models with LED headlights).............................. 3-31

LED headlight warning light (models with LED

headlights).......................................................... 3-31

Steering Responsive Headlight warning light/

Steering Responsive Headlight OFF indicator
light (if equipped)................................................ 3-31

Headlight indicator light ........................................ 3-31
Front fog light indicator light (if equipped) ............ 3-31
X-MODE indicator (if equipped) ............................. 3-31
Hill descent control indicator (if equipped) ............ 3-31
BSD/RCTA warning indicator (if equipped)............. 3-31
BSD/RCTA OFF indicator (if equipped) .................. 3-32
Icy road surface warning indicator ........................ 3-32
RAB warning indicator (if equipped) ...................... 3-32
RAB OFF indicator (if equipped)............................ 3-32
Sonar audible alarm OFF indicator (if equipped) .... 3-32

Information display ............................................... 3-32

Climate control mode indicators............................ 3-33
Outside temperature indicator ............................... 3-33

Clock ...................................................................... 3-34

Setting the display format (12h/24h) ...................... 3-34
Setting the clock manually .................................... 3-35
Setting the clock automatically.............................. 3-36
Regulatory information.......................................... 3-36

Combination meter display.................................. 3-37

Basic operation .................................................... 3-38
Welcome screen (opening animation) and

Good-bye screen (ending animation).................. 3-38

Warning screen .................................................... 3-39
Basic screens....................................................... 3-39
Telltale screen ...................................................... 3-42
Menu screens ....................................................... 3-43

Light control switch ............................................. 3-48

Headlights ............................................................ 3-49
High/low beam change (dimmer) ........................... 3-51
High beam assist function (if equipped) ................ 3-51
Headlight flasher .................................................. 3-56
Daytime running light system ............................... 3-56

Steering Responsive Headlight (SRH)

(if equipped) ....................................................... 3-57

Headlight beam leveler (models with LED

headlights) ......................................................... 3-58

Turn signal lever ................................................... 3-58

One-touch lane changer........................................ 3-58

Illumination brightness control ........................... 3-59

Auto dimmer cancel function ................................ 3-59

Front fog light switch (if equipped) .................... 3-59
Wiper and washer................................................. 3-60

Windshield wiper and washer switches ................. 3-61
Rear window wiper and washer switch

(Outback) .......................................................... 3-63

Defogger and deicer............................................. 3-64

Instruments and controls

(161,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Mirrors ................................................................... 3-65

Inside mirror (without auto-dimming function)

(if equipped) ....................................................... 3-65

Auto-dimming mirror/compass with HomeLink

(U.S.-spec. models without EyeSight system -
if equipped) ........................................................ 3-66

Auto-dimming mirror with HomeLink

(except U.S.-spec. models - if equipped).............. 3-72

Auto-dimming mirror/compass with HomeLink

(models with EyeSight system) .......................... 3-77

Outside mirrors .................................................... 3-84

Tilt/telescopic steering wheel .............................. 3-85
Horn ....................................................................... 3-85
Heated Steering Wheel system (if equipped) ..... 3-86

Instruments and controls

(162,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Ignition switch (models with-
out push-button start system)

WARNING

Never turn the ignition switch to

“LOCK” while the vehicle is being
driven or towed because that will
lock the steering wheel, prevent-
ing steering control. And when
the engine is turned off, it takes a
much greater effort than usual to
steer.

Before leaving the vehicle, al-

ways remove the key from the
ignition switch for safety and
never allow an unattended child
to remain in the vehicle. Failure to
follow this procedure could re-
sult in injury to a child or others.
Children could operate the power
windows, the moonroof or other
controls or even make the vehicle
move.

CAUTION

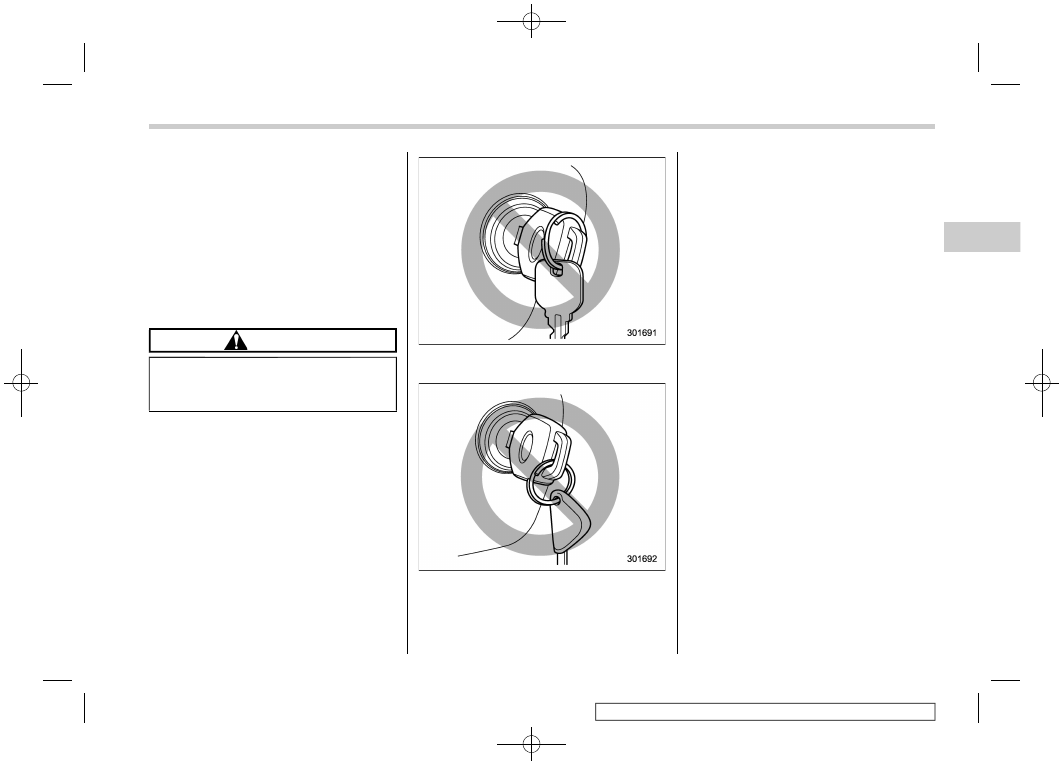

Do not attach a large key holder or
key case to either key. If it banged
against your knees or hands while
you are driving, it could turn the

ignition switch from the “ON” posi-
tion to the “ACC” or “LOCK” posi-
tion, thereby stopping the engine.
Also, if the key is attached to a
keyholder or to a large bunch of
other keys, centrifugal force may act
on it as the vehicle moves, resulting
in unwanted turning of the ignition
switch.

The ignition switch has four positions:
LOCK, ACC, ON and START.

NOTE

Keep the ignition switch in the

“LOCK” position when the engine is
not running.
.

Using electrical accessories for a

long time with the ignition switch in the
“ON” or “ACC” position can cause the

battery to go dead.
.

If the ignition switch will not move

from the “LOCK” position to the “ACC”
position, turn the steering wheel
slightly to the left and right as you turn
the ignition switch.

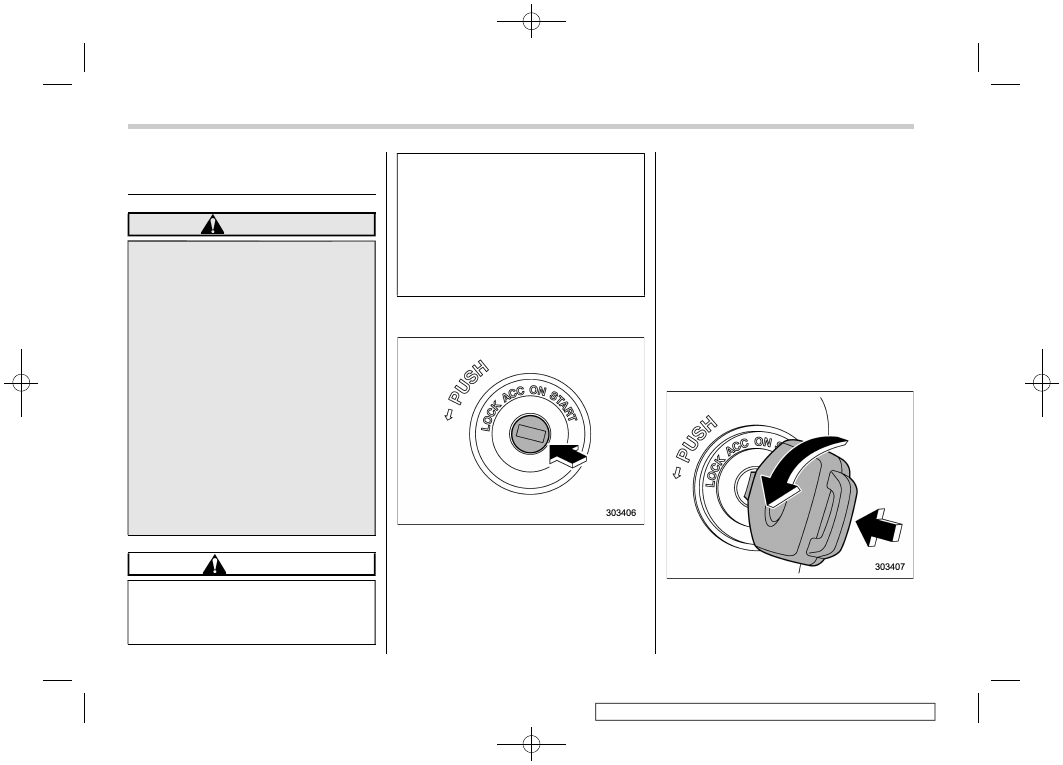

LOCK

The key can only be inserted or removed in
this position. The ignition switch will lock
the steering wheel when you remove the
key.
If turning the key is difficult, turn the
steering wheel slightly to the right and left
as you turn the key.

The key can be turned from “ACC” to
“LOCK” only when the key is pushed in
while turning it (all models) and the select
lever is in the “P” position.

Instruments and controls/Ignition switch (models without push-button start system)

3-4

(163,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

ACC

In this position the electrical accessories
(radio, accessory power outlet, etc.) can
be used.

This is the normal operating position after
the engine is started.

START

CAUTION

Do not turn the ignition switch to the
“START” position while the engine
is running.

The engine is started in this position. The
starter cranks the engine to start it. When
the key is released (after the engine has
started), the key automatically returns to
the “ON” position.
If the engine does not start with your
registered key, pull out the key once (at this
time, the security indicator light will blink),
reinsert the key in the ignition switch and
then try to start the engine again.

NOTE

The engine may not start in the follow-
ing cases:

The key grip is touching another key

or a metallic key holder.

The key is near another key that

contains an immobilizer transponder.
.

The key is near or touching another

transmitter.

Key reminder chime

The reminder chime sounds when the
driver’s door opens and the key is in the
“LOCK” or “ACC” positions. The chime
stops when the ignition switch is turned to
the “ON” position or the key is removed
from the ignition switch.

Ignition switch light

For easy access to the ignition switch in
the dark, the ignition switch light illumi-
nates when driver’s door is opened or
when the driver’s door is unlocked using
the remote keyless entry transmitter.

The light remains illuminated for approxi-
mately 30 seconds and gradually turns off
under the following conditions.
.

When the driver’s door is closed

When the doors are unlocked using the

remote keyless entry transmitter

The light gradually turns off under the
following conditions.
.

When the ignition switch is turned to the

“ON” position
.

When the doors are locked using the

remote keyless entry transmitter

Instruments and controls/Ignition switch (models without push-button start system)

3-5

(164,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Push-button ignition switch
(models with push-button
start system)

Safety precautions

Refer to “Safety precautions” F2-11.

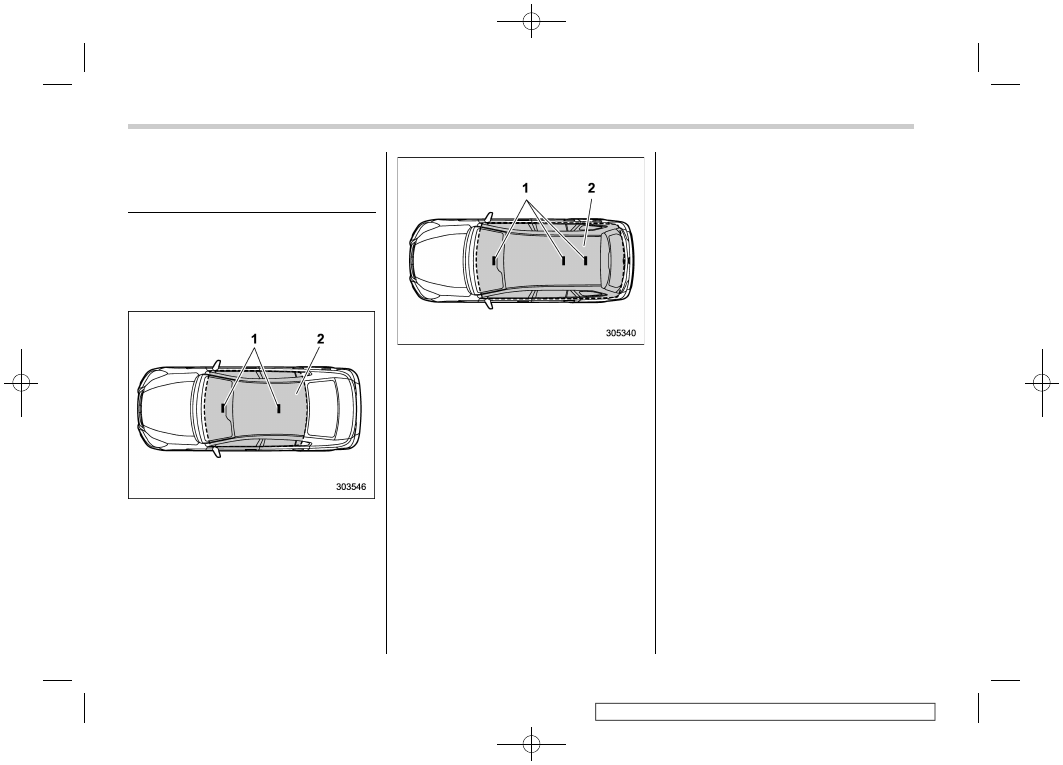

Operating range for push-
button start system

Legacy
1)

Antenna

Operating range

Outback
1)

Antenna

Operating range

NOTE

If the access key fob is not detected

within the operating range of the anten-
nas inside the vehicle, the push-button
ignition switch and the engine start
cannot be operated.
.

Even when the access key fob is

outside the vehicle, if it is placed too
close to the glass, it may be possible to
switch the power or to start the engine.
.

Do not leave the access key fob in

the following places. It may become
impossible to operate the push-button
ignition switch and the engine start.

– On the instrument panel

– On the floor
– Inside the glove box
– Inside the door trim pocket
– On the rear seat
– On the rear shelf (Legacy)
– Inside the trunk (Legacy)
– At the corner of the cargo area
(Outback)

When operating the push-button

ignition switch or starting the engine,
if the access key battery is discharged,
perform the procedure described in
“Access key fob – if access key fob
does not operate properly” F9-19. In
such a case, replace the battery im-
mediately. Refer to “Replacing battery
of access key fob” F11-50.

Instruments and controls/Push-button ignition switch (models with push-button start system)

3-6

(165,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

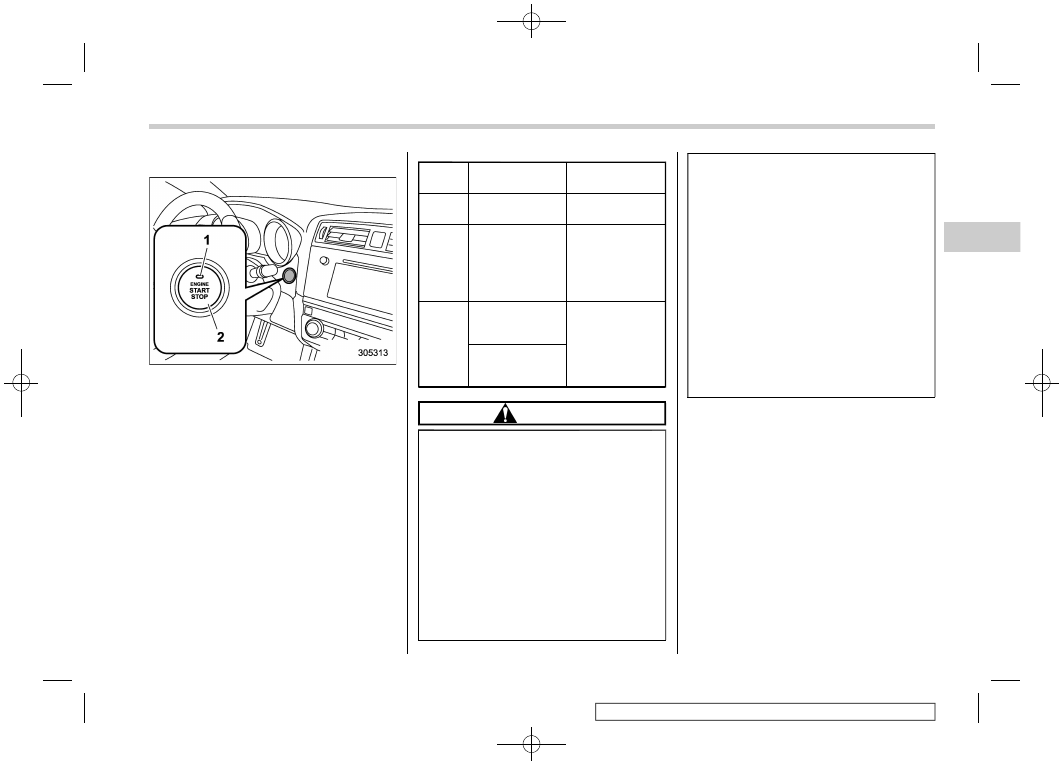

Switching power status

Operation indicator

Push-button ignition switch

The power status is switched every time
the push-button ignition switch is pressed.
1. Carry the access key fob, and sit in the
driver’s seat.
2. Shift the select lever into the “P”
position.
3. Press the push-button ignition switch
without depressing the brake pedal. Every
time the button is pressed, the power is
switched in the sequence of “OFF”, “ACC”,
“ON” and “OFF”. When the engine is
stopped and the push-button ignition
switch is in “ACC” or “ON”, the operation
indicator on the push-button ignition switch
illuminates in orange.

Power

status

Indicator color

Operation

OFF

Turned off

Power is turned

off.

ACC

Orange

The following

systems can be

used:

audio and ac-

cessory power

outlet.

Orange

(while engine is

stopped)

All electrical

systems can be

used.

Turned off

(while engine is

running)

CAUTION

To prevent the vehicle battery

from discharging, do not leave
the push-button ignition switch
in the “ON” or “ACC” position for
a long time.

To avoid a malfunction, observe

the following precautions.

– Do not spill drinks or other

liquids on the push-button
ignition switch.

– Do not touch the push-button

ignition switch with a hand
that is soiled with oil or other

contaminants.

If the push-button ignition switch

does not operate smoothly, stop
the operation. Contact a SUBARU
dealer immediately.

If the push-button ignition switch

does not illuminate even when
the instrument panel illumination
is turned on, have the vehicle
inspected at a SUBARU dealer.

If the vehicle was left in the hot

sun for a long time, the surface of
the push-button ignition switch
may get hot. Be careful not to
burn yourself.

NOTE

When operating the push-button

ignition switch, firmly press it all the
way.
.

If the push-button ignition switch is

pressed quickly, the power may not
turn on or off.
.

If the indicator light on the push-

button ignition switch flashes in green
when the push-button ignition switch is
pressed, steering is locked. When this
occurs, press the push-button ignition
switch while turning the steering wheel
left and right.

– CONTINUED –

Instruments and controls/Push-button ignition switch (models with push-button start system)

3-7

(166,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Battery drainage prevention func-
tion

When the push-button ignition switch is left
in the “ACC” or “ON” position for approxi-
mately 1 hour, the push-button ignition
switch will be automatically switched to
“OFF” to prevent the battery from going
dead. This function is activated when the
select lever is in the “P” position.

When access key fob does
not operate properly

Refer to “Access key fob – if access key
fob does not operate properly” F9-19.

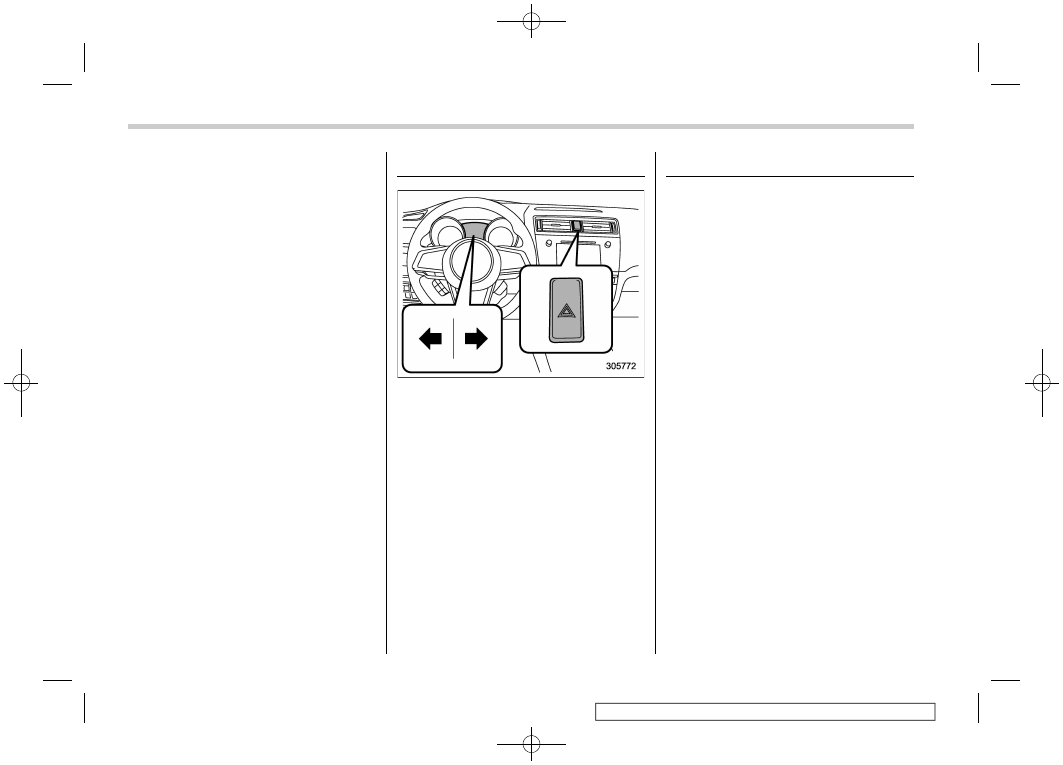

Hazard warning flasher

The hazard warning flasher is used to warn
other drivers when you have to park your
vehicle under emergency conditions. The
hazard warning flasher works with the
ignition switch in any position.

To turn on the hazard warning flasher,
press the hazard warning button on the
instrument panel. All the turn signal lights
and the turn signal indicator lights will
flash. To turn off the flasher, press the
button again.

NOTE

When the hazard warning flasher is on,
the turn signals do not work.

Meters and gauges

NOTE

Liquid crystal displays are used in
some of the meters and gauges in the
combination meter. You will find their
indications hard to see if you wear
polarized glasses.

Combination meter illumina-
tion

When the ignition switch is turned to the
“ON” position, the various parts of the
combination meter are illuminated in the
following sequence.

1. Warning lights, indicator lights, meter
needles, gauge needles and liquid crystal
display illuminate.
2. The meter and gauge needles sweep
one time.
3. Dials and indicators in meters and
gauges light up.
4. Regular illumination (for driving) be-
gins.

Instruments and controls/Hazard warning flasher

3-8

(167,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

NOTE

This sequence of operations may not
take place if you quickly turn the
ignition switch to start the engine. This
is not a malfunction.

Canceling the function for
meter/gauge needle move-
ment upon turning on the
ignition switch

It is possible to activate or deactivate the
movement of the meter needles and
gauge needles that takes place when the
ignition switch is turned to the “ON”
position. For details, perform the proce-
dures described in “Gauge Initial Move-
ment” F3-46.

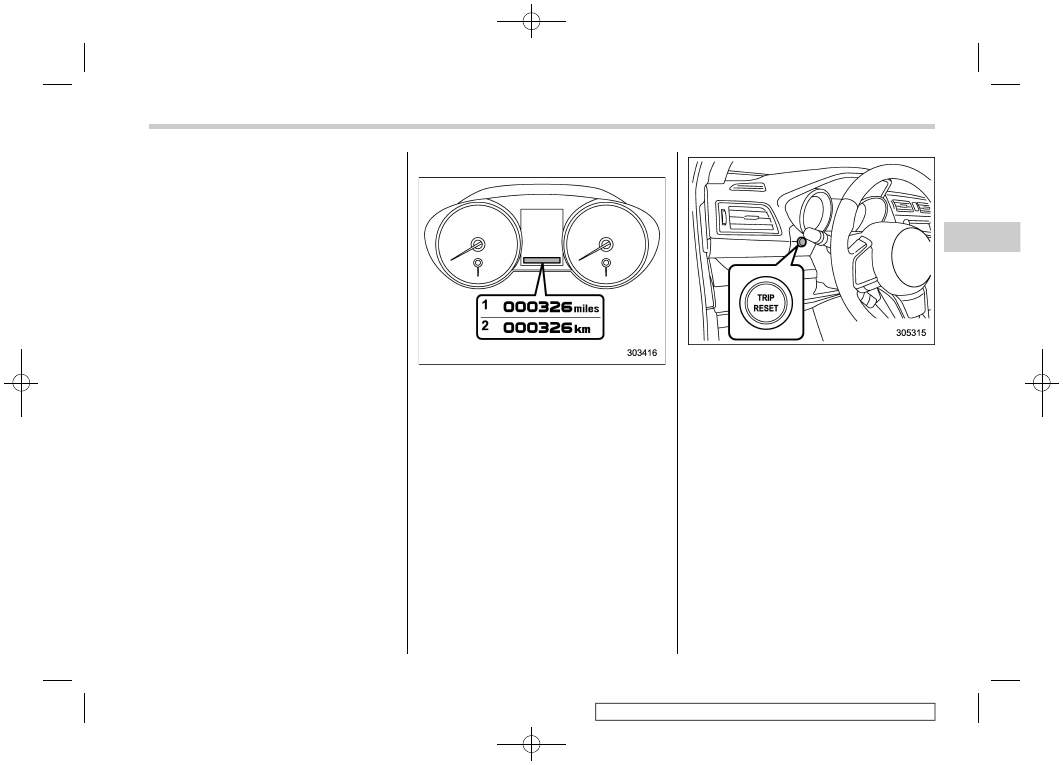

Speedometer

The speedometer shows the vehicle
speed.

Odometer

U.S. spec. models

Except U.S. spec. models

This meter displays the odometer when
the ignition switch is in the “ON” position.
The odometer shows the total distance
that the vehicle has been driven.

Trip reset switch

If you press the trip reset switch when the
ignition switch is in the “LOCK”/“OFF” or
“ACC” position, the odometer/trip meter
will light up. If you do not press the trip
reset switch within 10 seconds of illumina-
tion of the odometer/trip meter, the od-
ometer/trip meter will turn off.
Also, if you open and close the driver’s
door within 10 seconds of illumination of
the odometer/trip meter, the odometer/trip
meter will turn off.

– CONTINUED –

Instruments and controls/Meters and gauges

3-9

(168,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

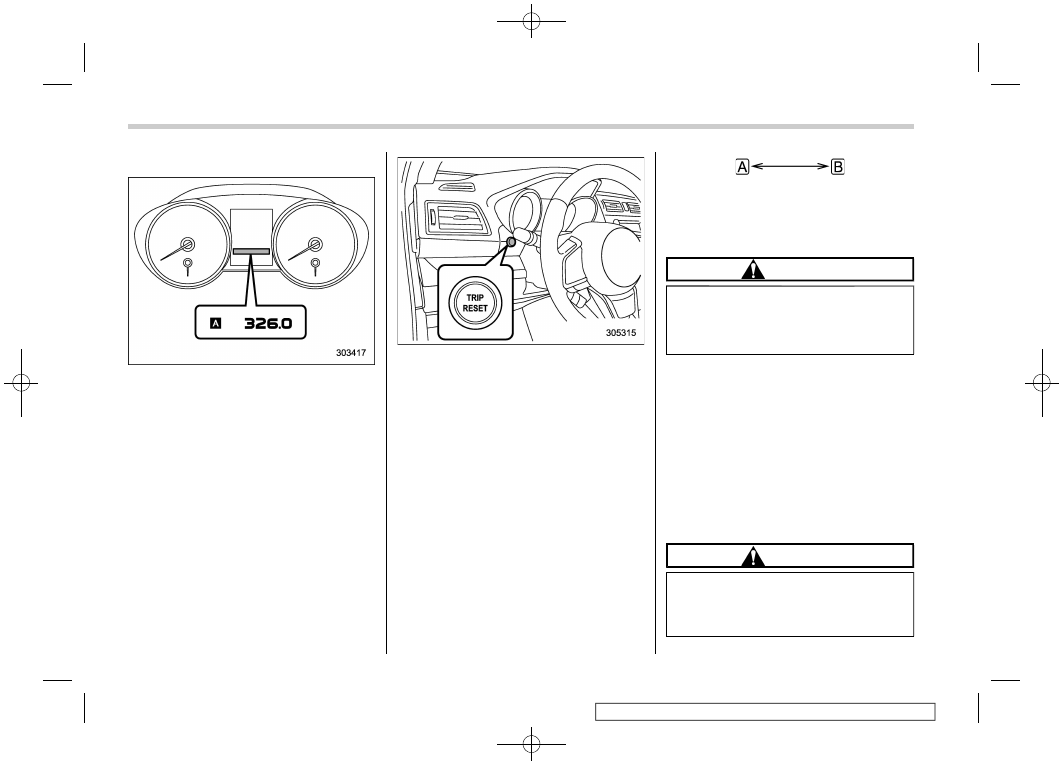

Double trip meter

This meter displays the two trip meters
when the ignition switch is in the “ON”
position.
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.

Trip reset switch

If you press the trip reset switch when the
ignition switch is in the “LOCK”/“OFF” or
“ACC” position, the odometer/trip meter
will light up. It is possible to switch between
the A trip meter and B trip meter indica-
tions while the odometer/trip meter is lit up.
If you do not press the trip reset switch
within 10 seconds of illumination of the
odometer/trip meter, the odometer/trip
meter will turn off.
Also, if you open and close the driver’s
door within 10 seconds of illumination of
the odometer/trip meter, the odometer/trip
meter will turn off.

The display can be switched as shown in
the following illustration by pressing the
trip reset switch.

To set the trip meter to zero, select the A
trip or B trip meter by pressing the trip reset
switch and keep the switch pressed for
more than 2 seconds.

CAUTION

To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could
result.

NOTE

If the connection between the combina-
tion meter and battery is broken for any
reason such as vehicle maintenance or
fuse replacement, the data recorded on
the trip meter will be lost.

Tachometer

The tachometer shows the engine speed
in thousands of revolutions per minute.

CAUTION

Do not operate the engine with the
pointer of the tachometer in the red
zone. In this range, fuel injection will
be cut by the engine control module

Instruments and controls/Meters and gauges

3-10

(169,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

to protect the engine from overrev-
ving. The engine will resume run-
ning normally after the engine speed
is reduced below the red zone.

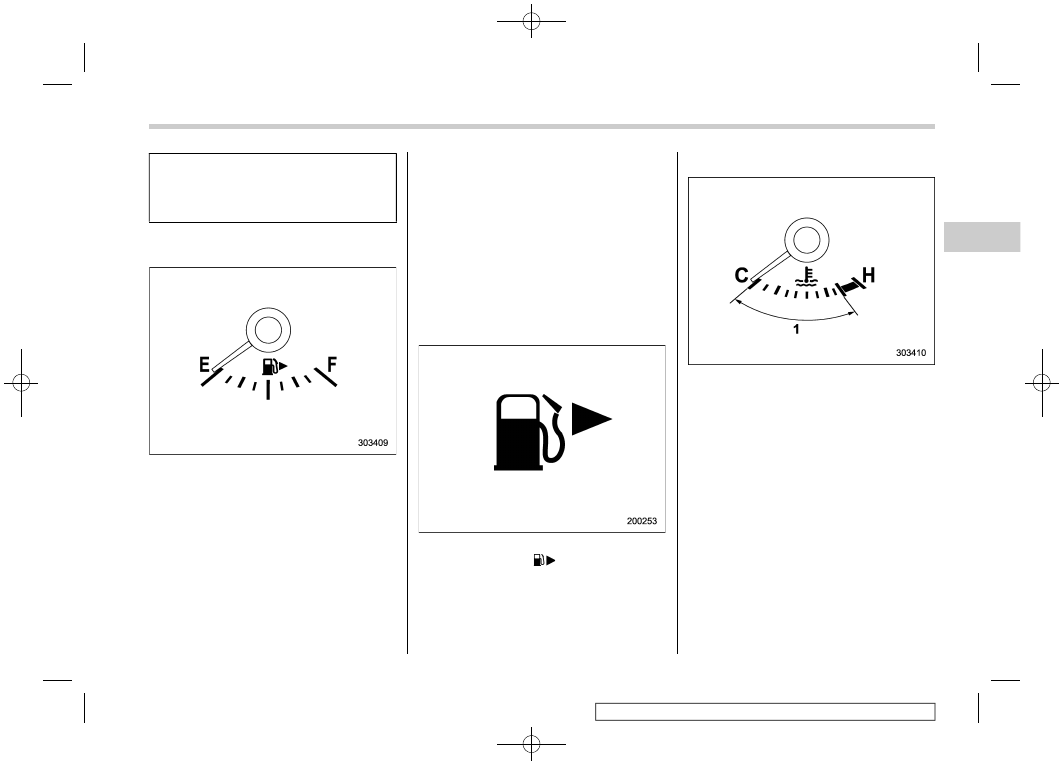

Fuel gauge

The fuel gauge shows the approximate
amount of fuel remaining in the tank.
When the ignition switch is in the “LOCK”/
“OFF” or “ACC” position, the fuel gauge
shows “E” even if the fuel tank contains
fuel.

The gauge may move slightly due to fuel
level movement in the tank (e.g., during
braking, turning or acceleration).
If you press the trip reset switch while the
ignition switch is in the “LOCK”/“OFF” or

“ACC” position, the fuel gauge’s dial will
light up and the needle will indicate the
amount of fuel remaining in the tank.
If, while the fuel gauge needle is indicating
the amount of fuel remaining in the tank,
you (a) do not press the trip reset switch for
10 seconds or (b) open and close the
driver’s door, the fuel gauge needle will
drop to the “E” position and the dial and
needle will turn off.

NOTE

You will see the “

” sign in the fuel

gauge.
This indicates that the fuel filler door
(lid) is located on the right side of the
vehicle.

Temperature gauge

Normal operating range

The temperature gauge shows engine
coolant temperature when the ignition
switch is in the “ON” position.

The coolant temperature will vary in
accordance with the outside temperature
and driving conditions.

We recommend that you drive moderately
until the pointer of the temperature gauge
reaches near the middle of the range.
Engine operation is optimum with the
engine coolant at this temperature range
and high revving operation when the
engine is not warmed up enough should
be avoided.

– CONTINUED –

Instruments and controls/Meters and gauges

3-11

Subaru Outback (2019 year). Instruction - part 10
