Subaru Outback (2019 year). Instruction

(120,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Outback
1)

Antenna

Locking and unlocking with
“keyless access” entry func-
tion

Operating ranges

Legacy
1)

Antenna

Operating range

Outback
1)

Antenna

Operating range

The operating range of the door lock-

ing/unlocking function is approximately 16
to 32 in (40 to 80 cm) from the respective
door handle.
.

For Legacy, the operating range of the

trunk opening function is approximately 16
to 32 in (40 to 80 cm) from the trunk opener
button.
.

For Outback, the operating range of

the rear gate locking/unlocking function is
approximately 16 to 32 in (40 to 80 cm)
from the rear gate ornament.

Keys and doors/Keyless access with push-button start system

2-14

(121,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

LED indicator

When the access key fob is within either of
the operating ranges of the front doors, the
LED indicator on the access key fob
flashes. When the keyless access func-
tions are disabled, the LED indicator does
not flash unless a button on the access key
fob is pressed.

Operating range tips

Regarding malfunction:
The keyless access function may not
operate properly due to the following
reasons.
.

The access key fob is placed too close

to the vehicle body (in this case, repeat the
operation from further away).
.

The access key fob is placed near the

ground or in an elevated location from the

ground, even if it is in the indicated
operating range.
.

The status of the access key fob and

the radio wave conditions around the
vehicle (in this case, perform the proce-
dure described in “Locking and unlocking”
F9-19.

Precautions:
.

When the access key fob is within the

operating range, it is possible for anyone,
even someone who is not carrying the
access key fob, to operate the keyless
access function. Please note that the
keyless access function is only available
for the following items when the access
key fob is detected within operating range.

– Door handle
– Door lock sensor
– Rear gate opener button (Outback)
– Trunk opener button (Legacy)
– Rear lock button (Outback)

It is not possible to lock the doors and

rear gate using the keyless access func-
tion when the access key fob is inside the
vehicle. However, depending on the status
of the access key fob and the environ-
mental conditions, the access key fob may
be locked inside the vehicle. Before lock-
ing, make sure that you have the access
key fob.
.

The operating ranges may be reduced,

or the keyless access function may not
operate in the following cases:

– When the battery of the access key
fob is discharged
– When the access key fob is in a
location with strong radio waves or
noise (e.g., near a radio tower, power
plant, broadcast station or an area
where wireless equipment is used)
– While talking on a cell phone

In such a case, perform the procedure

described in “Locking and unlocking”
F9-19.

When an access key fob is in the

operating range, if the door handle be-
comes wet due to exposure to a significant
amount of water when the vehicle is
washed or during heavy rain, the doors
may be locked or unlocked.

How to use keyless access func-
tions

Keyless access function tips

Turn off the push-button ignition switch

before locking the doors (including rear
gate) using the keyless access function. It
is not possible to lock the doors (including
the rear gate) using the keyless access
function when the push-button ignition
switch is on the “ACC” or “ON” position.

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-15

(122,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

For details about turning off the push-
button ignition switch, refer to “Switching
power status” F3-7.
.

If the door handle is gripped with a

gloved hand, the door lock may not be
released.
.

If the door lock sensor is touched three

times or more repeatedly, the system will
ignore the sensor operation.
.

When performing the locking proce-

dure too quickly, locking may not have
been completed. After locking the doors, it
is recommended to pull the REAR door
handles to confirm that the doors have
been locked.
.

It is possible to lock the doors even

when one of the doors is open. After
performing the locking procedure, close
the opened door or rear gate to lock it.
.

Within 3 seconds after locking the

doors and the rear gate by using the
keyless access function, it is not possible
to unlock doors and/or the rear gate by
using the keyless access function.
.

When locking, be sure to carry the

access key fob to prevent locking the
access key fob in the vehicle.

Unlocking

Carry the access key fob, and grip the door
handle.
.

When the driver’s door handle is

gripped, only the driver’s door will be
unlocked.
.

When the front passenger’s door han-

dle is gripped, all doors (for Outback,
including the rear gate) will be unlocked.

Also, an electronic chirp will sound twice
and the hazard warning flashers will flash
twice.

Opening rear gate (Outback)

Rear gate opener button

Carry the access key fob, and press the
rear gate opener button. Only the rear gate
will be unlocked and opened. Also, an
electronic chirp will sound twice and the
hazard warning flashers will flash twice.

Keys and doors/Keyless access with push-button start system

2-16

(123,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

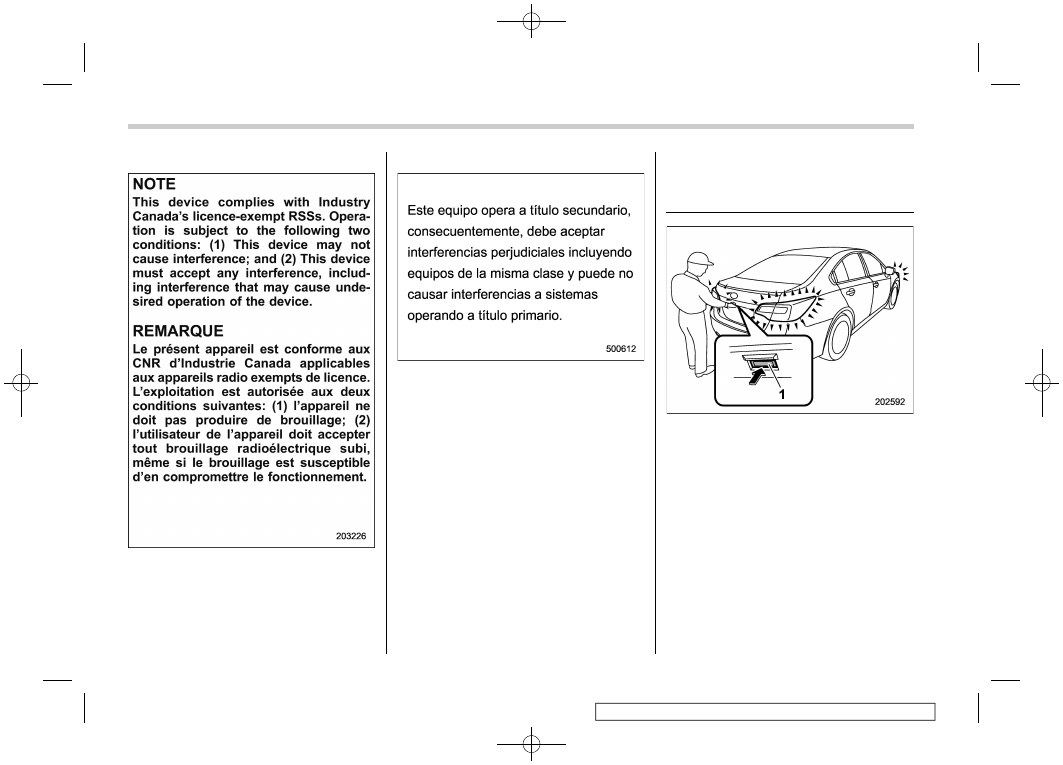

Opening trunk (Legacy)

Trunk opener button

Carry the access key fob, and press the
trunk opener button. The trunk will open.
An electronic chirp will sound twice and the
hazard warning flashers will flash twice.

NOTE

Under the following conditions, the
trunk can be opened without the key
fob.
.

The trunk lock/unlock setting is set

to on.
.

All doors are unlocked.

The trunk lock/unlock setting can be
changed by a SUBARU dealer. Contact
your SUBARU dealer to change the
setting.

Locking with the door lock sensor

Door lock sensor

Carry the access key fob, close all doors
(for Outback, including the rear gate) and
touch the door lock sensor on the door
handle. All doors including the rear gate
will be locked. Also, an electronic chirp will
sound once and the hazard warning
flashers will flash once.

NOTE

After touching the door lock sensor to
lock all of the doors (including the rear
gate), if you touch the door lock sensor

once more to attempt the lock opera-
tion without first unlocking the doors,
nothing will happen, even if the door
lock sensor is touched. In this case,
perform the unlocking operation once
first. You can then touch the door lock
sensor to lock the doors.

Locking with the rear lock button
(Outback)

Rear lock button

Carry the access key fob, close all doors
including the rear gate and press the rear
lock button. The rear gate and all doors will
be locked. Also, an electronic chirp will
sound once and the hazard warning
flashers will flash once.

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-17

(124,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Power saving function

To protect the access key battery and the
vehicle battery, the keyless access func-
tion will be disabled as follows.
.

When the keyless access function and

the remote keyless entry system have not
been used:

(1) 5 days after the push-button igni-
tion switch has been turned off, com-
munication between the antennas and
the access key fob will be stopped.
(2) 9 days after step (1), the sensors
(both lock sensor and unlock sensor)
on the front passenger’s door will be
disabled.

When the access key fob has been left

in the operating range for 10 minutes or
longer while all doors are locked, the
keyless access function will be disabled.

Recovery from power saving
mode

When one of the following operations is
performed, the keyless access function
will be recovered.
.

Unlock by gripping the door handle

(only when the sensors on the front
passenger’s door are not disabled) or
pressing the rear gate opener button on
the rear gate (Outback)/trunk opener
button on the trunk lid (Legacy)

Lock or unlock by the remote keyless

entry system
.

Open a door and then close it

Turn the push-button ignition switch to

the “ON” position

Power saving function of access
key fob

This function stops the access key fob
from receiving signals and helps minimize
the battery consumption of the access key
fob.
1. Press the “ ” button twice while hold-
ing the “ ” button.

LED indicator

2. Confirm that the LED indicator blinks 4
times to notify that the setting is complete.
When the access key fob is in the power
save mode, the keyless access function

and push-button start system will not be
available.
To cancel the power save mode, press one
of the buttons on the access key fob.

Door unlock selection function

The door unlock selection function makes
the following operations possible.
.

Unlocking the driver’s door without

unlocking any other doors (including the
rear gate) when gripping the driver’s door
handle
.

For Outback, opening the rear gate

without unlocking any doors when press-
ing the rear gate opener button

The operational/non-operational setting
for this function can be changed by
operating the combination meter display.
For details, refer to “Keyless Entry Sys-
tem” F3-47. The setting can also be
changed by a SUBARU dealer. Consult
your SUBARU dealer for details.

Operational:
.

Only the driver’s door will be unlocked

when the driver’s door handle is gripped.
.

For Outback, the rear gate will open,

but the other doors will remain locked
when the rear gate opener button is
pressed.

Keys and doors/Keyless access with push-button start system

2-18

(125,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Non-operational:
.

All doors and the rear gate will be

unlocked when the driver’s door handle is
gripped.
.

For Outback, the rear gate will open

and all doors will be unlocked when the
rear gate opener button is pressed.

The factory setting (default setting) is set
as “operational”.

Selecting audible signal op-
eration

Using an electronic chirp, the system will
give you an audible signal when the doors
are locked or unlocked. If desired, you can
turn the audible signal off by operating the
combination meter display. For details,
refer to “Keyless Entry System” F3-47.

Furthermore, the volume setting of the
audible signal can also be changed by a
SUBARU dealer. Consult your SUBARU
dealer for details.

Selecting hazard warning
flasher operation

Using the hazard warning flasher, the
system will give you a visible signal when
the doors are locked or unlocked. If
desired, you can turn the hazard warning
flashers off by operating the combination
meter display. For details, refer to “Keyless
Entry System” F3-47. The setting can also
be changed by a SUBARU dealer. Consult
your SUBARU dealer for details.

Warning chimes and warning
indicator

The keyless access with push-button start
system is equipped with a warning chime
and the access key warning indicator in
order to minimize improper operations and
help protect your vehicle from theft.
For details, refer to “Warning chimes and
warning indicator of the keyless access
with push-button start system” F3-25.

Disabling keyless access
function

When the vehicle is not going to be used
for a long time, or when you choose not to
use the keyless access function, the key-
less access function can be disabled.

WARNING

If you have an implanted pacemaker
or an implanted defibrillator, per-
form the procedure “By operating
the driver’s door” F2-20 to disable
the keyless access function. If you
perform the procedure “By operat-
ing the access key fob” F2-20, the
operation of an implanted pace-
maker or implanted defibrillator
may be affected by the radio waves
from the transmitter antenna.

NOTE

The locking and unlocking function

by the remote keyless entry system is
not disabled.
.

The setting can also be changed at

SUBARU dealers. For more details,
contact a SUBARU dealer.
.

To start the engine while the func-

tions are disabled, perform the proce-
dure described in “Starting engine”
F9-20.
.

We recommend that you disable the

keyless access functions under the
following conditions.

– When the vehicle is not going to
be used for an extended period of
time

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-19

(126,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

– When the keyless access func-
tions are not going to be used

Disabling functions

By operating the access key fob

If you have registered a PIN code for PIN
Code Access, you can disable the keyless
access function by operating the access
key fob. For details about registering a PIN
code, refer to “Registering a PIN code”
F2-23.
1. Open the driver’s door.

2. Rotate the lock lever forward.

3. Press and hold the “ ” button and “

”

button on the access key fob simulta-
neously for more than 5 seconds.

A chirp sound will be heard, and the
function will be disabled.

By operating the driver’s door

1. Sit in the driver’s seat, and close the
door.

2. Push the rear side (unlock side) of the
power door locking switch.
3. Within 5 seconds after step 2 is
performed, open the driver’s door.
4. Within 5 seconds after step 3 is
performed, push the rear side (unlock
side) of the power door locking switch
twice while the door is open.
5. Within 10 seconds after step 4 is
performed, close and open the driver’s
door twice.
6. Within 10 seconds after step 5 is
performed, push the rear side (unlock
side) of the power door locking switch
twice while the door is open.

Keys and doors/Keyless access with push-button start system

2-20

(127,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

7. Within 10 seconds after step 6 is
performed, close and open the driver’s
door once.
8. Within 5 seconds after step 7 is
performed, close the door.

A chirp sound will be heard, and the
functions will be disabled.

NOTE

In steps 4 and 6, press the power door
locking switch firmly. If the switch is not
pressed firmly, the functions may not
be disabled.

Enabling functions

When the procedure to disable the func-
tions is performed again, a chirp sound will
be heard, and the functions are enabled.

NOTE

The keyless access function will be

enabled only if you perform the proce-
dure in the same manner you disabled
the function (for example, when dis-
abling by operating the driver’s door,
the function will not be enabled even if
you operate the access key fob).
.

Press the push-button ignition

switch if you do not know the proce-
dure in which the keyless access func-
tion was disabled.

– When disabling by operating the

driver’s door: a chirp will not be
heard
– When disabling by operating the
access key fob: a chirp will be heard

When access key fob does
not operate properly

Refer to “Access key fob – if access key
fob does not operate properly” F9-19.

Replacing battery of access
key fob

Refer to “Replacing battery of access key
fob” F11-50.

Replacing access key fob

Access key fobs can be replaced at
SUBARU dealers. For more details, con-
tact a SUBARU dealer.

Certification for keyless ac-
cess with push-button start
system

U.S.-spec. models

FCC ID: HYQ14AHK
FCC ID: Y8PFJ17–1
FCC ID: Y8PSSPIMB02

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-21

(129,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Rear lock button (Outback)

While all doors (for Outback, including the
rear gate) are locked, you can unlock the
doors (including rear gate) without a key by
performing the following procedure.
.

Legacy: press the trunk opener button

Outback: press the rear lock button

NOTE

PIN Code Access will be helpful if the
key is accidentally left in the vehicle. It
is recommended that a 5-digit security
code (PIN code) is registered.

Registering a PIN code

Preparation

1. Turn off the ignition switch.
2. Close all doors (including trunk/rear
gate).
3. Press and hold the “ ” button on the
access key fob. Then all doors (including
rear gate) will be locked.
4. Keep the “ ” button pressed, and
press the following button within 5 seconds
after step 3.

Legacy: the trunk opener button

Outback: the rear lock button

5. Press and hold the above button for
more than 5 seconds. Then a chirp will
sound.
6. Press the “ ” button on the access key
fob while the chirp sounds.
Then the chirp will stop and the prepara-
tion is complete.

NOTE

If you do not press the “ ” button on
the access key fob, the chirp will sound
for 30 seconds. In this case, the pre-
paration for registering a PIN code does
not complete even if the chirp stops.

Registration

For example, to register “32468” as the
PIN code, perform the following proce-
dure.

Legacy:
1. Press the trunk opener button three
times.
2. After a buzzer (ding) sounds once,
press the trunk opener button twice.
3. After a buzzer (ding) sounds once,
press the trunk opener button four times.
4. After a buzzer (ding) sounds once,
press the trunk opener button six times.
5. After a buzzer (ding) sounds once,
press the trunk opener button eight times.
6. Perform steps 1 to 5 again within
approximately 30 seconds after the buzzer
starts sounding intermittently.
7. All doors will be unlocked and locked.
Then the PIN code will be registered.

Outback:
1. Press the rear lock button three times.
2. After a buzzer (ding) sounds once,
press the rear lock button twice.
3. After a buzzer (ding) sounds once,
press the rear lock button four times.
4. After a buzzer (ding) sounds once,
press the rear lock button six times.
5. After a buzzer (ding) sounds once,

– CONTINUED –

Keys and doors/PIN Code Access (models with “keyless access with push-button start system”)

2-23

(130,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

press the rear lock button eight times.
6. Perform steps 1 to 5 again within
approximately 30 seconds after the buzzer
starts sounding intermittently.
7. All doors (including rear gate) will be
unlocked and locked. Then the PIN code
will be registered.

NOTE

Press the trunk opener button/rear

lock button ten times to enter “0”.
.

Change the PIN code frequently to

protect your vehicle from theft.
.

If you have lent your vehicle to

another person, confirm that the PIN
code has not been changed or deleted.
If the PIN code has been changed or
deleted, reregister a new PIN code.
.

If you make an error during the

registration procedure, press the “ ”
or “

” button on the access key fob.

Then, start over from the procedure
described in “Preparation”.
.

To protect your vehicle from theft,

you cannot register “00000” to “99999”
or “12345” as a PIN code.
.

Do not register your vehicle license

plate number or simple numbers such
as “11122” or “12121” as a PIN code.
Doing so will increase the risk of
vehicle theft.
.

When you try to register “22222”, the

registered PIN code will be deleted. You
cannot unlock the doors by PIN Code
Access until a new code is registered.
.

After registering a new PIN code,

make sure that you can unlock the
doors using the PIN code.
.

The PIN code cannot be deleted

while the keyless access function is
disabled by operating the access key
fob.
.

Reregister the PIN code in the fol-

lowing case.

– when you forget the PIN code
– when you want to change the PIN
code

Unlocking

Perform steps 1 to 5 described in “Regis-
tration”.

NOTE

You cannot unlock by PIN Code

Access in the following cases.

– when the access key fob is within
the operating ranges
– when the ignition switch is in the
“ACC” or “ON” position

If you make an operation error dur-

ing the unlocking procedure, start over
with the unlocking procedure after
waiting for 5 seconds or longer.
.

To protect your vehicle from theft, a

buzzer will sound if incorrect PIN codes
are entered five times continuously. If
this occurs, you cannot unlock the
doors by PIN Code Access for 5
minutes.

Keys and doors/PIN Code Access (models with “keyless access with push-button start system”)

2-24

(131,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Remote keyless entry system

CAUTION

Do not expose the remote trans-

mitter to severe shocks, such as
those experienced as a result of
dropping or throwing.

Do not take the remote transmit-

ter apart except when replacing
the battery.

Do not get the remote transmitter

wet. If it gets wet, wipe it dry with
a cloth immediately.

When you carry the remote trans-

mitter on an airplane, do not
press the button of the remote
transmitter while in the airplane.
When any button of the remote
transmitter is pressed, radio
waves are sent and may affect
the operation of the airplane.
When you carry the remote trans-
mitter in a bag on an airplane,
take measures to prevent the
buttons of the remote transmitter
from being pressed.

For models with “keyless access with
push-button start system”, the access

key is used as the transmitter for the
remote keyless entry system. For models
without “keyless access with push-button
start system”, the transmitter for the
remote keyless entry system is located
inside the key head.

The remote keyless entry system has the
following functions.
.

Locking and unlocking the doors (and

rear gate for Outback) without a key
.

Opening the trunk lid (Legacy) without

key
.

Sounding a panic alarm

Arming and disarming the alarm sys-

tem. For detailed information, refer to
“Alarm system” F2-29.

The operable distance of the remote key-
less entry system is approximately 30 feet
(10 meters). However, this distance will
vary depending on environmental condi-
tions. The system’s operable distance will
be shorter in areas near a facility or
electronic equipment emitting strong radio
waves such as a power plant, broadcast
station, TV tower, or remote controller of
home electronic appliances.

Operating the access key fob

NOTE

The remote keyless entry system will
not be activated when the push-button
ignition switch is in any position other
than the “OFF” position.

Access key fob
1)

Lock/arm button

Unlock/disarm button

Trunk lid opener/rear gate unlock button

PANIC button

Locking the doors

Press the lock/arm button to lock all doors
and rear gate (Outback). When the doors
(including the rear gate) are locked, an
electronic chirp will sound once and the
hazard warning flashers will flash once.

– CONTINUED –

Keys and doors/Remote keyless entry system

2-25

(132,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

If any of the doors (or the rear gate/trunk
lid) is not fully closed, the following will
occur to alert you that the doors (or the rear
gate/trunk lid) are not properly closed.
.

an electronic chirp sounds five times.

the hazard warning flashers flash five

times.

When you close the door, it will automati-
cally lock and then the following will occur.
.

an electronic chirp sounds once.

the hazard warning flashers flash once.

Unlocking the doors

Press the unlock/disarm button to unlock
the driver’s door. An electronic chirp will
sound twice and the hazard warning
flashers will flash twice. To unlock all doors
and the rear gate (Outback), briefly press
the unlock/disarm button a second time
within 5 seconds.

NOTE

If the interval between the first and
second presses of the unlock/disarm
button (for unlocking of all of the doors
and the rear gate) is extremely short,
the system may not respond.

Opening the trunk lid (Legacy)

Press and hold the trunk lid opener button
to open the trunk lid. An electronic chirp
will sound twice and the hazard warning
flashers will flash twice.

Unlocking the rear gate (Outback)

Press the rear gate unlock button to unlock
the rear gate. An electronic chirp will sound
twice and the hazard warning flashers will
flash twice.

Selecting audible signal operation

Furthermore, the volume setting of the
audible signal can also be changed by a
SUBARU dealer. Consult your SUBARU
dealer for details.

Selecting hazard warning flasher
operation

be changed by a SUBARU dealer. Consult
your SUBARU dealer for details.

Vehicle finder function

Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30 feet
(10 meters) of the vehicle, pressing the
lock/arm button three times in a 5-second
period will cause your vehicle’s horn to
sound once and its hazard warning
flashers to flash three times.

NOTE

If the interval between presses is too
short when you press the lock/arm
button three times, the system may
not respond to the signals from the
remote transmitter.

Sounding a panic alarm

To activate the alarm, press the “PANIC”
button once.
The horn will sound and the hazard
warning flashers will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. If a
button on the remote transmitter is not
pressed, the alarm will be deactivated after
approximately 30 seconds.

Keys and doors/Remote keyless entry system

2-26

(133,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Operating the transmitter

NOTE

The remote keyless entry system will
not be activated when the key is
inserted in the ignition switch.

Transmitter
1)

Lock/arm button

Unlock/disarm button

Trunk lid opener/rear gate unlock button

PANIC button

NOTE

For models with trunk or power rear
gate, you can disable the “

” button

on the access key fob/transmitter. We
recommend that you contact your
SUBARU dealer to change the setting.

Locking the doors

If any of the doors (or the rear gate/trunk
lid) is not fully closed, the following will
occur to alert you that the doors (or the rear
gate/trunk lid) are not properly closed.
.

an electronic chirp sounds five times.

the hazard warning flashers flash five

times.

When you close the door, it will automati-
cally lock and then the following will occur.
.

an electronic chirp sounds once.

the hazard warning flashers flash once.

Unlocking the doors

NOTE

If the interval between the first and
second presses of the unlock/disarm
button (for unlocking of all of the doors

and the rear gate) is extremely short,
the system may not respond.

Opening the trunk lid (Legacy)

Press and hold the trunk lid opener button
to open the trunk lid. An electronic chirp
will sound twice and the hazard warning
flashers will flash twice.

Unlocking the rear gate (Outback)

Press the rear gate unlock button to unlock
the rear gate. An electronic chirp will sound
twice and the hazard warning flashers will
flash twice.

Selecting audible signal operation

Using an electronic chirp, the system will
give you an audible signal when the doors
are locked or unlocked.

If desired, the audible signal ON/OFF
setting and the audible signal volume can
be customized by a SUBARU dealer.
Consult your SUBARU dealer for details.

Selecting hazard warning flasher
operation

– CONTINUED –

Keys and doors/Remote keyless entry system

2-27

(134,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

be changed by a SUBARU dealer. Consult
your SUBARU dealer for details.

Vehicle finder function

NOTE

If the interval between presses is too
short when you press the lock/arm
button three times, the system may
not respond to the signals from the
remote transmitter.

Sounding a panic alarm

Replacing the battery

Refer to “Replacing battery” F11-49.

Replacing lost transmitters

If you lose a transmitter or want to
purchase additional transmitters (up to
four can be programmed), you should re-
program all of your transmitters for security
reasons. For details, contact your
SUBARU dealer and have the transmitters
programmed into the remote keyless entry
system.

Certification for remote key-
less entry system

U.S.-spec. models

FCC ID: CWTB1G077
FCC ID: CWTD1G049

CAUTION

FCC CAUTION

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device

may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

Canada-spec. models

Keys and doors/Remote keyless entry system

2-28

(135,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Mexico-spec. models

IFETEL RLVSUTB15-1814
SUBARU
MODEL: TB1G077

IFETEL RLVSUTD15-1815
SUBARU
MODEL: TD1G049

Alarm system

The alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the hazard warning flashers
flash if someone attempts to break into
your vehicle.

For models with “keyless access with
push-button start system”:
The system can be armed or disarmed
with the keyless access function or access
key fob.
The system will not be activated when the
push-button ignition switch is in the “ACC”
or “ON” position.

For models without “keyless access
with push-button start system”:
The system can be armed and disarmed
with the remote transmitter.
The system will not be activated when the
key is inserted into the ignition switch.

Your vehicle’s alarm system has been set
for activation at the time of shipment from
the factory. You can set the system for
deactivation yourself or have it done by
your SUBARU dealer.

System alarm operation

The alarm system will give the following
alarms when triggered.
.

The vehicle’s horn will sound for 30

seconds.
.

The hazard warning flashers will flash

for 30 seconds.

If any of the doors, the rear gate/trunk lid or
engine hood remains open after the 30-
second period, the horn will continue to
sound for a maximum of 3 minutes. If the
door, the rear gate/trunk lid or engine hood
is closed while the horn is sounding, the
horn will stop sounding with a delay of up
to 30 seconds.

The alarm is triggered by:
.

Opening any of the doors, engine hood,

rear gate or the trunk lid
.

Physical impact to the vehicle, such as

forced entry (only models with shock
sensors (dealer option))

NOTE

The alarm system can be set to trigger
the illumination of the following interior
lights.
.

Map lights

Dome light (illuminates only when

the dome light switch is in the “DOOR”
position)

– CONTINUED –

Keys and doors/Alarm system

2-29

Subaru Outback (2019 year). Instruction - part 8
