Subaru Crosstrek (2019 year). Instruction

(185,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

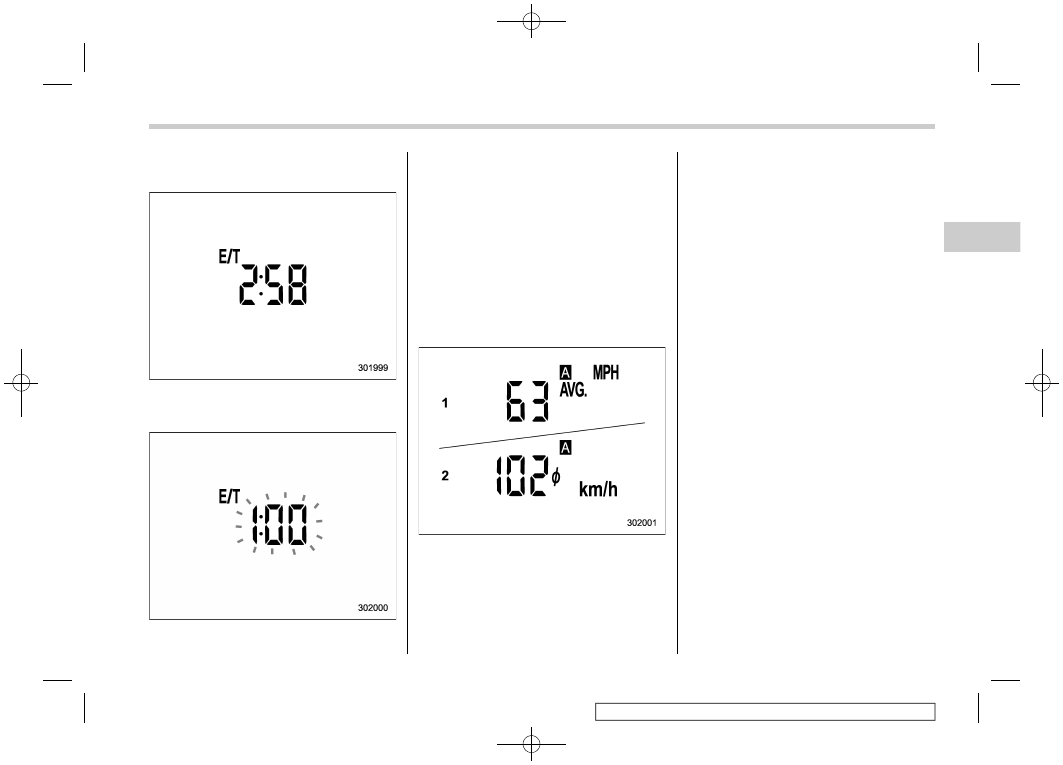

Journey time (models without com-
bination meter display (color LCD))

The journey time shows the time that has
elapsed since the ignition switch was
turned to the “ON” position.

The journey time indication flashes each

time a complete hour has elapsed. If the
display is giving a reading other than the
journey time, the display switches to the
journey time, flashes for 5 seconds, and
returns to its original reading each time a
complete hour has elapsed.

NOTE

The journey time is reset when the
ignition switch is turned to the “ACC”
or “LOCK”/“OFF” position.

Average vehicle speed

When units in miles is selected

When units in km is selected

This display shows the average vehicle
speed since the trip meter was last reset.
Pressing the TRIP RESET switch toggles
the display between the average vehicle

speed corresponding to the A trip meter
display and the average vehicle speed
corresponding to the B trip meter display.
When either of the trip meter displays is
reset, the corresponding average vehicle
speed value is also reset.

NOTE

When either trip meter display is reset,
the average vehicle speed correspond-
ing to that trip meter display is not
shown until the vehicle has subse-
quently covered a distance of 1 mile
(or 1 km).

Turn off display of driving informa-
tion display

Select the blank space in the menu to exit
the driving information display selection.

NOTE

The average fuel consumption and

average vehicle speed are calculated
even while the driving information dis-
play is not displayed.
.

Even if you turn off the driving

information display, the display will
automatically turn on when the battery
voltage is disconnected and then re-
connected for battery replacement or
fuse replacement.

– CONTINUED –

Instruments and controls/Multi-function display (black and white)

3-43

(186,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

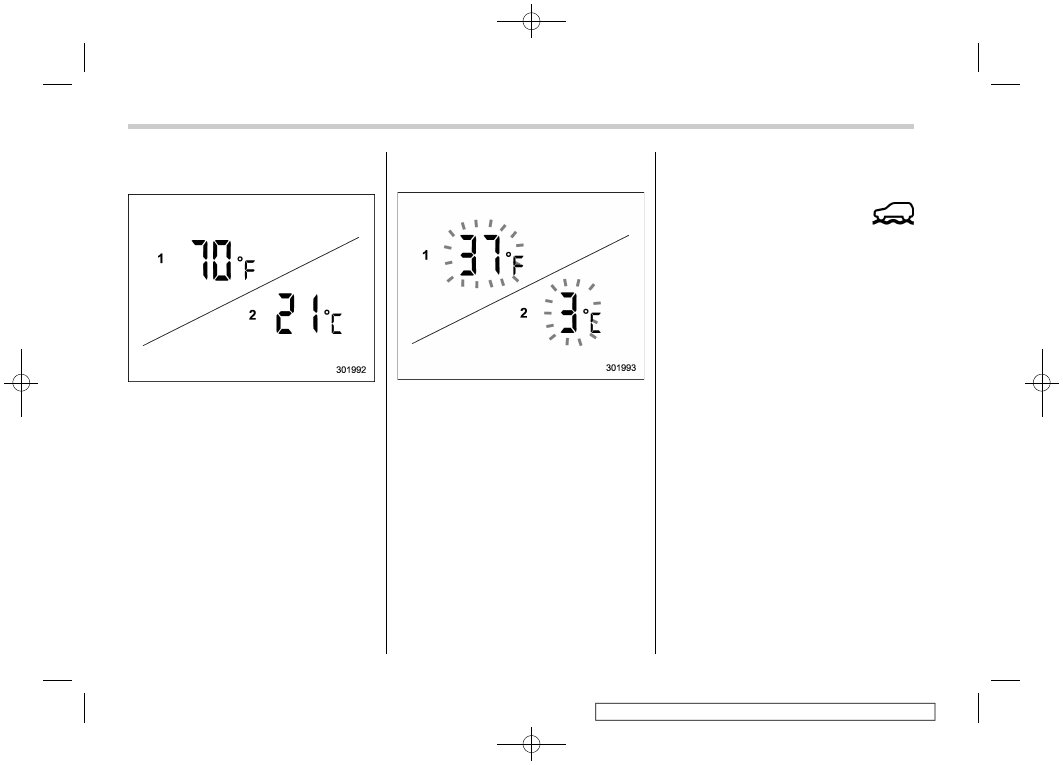

Outside temperature indica-
tor

U.S.-spec. models

Except U.S.-spec. models

NOTE

The outside temperature indicator

shows the temperature around the
sensor. Therefore, the temperature in-
dication may differ from the actual
outside air temperature.
.

The temperature unit cannot be

changed.

Road surface freeze warning indi-
cation

U.S.-spec. models

Except U.S.-spec. models

When the outside temperature drops to a
certain temperature or lower, the tempera-
ture indication flashes for 5 seconds to
show that the road surface may be frozen.
If the display is already indicating that the
outside temperature is low when the
ignition switch is turned to the “ON”
position, the indication does not flash.

NOTE

The outside temperature indication
may differ from the actual outside
temperature. The road surface freeze
warning indication should be treated
only as a guide. Be sure to check the

condition of the road surface before
driving.

X-MODE indicator (if
equipped)

This indicator will be shown while the X-
MODE is activated. It will turn off when the
X-MODE is deactivated.

Clock

For details about clock setting, refer to
“Clock” F3-60.

Instruments and controls/Multi-function display (black and white)

3-44

(187,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Multi-function display (color
LCD) (if equipped)

NOTE

For models with multi-function display
(black and white), refer to “Multi-func-
tion display (black and white)” F3-40.

WARNING

Always pay adequate attention to
safe driving when operating the
multi-function display (color LCD)
while the vehicle is in motion. When
operation of the multi-function dis-
play (color LCD) is disturbing your
awareness and ability to concen-
trate on driving, stop the vehicle in
a safe place before performing op-
erations on the screen. Also, do not
concentrate on the display while
driving. Doing so may cause you to
look away from the road and could
result in an accident.

Features

The multi-function display (color LCD) has
the following functions.

Description

Page

Displays useful messages, such
as notification, etc.

3-46

Displays basic screens (e.g. fuel
consumption screen, etc.)

3-47

Sets and adjusts maintenance
notification

3-58

Also, the multi-function display (color LCD)
can also be used to set and initialize the
multi-function display (color LCD) itself.

NOTE

When the vehicle is in motion,

certain functions and selections may
not be available.
.

You can set the language and units

for both the multi-function display
(color LCD) and the combination meter
at the same time. For details about
setting the language and units, refer to
“Menu screens” F3-38.
.

The images displayed in this Own-

er’s Manual are sample images. The
actual image may vary depending on
the market and vehicle specifications.

Welcome screen

When the driver’s door is opened and
closed, the welcome screen will appear for
a short time.

NOTE

The welcome screen will disappear

when the ignition switch is turned to the
“ON” position while the welcome
screen is displayed.
.

The welcome screen can be set to on

or off. For details, refer to “Screen
Settings” F3-38.
.

For a certain period of time after the

welcome screen has once appeared, it
may not appear again even when the
driver’s door is opened and closed
again. This does not indicate a mal-
function.

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-45

(188,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

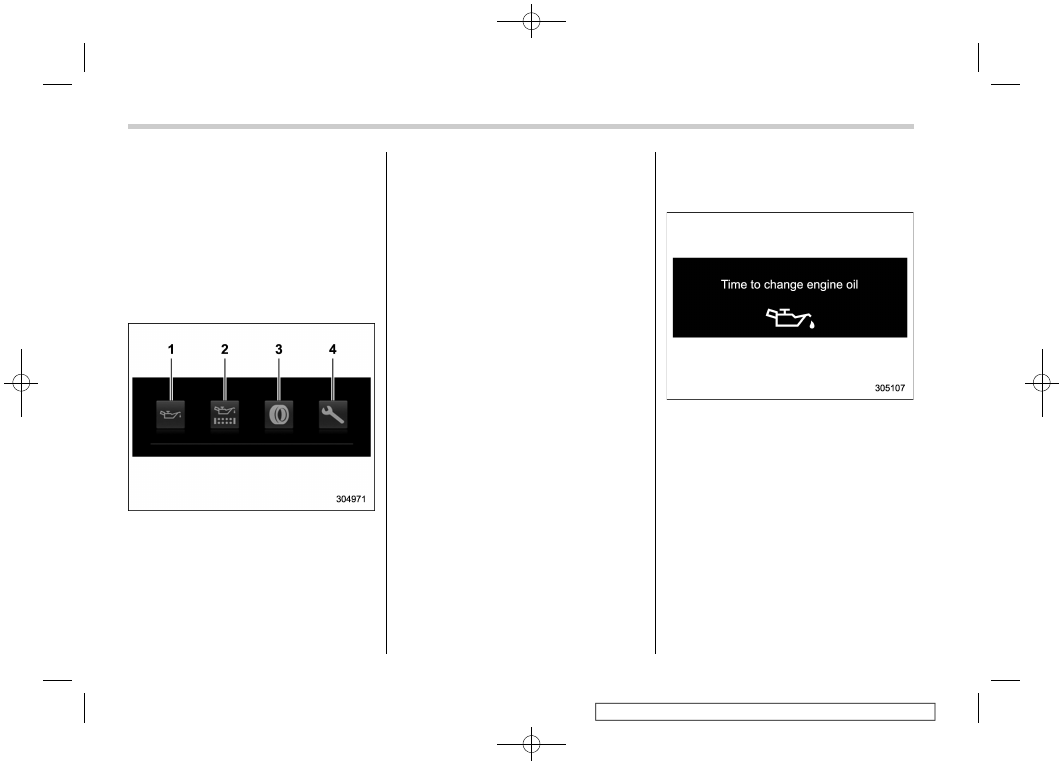

Self-check screen

NOTE

When the setting is “On”, the self check
screen appears. For details about this
setting, refer to “On/Off setting” F3-58.

When the ignition switch is turned to the
“ON” position, the vehicle self-check will
be performed. The screens corresponding
to the following items will appear one after
another for several seconds each.

Engine oil: Checks the interval of engine
oil replacement.

Oil filter: Checks the interval of oil filter
replacement.

Tires: Checks the interval of tire rotation.

Inspection and maintenance: Checks the
interval of inspection and maintenance.

When the checks are performed, the color
of the icon corresponding to the checked

item will change.
If there is a notification, the message will
be displayed. Take the appropriate actions
based on the message indicated.
After the self-check is completed, today’s
date, the stored birthday or the stored
anniversary is displayed.

NOTE

After performing the maintenance,

change the setting of the correspond-
ing maintenance item. For details, refer
to “Maintenance settings” F3-58.
.

The maintenance notification screen

will be displayed under either of the
following conditions.

– The period of time remaining until
the registered notification date is 15
days or less.
– The total driving distance remain-
ing until the registered notification
distance is approximately 311 miles
(500 km) or less.

The maintenance notification screen

will be displayed until either of the
following conditions is satisfied.

– The period of time passed after
the registered notification date is 15
days or more.
– The total distance driven after the
registered notification distance is
approximately 311 miles (500 km) or

more.

Interruption screen

Example

Useful messages, such as reminder in-
formation, weather information (if
equipped) and traffic information (if
equipped) may interrupt the current screen
and appear on the display accompanied
by a beep. Take proper action according to
the message.

The interruption screen will return to the
original screen after a few seconds. Also,
you can press the INFO button to skip the
interruption screen.

Instruments and controls/Multi-function display (color LCD)

3-46

(189,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

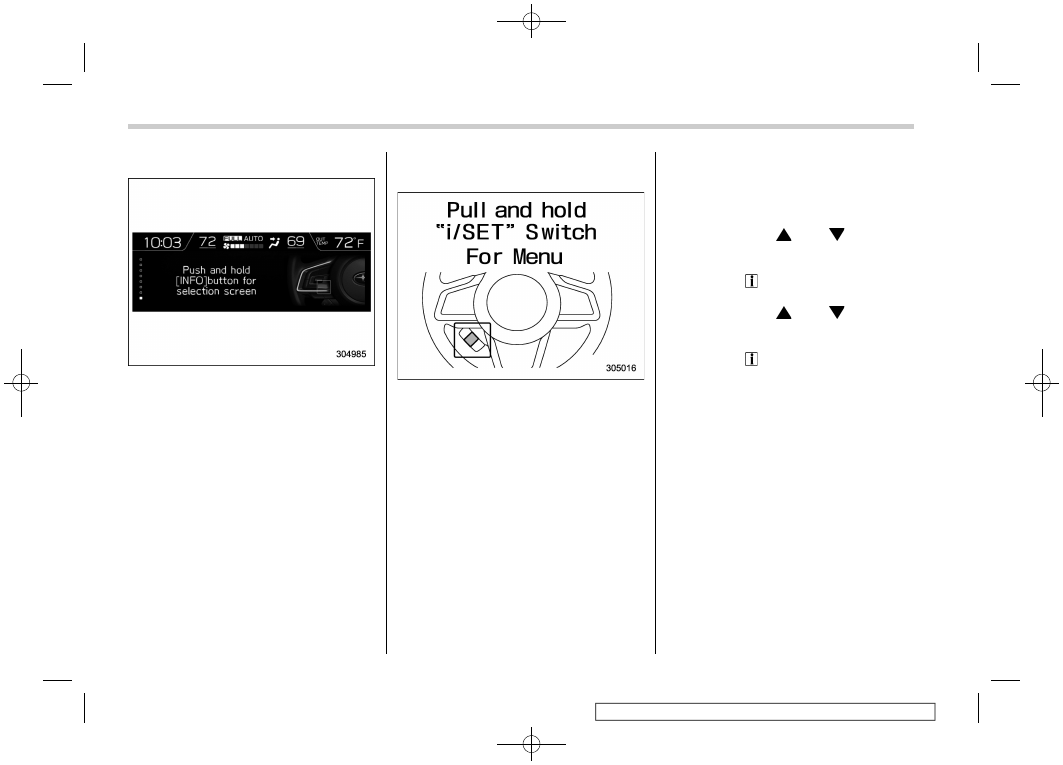

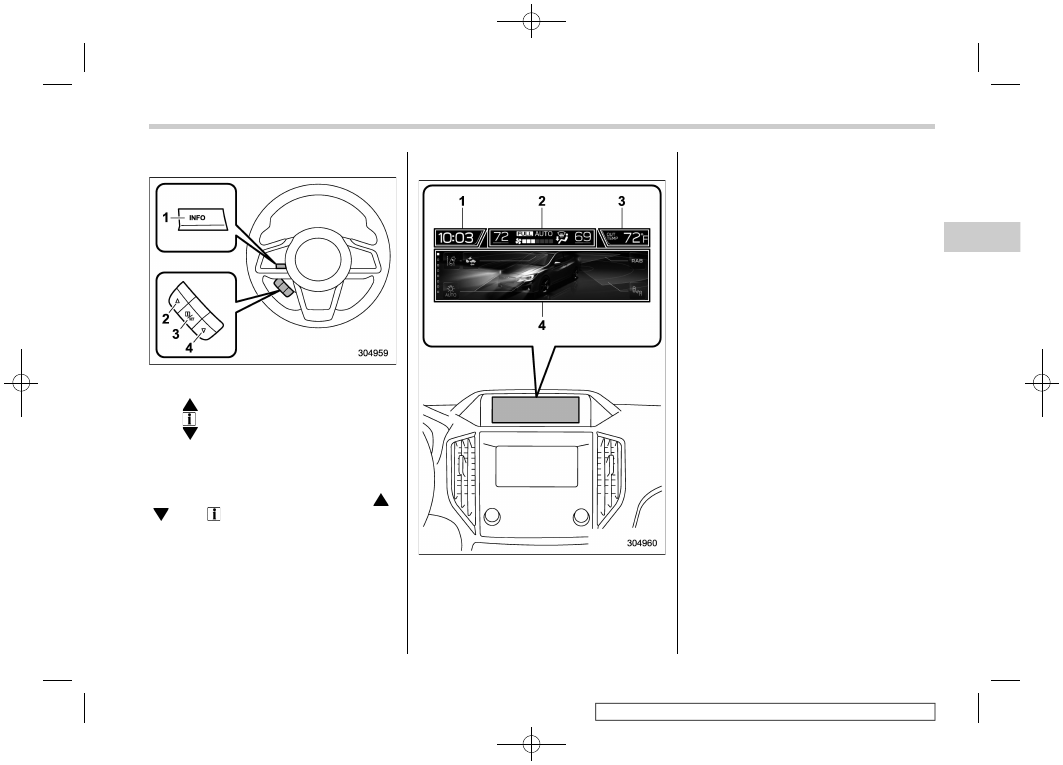

Basic operation

Control switch
1)

INFO button

2)
3)

/SET

Press the INFO button on the steering
wheel to switch the item displayed on the
basic screen. You can operate the items
on the setting screen by using the “

”,

“

” and “

/SET” switches.

Basic screens

Clock

Climate control*

Outside temperature

Information screen

*: This is not displayed on the multi-function

display (color LCD) when the ignition switch

is in the “ACC” position.

While the ignition switch is in the “ACC” or
“ON” position, the basic screen will be
displayed.

Outside temperature indicator

The outside temperature is displayed on
the multi-function display (color LCD).

NOTE

The outside temperature indicator

shows the temperature around the
sensor. Therefore, the temperature in-
dication may differ from the actual
outside air temperature.
.

The temperature unit cannot be

changed.

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-47

(190,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

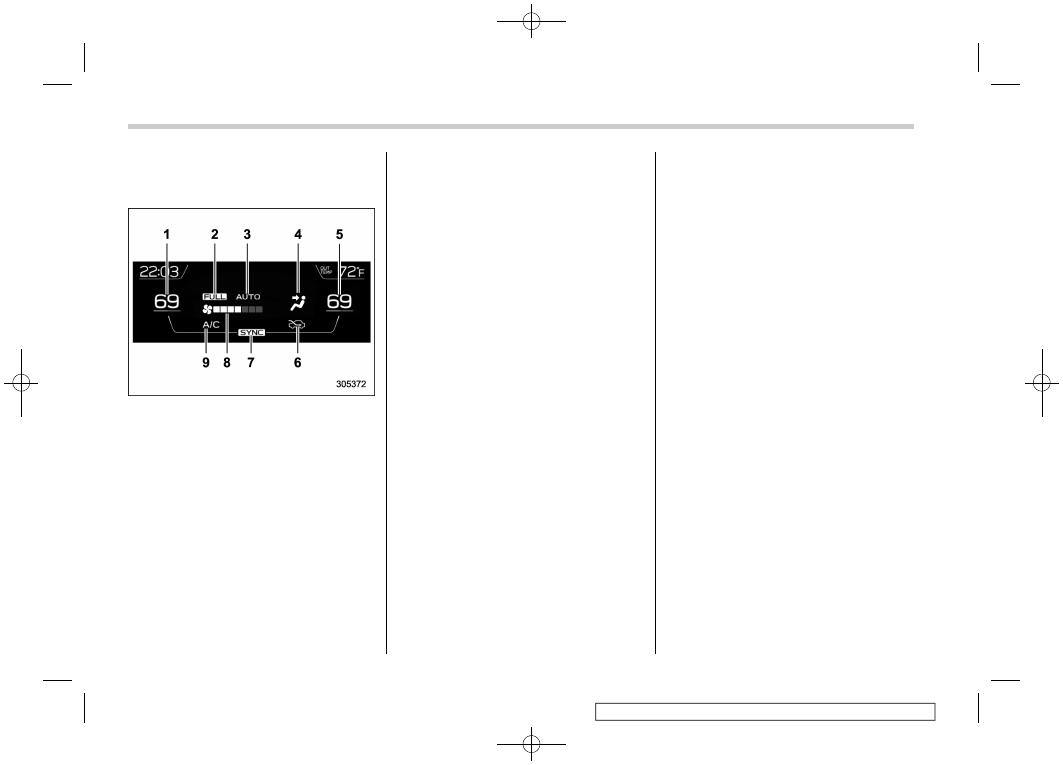

Climate control screen

The climate control status is displayed on
the multi-function display (color LCD).

Climate control screen
1)

Set temperature indicator (left-hand side)

FULL AUTO indicator

AUTO indicator

Airflow mode indicator

Set temperature indicator (right-hand
side)*

Air inlet selection indicator

SYNC indicator*

Fan speed indicator

Air conditioner ON indicator

*1: Models with the SYNC function only

When operating the climate control sys-
tem, the basic screen switches to the
climate control screen. For details about

climate control operation, refer to “Climate
control panel” F4-2.

Clock

The clock can be displayed in either 12-
hour display or 24-hour display. For details
about the setting, refer to“Clock” F3-60.

Instruments and controls/Multi-function display (color LCD)

3-48

(191,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Information screen

Press the INFO button on the steering wheel to switch the item displayed on the information screen.

Content

Description

Page

Electric components operating status screen

Displays the operating status of the electric components and equipment.

3-50

Prevention safety screen

Displays the status of your vehicle.

3-50

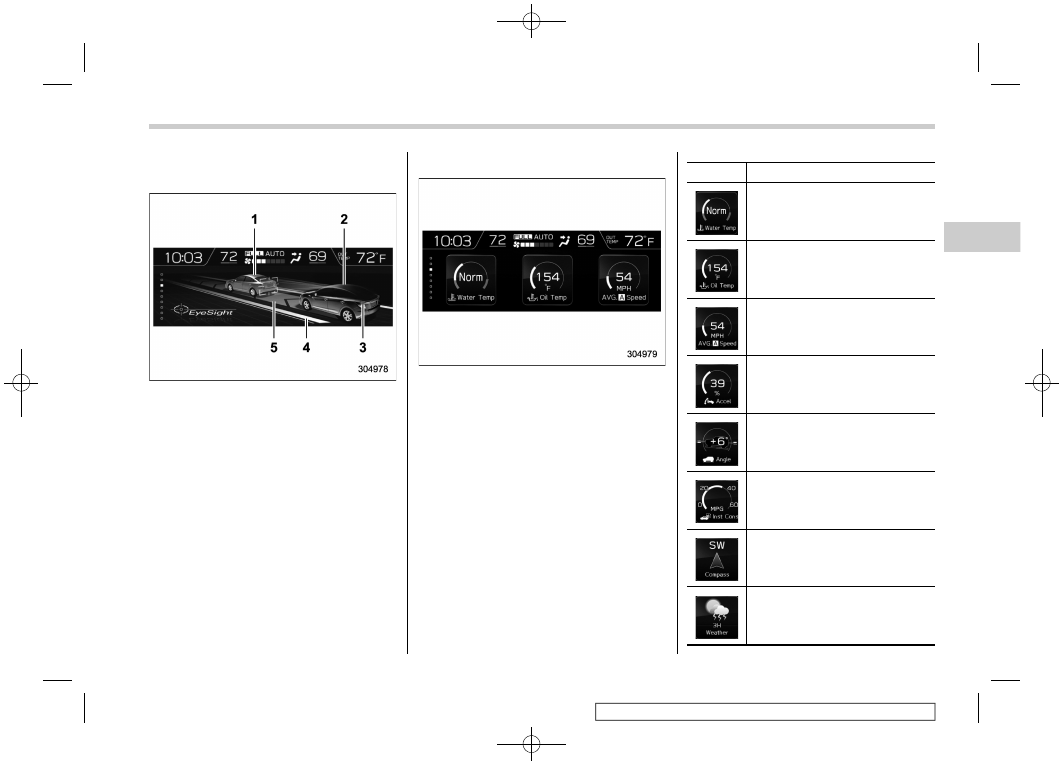

EyeSight screen*

Displays the operating status of EyeSight.

3-51

Favorite screen

Displays up to 3 optional items.

3-51

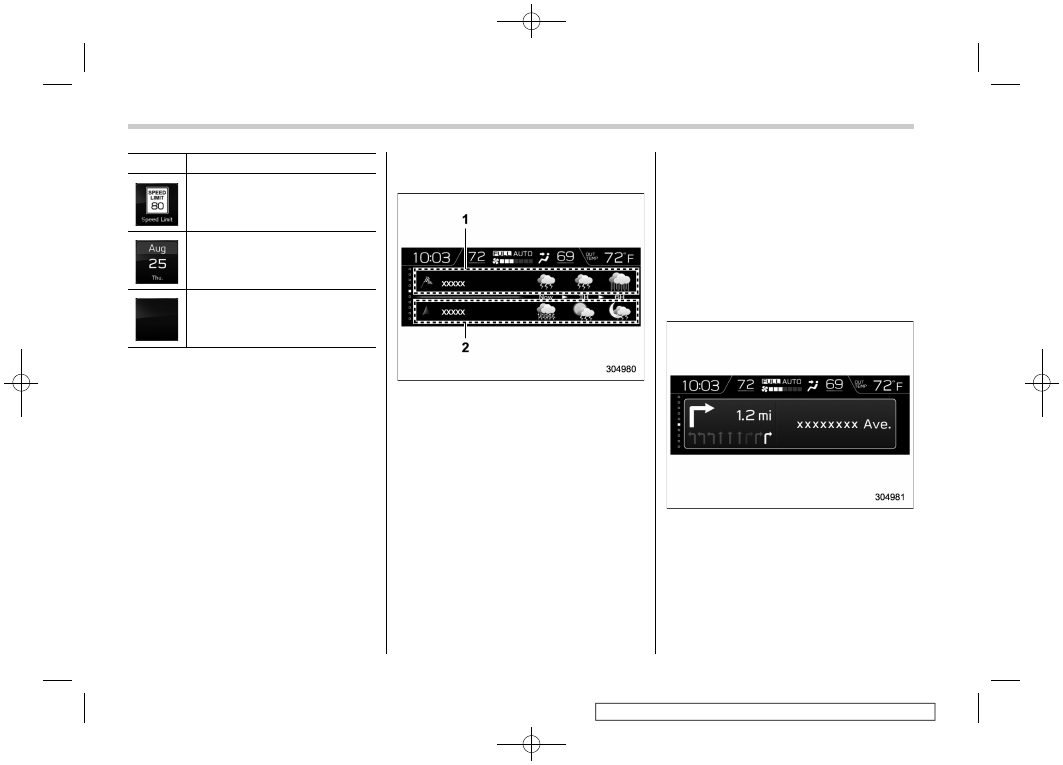

Weather information screen*

Displays weather information.

3-52

Traffic information*

/Navigation*

screen

Displays information linked with the navigation system.

3-52

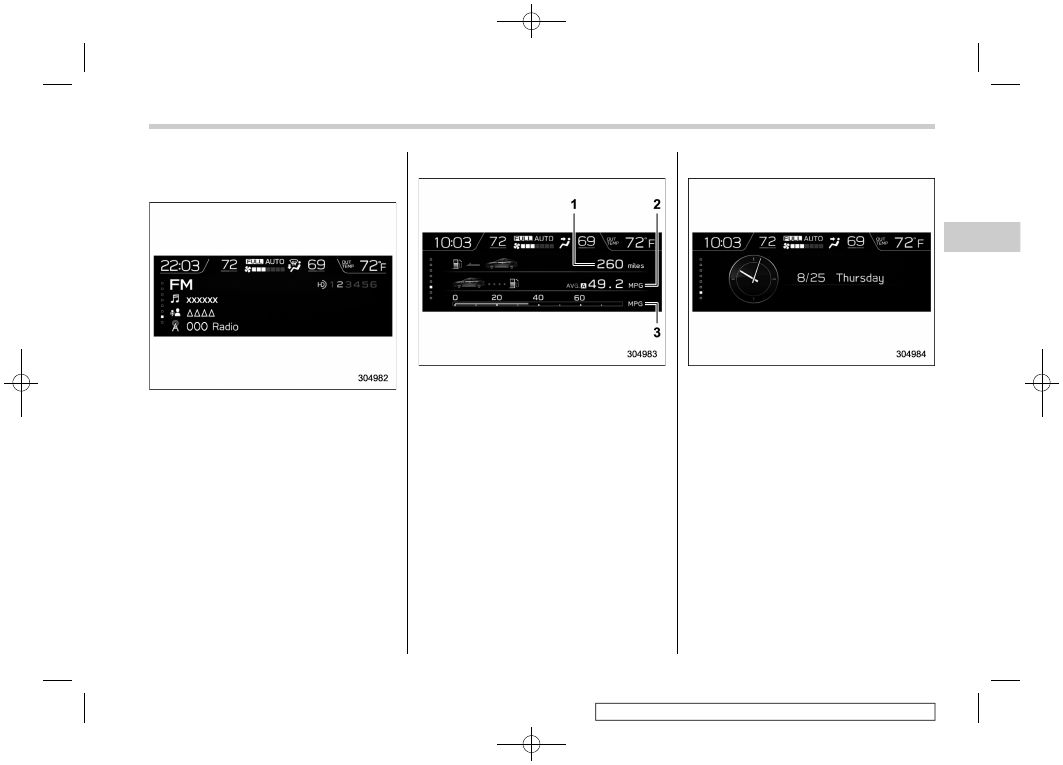

Audio screen

Displays audio system information.

3-53

Fuel consumption screen

Displays fuel consumption information.

3-53

Clock screen

Displays the clock.

3-53

Guidance screen

Moves to the setting screen.

3-54

*1: Models with EyeSight system
*2: Models with SiriusXM Satellite Radio
*3: Models with navigation system

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-49

(192,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

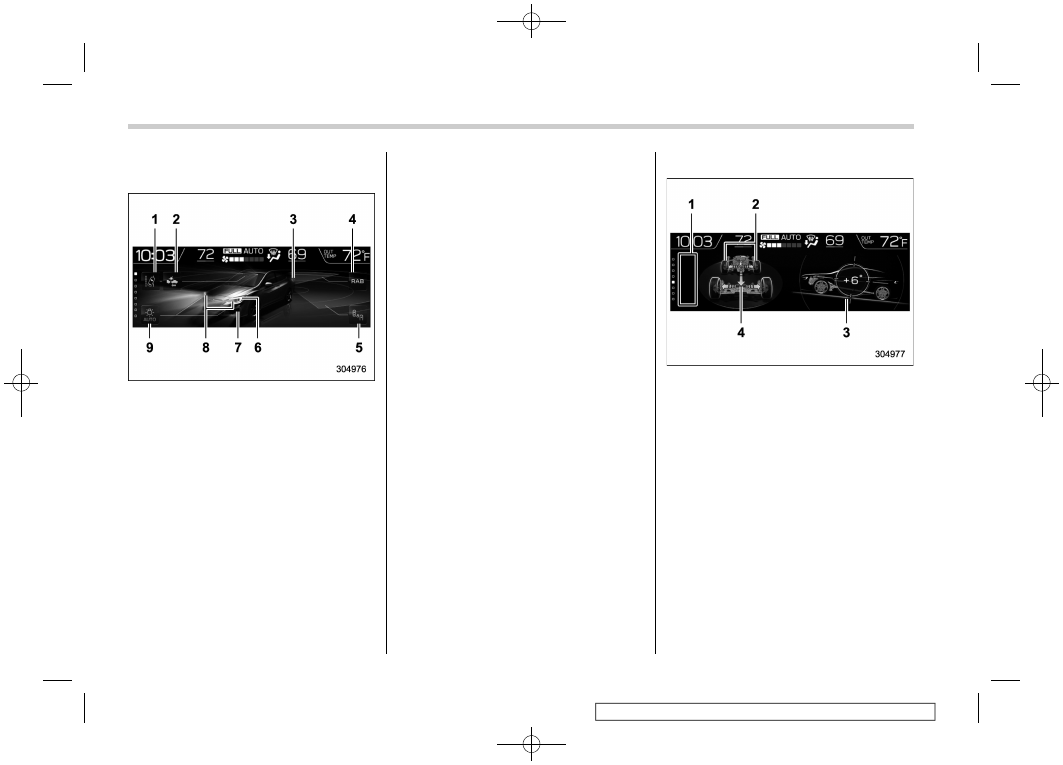

Electric components operation
screen

Lane Departure/Sway Warning indica-
tor*

Pre-Collision Braking System indicator*

Stop lights

Reverse Automatic Braking (RAB)*

BSD/RCTA*

Headlights*

Front fog lights*

Turn signals

Auto on/off headlights*

*1: If equipped
*2: The daytime running lights are not dis-
played.

This screen displays the electric compo-
nents operation status of the vehicle.

NOTE

Indicators do not display for func-

tions that are not equipped to the
vehicle.
.

The indicators of functions that are

not operating are displayed in grey.
.

For models with auto on/off head-

lights; If the multi-function display
(color LCD) unit, battery, or fuse is
removed, the Auto on/off headlights
indicator turns off on the multi-function
display (color LCD). After reinstalling
the removed multi-function display
(color LCD) unit, battery, or fuse to the
vehicle, the Auto on/off headlights
indicator will appear once more if the
light control switch is turned to the
“AUTO” position.
.

The exterior lights indicators on the

screen do not notify the driver when the
bulbs burn out. The indicators on the
screen still illuminate.

Prevention safety screen

Telltale screen

Steering angle

Vehicle posture

Running condition

This screen displays the driving status of
the vehicle and the operation status func-
tions. For functions that are operating, the
indicator will illuminate or flash.

NOTE

The vehicle posture indication may

differ from the actual vehicle posture.
.

When X-MODE has turned on, the

screen of the multi-function display is
switched to the prevention safety
screen.

Instruments and controls/Multi-function display (color LCD)

3-50

(193,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

EyeSight screen (models with
EyeSight system)

Lead vehicle indicator

Your own vehicle indicator

Stop lights

Road line indicator

Lane indicator

This screen displays the status of the
EyeSight system. The lead vehicle indica-
tor moves forward and backward depend-
ing on the distance with the vehicle in front.
For details, refer to the Owner’s Manual
supplement for the EyeSight system.

Favorite screen

Favorite screen (display example)

This screen displays up to three optional
pieces of information that can be selected
from the following items.

Item

Details

The engine coolant temperature is
displayed.

The engine oil temperature is
displayed.

The average vehicle speed is
displayed.

The accelerator opening ratio is
displayed.

The vehicle posture is displayed.

The current rate of fuel consump-
tion is displayed.

The direction of the vehicle is
displayed.*

The weather information is dis-
played.*

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-51

(194,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Item

Details

The posted speed limit of the road
you are currently driving on is
displayed.*

The calendar is displayed.

Nothing is displayed.

*1: If equipped
*2: Models with SiriusXM Satellite Radio

NOTE

Some displayed items may be not
displayed depending on the model
and specifications.

The items shown in the favorite screen can
be changed. For details, refer to “Favorite
setting” F3-57.

Weather information screen (if
equipped)

Weather information for the destination.*

Weather information for the current loca-
tion.

*: Only when a destination is set in the
navigation system

The weather information is displayed on
the screen.

NOTE

When all of the following conditions

are satisfied, weather information is
displayed.

– The vehicle is equipped with an
audio and navigation system for
SiriusXM satellite radio.
– You have a current SiriusXM

satellite radio subscription.

The weather forecast for the set

destination remains displayed until a
new destination is set or until you reach
the destination.
.

Depending on the reception timing

of XM, the display of weather informa-
tion may be delayed.

Navigation screen (models with
navigation system)

The navigation system information to the
destination is displayed on the screen.

NOTE

When a destination is not set in the
navigation system, the compass orien-
tation, name, route sign and speed limit
of the road the vehicle is traveling on

Instruments and controls/Multi-function display (color LCD)

3-52

(195,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

remain displayed on the screen.

Audio screen

The screen of the currently selected audio
source is displayed.
For details about how to use the audio set,
refer to the separate navigation/audio
Owner’s Manual.

Fuel consumption screen

Driving range on remaining fuel

Average fuel consumption corresponding
to the driving distance of each trip meter

Current fuel consumption

The fuel consumption information is dis-
played on the screen.

NOTE

The driving range on remaining fuel is
only a guide. The indicated value may
differ from the actual driving range on
remaining fuel, so you must immedi-
ately fill the tank when the low fuel
warning light illuminates.

Clock/date screen

The time and date are displayed.
You can adjust the time and date. For
details, refer to “Clock” F3-60.

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-53

(196,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Guidance screen

When the INFO button on the steering
wheel is pressed and held on this screen,
the setting screen can be displayed.
For details, refer to “Setting screen” F3-
54.

NOTE

When the combination meter display
(color LCD) is displaying the menu
screen entering screen, the system will
not move to the setting screen even if
the INFO button is pressed and held.

Setting screen

1. Press and hold the INFO button on the
guidance screen. The top menu is dis-
played.
2. Operate the “

” or “

” switch to

select the preferred menu from the top
menu.
3. Pull the “

/SET” switch to enter the

selected menu.
4. Operate the “

” or “

” switch to

select the preferred menu from the 2nd
menu.
5. Pull the “

/SET” switch to enter the

selected menu.

Instruments and controls/Multi-function display (color LCD)

3-54

(197,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

The menu list is as follows.

Top menu

2nd menu

Description

Page

Time/Date

Time/Date*

Set and adjust the time and date. 12h or 24h format can be selected.

3-56

Birthday

Set a birthday.

3-56

Anniversary

Set an anniversary day.

3-56

Go Back

Return to the 1st menu.

—

Display/Beep

Screen Off*

Turn the screen on or off.

Yes or No

3-56

Favorite

Set and customize the triple meter.

3-57

Bypass Screen

Set the bypass screen for each item.

On or Off

3-57

Beep

Adjust the beep sound volume.

High, Low or Off

3-57

Go Back

Return to the 1st menu.

—

Maintenance

Engine Oil

Set and adjust the oil maintenance notification date.

3-58

Oil Filter

Set and adjust the oil filter maintenance notification date.

3-58

Tires

Set and adjust the tire maintenance notification date.

3-58

Maintenance Schedule

Set and adjust the vehicle maintenance notification date.

3-58

ON/OFF

Turn on or off the self-check screen that is
activated when the ignition switch is turned to the
“ON” position.

On or Off

3-58

Clear All Settings

Clear all settings for maintenance items.

Yes or No

3-59

Go Back

Return to the 1st menu.

—

Initialize

—

Reset all settings to the default settings.

Yes or No

3-59

Go Back

—

Return to the setting screen.

—

*: You can also set this while driving.

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-55

(198,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Date and time settings

You can set the date, time and 12h or 24h
format settings.

Current date and time setting

For details about clock setting, refer to
“Clock” F3-60.

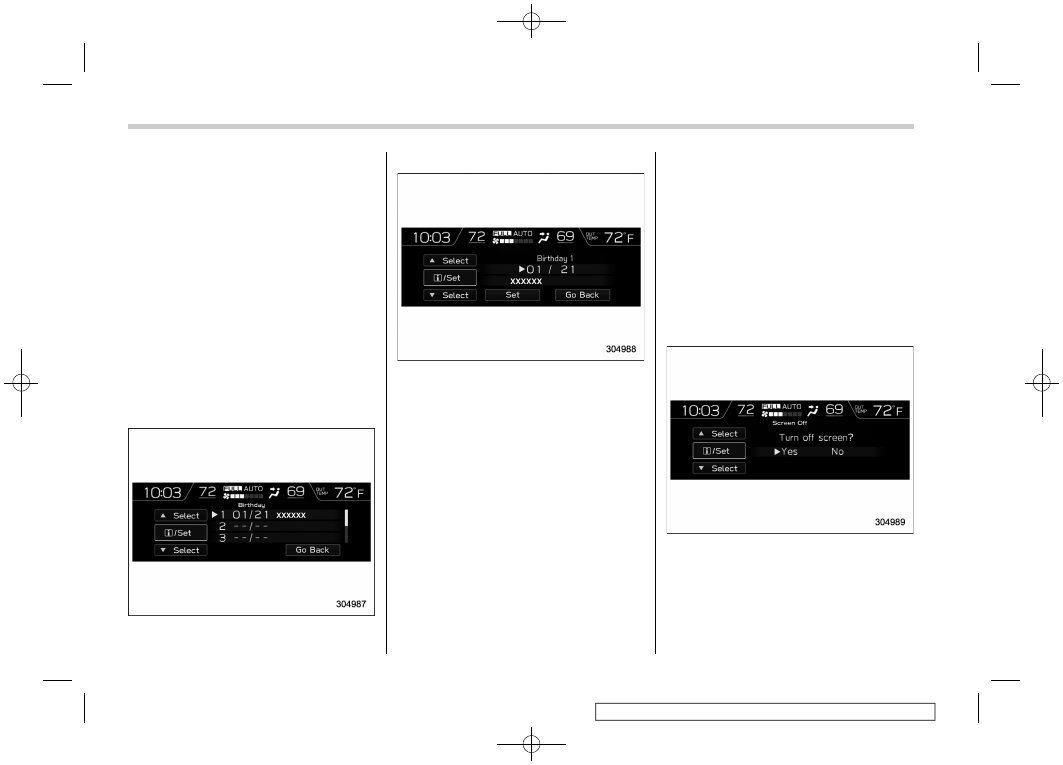

Birthday setting

If a birthday or anniversary is approaching,
a message will be displayed when the
ignition switch is turned to the “ON”
position. This function can be set to on or
off. For details, refer to “Bypass screen
setting” F3-57.
1. Select “Birthday” from the 2nd menu in
the setting screen. Refer to “Setting
screen” F3-54.

2. Select from the list the number that you

want to register.

3. Enter the date and the text by using the
control switches.
4. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.

NOTE

You can store a maximum of 5 birth-
days.

Anniversary setting

1. The procedure for setting an anniver-
sary is the same as “Birthday setting” F3-
56, except that in step 1 “Anniversary” is
selected.

NOTE

You can store a maximum of 5 anniver-
saries.

Display/Beep settings

You can set the display settings and
volume settings.

Screen OFF setting

1. Select “Screen Off” from the 2nd menu
in setting screen. Refer to “Setting screen”
F3-54.

2. Select “Yes” to turn off the screen.
Select “No” to return to the previous
screen.

Restoring the screen
When the INFO button is operated after

Instruments and controls/Multi-function display (color LCD)

3-56

(199,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

the ignition switch is turned to the “ON” or
“ACC” position, the screen will be restored.
The screen will be restored with the basic
screen that was displayed when the
screen was turned off.

NOTE

While the screen is off, the screen
switches to the climate control screen
only when the climate control system is
operated.

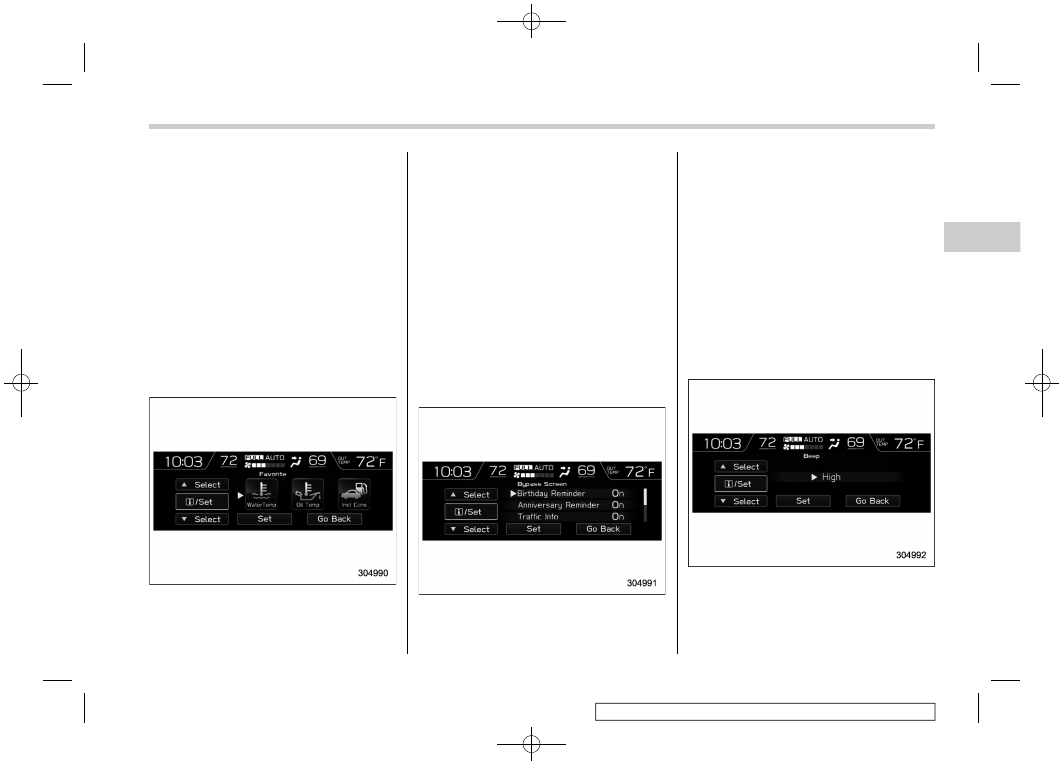

Favorite setting

1. Select the “Favorite” from the 2nd
menu in setting screen. Refer to “Setting
screen” F3-54.

2. Set the desired items by using the
control switches. For details about items,
refer to “Favorite screen” F3-51.

3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.

NOTE

You can display a maximum of the 3

items.
.

The same item cannot be selected

for the left, center or right location.
.

Weather information for 3 hours

later or 6 hours later can be displayed.

Bypass screen setting

1. Select “Bypass Screen” from the 2nd
menu in the setting screen. Refer to
“Setting screen” F3-54.

2. Select “On” or “Off” to turn the display
of items on or off by using the control

switches.
3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.

NOTE

Traffic information setting is only dis-
played for the audio unit with SiriusXM
satellite radio.

Beep setting

1. Select “Beep” from the 2nd menu in the
setting screen. Refer to “Setting screen”
F3-54.

2. Set the beep volume by using the
control switches.
3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-57

(200,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

without applying the setting changes.

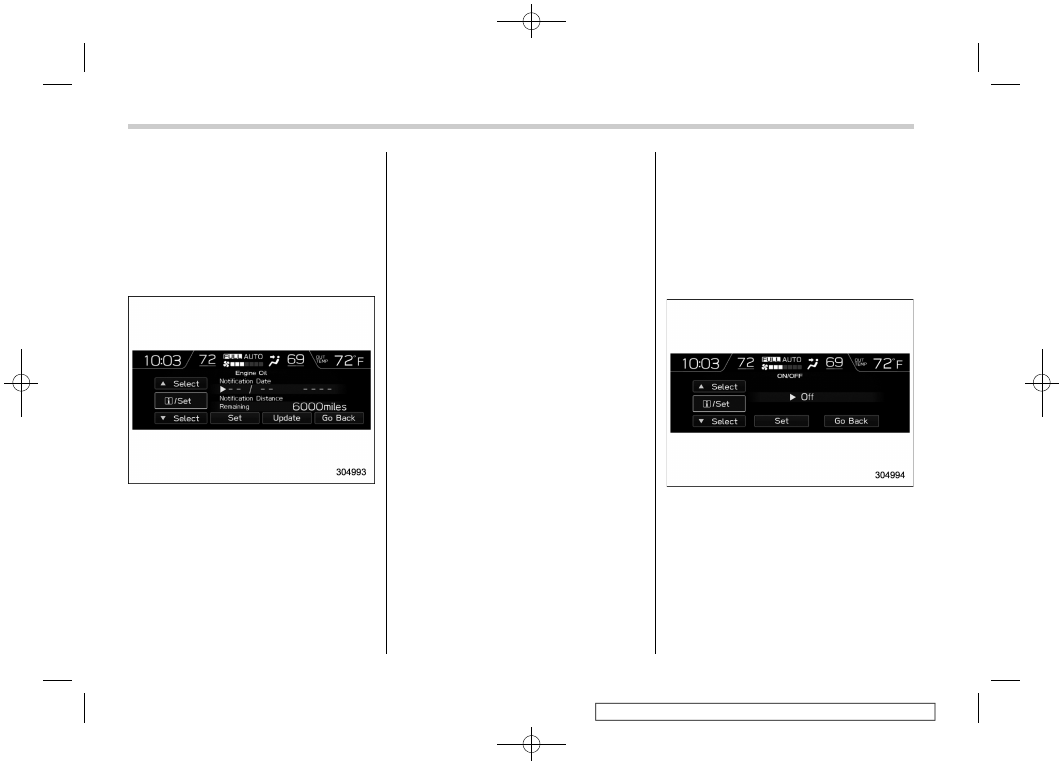

Maintenance settings

You can set maintenance reminders.

Engine oil setting

1. Select “Engine Oil” from the 2nd menu
in the setting screen. Refer to “Setting
screen” F3-54.

2. Set the date and distance of the
reminder by using the control switches.
3. Select “Set” to exit settings. Select
“Update” to change the notification dis-
tance to the default value. Select “Go
Back” to return to the previous screen
without applying the setting changes.

NOTE

The reminder will be displayed by

either date or distance in accordance
with the setting.
.

Even when either “Day” or “Dis-

tance” are displayed as “_ _” a pop-up
screen will appear.
.

The reminder will be displayed until

either of the following conditions is
satisfied.

Oil filter setting

The setting procedure is the same as
“Engine oil setting” F3-58, but select the
“Oil Filter” item in step 1.

Tires setting

The setting procedure is the same as
“Engine oil setting” F3-58, but select the
“Tires” item in step 1.

Maintenance schedule setting

The setting procedure is the same as
“Engine oil setting” F3-58, but select the
“Maintenance Schedule” item in step 1.

On/Off setting

1. Select “On/Off” from the 2nd menu on
the setting screen. Refer to “Setting
screen” F3-54.

2. Select “On” or “Off” to turn the opening
screen on or off by using the control
switches.
3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.

Instruments and controls/Multi-function display (color LCD)

3-58

Subaru Crosstrek (2019 year). Instruction - part 12
