Subaru Crosstrek (2019 year). Instruction

(169,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Inside warning

chime

Outside warning

chime

Operation indicator

on push-button igni-

tion switch

Status

Action

Ding

—

Access key warning for engine start:
The push-button ignition switch was
pressed while the access key fob is not
inside the vehicle.

Carry the access key fob, and press the
push-button ignition switch.

Ding

Beep, beep, beep

(3 times)

—

Access key takeout warning:
The driver exited the vehicle with the
access key fob and closed the driver’s
door while the push-button ignition switch
is in a position other than “OFF” (in CVT
models, when the select lever is in the “P”
position).

Switch the push-button ignition switch to
“OFF”, and get out of the vehicle.

Ding

Beep, beep, beep

(3 times)

—

Passenger access key takeout warn-
ing:
A fellow passenger exited the vehicle with
the access key fob and closed a door
other than the driver’s door while the
push-button ignition switch is in a position
other than “OFF”.

Return the access key fob to inside the
vehicle, or switch the push-button ignition
switch to “OFF”.

Long beep

(continuous)

Long beep

(continuous)

—

Access key takeout without P position
warning (CVT models):
The driver exited the vehicle with the
access key fob and closed the driver’s
door while the push-button ignition switch
is in a position other than “OFF” and the
select lever is in a position other than the
“P” position.

Shift the select lever to the “P” position,
switch the push-button ignition switch to
“OFF” and exit the vehicle.

Long beep

(continuous)

—

Select lever position warning (CVT
models):
The engine is turned off by pressing the
push-button ignition switch and the select
lever is in a position other than the “P”
position.

Start the engine, shift the select lever to
the “P” position, switch the push-button
ignition switch to “OFF” and exit the
vehicle.

– CONTINUED –

Instruments and controls/Warning and indicator

3-27

(170,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Inside warning

chime

Outside warning

chime

Operation indicator

on push-button igni-

tion switch

Status

Action

Long beep

(continuous)

—

Select lever position warning (CVT
models):
The driver’s door was opened while the
push-button ignition switch is in a position
other than “OFF” and the select lever is in
a position other than the “P” position.

Shift the select lever to the “P” position,
switch the push-button ignition switch to
“OFF” and exit the vehicle.

Ding

—

The battery of the access key fob is low.

Replace the battery of the access key fob.

Ding

—

Flashes in green

(15 seconds max.)

Steering lock warning:
The engine start procedure was per-
formed, but the steering is still locked.

While turning the steering wheel right and
left lightly, depress the brake pedal and
press the push-button ignition switch.

Ding

—

Flashes in orange

(15 seconds max.)

System malfunction warning:
A malfunction was detected in the power
system or steering lock.

Contact a SUBARU dealer immediately
and have the vehicle inspected.

Instruments and controls/Warning and indicator

3-28

(171,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Security indicator light

This indicator light shows the status of the
alarm system. It also indicates operation of
the immobilizer system.

Alarm system

It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to “Alarm system” F2-
24.

Immobilizer system

The security indicator light starts blinking
in the following conditions.

For models with “keyless access with
push-button start system”:
.

Immediately after the push-button igni-

tion switch is turned to the “OFF” position.
.

Immediately after the driver’s door is

opened or closed when all of the following
conditions are met.

– The push-button ignition switch is in
the “ON” or “ACC” position.
– The engine is not running.

In the event that an unauthorized key is
used (for example, the key is unregistered
or the ID code does not match), the power
is not switched to “ON” and the security
indicator light continues blinking.

For models without “keyless access

with push-button start system”:
.

Immediately after the key is pulled out.

Approximately 60 seconds after the

ignition switch is turned from the “ON”
position to the “ACC” or “LOCK” position.

If the indicator light does not blink in the
above conditions, it may indicate that
immobilizer system may be malfunction-
ing. Contact your nearest SUBARU dealer
immediately.

In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used to start the engine, the security
indicator light illuminates. For details about
the immobilizer system, refer to “Immobi-
lizer” F2-15.

NOTE

The security indicator light remains

off in the following conditions. It means
that the matching of the ID code is
completed and the immobilizer system
is deactivated, and it does not indicate
a malfunction.

Models with “keyless access with
push-button start system”:

– while the engine is running
– the push-button ignition switch
has been turned to the “ON” or
“ACC” position and the driver’s

door has not been opened or closed

Models without “keyless access
with push-button start system”:

– while the engine is running
– when the ignition switch is in the
“ON” position.
– for approximately 60 seconds
after the ignition switch is turned
from the “ON” position to the “ACC”
or “LOCK” position

Even if a malfunction occurs, such

as the security indicator light flashes
irregularly, it will not affect the func-
tionality of the immobilizer system.

– CONTINUED –

Instruments and controls/Warning and indicator

3-29

(172,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

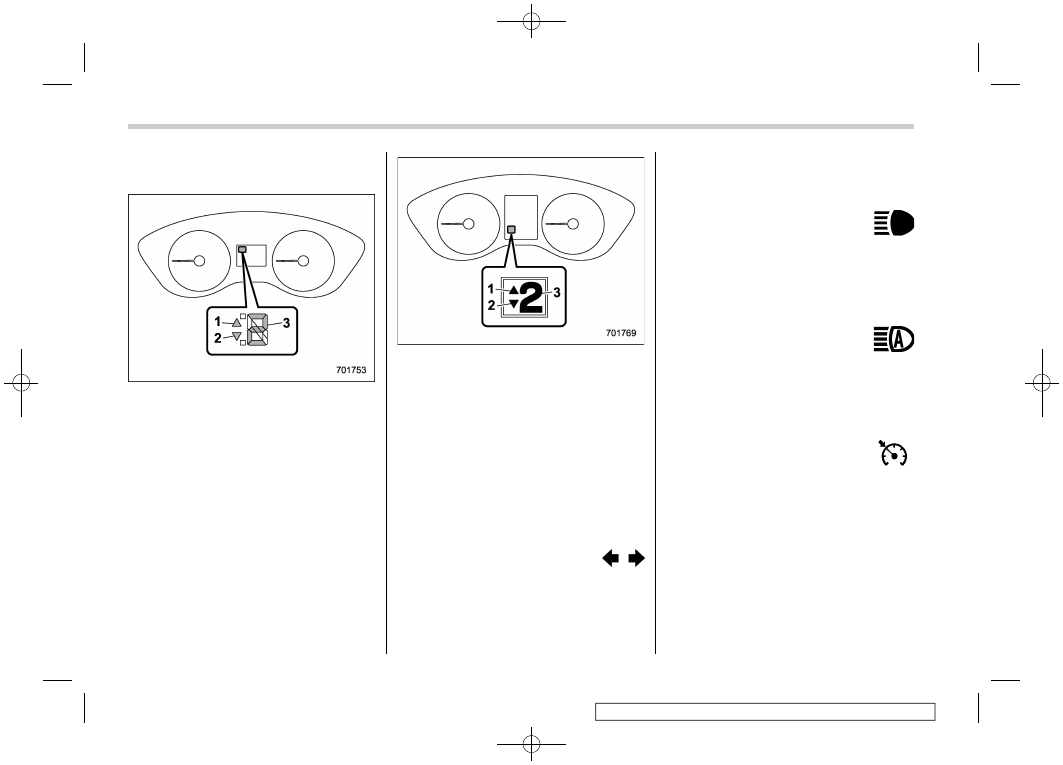

Select lever/gear position in-
dicator (CVT models)

Type A
1)

Upshift indicator

Downshift indicator

Select lever/gear position indicator

Type B
1)

Upshift indicator

Downshift indicator

Select lever/gear position indicator

This indicator shows the position of the
select lever.

For models with manual mode, when the
manual mode is selected, the gear position
indicator (which shows the current gear
selection) and the upshift/downshift indi-
cator light up. Refer to “Continuously
variable transmission” F7-24.

Turn signal indicator
lights

These lights show the operation of the turn
signal or lane change signal.
If the indicator lights do not blink or blink

rapidly, the turn signal bulb may be burned
out. Replace the bulb as soon as possible.
Refer to “Replacing bulbs” F11-37.

High beam indicator
light

This light shows that the headlights are in
the high beam mode.
This indicator light also illuminates when
the headlight flasher is operated.

High beam assist indi-
cator light (if equipped)

This light illuminates when the high beam
assist function is activated. For details
about the high beam assist function, refer
to “High beam assist function” F3-66.

Cruise control indicator
light (if equipped)

This light illuminates when the cruise
control main button is pressed to activate
the cruise control function. For details,
refer to “To set cruise control” F7-48.
If this light blinks, do not use the cruise
control. In addition, if it blinks frequently,
contact your SUBARU dealer for an
inspection.

Instruments and controls/Warning and indicator

3-30

(173,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

CAUTION

If the CHECK ENGINE warning light/
malfunction indicator light illumi-
nates, the cruise control indicator
light flashes at the same time. At this
time, avoid driving at high speed and
have your vehicle inspected at a
SUBARU dealer as soon as possi-
ble.

Cruise control set indi-
cator light (if equipped)

This light illuminates when vehicle speed
has been set to use the cruise control
function. Refer to “To set cruise control”
F7-48.

Automatic headlight
beam leveler warning
light (models with LED
headlights)

This light illuminates when the automatic
headlight beam leveler does not operate
normally.
If this light illuminates during driving, have
your vehicle inspected at your SUBARU
dealer.

LED headlight warning
light (models with LED
headlights)

This light illuminates if the LED headlights
malfunction. Have your vehicle inspected
at a SUBARU dealer as soon as possible.

Steering Responsive
Headlight warning light/
Steering Responsive
Headlight OFF indicator
light (if equipped)

This light illuminates when the Steering
Responsive Headlight OFF switch is
pressed to deactivate the Steering Re-
sponsive Headlight. Also, the light flashes
when a malfunction occurs in the Steering
Responsive Headlight. Refer to “Steering
Responsive Headlight (SRH)” F3-69.

Front fog light indicator
light (if equipped)

This indicator light illuminates while the
front fog lights are illuminated.

Headlight indicator
light (if equipped)

This indicator light illuminates under the
following conditions.

when the light switch is turned to the

“

” or “

” position

when the light control switch is in the

“AUTO” position and the headlights illumi-
nate automatically

Steering responsive fog
lights warning indica-
tor/Steering responsive
fog lights OFF indicator
(if equipped)

NOTE

For details about the steering respon-
sive fog lights system, refer to “Steer-
ing responsive fog lights system” F3-
71.

Steering responsive fog lights
warning indicator

This indicator appears when the steering
responsive fog lights system malfunctions.
When this indicator appears while the
system is activated, contact your SUBARU
dealer for an inspection.

Steering responsive fog lights OFF
indicator

This indicator appears when the steering
responsive fog lights system is deacti-
vated. This indicator disappears when the
system is activated.

– CONTINUED –

Instruments and controls/Warning and indicator

3-31

(174,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

X-MODE indicator (if
equipped)

This indicator appears while the X-MODE
is activated. It will disappear when the X-
MODE is deactivated. Refer to “To acti-
vate/deactivate the X-MODE” F7-39.

Hill descent control in-
dicator (if equipped)

This indicator appears while the hill des-
cent control function is in standby. It will
flash while the hill descent control function
is operating. It will disappear when the hill
descent control function is not available.
Refer to “Hill descent control function” F7-
40.

BSD/RCTA warning in-
dicator (if equipped)

This warning indicator appears when the
BSD/RCTA is malfunctioning. In this case
the BSD/RCTA warning indicator will be
shown on the combination meter display
(color LCD). When this indicator appears,
have your vehicle inspected by your
SUBARU dealer as soon as possible.

BSD/RCTA OFF indica-
tor (if equipped)

The indicator appears when the BSD/
RCTA OFF switch is pressed to deactivate
the BSD/RCTA, or when the BSD/RCTA is
suspended temporarily. In this case the
BSD/RCTA OFF indicator will be shown on
the combination meter display (color
LCD). For details, refer to “BSD/RCTA”
F7-53.

RAB warning
indicator (if equipped)

This indicator illuminates if the Reverse
Automatic Braking System malfunctions.
Refer to “Reverse Automatic Braking
System” F7-62.

RAB OFF indicator light
(if equipped)

This indicator illuminates when the Re-
verse Automatic Braking System is turned
OFF, or when the Reverse Automatic
Braking System is suspended temporarily.
Refer to “Reverse Automatic Braking
System” F7-62.

Icy road surface warn-
ing indicator (if
equipped)

When the outside temperature is 378F
(38C) or less, the icy road surface warning
will illuminate to inform the driver that the
road surface may be frozen.

NOTE

The outside temperature indicator

shows the temperature in the area
around the sensor. Therefore, the tem-
perature indication may differ from the
actual outside air temperature.
.

The icy road surface warning screen

should be treated only as a guide. Be
sure to check the condition of the road
surface before driving.
.

Once the icy road surface warning

screen appears, it will not disappear
unless the outside temperature has
increased to 418F (58C) or higher.

Instruments and controls/Warning and indicator

3-32

(175,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Combination meter display
(color LCD) (if equipped)

WARNING

Always pay adequate attention to
safe driving when operating the
combination meter display (color
LCD) while the vehicle is in motion.
When operation of the combination
meter display (color LCD) interferes
with your ability to concentrate on
driving, stop the vehicle before
performing operations on the
screen. Also, do not concentrate on
the display while driving. Doing so
may cause you to look away from the
road and could result in an accident.

Various information will be shown on the
combination meter display (color LCD).
Also, a warning message will appear on
the display if a malfunction, etc. is
detected. In addition, several settings for
the displayed content can be performed.

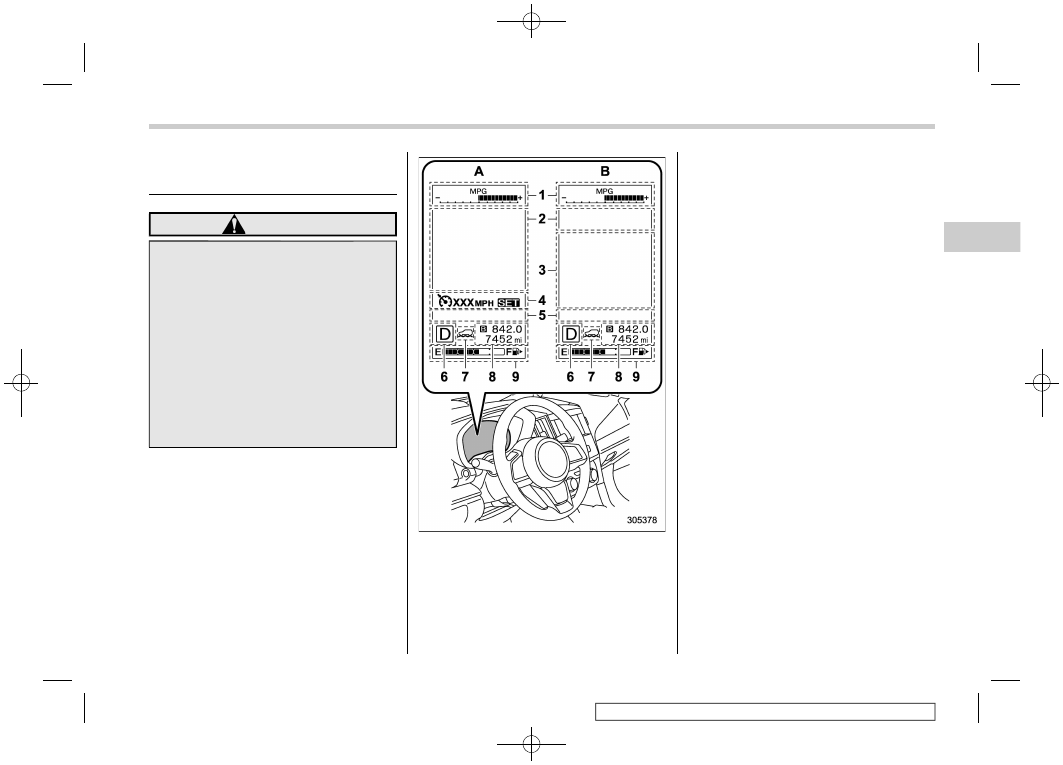

Combination meter display (color LCD)
1)

ECO gauge

Warning screen (refer to “Warning
screen” F3-35.)/Basic screen (refer to
“Basic screens” F3-36.)

EyeSight screen

Cruise control information display

Telltale screen (refer to “Telltale screen”

F3-35.)

Select lever/gear position indicator (refer
to “Select lever/gear position indicator
(CVT models)” F3-30.)

X-MODE indicator (if equipped) (refer to
“X-MODE indicator” F3-32.)

Odometer (refer to “Odometer” F3-9.)/
double trip meter (refer to “Double trip
meter” F3-9.)

Fuel gauge (refer to “Fuel gauge” F3-
10.)

Deactivating the Eyesight system or
models without the Eyesight system

Activating the Eyesight system

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-33

(176,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

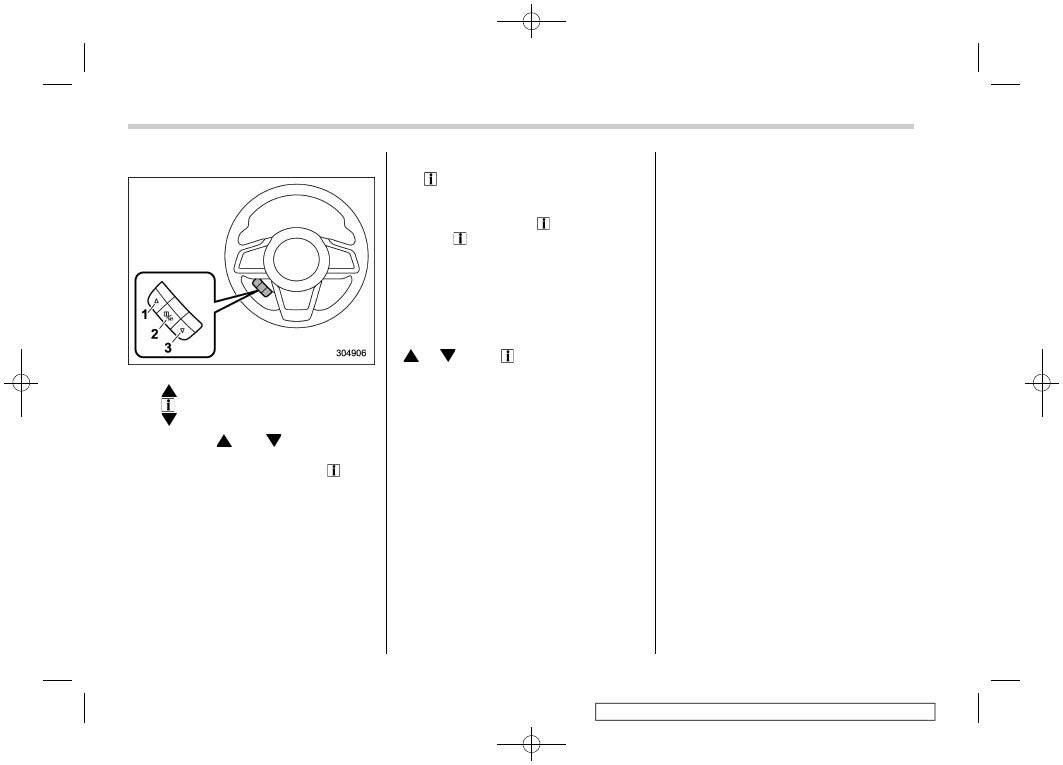

Basic operation

Control switch
1)

(Up)

/SET (enter)

(Down)

By operating “

” or “

” of the control

switch, the screens and selection items
can be switched. When the “

/SET”

switch is pulled toward you, the item can
be selected and set.

If there are some useful messages, such
as vehicle information, warning informa-
tion, etc., they will interrupt the current
screen, and appear on the display accom-
panied by a beep. If such a screen is
displayed, take proper action according to
the message shown on the screen.

The warning screen will return to the

original screen after a few seconds. While
the “

” information reminder is shown on

the display, it may be possible to display
the warning screen again. To recall the
message marked with “

” on the display,

pull the “ /SET” switch on the steering
wheel toward you.

NOTE

When the multi-function display (color
LCD) is set to the setting screen, the
combination meter display (color LCD)
cannot be controlled pressing on the
“

”, “

” and “

/SET” on the control

switch.

Welcome screen (opening
animation) and Good-bye
screen (ending animation)

When the driver’s door is opened and
closed after unlocking the door, the wel-
come screen (opening animation) will
appear on the combination meter display
(color LCD) for approximately 20 seconds.
When the ignition switch is turned to the
“LOCK”/“OFF” position, the combination
meter display (color LCD) gradually turns
off with showing Good-bye screen (ending
animation).

NOTE

The welcome screen and the good-

bye screen may differ in the actual
words and appearance.
.

Once the welcome screen appears, it

takes a certain period of time to display
it again.
.

If the ignition switch is operated

after unlocking the driver’s door, the
welcome screen will not appear even
when the driver’s door is opened and
closed.
.

The welcome screen will disappear

when you lock the driver’s door by
using the remote keyless entry system
(all models) or the keyless access
function (if equipped) while the wel-
come screen is displayed.
.

The welcome screen including the

multi-function display (color LCD) (if
equipped) and the audio/navigation
unit can be set to on or off. For details,
refer to “Welcome Screen” F3-38.

Instruments and controls/Combination meter display (color LCD)

3-34

(177,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

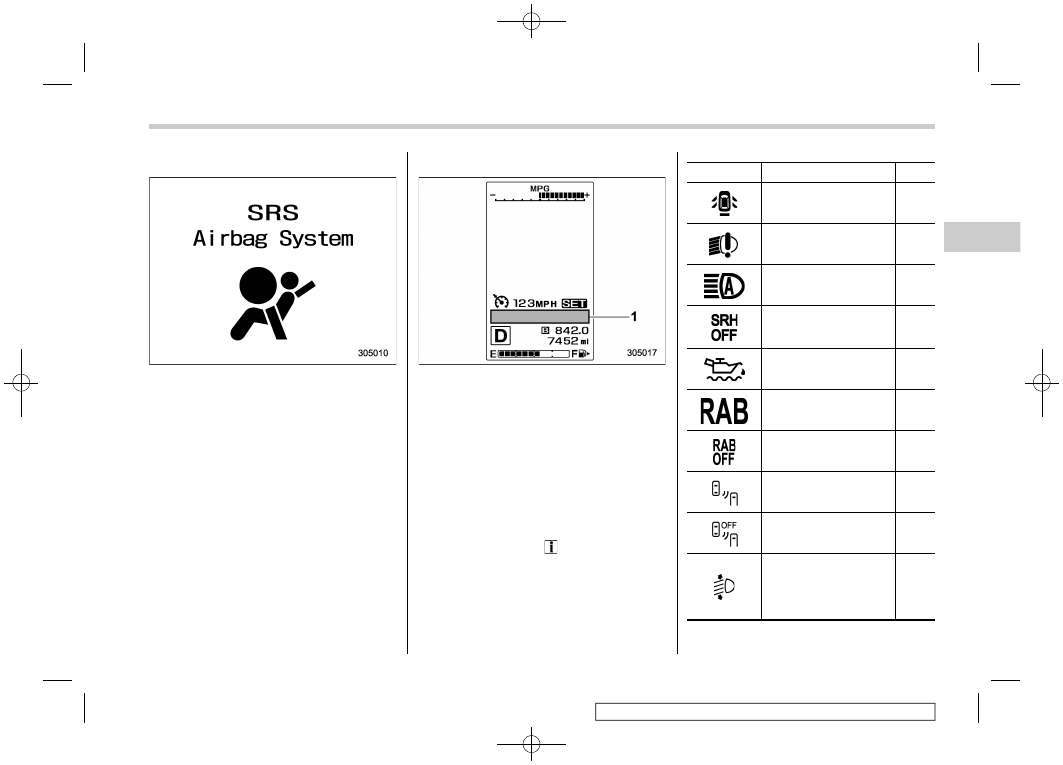

Warning screen

Example of warning

If there is a warning message or a
maintenance notification, it will appear on
this screen. Take the appropriate actions
based on the messages indicated.

Telltale screen

Telltale screen

When the corresponding situation occurs,
the following telltales will be displayed on
the telltale screen.

NOTE

When there is warning information to
display, it will be displayed in five
warning indicators, starting on the left
in ascending order of severity. If there
are six or more warning information
displayed, pull the “

/SET” switch and

check the item.

Mark

Name

Page

Door open indicator

3-22

LED headlight warning
indicator (if equipped)

3-31

High beam assist indi-
cator (if equipped)

3-30

Steering Responsive
Headlight warning light
(if equipped)

3-31

Engine low oil level
warning indicator

3-18

RAB warning indicator
(if equipped)

3-32

RAB OFF indicator (if
equipped)

3-32

BSD/RCTA warning in-
dicator (if equipped)

3-32

BSD/RCTA OFF indi-
cator (if equipped)

3-32

Automatic headlight
beam leveler system
malfunction warning
(models with LED
headlights)

3-31

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-35

(178,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Mark

Name

Page

Steering responsive fog
lights OFF indicator (if
equipped)

3-31

Windshield washer fluid
warning light

3-18

Hill descent control in-
dicator (if equipped)

3-32

Icy road surface warn-
ing indicator

3-32

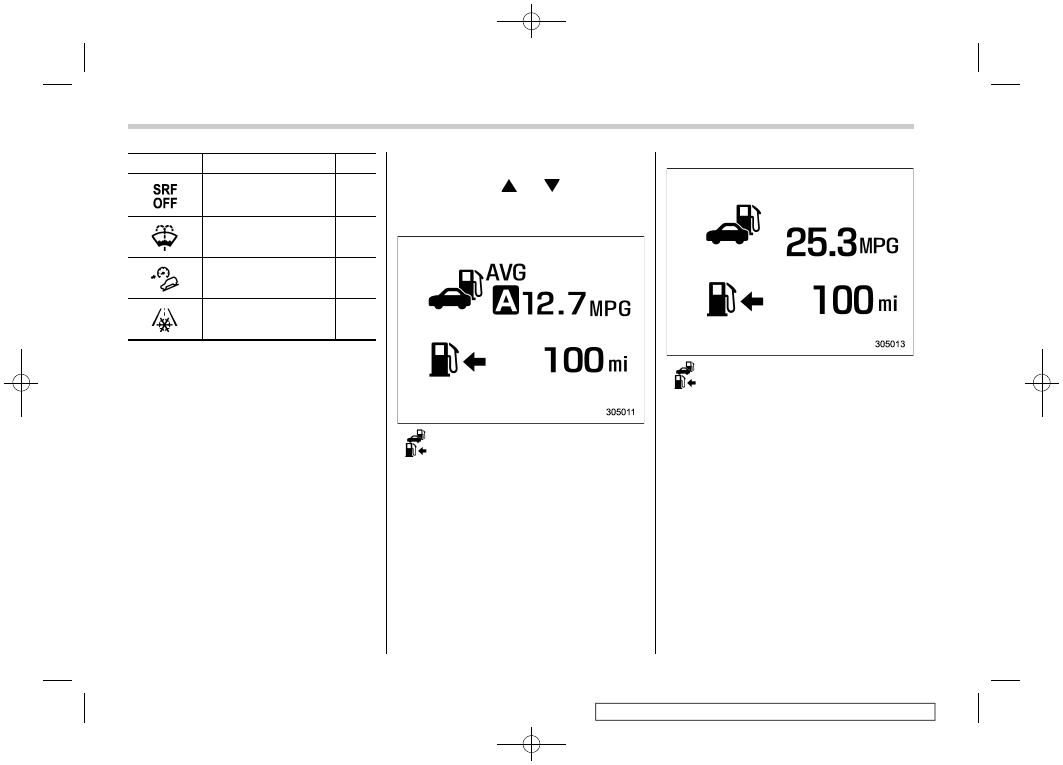

Basic screens

By operating the “

” or “

” switch on the

steering wheel, you can change the screen
that is always displayed.

Average fuel consumption screen:

: Average fuel consumption
: Driving range on remaining fuel

This screen displays the average rate of
fuel consumption since the trip meter was
last reset.

NOTE

The driving range on remaining fuel is
only a guide. The indicated value may
differ from the actual driving range on
remaining fuel, so you must immedi-
ately fill the tank when the low fuel
warning light illuminates.

Current fuel consumption screen:

: Current fuel consumption
: Driving range on remaining fuel

This screen displays the rate of fuel
consumption at the present moment.

NOTE

Instruments and controls/Combination meter display (color LCD)

3-36

(179,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

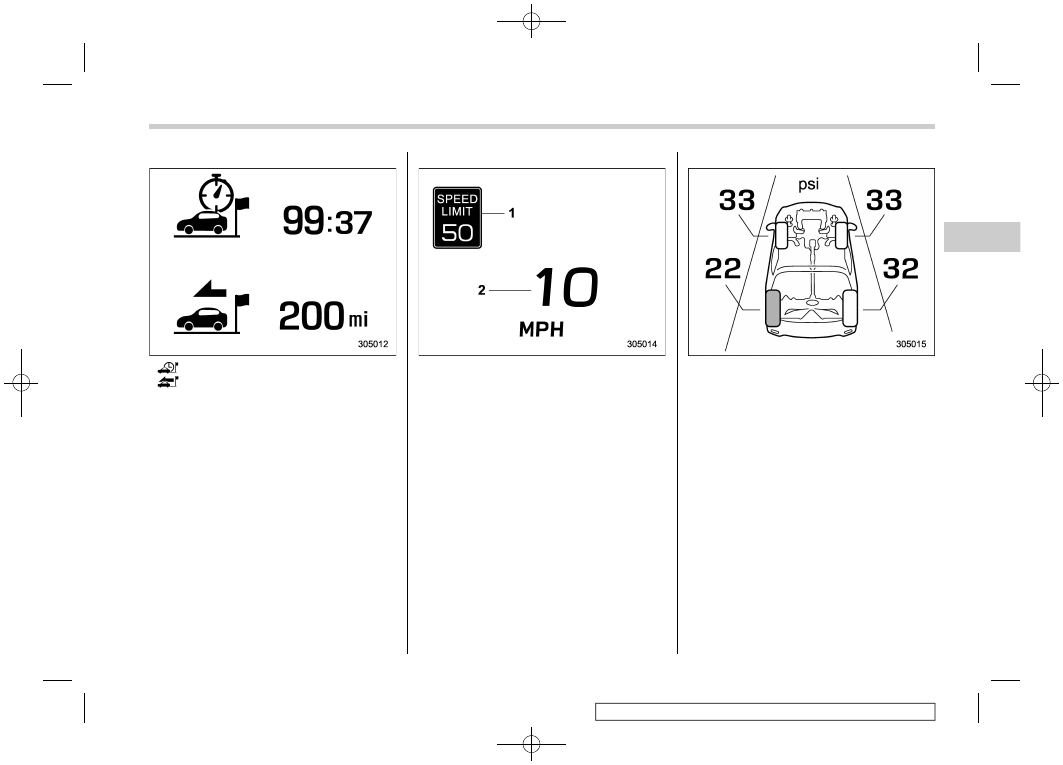

Driving information screen:

: Journey time
: Journey distance

This screen displays the journey time (the
time that has elapsed since the ignition
switch was turned to the “ON” position)
and journey distance (the distance that
has been driven since the ignition switch
was turned to the “ON” position).

Digital speed screen:

Speed limit indicator (if equipped)

Vehicle speed

This screen displays the current vehicle
speed.

TPMS screen (U.S.-spec. models):

This screen displays each tire pressure.
When a tire is deflated, the deflated tire
and the tire pressure will be displayed on
the screen in yellow.

NOTE

The tire pressure values are displayed
several minutes after driving.

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-37

(180,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

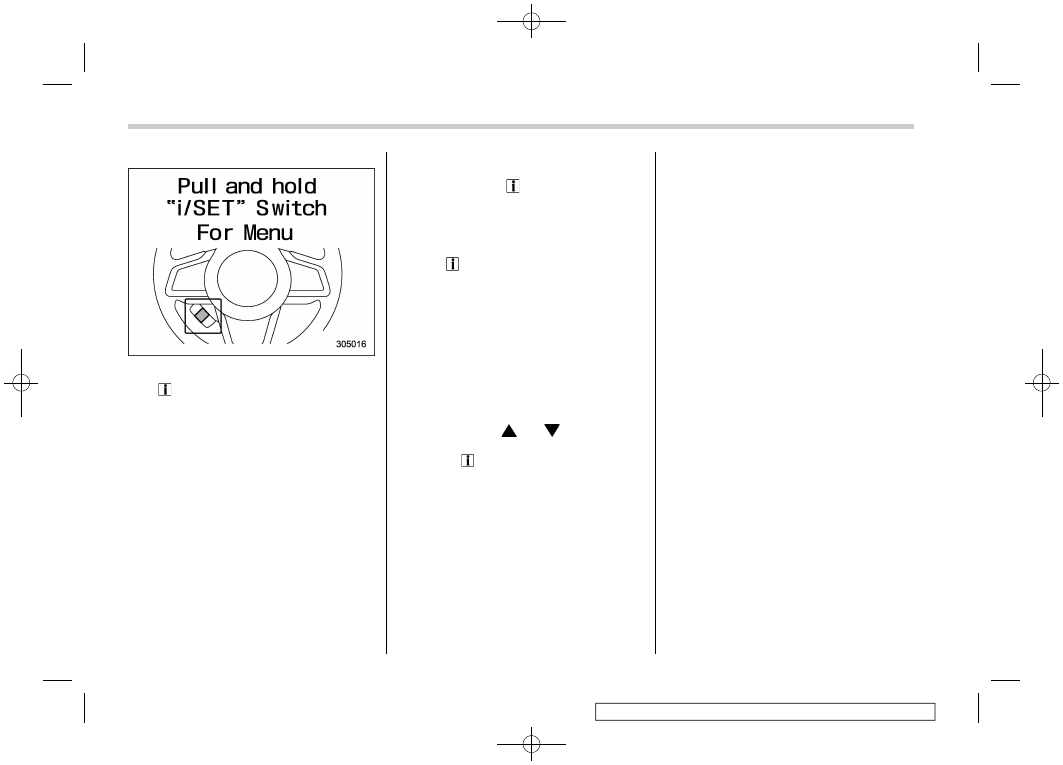

Menu screen entering screen:

While this screen is selected, pull and hold
the “

/SET” switch to enter the menu

screen.

Menu screens

Pull and hold the “

/SET” switch to enter

the menu screens when all of the following
conditions are satisfied.
.

The menu screen entering screen is

selected.
.

The “

” information reminder is off.

NOTE

While driving, the setting items

available on the combination meter
display (color LCD) are limited.
.

For function settings and adjust-

ments on the combination meter dis-
play, refer to “Function settings and
adjustments on the combination meter
display (color LCD)” F25.

By operating the “

” or “

” switch on the

steering wheel, you can select the menu.
Pull the “

/SET” switch to enter the

selected menu.

NOTE

If you enter the “Go Back” menu, the
system will return to the previous
screen.

Screen Settings

After entering the “Screen Settings” menu,
select one of the following menus.

Welcome Screen

The welcome screen can be activated or
deactivated.

Good-bye Screen

The good-bye screen can be activated or
deactivated.

Gauge Initial Movement

The movement of the meter needles and
gauge needles that occurs when the
ignition switch is turned to the “ON”
position can be activated or deactivated.

Units

Changes the units displayed in the combi-
nation meter display (color LCD), the type
A multi-function display (black and white)
and the type B multi-function display (color
LCD).

Tire Pressure Units (if equipped)

Changes the units displayed in the Tire
Pressure Monitoring system.

Languages

Changes the language displayed in the
combination meter display (color LCD)
and the multi-function display (color LCD).

Warning Volume (if equipped)

Sets the EyeSight warning volume, the
BSD/RCTA warning volume and the RAB

Instruments and controls/Combination meter display (color LCD)

3-38

(181,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

warning volume.

EyeSight (models with EyeSight
system)

NOTE

For models with the EyeSight system,
refer to the Owner’s Manual supple-
ment for the EyeSight system.

RAB (models with EyeSight system)

The Sonar Audible Alarm can be set to on
or off.

NOTE

For models with Reverse Automatic
Braking system, refer to “Reverse
Automatic Braking System” F7-62.

Sonar Audible Alarm

When the Reverse Automatic Braking
system is in operation, the warning sound
to notify that an obstacle is detected in the
rear can be activated or deactivated.

Vehicle Setting

After entering the “Vehicle Setting” menu,
select one of the following menus.

Keyless Entry System

Sets the settings used when the keyless
access function was operated.
.

Audible Signal (if equipped)

Sets the electronic chirp that sounds when

the door is locked or unlocked.
.

Hazard Warning Flasher

Sets the operation of the hazard warning
flasher that blinks when the door is locked
or unlocked.
.

Security Relocking (if equipped)

The automatic locking operation period
can be set or customized. Select the
preferred seconds to customize the opera-
tion period.
.

Driver Door Unlock (if equipped)

Select only the driver’s door to unlock or all
doors to unlock simultaneously when the
driver’s door is unlocked.
.

Rear Gate/Trunk Unlock (if equipped)

Select only the rear gate to unlock or all
doors to unlock simultaneously when
accessing from the cargo area.

Defogger

Sets and customizes the operation of the
defogger.

Interior Light

Sets and customizes the interior light off
delay timer.

Auto Light Sensor (if equipped)

Sets and customizes the sensitivity of the
auto light sensor.

Welcome Lighting (if equipped)

Sets the leaving time and approaching
time.
.

Approaching time set

Sets the illumination time of the headlights
that illuminate when you approach the
vehicle.
.

Leaving time set

Sets the time until the headlights turn off
when you have moved away from the
vehicle.

One-touch lane changer

Sets the one-touch lane changer on/off.

Default Settings

Select “Yes” to use the menu screen to
restore customized settings to the factory
default settings. Select “No” to return to the
previous screen without restoring to the
factory default settings.

Instruments and controls/Combination meter display (color LCD)

3-39

(182,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

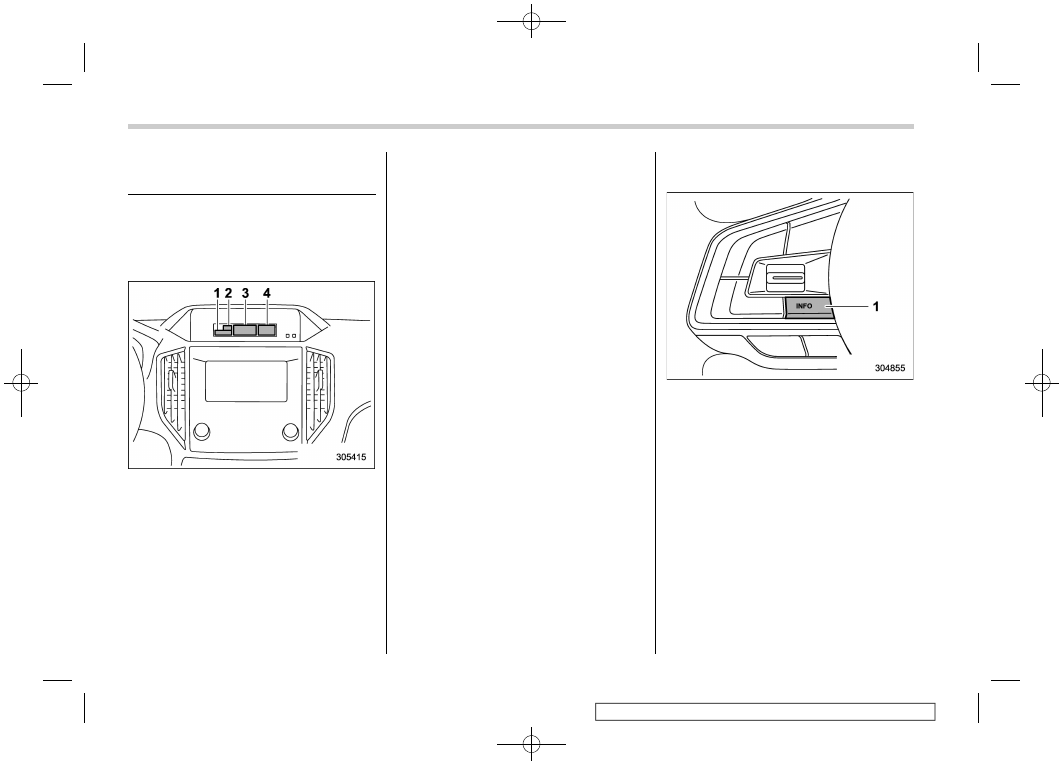

Multi-function display (black
and white)

NOTE

For models with multi-function display
(color LCD), refer to “Multi-function
display (color LCD)” F3-45.

Outside temperature indicator

X-MODE indicator (if equipped)

Driving information display

Clock

With the ignition switch in the “ACC”
position, the clock appears on the display.

With the ignition switch in the “ON” posi-
tion, the outside temperature indicator,
driving information display and clock all
appear on the display.

NOTE

The indicated values vary in accor-
dance with changes in the vehicle’s
running conditions. Also, the indicated
values may differ slightly from the
actual values and should thus be
treated only as a guide.

Driving information display

NOTE

You can set the units for both the multi-
function display (black and white) and
the combination meter at the same
time. For details about setting the
language and units, refer to “Type A
combination meter” F3-11 or “Menu
screens” F3-38.

How to change the information dis-
play

INFO button

Pressing the INFO button on the steering
wheel switches the display in the following
sequence.

Instruments and controls/Multi-function display (black and white)

3-40

(183,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

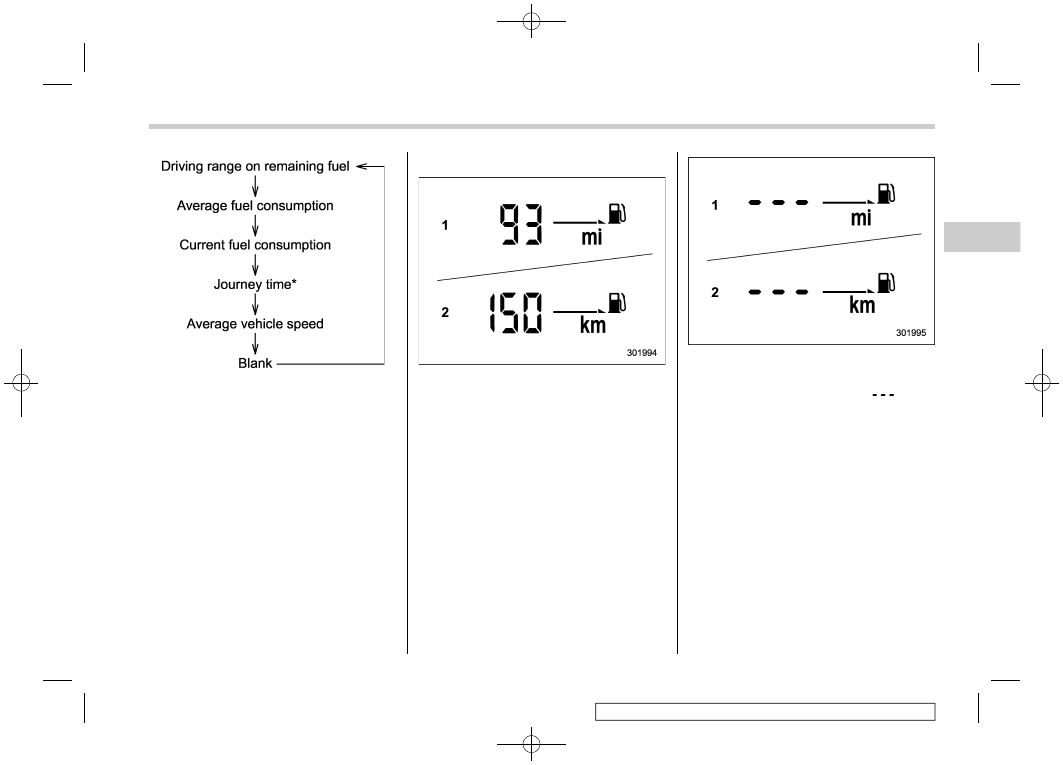

*: models without combination meter dis-
play (color LCD)

Driving range on remaining fuel

When setting the displayed unit as MPH

When setting the displayed unit as km/h

The driving range indicates the distance
that can be driven taking into account the
amount of fuel remaining in the tank and
the average rate of fuel consumption.

When setting the displayed unit as MPH

When setting the displayed unit as km/h

If the driving range is shown as “

”, there

is only a tiny amount of fuel left in the tank.

NOTE

– CONTINUED –

Instruments and controls/Multi-function display (black and white)

3-41

(184,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

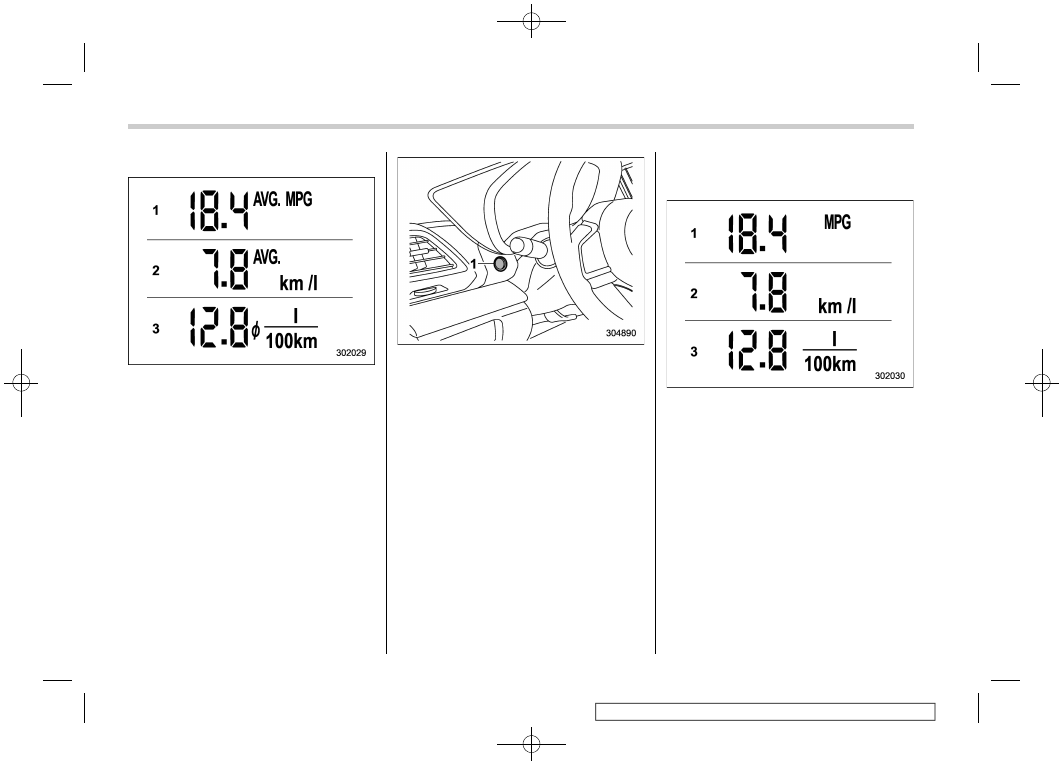

Average fuel consumption

Displays the driving range per gallon of
fuel

Displays the driving range per liter of fuel

Displays the fuel consumption per 100
km

This display shows the average rate of fuel
consumption since the trip meter was last
reset.

TRIP RESET switch

Press the TRIP RESET switch to switch
between the displays for the average fuel
consumption that corresponds to the A trip
meter mileage and the average fuel con-
sumption that corresponds to the B trip
meter mileage.
When the trip meter displays is reset, the
corresponding average fuel consumption
value is also reset.

NOTE

When the trip meter display is reset,

the average fuel consumption corre-
sponding to that trip meter display is
not shown until the vehicle has subse-
quently covered a distance of 1 mile (or
1 km).
.

The units for measuring average fuel

consumption cannot be changed.

Current fuel consumption

Displays the driving range per gallon of
fuel

Displays the driving range per liter of fuel

Displays the fuel consumption per 100
km

This indication shows the rate of fuel
consumption at the present moment.

Instruments and controls/Multi-function display (black and white)

3-42

Subaru Crosstrek (2019 year). Instruction - part 11
