driving.

.

In some circumstances, the sys-

tem may not be able to correctly
detect the driver state.

NOTE

.

The user recognition camera does

not save images, audio, or video.
.

The Driver Monitoring System may

not operate correctly when sunlight is
shining into the vehicle in the following
ways.

– Sunlight is shining directly (or
through glass) onto the user recog-
nition camera.
– There are shadows on the dri-
ver’s face caused by sunlight (or
any light with a strong infrared
component).
– There are large momentary fluc-
tuations in the strength of the sun-
light (or any light with a strong
infrared component) shining on the
face.

.

Correct detection may not be possi-

ble when a device that includes an
infrared light source (such as a com-
mercially available driver monitoring
system) is installed in the vehicle
interior.
.

The Driver Monitoring System may

not operate correctly at the following
times when the driver is wearing
glasses or sunglasses.

– The sunglasses do not allow the
easy passage of infrared light.
– The surrounding scenery is re-
flected strongly in the lenses of the
glasses or sunglasses.
– The eyes are hidden by the frame
of the glasses and the user recogni-
tion camera cannot detect the eyes.
– The light from an infrared light
source (LED) is reflected in the
lenses of the glasses or sunglasses.
– The driver is wearing an eye-
patch.
– The driver is wearing a hat set
deeply over the eyes.

.

Depending on the type of mask,

correct detection of inattentive/drowsy
driving may not be possible.
.

Correct user recognition is not pos-

sible if the eyes, nose, or mouth is
covered with a mask, muffler, sun-
glasses, or other item.
.

The Driver Monitoring System may

not operate correctly when the eye-
brows, eyes, nose, or mouth is hidden
due to item that is between the face and
the system.
.

If a thick cover is attached to the

steering wheel, then depending on the

position set for the tilt/telescopic steer-
ing wheel, the cover may block the
system’s view of the face, and the
system and the Driver Monitoring Sys-
tem may not operate correctly.
.

Do not attach any stickers to the

user recognition camera or the infrared
light source (LED). If the user recogni-
tion camera or infrared light source
(LED) is covered by an obstruction, it
will not be possible to correctly monitor
the driver.
.

If an accessory is hung from the

inside mirror, correct detection may not
be possible.
.

Do not touch the user recognition

camera or the infrared light source
(LED) directly with your fingers. If there
is dirt or a fingerprint on these parts, it
will not be possible to correctly monitor
the driver. If there is dirt or a fingerprint
on these parts, either wipe them with a
soft dry cloth, or wipe gently with a
damp cloth after first firmly wringing
the water out.
.

If the surface of the user recognition

camera or the infrared light source
(LED) becomes scratched, correct de-
tection may not be possible. Be careful
that hard objects do not contact these
parts.
.

If there is condensation on the user

recognition camera or the infrared light

Driver Monitoring System

370

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(373,1)

source (LED), correct detection may
not be possible. If there is condensa-
tion on these parts, wipe it away with a
soft dry cloth.
.

When registering a user for user

recognition, avoid closing your eyes
as much as possible.
.

If the user recognition success rate

is low, it is possible that the user is not
correctly registered. Delete the regis-
tered data and perform registration
again.
.

If a user frequently drives both with

glasses and contact lenses, it is re-
commended that registration be per-
formed both when wearing glasses and
when wearing contact lenses.
.

User recognition starts immediately

after entering the vehicle, however if
the user looks downward or at the
driver side mirror for a long time, the
user may not be recognized.
.

When one person among twins or

another pair of persons with similar
facial features is registered, the other
person may be incorrectly recognized
as the registered user when entering
the vehicle.
.

If the person in the passenger’s seat

leans into the driver’s seat, or in other
cases when there are two or more faces
near the driver’s seat, the system may
not operate correctly.

.

There are cases when the system

concludes that the user’s eyes are
closed when the user is looking down-
ward during driving, such as when
checking instruments or the navigation
screen. In such cases, the drowsy
driving warning buzzer may sound or
the system may otherwise not operate
correctly.
.

If the eyes are narrowed when laugh-

ing or when there is a dazzling outside
light, the system may judge that the
eyes are closed and the drowsy driving
warning buzzer may sound or the
system may otherwise not operate
correctly.
.

The drowsy driving or asleep warn-

ing states are recognized from the
length of time and percentage of time
that the eyes are closed. The drowsy
driving warning buzzer will not sound
simply when the driver feels sleepy or
yawns.
.

Even when the driver does not feel

sleepy, if his or her eyes are closed or if
he or she blinks frequently, the drowsy
driving warning buzzer may sound.
.

The inattentive driving warning buz-

zer may sound if the driver leans
forward or puts his or her head out of
the window while driving.
.

The inattentive driving warning buz-

zer will not sound when the vehicle is

stopped or travelling at slow speed
even if the driver is not looking ahead.
.

The Driver Monitoring System col-

lects and stores data regarding drivers’
facial features. Facial recognition data
is stored locally and does not leave the
vehicle. It is not transmitted to or stored
by SUBARU or anyone else. The Driver
Monitoring System may be disabled
and any stored driver data may be
deleted by following the instructions
below. If the Driver Monitoring System
is disabled, it will be unable to provide
any of its safety or convenience func-
tions.

– CONTINUED –

Driver Monitoring System

371

7

Starting

and

operating

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(374,1)

The functions which are available vary depending on the Driver Monitoring System
setting and the user recognition function setting.

Available functions

Driver Monitoring System*

1

ON

OFF

User recognition
function*

2

ON

Inattentive/drowsy
driving warning

Available

Not available

User recognition
function

Available

Not available

OFF

Inattentive/drowsy
driving warning

Available

Not available

User recognition
function

Not available

Not available

Driver Monitoring System

372

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(375,1)

Available function items

Driver Monitoring System*

1

ON

OFF

User recognition

function*

2

ON

Register User

Available

Not available

Delete User

Available

Not available

Delete All Users

Available

Not available

Update User Set-

tings

Available

Not available

Delete Driver Posi-

tion

Available

Not available

OFF

Register User

Not available

Not available

Delete User

Available

Not available

Delete All Users

Available

Not available

Update User Set-

tings

Not available

Not available

Delete Driver Posi-

tion

Not available

Not available

*1: The system can be turned ON/OFF with the Driver Monitoring System OFF switch. Refer to “Driver

Monitoring System OFF switch” FP380.

*2: The function can be turned ON/OFF in the Multi Function Display customization settings. Refer to

User Recognition settings” FP220.

The functions which are available vary depending on whether or not the user is
registered.

Available functions

The user is registered.

The user is not registered.

User recognition function

Available

Not available

&

User recognition function

WARNING

Perform registration, retrieving, or
delete of the seat position and out-
side mirror angle before beginning
driving. There is the risk of an
accident if registration, retrieving,
or delete is performed while driving.

When a user is registered, it is possible to
retrieve the following settings.

!

Driver position personalization

.

Seat position and outside mirror angle

Retrieves the registered seat position and
outside mirror angle.
.

Reverse tilt angle

Retrieves the registered reverse tilt-down
outside mirror angle.

!

Meter personalization

.

Combination meter display basic

screen
Displays the screen which the user had
selected at the time when he/she last
exited the vehicle.
.

Fuel consumption screen

Displays the average fuel economy for
past driving by that user.

– CONTINUED –

Driver Monitoring System

373

7

Starting

and

operating

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(376,1)

!

Multi Function Display personalization

.

Multi Function Display basic screen

Displays the screen which the user had selected at the time when he/she last exited the
vehicle.
.

Fuel consumption screen

Displays the average fuel economy for past driving by that user.
.

Customization linked with the user recognition function

Menu

Item

Time/Date

Birthday

Anniversary

Display/Beep

Screen Off

Favorite

Bypass Screen

Birthday Reminder

Anniversary Reminder

Beep

Climate Control

Mode Setting

Occupant Detection

!

Air conditioner personalization

.

Air conditioner settings

Retrieves the air conditioner temperature,
outlet mode, and other settings which the
user had selected at the time when he/she
last exited the vehicle.

NOTE

When a recognized user exits the
vehicle with the air conditioner set to
maximum cool or maximum heat, then
the setting which preceded maximum
cool or maximum heat is stored.

!

Driver Monitoring System ON/OFF
status

Retrieves the Driver Monitoring System
ON/OFF status which the user had se-
lected at the time when he/she last exited
the vehicle.

Driver Monitoring System

374

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(377,1)

!

Changing the personalization settings

Item

Driver’s position personaliza-
tion

Seat position/outside mirror
angle

Change the setting by using the
combination meter display
customization function. Refer
to “Menu screens” FP195.

Reverse tilt-down outside mir-
ror angle

Meter personalization*

Combination meter display ba-
sic screen

When the customization screen
linked with the synchronized
user function is selected and
the setting is changed, it is
automatically stored.

Multi Function Display perso-
nalization*

Multi Function Display basic

Customization linked with syn-
chronized user function

Climate control personaliza-
tion*

Climate control settings

Driver Monitoring System ON/OFF status

*: When the Driver Monitoring System is OFF, the Driver Monitoring System continues to store the

conditions from immediately before the Driver Monitoring System was turned OFF even if the
screen was selected and the setting was changed.

&

Inattentive/drowsy driving
warning

While driving, the Driver Monitoring Sys-
tem monitors possible cases of driver
inattention or drowsiness and warns the
driver.
When the inattentive/drowsy driving warn-
ing activates, the buzzer sounds and an
interrupt display appears.

NOTE

.

The inattentive/drowsy driving warn-

ing operates regardless of the status of
the user recognition function.
.

The inattentive driving warning does

not activate when the turn signal is
operating or when the select lever is in
the “R” position.
.

When the pre-crash brake OFF in-

dicator is illuminated on the combina-
tion meter display, the inattentive driv-
ing warning activates at the same
timing as usual even when a vehicle
ahead or obstacle is detected. For
details about the EyeSight system,
refer to the Owner’s Manual supple-
ment for the EyeSight system.

– CONTINUED –

Driver Monitoring System

375

7

Starting

and

operating

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(378,1)

!

Inattentive driving warning

When the system monitors that the driver
may be inattentive, it warns the driver.
When the inattentive driving warning acti-
vates, the buzzer sounds and an interrupt
display appears on the combination meter
display.
When the EyeSight system has detected a
vehicle ahead or obstacle in the forward
direction, the inattentive driving warning
may activate at earlier timing than usual.
Refer to the Owner’s Manual supplement
for the EyeSight system.

!

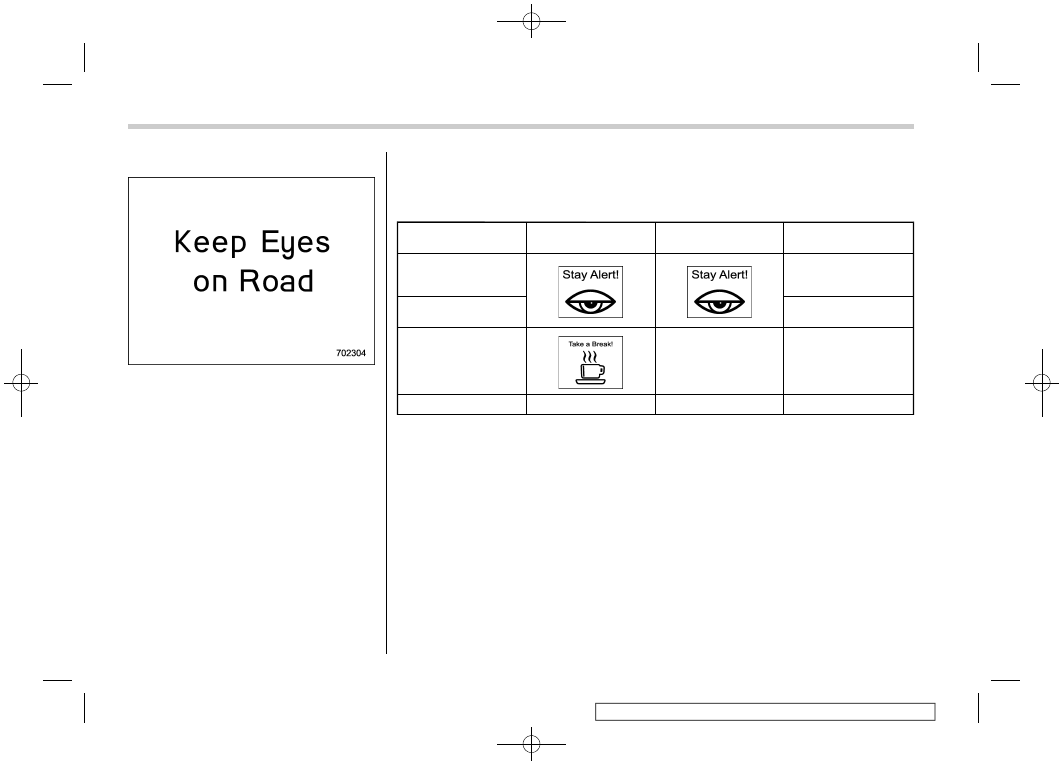

Drowsy driving warning

Possible drowsiness is detected from the amount of driver eyelid closure, and a warning
is given to the driver. When the drowsy driving warning activates, the buzzer sounds and
an interrupt display appears.

Combination meter

display

Multi Function Display

Warning chime

Drowsy driving

Beep, beep... (Con-

tinues until the driver’s

eyes open.)

Very drowsy

Beep, beep, beep,

beep, beep (5 times)

Slightly drowsy

Beep

Not drowsy

Driver Monitoring System

376

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(379,1)

&

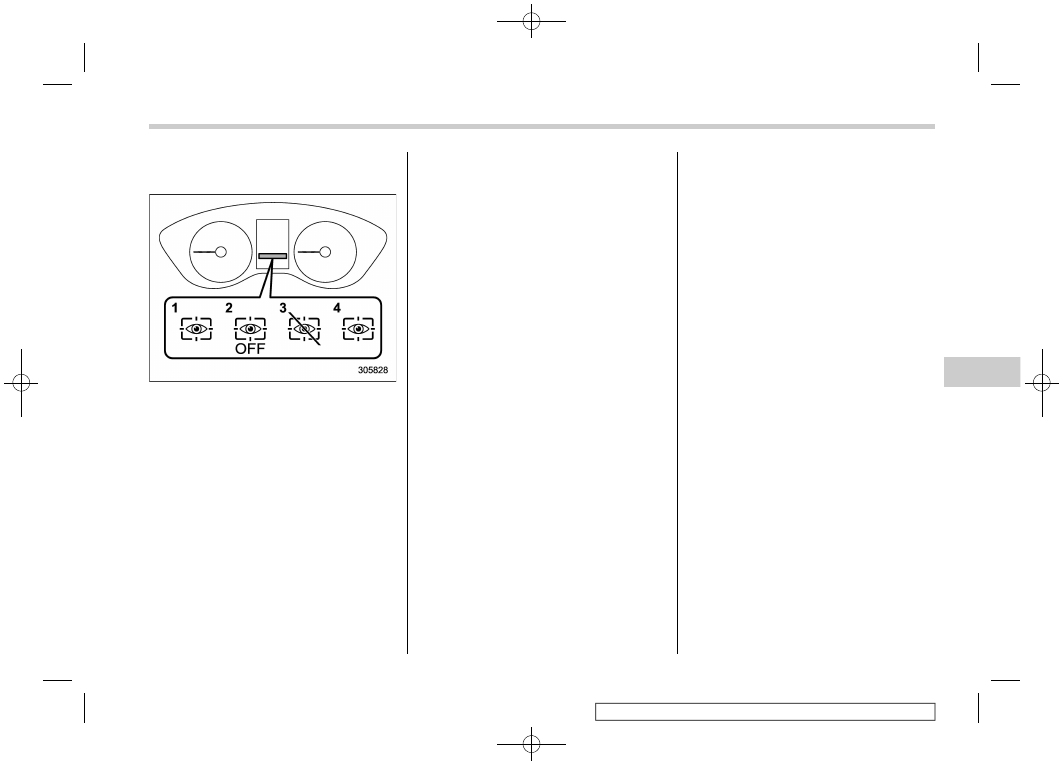

Driver Monitoring System in-
dicator/warning

1)

Driver Monitoring System operation in-
dicator light (green)

2)

Driver Monitoring System OFF indicator
light

3)

Driver Monitoring System temporary stop
indicator light

4)

Driver Monitoring System warning light
(yellow)

The Driver Monitoring System indicator/
warning indicates the status of the Driver
Monitoring System on the combination
meter display.

NOTE

When the Driver Monitoring System
OFF indicator, Driver Monitoring Sys-
tem temporary stop indicator, or Driver
Monitoring System warning is illumi-

nated, the Driver Monitoring System
function cannot be used. In addition,
the following items cannot be selected.
.

Register User

.

Delete User

.

Delete All Users

.

Update User Settings

.

Delete Driver Position

.

Automatically retract seat on entry

!

Driver Monitoring System operation
indicator light (green)

This indicator illuminates when the Driver
Monitoring System is operating.

!

Driver Monitoring System OFF in-
dicator light

This indicator illuminates when the user
has pressed the Driver Monitoring System
OFF switch and the Driver Monitoring
System is not operating.

!

Driver Monitoring System tempor-
ary stop indicator light

This indicator illuminates when the Driver
Monitoring System is temporarily stopped.

NOTE

The Driver Monitoring System stops
temporarily in the following circum-
stances.
.

When the temperature of the main

unit of the Driver Monitoring System is

high or low.
.

When the Driver Monitoring System

cannot monitor the driver’s eye move-
ment.
.

When the Driver Monitoring System

cannot monitor the driver’s eyebrows,
eyes, nose or mouth.
.

When the camera and the infrared

light source (LED) are covered and the
Driver Monitoring System cannot moni-
tor the driver correctly.

!

Driver Monitoring System warning
light (yellow)

This warning illuminates when there is a
problem with the Driver Monitoring Sys-
tem. Contact a SUBARU dealer to have
the system inspected.

&

Using the Driver Monitoring
System

!

User recognition

When a user is registered with the user
recognition function, the Driver Monitoring
System performs the following.

– CONTINUED –

Driver Monitoring System

377

7

Starting

and

operating

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content   ..  43  44  45  46   ..
