Subaru Forester (2019). Manual - part 20





(165,1)

gauge does not operate.

&

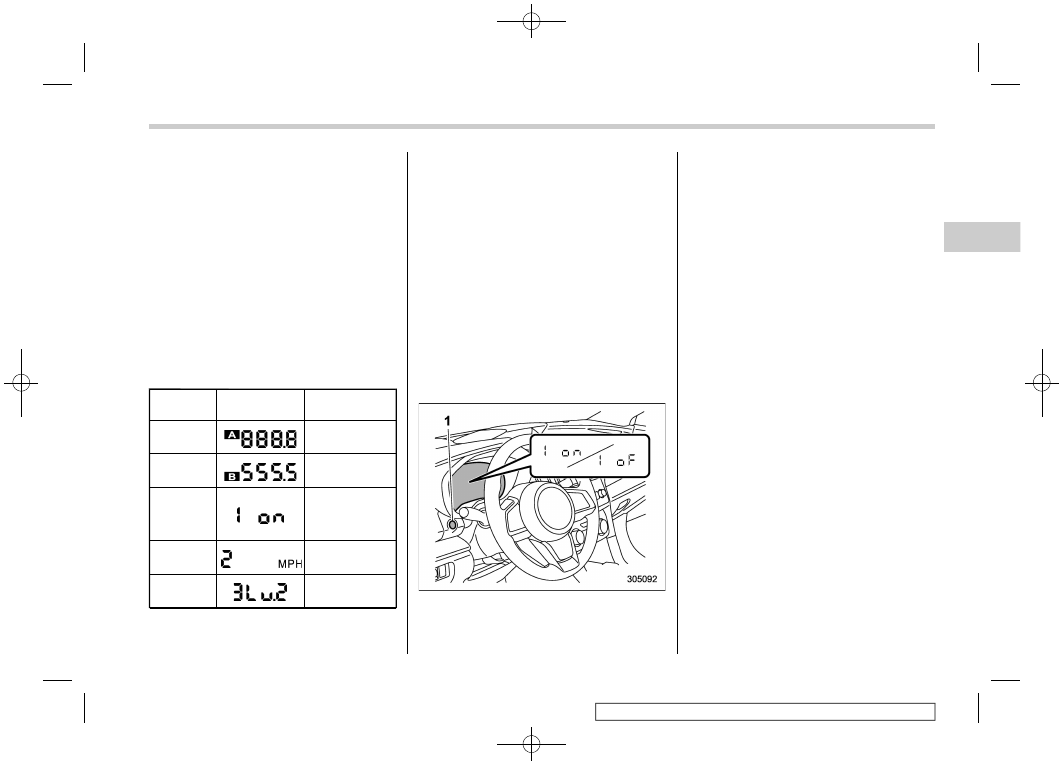

Combination meter settings

Meter and vehicle settings can be set on
the combination meter.

!

Type A combination meter

Various adjustments can be made, such
as switching units shown on the combina-
tion meter and adjusting the warning tone
volume.
While the ignition switch is in the “OFF”
position, each press of TRIP RESET
switch results in items shown in the table
below being switched.

Item

Combination

meter display

Possible

settings

A trip

B trip

Gauge
needle
sweep
function

On/Off

Changing
the unit*

mile/km

Warning
volume*

Lv. 1/Lv. 2/Lv. 3

*: If available

NOTE

.

If you switch the units on the combi-

nation meter, the units on the multi-
function display (black and white) also
switches accordingly.
.

If either of the following conditions

is met, the combination meter setting
mode will be canceled.

– The driver’s door is opened.
– The TRIP RESET switch is not
operated for approximately 10 sec-
onds or more.

!

Switching method

1. Push the ignition switch in the “OFF”
position.

1)

TRIP RESET switch

2. Press the TRIP RESET switch repeat-

edly until the item you want to change is
displayed.
3. Press and hold the TRIP RESET
switch while the item to be changed is
displayed, the setting of the item will be
switched.

!

Type B combination meter

Meter and vehicle settings can be set on
the combination meter display (color
LCD). Refer to “Menu screens” FP195.

Meters and gauges

163

3

Instruments

and

controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(166,1)

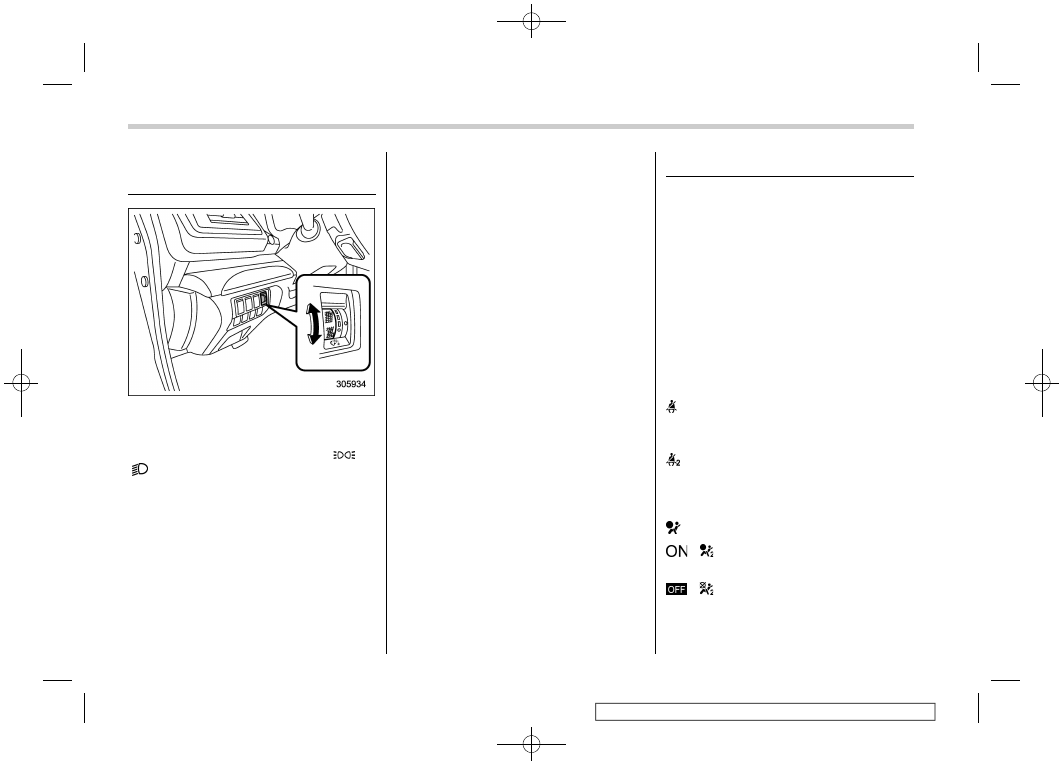

3-5. Illumination brightness
control

The illumination brightness of the instru-
ment panel illuminates under the following
conditions.
.

When the light switch is in the “

” or

” position

.

When the light control switch is in the

“AUTO” position and the headlights illumi-
nate automatically

You can adjust the illumination brightness
for better visibility.

To brighten, turn the control dial upward.
To darken, turn the control dial downward.

NOTE

.

When the control dial is turned fully

upward, the illumination brightness
becomes the maximum and the auto-
matic dimming function does not work
at all.
.

The brightness setting is not can-

celed even when the ignition switch is
turned to the “LOCK”/“OFF” position.

&

Auto dimmer cancel function

When the ambient light is bright, the
illumination brightness is set to the max-
imum regardless of the position of the
control dial. In this case, you cannot adjust
the illumination brightness by using the
control dial. When the ambient light is dark,
you can dim the illumination brightness as
described above.

The operational/non-operational setting
and sensitivity of the auto dimmer cancel
function can be changed by your SUBARU
dealer. Contact your SUBARU dealer for
details.

3-6. Warning and indicator

&

Initial illumination for system
check

Several of the warning and indicator lights
illuminate when the ignition switch is
initially turned to the “ON” position. This
permits checking the operation of the
bulbs.

Apply the parking brake and turn the
ignition switch to the “ON” position. For
the system check, several of the following
lights illuminate and then turn off after
several seconds or after the engine has
started.

: Seatbelt warning light (The seatbelt

warning light turns off only when the
driver fastens the seatbelt.)

: Front passenger’s seatbelt warning

light (The seatbelt warning light turns
off only when the front seat passenger
fastens the seatbelt.)

: SRS airbag system warning light

/

: Front passenger’s frontal airbag

ON indicator light

/

: Front passenger’s frontal airbag

OFF indicator light

Illumination brightness control

164

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(167,1)

/

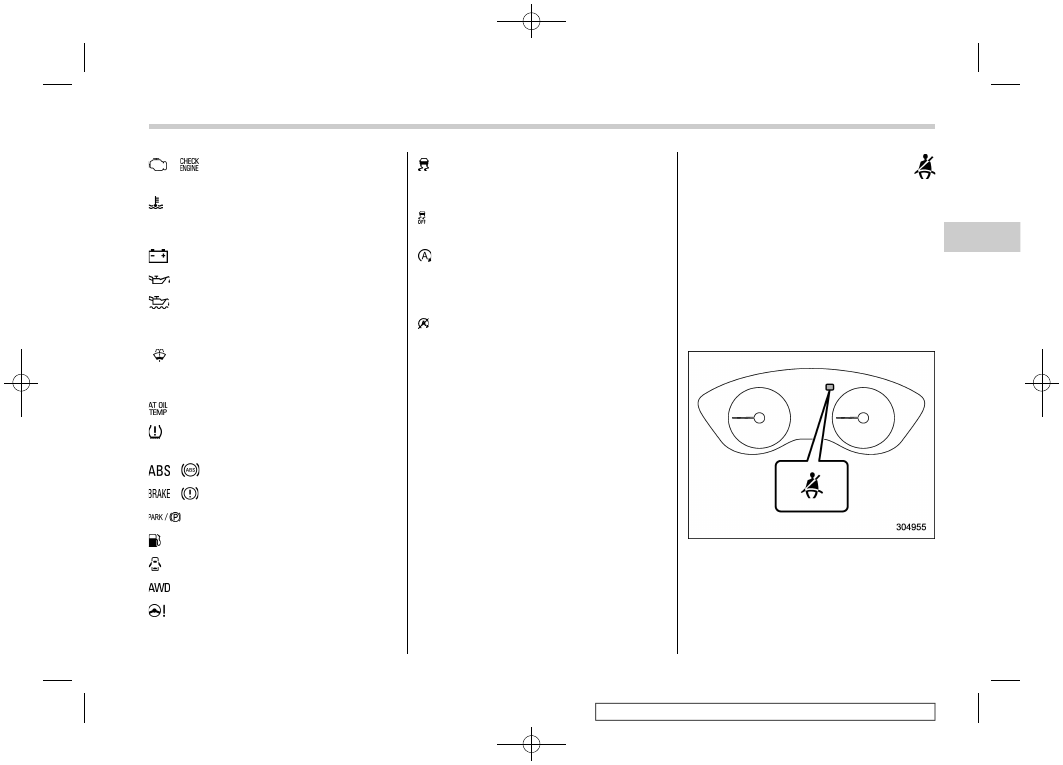

: CHECK ENGINE warning light/

Malfunction indicator light

: Coolant temperature low indicator

light/Coolant temperature high warn-
ing light

: Charge warning light

: Oil pressure warning light

: Engine low oil level warning light

(models without combination meter
display (color LCD))

: Windshield washer fluid warning light

(models without combination meter
display (color LCD))

: AT OIL TEMP warning light

: Low tire pressure warning light (U.S.-

spec. models)

/

: ABS warning light

/

: Brake system warning light

: Electronic parking brake light

: Low fuel warning light

: Door open warning light

: AWD warning light

: Power steering warning light

: Vehicle Dynamics Control warning light/

Vehicle Dynamics Control operation
indicator light

: Vehicle Dynamics Control OFF indicator

light

: Auto Start Stop warning light/Auto Start

Stop OFF indicator light (yellow) (mod-
els without combination meter display
(color LCD))

: Auto Start Stop No Activity Detected

indicator light (models without combi-
nation meter display (color LCD))

If any lights fail to illuminate, it indicates a
burned-out bulb or a malfunction of the
corresponding system.
Consult your authorized SUBARU dealer
for repair.

&

Seatbelt warning light
and chime

Your vehicle is equipped with a seatbelt
warning device at the driver’s and front
passenger’s seat, as required by current
safety standards.
With the ignition switch turned to the “ON”
position, this device reminds the driver and
front passenger to fasten their seatbelts by
illuminating the warning lights in the loca-
tions indicated in the following illustration
and sounding a chime.

Driver’s warning light

– CONTINUED –

Warning and indicator

165

3

Instruments

and

controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(168,1)

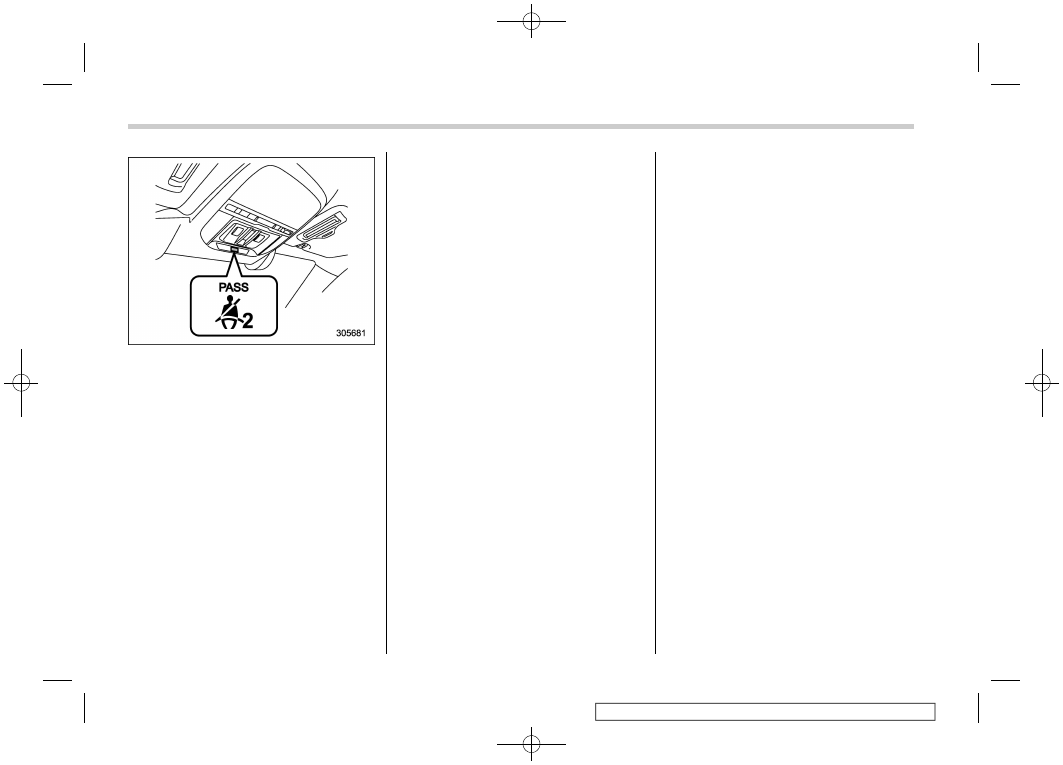

Front passenger’s warning light

!

Operation

If the driver and/or front passenger have/
has not yet fastened the seatbelt(s) when
the ignition switch is turned to the “ON”
position, the seatbelt warning light(s) will
flash for several seconds, to warn that the
seatbelt(s) is/are unfastened. If the driver’s
seatbelt is not fastened, a chime will also
sound simultaneously.

NOTE

.

If the driver’s and/or front passen-

ger’s seatbelt(s) are/is still not fastened
6 seconds later, the seatbelt warning
device operates as follows according
to the vehicle speed.

– At speeds lower than approxi-
mately 9 mph (15 km/h)

The warning light(s) for unfastened
seatbelt(s) will alternate between
steady illumination and flashing at
15-second intervals. The chime will
not sound.
– At speeds higher than approxi-
mately 9 mph (15 km/h)
The warning light(s) for unfastened
seatbelt(s) will alternate between
flashing and steady illumination at
15-second intervals and the chime
will sound while the warning light(s)
is/are flashing.

.

It is possible to cancel the warning

operation that follows the 6-second
warning after turning ON the ignition
switch. When the ignition switch is
turned ON next time, however, the
complete sequence of the warning
operation resumes. For further details
about canceling the warning operation,
please contact your SUBARU dealer.

If there is no passenger on the front
passenger’s seat, the seatbelt warning
device for the front passenger’s seat will
be deactivated. The front passenger’s
occupant detection system monitors
whether or not there is a passenger on
the front passenger’s seat.
Observe the following precautions. Failure
to do so may prevent the device from
functioning correctly or cause the device to

fail.
.

Do not install any accessory such as a

table or TV onto the seatback.
.

Do not store a heavy load in the

seatback pocket.
.

Do not allow the rear seat occupant to

place his/her hands or legs on the front
passenger’s seatback, or allow him/her to
pull the seatback.
.

Do not use front seats with their back-

ward-forward position and seatback not
being locked into place securely. If any of
them are not locked securely, adjust them
again. For adjusting procedure, refer to
“Manual seat” FP35.

If the seatbelt warning device for the front
passenger’s seat does not function cor-
rectly (e.g., it is activated even when the
front passenger’s seat is empty or it is
deactivated even when the front passen-
ger has not fastened his/her seatbelt), take
the following actions.
.

Ensure that no article is placed on the

seat other than a child restraint system and
its child occupant, although we strongly
recommend that all children sit in the rear
seat properly restrained.
.

Ensure that there is no article left in the

seatback pocket.
.

Ensure that the backward-forward po-

sition and seatback of front passenger’s

Warning and indicator

166

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(169,1)

seat are locked into place securely by
moving the seat back and forth.

If still the seatbelt warning device for front
passenger’s seat does not function cor-
rectly after taking relevant corrective ac-
tions described above, immediately con-
tact your SUBARU dealer for an inspec-
tion.

&

SRS airbag system
warning light

WARNING

If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system. Immediately take your vehi-
cle to your nearest SUBARU dealer
to have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbag will not operate properly in
the event of a collision, which may
increase the risk of injury.

.

Flashing or flickering of the warn-

ing light

.

No illumination of the warning

light when the ignition switch is
first turned to the “ON” position

.

Continuous illumination of the

warning light

.

Illumination of the warning light

while driving

For details about the components mon-
itored by the warning light, refer to “SRS
airbag system monitors” FP101.

&

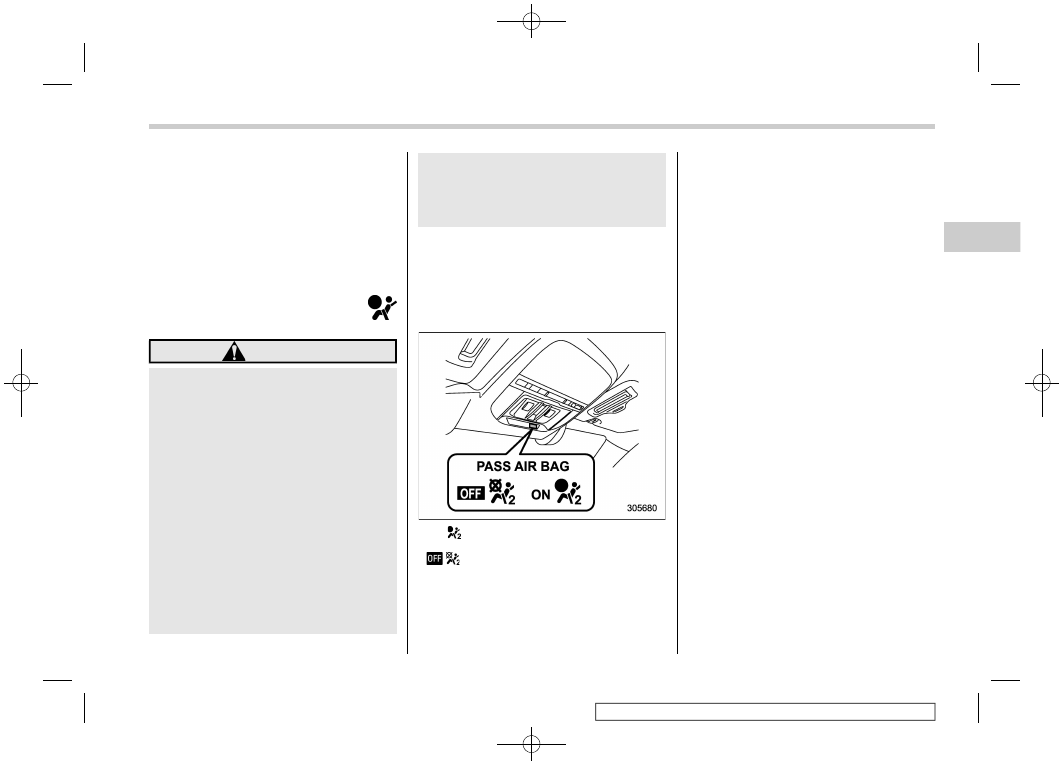

Front passenger’s frontal air-
bag ON and OFF indicators

ON

: Front passenger’s frontal airbag ON

indicator

: Front passenger’s frontal airbag OFF

indicator

The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag.

The indicator is displayed near the map
lights.
When the ignition switch is turned to the
“ON” position, both the ON and OFF
indicators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators turn
off for 2 seconds. After that, one of the
indicators illuminates depending on the
status of the front passenger’s SRS frontal
airbag determined by the SUBARU ad-
vanced frontal airbag system monitoring.
If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain off.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal
airbag ON indicator will remain off while
the OFF indicator will illuminate.
With the ignition switch turned to the “ON”
position, if both the ON and OFF indicators
remain illuminated or off simultaneously
even after the system check period, the
system is malfunctioning. Contact your
SUBARU dealer immediately for an in-
spection.

– CONTINUED –

Warning and indicator

167

3

Instruments

and

controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(170,1)

&

CHECK ENGINE warn-
ing light/Malfunction
indicator light

CAUTION

If the CHECK ENGINE warning light/
Malfunction indicator light illumi-
nates while you are driving, have
your vehicle checked/repaired by
your SUBARU dealer as soon as
possible. Continued vehicle opera-
tion without having the emission
control system checked and re-
paired as necessary could cause
serious damage, which may not be
covered by your vehicle’s warranty.

If this light illuminates steadily or blinks
while the engine is running, it may indicate
that there is at least one problem or
potential problem somewhere in the emis-
sion control system.

!

If the light illuminates steadily

If the light illuminates steadily while driving
or does not turn off after the engine starts,
an emission control system malfunction
has been detected.
You should have your vehicle checked by
an authorized SUBARU dealer immedi-
ately.

NOTE

This light also illuminates when the fuel
filler cap is not tightened until it clicks.

If you have recently refueled your vehicle,
the cause of the CHECK ENGINE warning
light/malfunction indicator light illuminating
could be a loose or missing fuel filler cap.
Remove the cap and retighten it until it
clicks. Make sure nothing is interfering with
the sealing of the cap. Tightening the cap
will not make the CHECK ENGINE warn-
ing light turn off immediately. It may take
several driving trips. If the light does not
turn off, take your vehicle to your author-
ized SUBARU dealer immediately.

!

If the light is blinking

If the light is blinking while driving, an
engine misfire condition has been de-
tected which may damage the emission
control system.
To prevent serious damage to the emis-
sion control system, you should do the
following.
.

Reduce vehicle speed.

.

Avoid hard acceleration.

.

Avoid steep uphill grades.

.

Reduce the amount of cargo, if possi-

ble.
.

Stop towing a trailer as soon as

possible.

The CHECK ENGINE warning light may
stop blinking and illuminate steadily after
several driving trips. You should have your
vehicle checked by an authorized
SUBARU dealer immediately.

&

Coolant temperature
low indicator light/
Coolant temperature
high warning light

CAUTION

.

After turning the ignition switch

to the “ON” position, if this
indicator light/warning light be-
haves in any of the following
ways, the electrical system may
be malfunctioning. Contact your
SUBARU dealer immediately for
an inspection.

– It remains blinking in RED.

– It remains illuminated in RED

for more than 2 seconds.

– It remains blinking in RED and

BLUE alternately.

.

While driving, if this indicator

light/warning light behaves in
any of the following ways, take
the specified appropriate mea-
sure listed below.

Warning and indicator

168

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(171,1)

– Blinking or illuminated in

RED:
Safely stop the vehicle as
soon as possible, and refer to
the emergency steps to take in
the case of engine overheat-
ing. After that, have the sys-
tem checked by your nearest
SUBARU dealer. Refer to “En-
gine overheating”
FP422.

– Blinking in RED and BLUE

alternately:
The electrical system may be
malfunctioning. Contact your
SUBARU dealer for an inspec-
tion.

This coolant temperature low indicator
light/coolant temperature high warning
light has the following three functions.
.

Illumination in BLUE indicates insuffi-

cient warming up of the engine.
.

Blinking in RED indicates that the

engine is close to overheating.
.

Illumination in RED indicates overheat-

ing condition of the engine.

For a system check, this indicator light/
warning light illuminates in RED for ap-
proximately 2 seconds when the ignition
switch is turned to the “ON” position. After
that, this indicator light/warning light

changes to BLUE and maintains illumina-
tion in BLUE. This BLUE illuminated light
turns off when the engine is warmed up
sufficiently.

If the engine coolant temperature in-
creases over the specified range, the
indicator light/warning light blinks in RED.
At this time, the engine is close to over-
heating.

If the engine coolant temperature in-
creases further, the indicator light/warning
light illuminates in RED continuously. At
this time, the engine may be overheating.

When the indicator light/warning light
blinks in RED or illuminates in RED, safely
stop the vehicle as soon as possible, and
refer to the emergency steps to take in the
case of engine overheating. Refer to
“Engine overheating” FP422. After that,
have the system checked by your nearest
SUBARU dealer.

Also, if the indicator light/warning light
often blinks in RED, the electrical system
may be malfunctioning. Contact your
SUBARU dealer for an inspection.

NOTE

If the engine is restarted after a certain
driving condition, this indicator light/
warning light may illuminate in RED.

However, this is not a malfunction if the
indicator light/warning light turns off
after a short time.

&

Charge warning light

If this light illuminates when the engine is
running, it may indicate that the charging
system is not working properly.

If the light illuminates while driving or does
not turn off after the engine starts, stop the
engine at the first safe opportunity and
check the alternator belt. If the belt is
loose, broken or if the belt is in good
condition but the light remains illuminated,
contact your nearest SUBARU dealer
immediately.

&

Oil pressure warning
light

If this light illuminates when the engine is
running, it may indicate that the engine oil
pressure is low and the lubricating system
is not working properly.
If the light illuminates while driving or does
not turn off after the engine starts, stop the
engine at the first safe opportunity and
check the engine oil level. If the oil level is
low, add oil immediately. If the engine oil is
at the proper level but the light remains
i l l u m i n a t e d , c o n t a c t y o u r n e a r e s t

– CONTINUED –

Warning and indicator

169

3

Instruments

and

controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(172,1)

SUBARU dealer immediately.
For details about checking the engine oil
level or adding the engine oil, refer to
“Engine oil” FP450.

CAUTION

Do not operate the engine with the
oil pressure warning light illumi-
nated. This may cause serious en-
gine damage.

&

Engine low oil level
warning light

This light illuminates when the engine oil
level decreases to the lower limit.
If the engine low oil level warning light
illuminates while driving, park the vehicle
in a safe and level location, and then check
the engine oil level. When the engine oil
level is not within the normal range, refill
with engine oil. Refer to “Engine oil”
FP450.
If the warning light does not turn off after
refilling the engine oil, or the warning light
illuminates even though the engine oil
level is within the normal range, have the
vehicle checked by a SUBARU dealer.

NOTE

.

The warning light may stay illumi-

nated when the engine is started
straight after topping up or changing
the engine oil. In such cases, park the
vehicle on a level surface and wait for
more than a minute until the oil level
settles, after which the warning light
will turn off.
.

The engine low oil level warning light

will not turn off immediately even if you
replace or add engine oil. It will turn off
after the vehicle starts to move. De-
pending on the driving conditions and
environment where the vehicle is dri-
ven, it may take a period of approxi-
mately 10 minutes for the light to turn
off. If the light has still not turned off
after 15 minutes have elapsed, we
recommend that you contact your
SUBARU dealer.
.

The warning light may illuminate

temporarily in the following conditions
because a low oil level may be detected
as a result of significant oil movement
in the engine.

– When the vehicle is considerably
inclined on an uphill or steep slope.
– When the vehicle has continu-
ously accelerated and decelerated.
– When the vehicle is continuously
turned.

– When the vehicle is driven on a
road that alternates continuously
between uphill and downhill.

&

Windshield washer
fluid warning light

This light illuminates when the fluid level in
the windshield washer fluid tank de-
creases to the lower limit (approximately
0.6 US qt, 0.6 liter, 0.5 Imp qt).

&

AT OIL TEMP warning
light

If this light illuminates when the engine is
running, it may indicate that the transmis-
sion fluid temperature is too hot.

If the light illuminates while driving, im-
mediately stop the vehicle in a safe place
and let the engine idle until the warning
light turns off.

!

Transmission control system warn-
ing

If the “AT OIL TEMP” warning light flashes
after the engine has started, it may indicate
that the transmission control system is not
working properly. Contact your nearest
SUBARU dealer for service immediately.

Warning and indicator

170

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content   ..  18  19  20  21   ..
