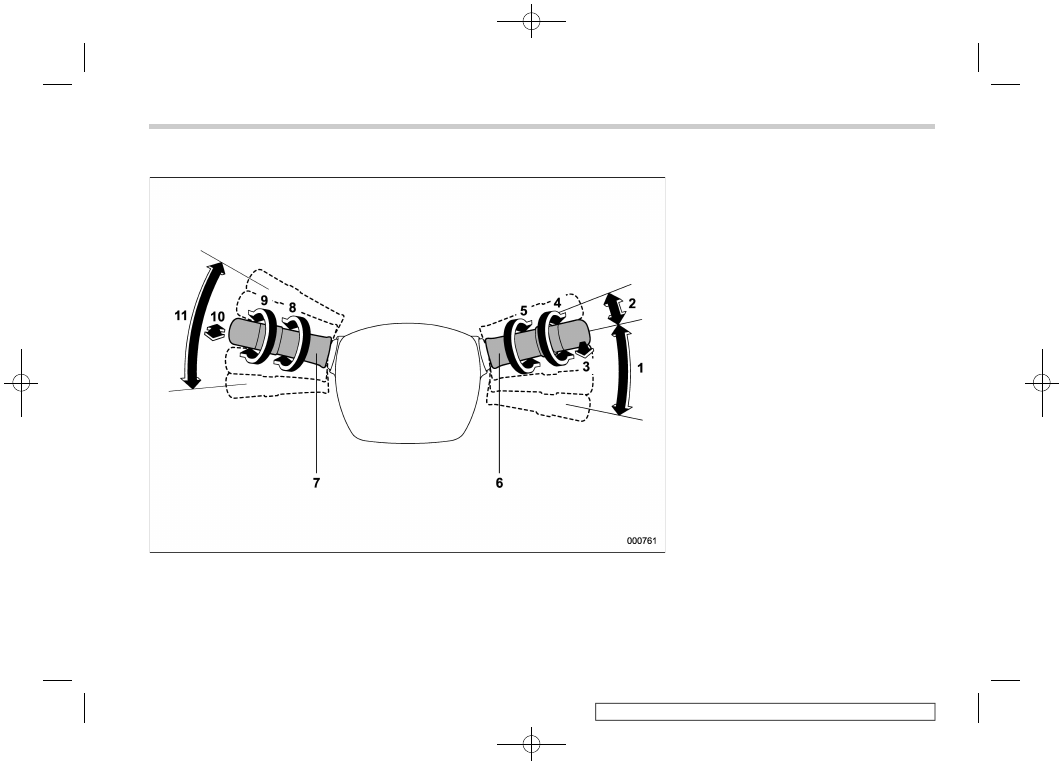

Light control and wiper control levers/switches

1)

Windshield wiper (page 237)

2)

Mist (page 239)

3)

Windshield washer (page 239)

4)

Rear window wiper and washer switch
(page 240)

5)

Wiper intermittent time control switch
(page 239)

6)

Windshield wiper and washer switches
(page 239)

7)

Light control switch (page 229)

8)

Fog light switch (page 236)

9)

Headlight ON/OFF/AUTO (page 229)

10) Headlight flasher High/Low beam change

(page 231)

11) Turn signal lever (page 237)

– CONTINUED –

19

0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(22,1)

&

Combination meter

!

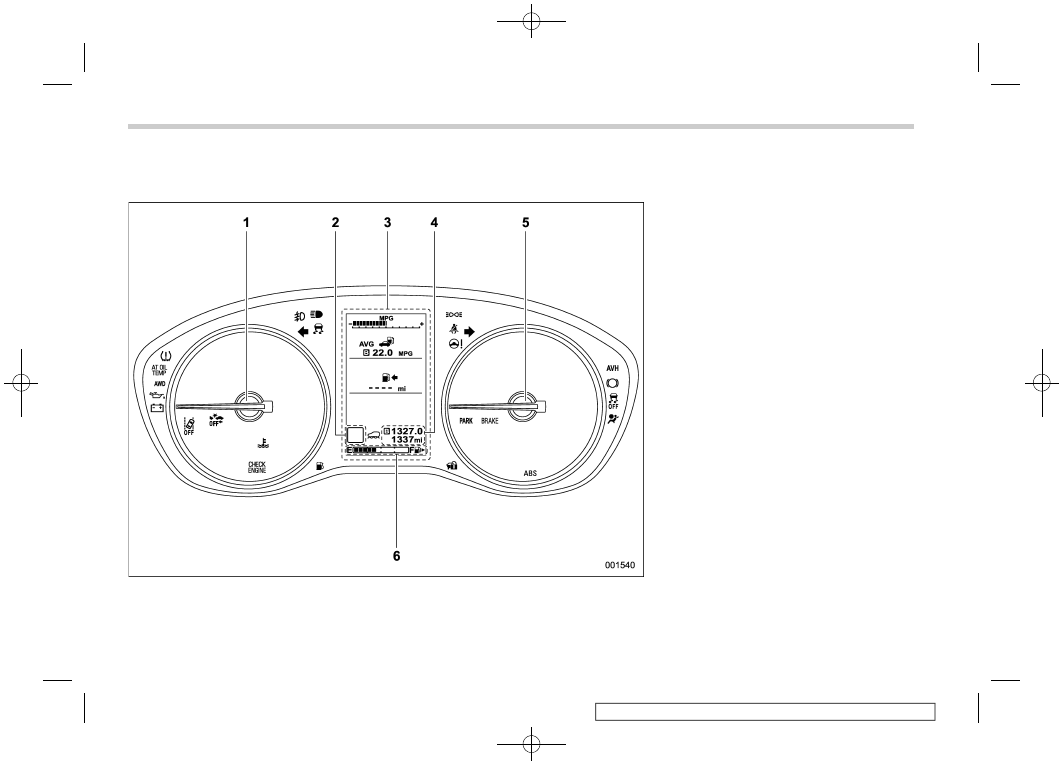

U.S.-spec. models

The illustration above is a typical example. For some models, the combination meter may be
slightly different than that shown in the illustration.

1)

Tachometer (page 160)

2)

Select lever/gear position indicator (page
184)

3)

Combination meter display (color LCD)
(page 189)

4)

Trip meter and odometer (page 161)

5)

Speedometer (page 160)

6)

Fuel gauge (page 162)

20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(23,1)

!

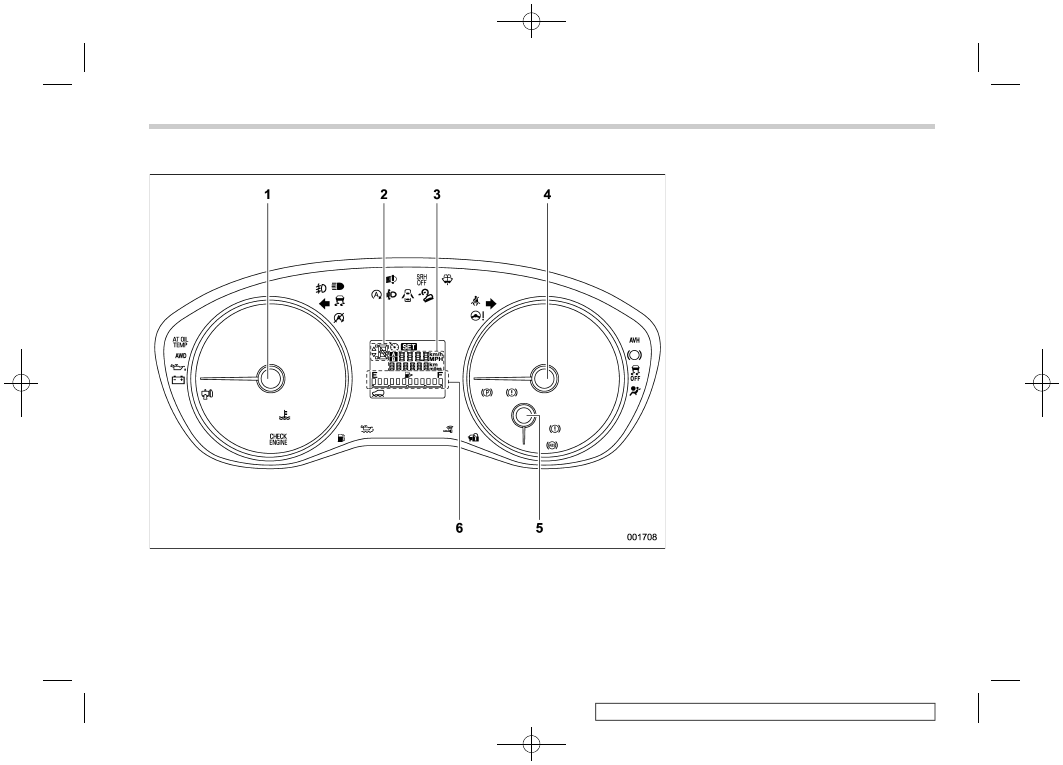

Except U.S.-spec. models (type A)

The illustration above is a typical example. For some models, the combination meter may be
slightly different than that shown in the illustration.

1)

Tachometer (page 160)

2)

Select lever/gear position indicator (page
184)

3)

Trip meter and odometer (page 161)

4)

Speedometer (page 160)

5)

ECO gauge (page 162)

6)

Fuel gauge (page 162)

– CONTINUED –

21

0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(24,1)

!

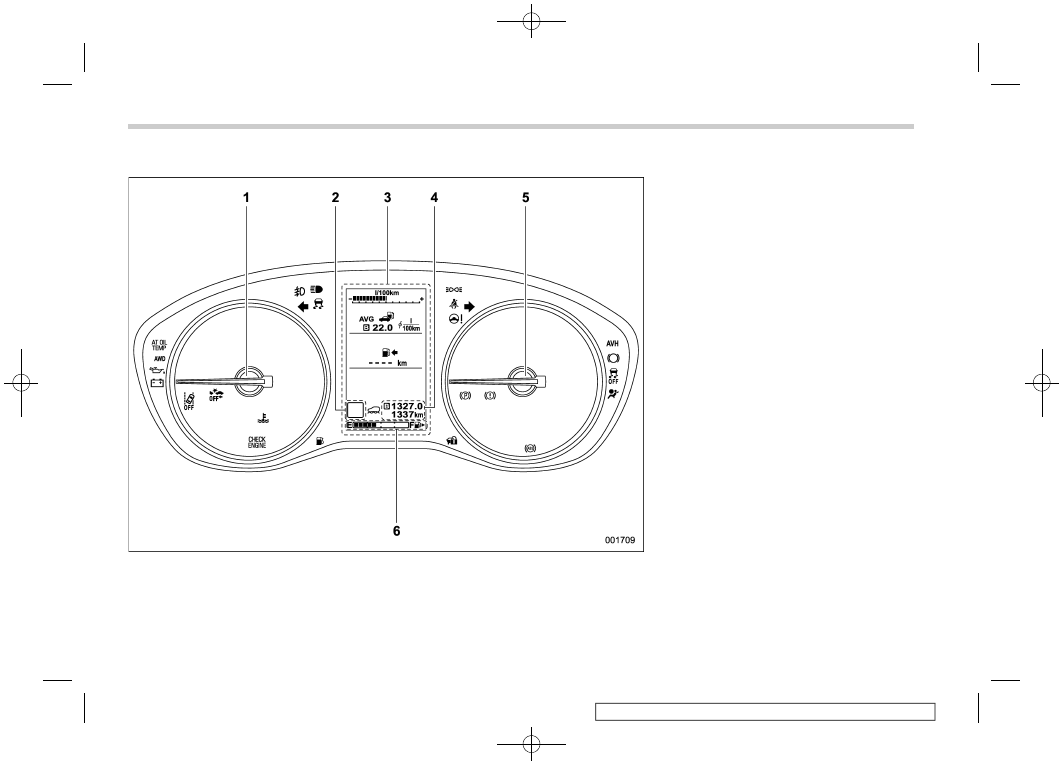

Except U.S.-spec. models (type B)

The illustration above is a typical example. For some models, the combination meter may be
slightly different than that shown in the illustration.

1)

Tachometer (page 160)

2)

Select lever/gear position indicator (page
184)

3)

Combination meter display (color LCD)
(page 189)

4)

Trip meter and odometer (page 161)

5)

Speedometer (page 160)

6)

Fuel gauge (page 162)

22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(25,1)

– CONTINUED –

23

0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(26,1)

&

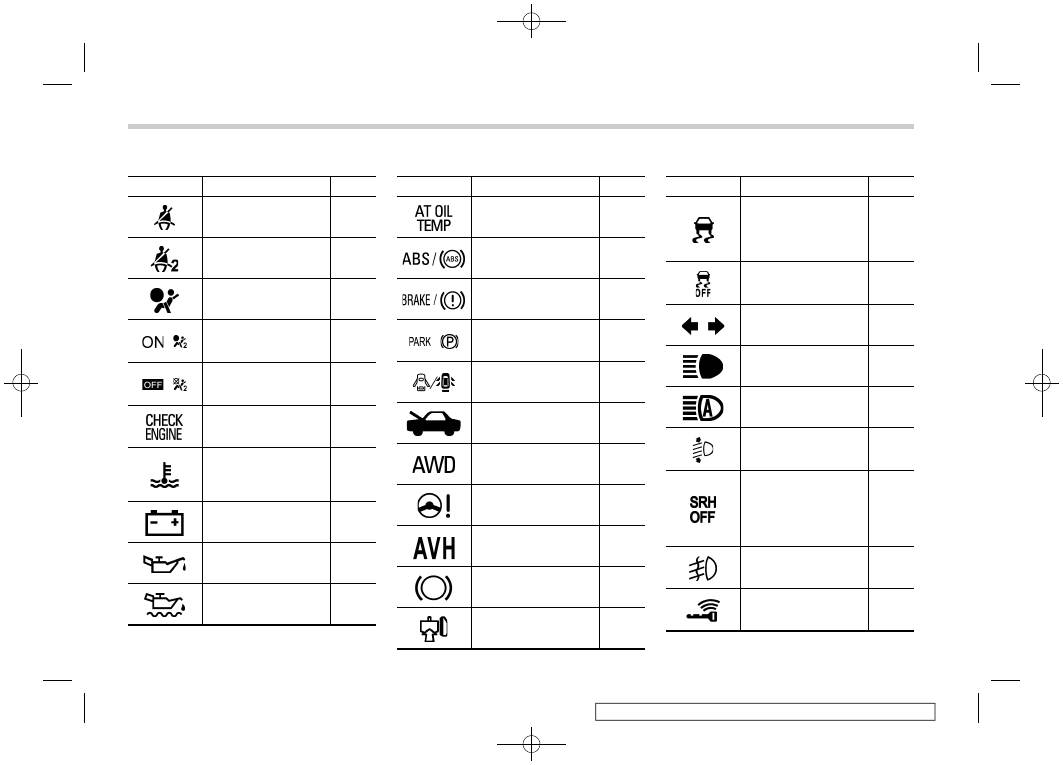

Warning and indicator lights

Mark

Name

Page

Seatbelt warning light

165

Front passenger’s
seatbelt warning light

165

SRS airbag system
warning light

167

/

Front passenger’s
frontal airbag ON indi-
cator

167

/

Front passenger’s
frontal airbag OFF in-
dicator

167

CHECK ENGINE
warning light/Malfunc-
tion indicator light

168

Coolant temperature
low indicator light/
Coolant temperature
high warning light

168

Charge warning light

169

Oil pressure warning
light

169

Engine oil level warn-
ing light

170

Mark

Name

Page

AT OIL TEMP warning
light

170

ABS warning light

172

Brake system warning
light

173

/

Electronic parking
brake indicator light

173

Door open warning
light

175

Engine hood open
warning light

175

AWD warning light

175

Power steering warn-
ing light

176

Auto Vehicle Hold ON
indicator light

175

Auto Vehicle Hold op-
eration indicator light

175

Depress brake indica-
tor light

175

Mark

Name

Page

Vehicle Dynamics
Control warning light/
Vehicle Dynamics
Control operation indi-
cator light

176

Vehicle Dynamics
Control OFF indicator
light

178

Turn signal indicator
lights

185

High beam indicator
light

185

High beam assist indi-
cator light (if equipped)

185

Automatic headlight
beam leveler warning
light (if equipped)

186

Steering Responsive
Headlight warning
light/Steering Respon-
sive Headlight OFF in-
dicator light (if
equipped)

186

Front fog light indicator
light (if equipped)

186

Access key warning
indicator light (if
equipped)

178

24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

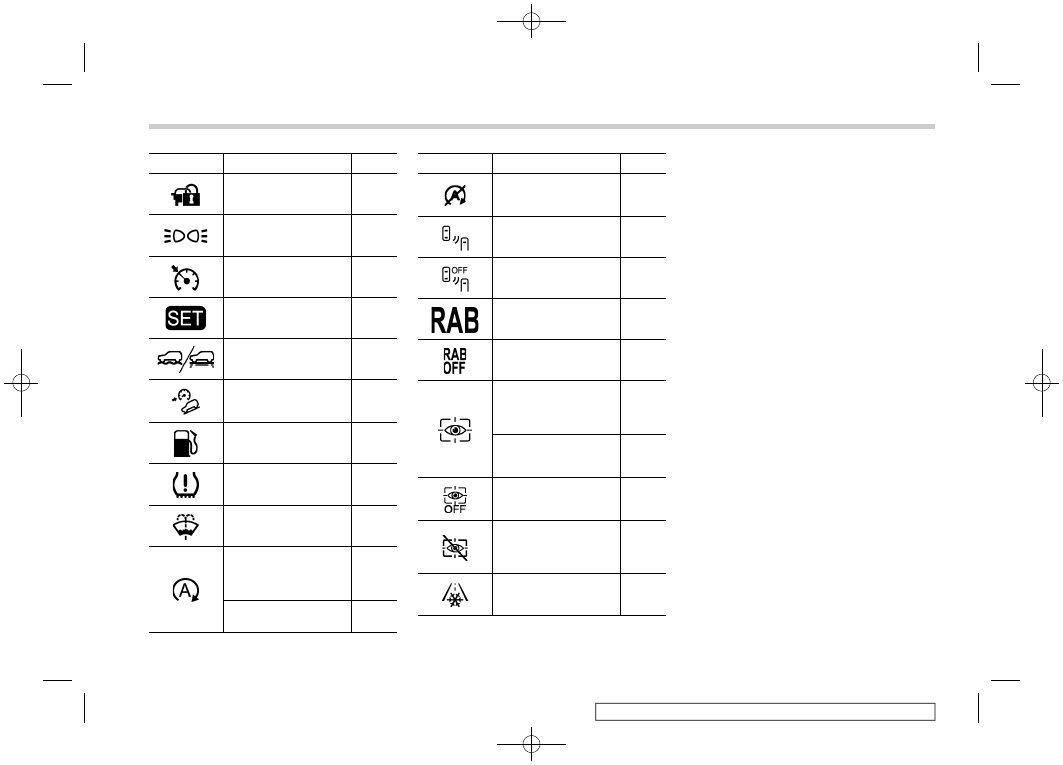

(27,1)

Mark

Name

Page

Security indicator light

183

Headlight indicator
light (if equipped)

186

Cruise control indica-
tor light (if equipped)

185

Cruise control set indi-
cator light (if equipped)

186

X-MODE indicator light
(if equipped)

187

Hill descent control in-
dicator light (if
equipped)

187

Low fuel warning light

175

Low tire pressure
warning light
(U.S.-spec. models)

171

Windshield washer
fluid warning light

170

Auto Start Stop warn-
ing light/Auto Start
Stop OFF indicator
light (yellow)

186

Auto Start Stop indica-
tor light (green)

187

Mark

Name

Page

Auto Start Stop No
Activity Detected indi-
cator light

187

BSD/RCTA warning
light (if equipped)

188

BSD/RCTA OFF indi-
cator light (if equipped)

188

RAB warning light (if
equipped)

188

RAB OFF indicator
light (if equipped)

188

Driver Monitoring Sys-
tem operation indicator
light (green) (if
equipped)

188

Driver Monitoring Sys-
tem warning light (yel-
low) (if equipped)

188

Driver Monitoring Sys-
tem OFF indicator light
(if equipped)

188

Driver Monitoring Sys-
tem temporary stop in-
dicator light (if
equipped)

188

Icy road surface warn-
ing light (if equipped)

189

25

0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(28,1)

Function settings

&

Function settings and adjustments on the combination meter display (color LCD)

If your vehicle is equipped with a combination meter display (color LCD), setting adjustments to the following items can be manually
changed within the display to meet your personal requirements.

NOTE

.

If your vehicle is not equipped with a combination meter display (color LCD), setting changes to the following items will

need to be performed by a SUBARU dealer. Refer to “Function settings and adjustments performed by a dealer” FP29.
.

For setting adjustments to the following items, refer to the appropriate page for details.

Item

Available settings

Factory default setting

Page reference for
the vehicle system

operation

1st menu/vehicle

system

2nd menu/adjustable ve-

hicle system setting

3rd menu/selectable ve-

hicle system setting

Screen Settings

Welcome Screen

On/Off

On

190

Good-bye Screen

On/Off

On

190

Gauge Initial Movement

On/Off

On

163

Units

km, km/h, Liter/mile,
MPH, Gallon

U.S.-spec models: mile,
MPH, Gallon
Other models: km, km/h,
Liter

197 and 203

Tire Pressure Units (U.S.-
spec. models)

kPa/PSi

PSi

193

Languages

English/Español/Fran-
çais

U.S.-spec models: Eng-
lish
Other models: Français

203

26

-------------------------------------------------------------------------------------------------------------------------------------------------------------
