Subaru Forester (2019). Manual - part 2





(11,1)

deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to
record such data as:
.

How various systems in your vehicle

were operating;
.

Whether or not the driver and passen-

ger safety belts were buckled/fastened;
.

How far (if at all) the driver was

depressing the accelerator and/or brake
pedal; and,
.

How fast the vehicle was traveling.

These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle
only if a non-trivial crash situation occurs;
no data are recorded by the EDR under
normal driving conditions and no personal
data (e.g., name, gender, age, and crash
location) are recorded. However, other
parties, such as law enforcement, could
combine the EDR data with the type of
personally identifying data routinely ac-
quired during a crash investigation.

To read data recorded by an EDR, special
equipment is required, and access to the

vehicle or the EDR is needed. In addition
to the vehicle manufacturer, other parties,
such as law enforcement, that have the
special equipment, can read the informa-
tion if they have access to the vehicle or
the EDR.

9

0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(14,1)

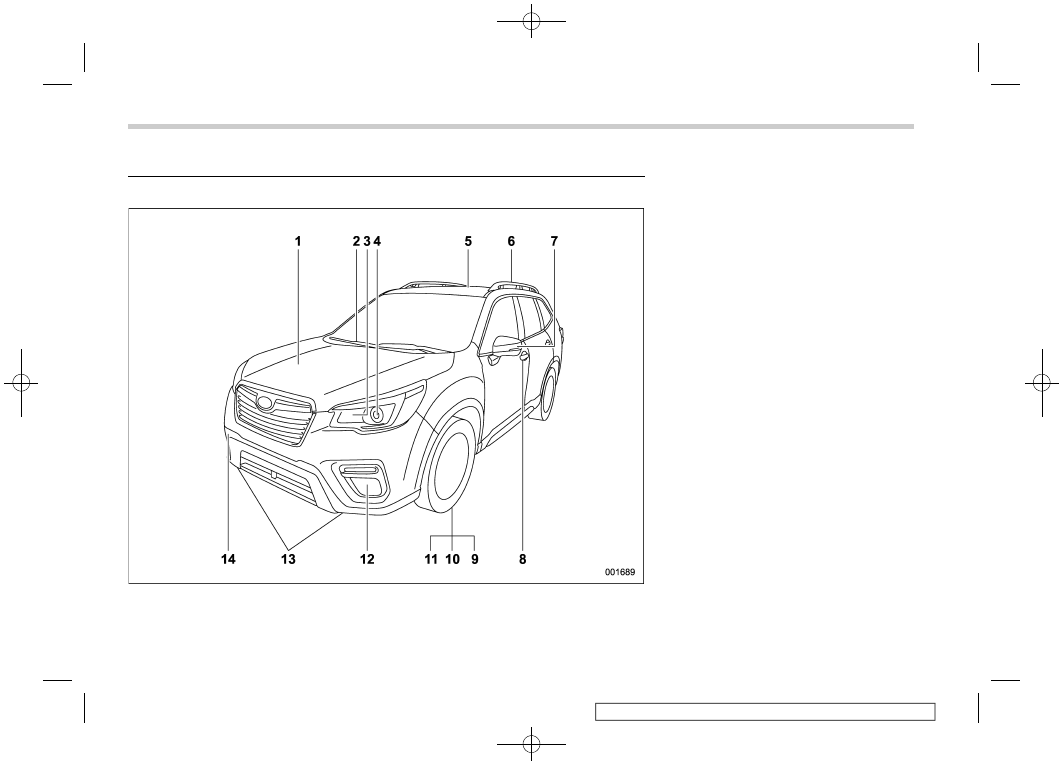

Illustrated index

&

Exterior

1)

Engine hood (page 447)

2)

Front wipers (page 239)

3)

Replacing bulbs (page 476)

4)

Headlights (page 229)

5)

Moonroof (page 149)

6)

Roof rails (page 396)

7)

Outside mirror (page 248)

8)

Door locks (page 131)

9)

Tire pressure (page 462)

10) Flat tires (page 415)
11) Snow tires (page 392)
12) Fog lights (page 236)
13) Tie-down hooks (page 423)
14) Towing hook (page 423)

12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(15,1)

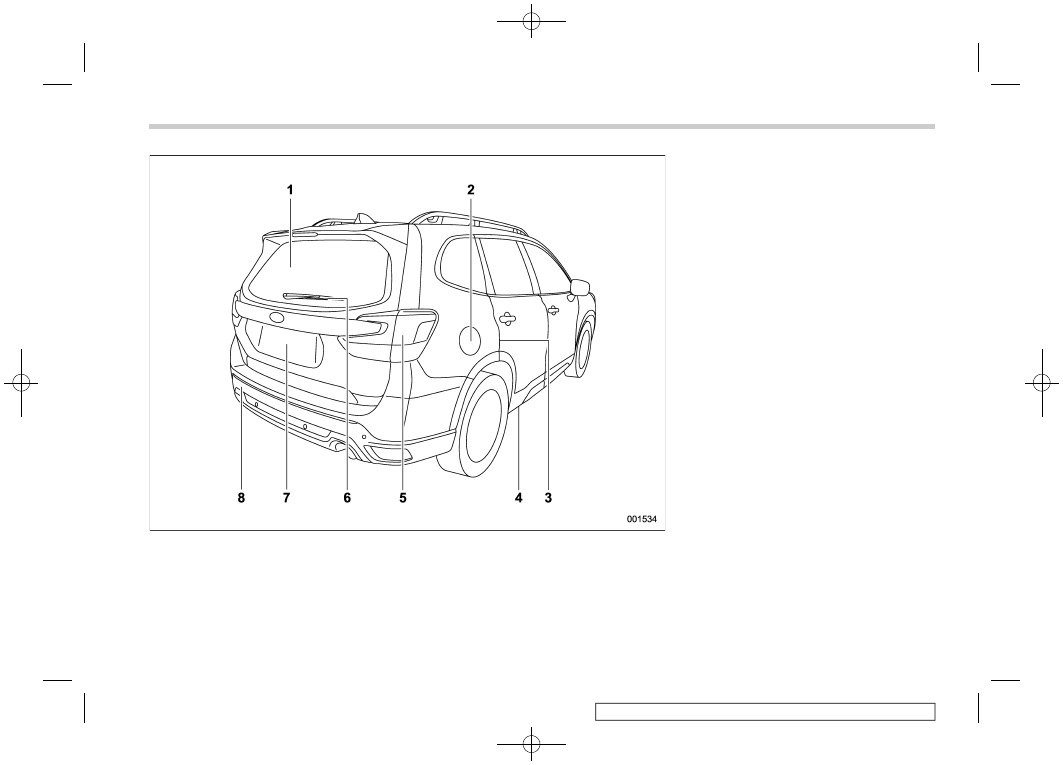

1)

Rear window defogger (page 250)

2)

Fuel filler lid and cap (page 292)

3)

Child safety locks (page 137)

4)

Tie-down hole (page 423)

5)

Replacing bulbs (page 476)

6)

Rear window wiper (page 240)

7)

Rear gate (page 141)

8)

Towing hook (page 423)

– CONTINUED –

13

0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(16,1)

&

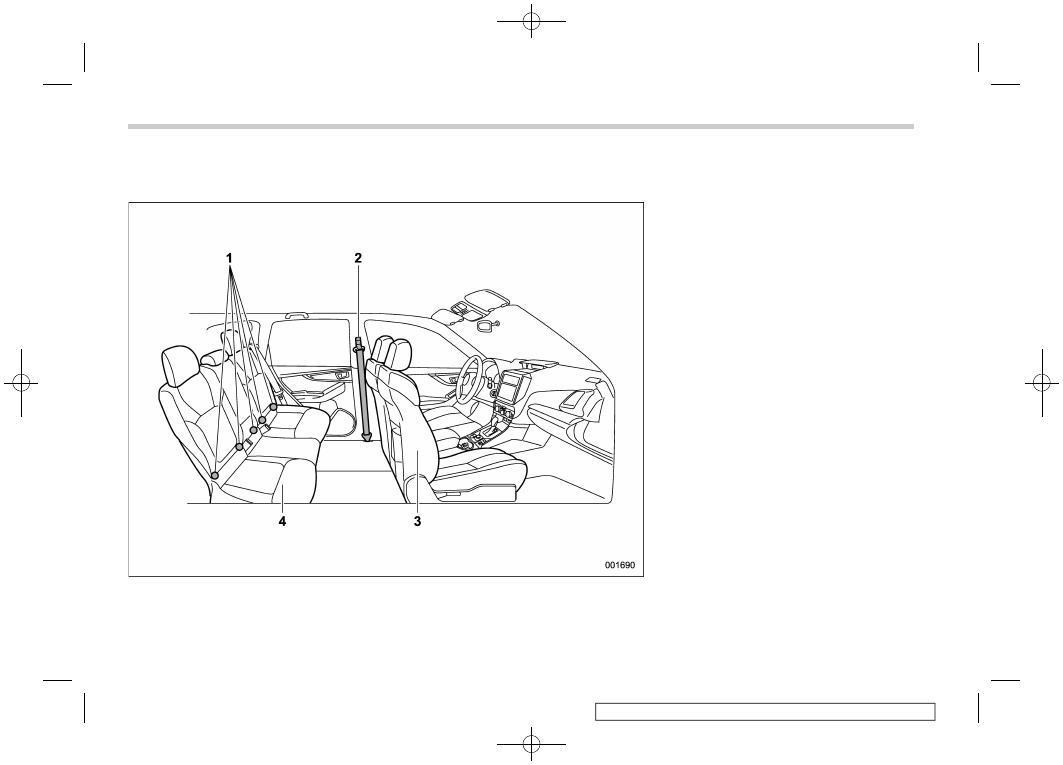

Interior

!

Passenger compartment area

1)

Lower anchorages for child restraint
system (page 68)

2)

Seatbelt (page 47)

3)

Front seat (page 32)

4)

Rear seat (page 39)

14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(17,1)

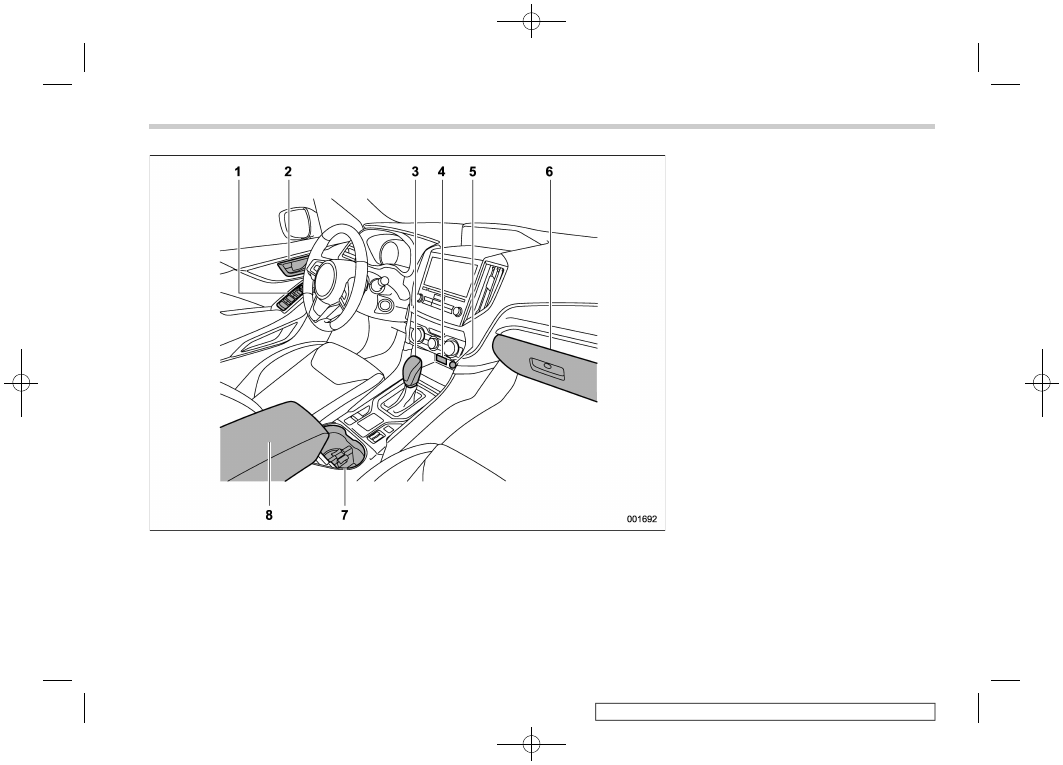

1)

Power windows (page 138)

2)

Door locks (page 132)

3)

Select lever (page 309)

4)

USB power supply (page 282)

5)

Front power supply socket (page 280)

6)

Glove box (page 278)

7)

Cup holder (page 278)

8)

Center console (page 278)

– CONTINUED –

15

0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(18,1)

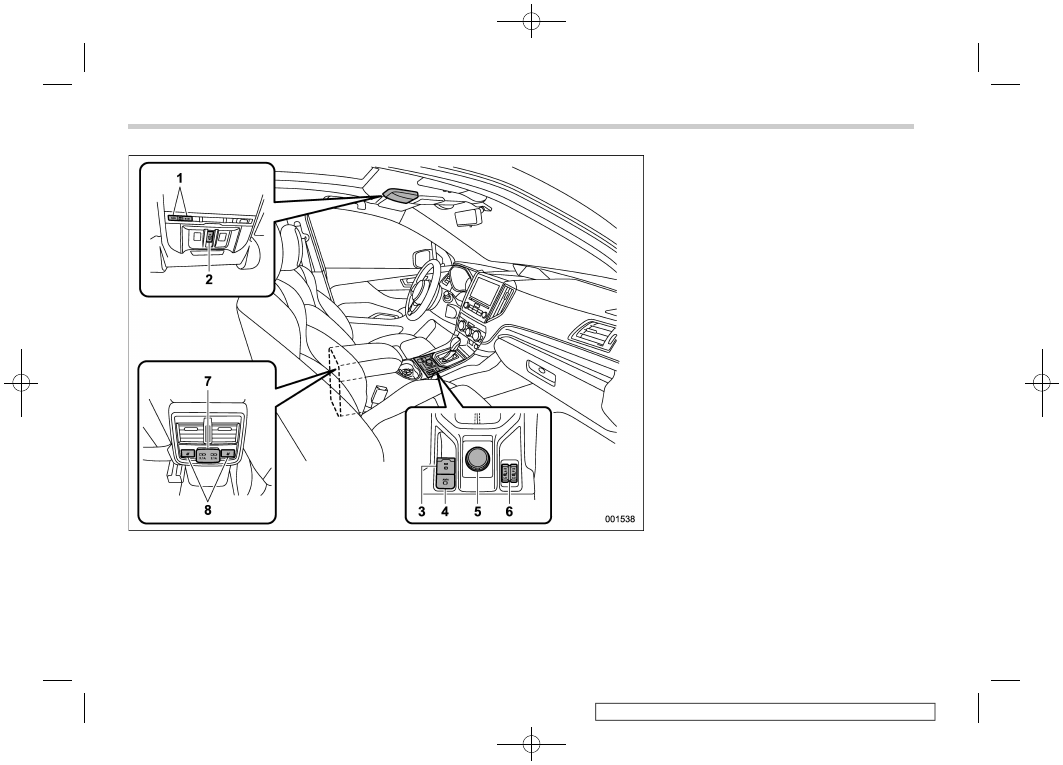

1)

Button for SUBARU STARLINK

2)

Moonroof switch (page 149)

3)

Electronic parking brake switch (page
332)

4)

Auto Vehicle Hold switch (page 334)

5)

X-MODE switch (page 326)

6)

Front seat heater switches (page 46)

7)

USB power supply (page 282)

8)

Rear seat heater switches (page 46)

NOTE

.

For U.S.-spec. models with SUBARU

STARLINK: Refer to the Owner’s Man-
ual supplement for SUBARU STARLINK
Safety and Security.
.

For models with EyeSight system:

Refer to the Owner’s Manual supple-
ment for the EyeSight system.

16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(19,1)

&

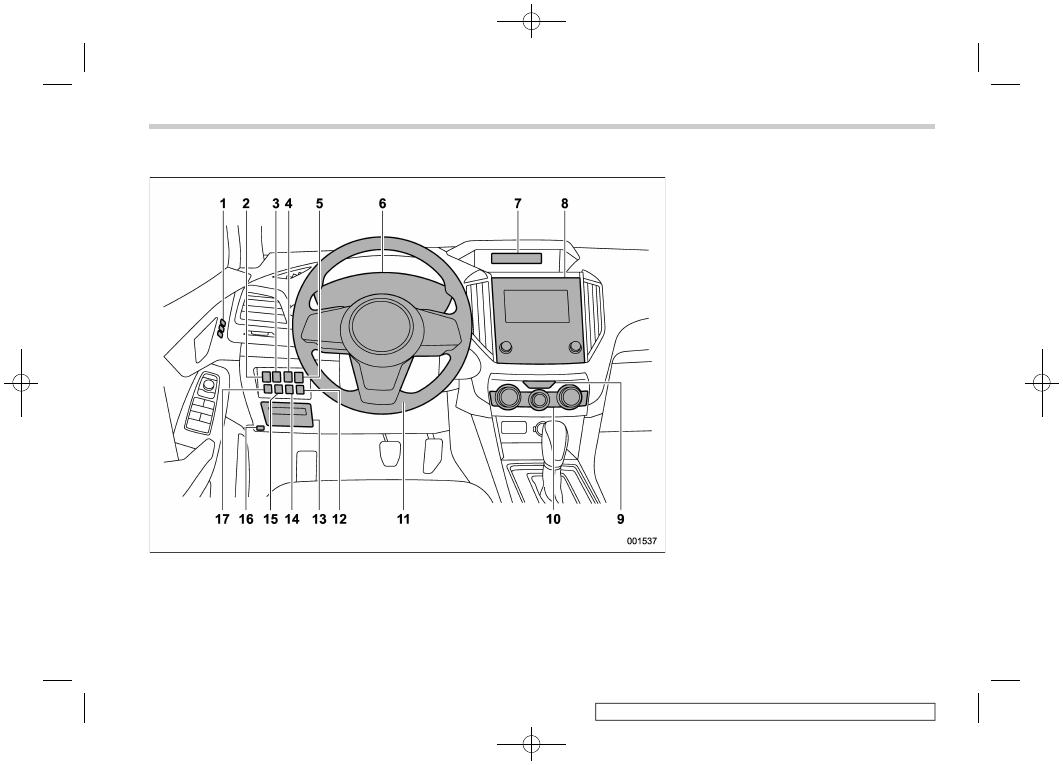

Instrument panel

1)

Seat position memory switch (page 37)

2)

Power rear gate switch (page 142)

3)

Steering Responsive Headlight OFF
switch (page 235)

4)

Memory switch (page 142)

5)

Illumination brightness control dial (page
164)

6)

Combination meter (page 160)

7)

Type A multi-function display (black and
white) (page 197)/Type B multi-function
display (color LCD) (page 203)

8)

Audio*

9)

Hazard warning flasher switch (page
160)

10) Climate control panel (page 257)
11) Tilt/Telescopic steering wheel (page 251)
12) Driver Monitoring System OFF switch

(page 380)

13) Fuse box (page 474)
14) BSD/RCTA OFF switch (page 351)
15) Auto Start Stop OFF switch (page 339)
16) Hood lock release knob (page 447)
17) Vehicle Dynamics Control OFF switch

(page 325)

*: For details about how to use the audio

and navigation system (if equipped),
refer to the separate navigation/audio
Owner’s Manual.

– CONTINUED –

17

0

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(20,1)

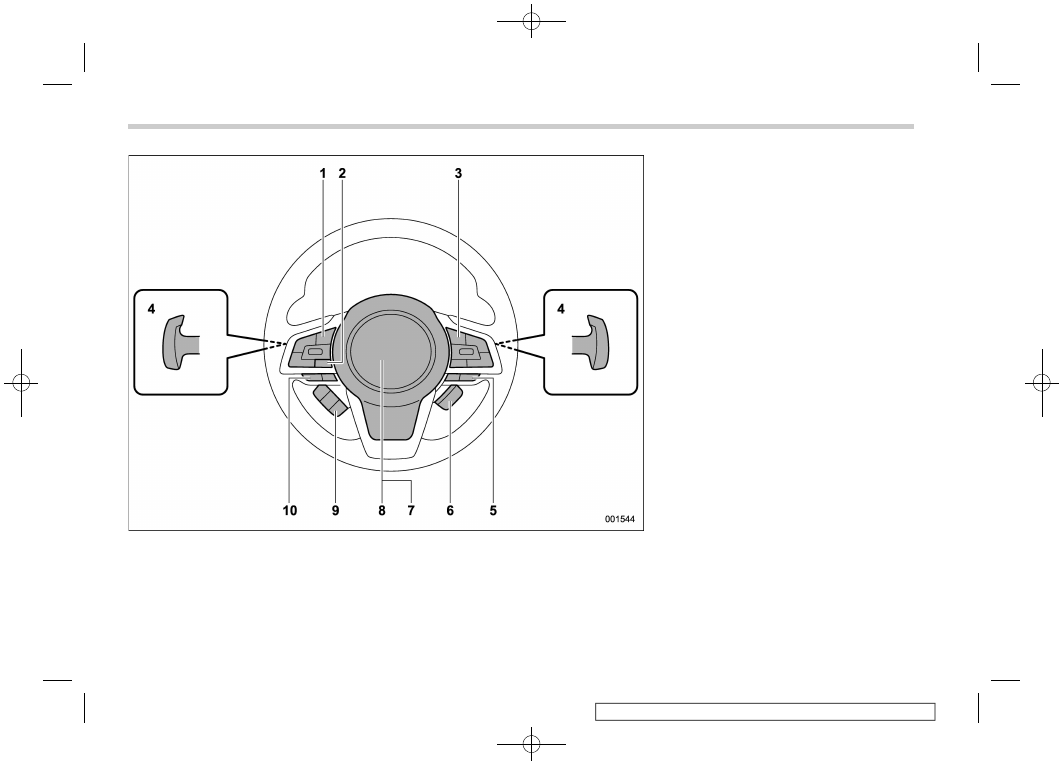

1)

Audio control switches*

2)

INFO button for type A multi-function
display (black and white) (page 198)/
INFO button for type B multi-function
display (color LCD) (page 205)

3)

Cruise control switches (page 346)

4)

Shift paddle (page 312)

5)

SI-DRIVE switches (page 318)

6)

Heated Steering Wheel switch (page
252)

7)

SRS airbag (page 73)

8)

Horn (page 253)

9)

Combination meter display control
switches (page 189)

10) Talk switch for voice command system*/

Hands-free phone switches*

*: For details about how to use the

switches, refer to the separate naviga-
tion/audio Owner’s Manual.

NOTE

For models with EyeSight system:
Refer to the Owner’s Manual supple-
ment for the EyeSight system.

18

-------------------------------------------------------------------------------------------------------------------------------------------------------------
