BR-8

General Description

BRAKE

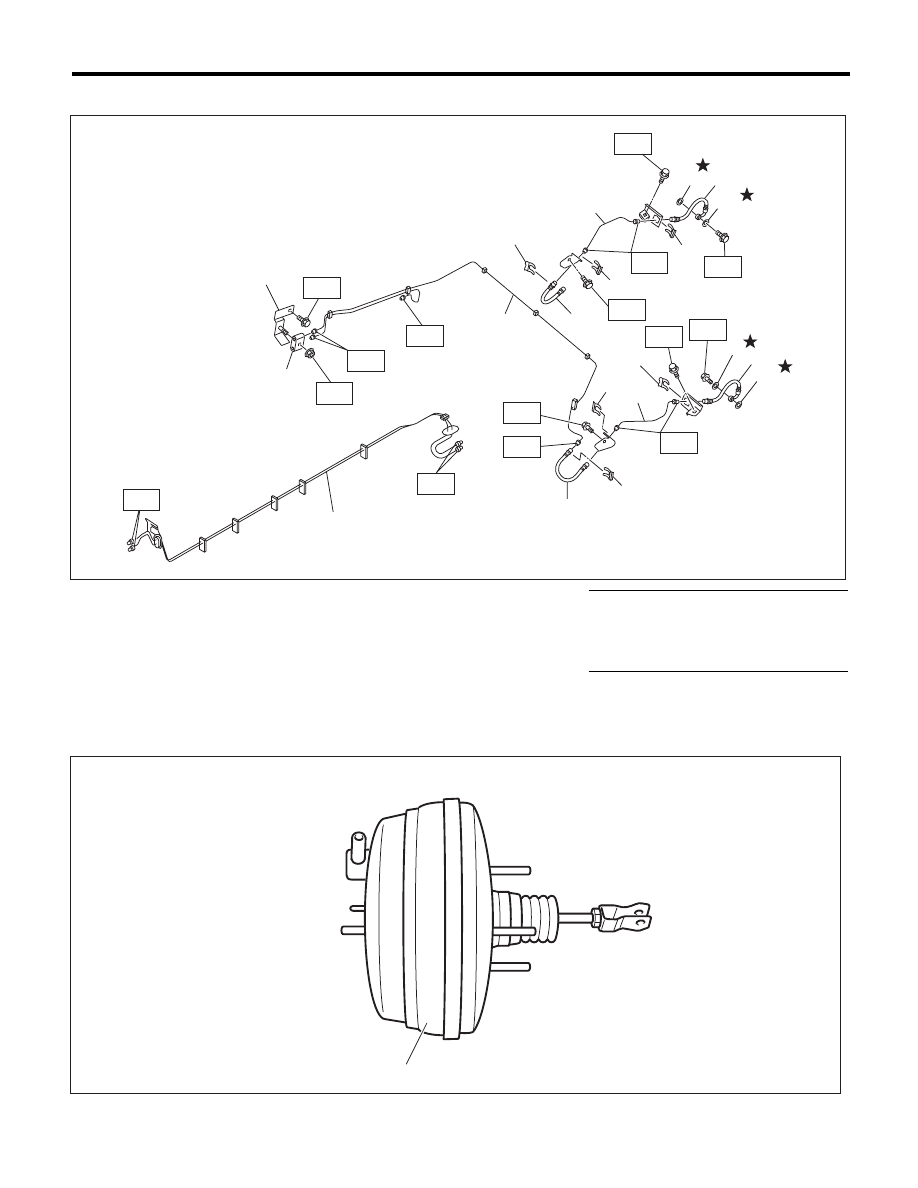

5. CENTER AND REAR BRAKE PIPES AND HOSES

6. BRAKE BOOSTER

(1)

Center brake pipe ASSY

(7)

Rear brake pipe LH

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Two-way connector

(8)

Rear brake hose rear RH

T1: 15 (1.5, 10.8)

(3)

Rear brake pipe ASSY

(9)

Rear brake hose rear LH

T2: 18 (1.8, 13.0)

(4)

Rear brake hose RH

(10)

Clamp

T3: 33 (3.4, 24.3)

(5)

Rear brake hose LH

(11)

Gasket





(6)

Rear brake pipe RH

(12)

Bracket





(1)

Brake

booster





BR-00337

(1)

T1

T1

T2

T1

T2

T3

T1

T3

T3

T3

T1

T2

T2

T1

(2)

(3)

(5)

(7)

(9)

(4)

(6)

(8)

(10)

(10)

(10)

(10)

(10)

(11)

(11)

(11)

(11)

(10)

T1

(12)

(1)

BR-00600

BR-9

General Description

BRAKE

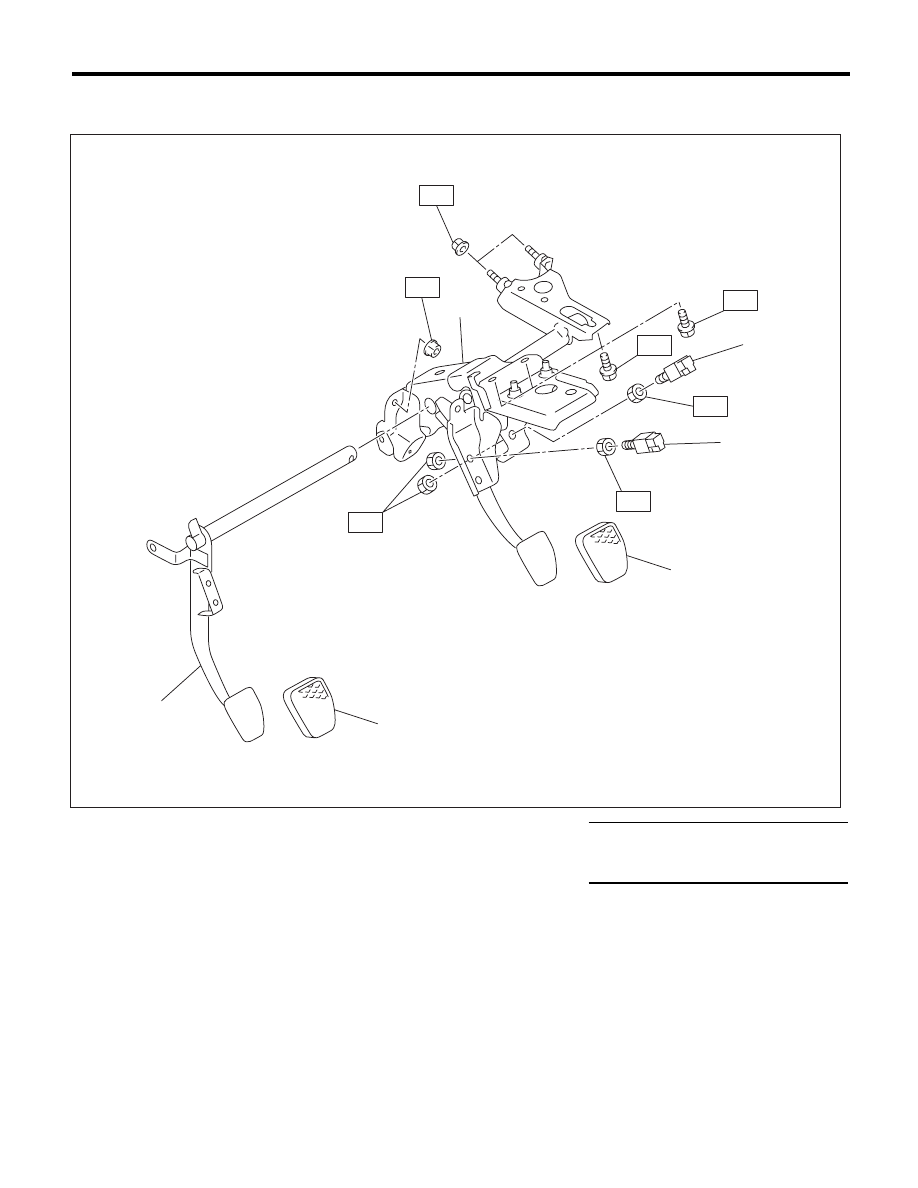

7. BRAKE PEDAL

• MT  model

(1)

Brake pedal ASSY

(4)

Clutch pedal

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Stop light switch

(5)

Clutch pedal pad

T1: 8 (0.8, 5.8)

(3)

Brake pedal pad

(6)

Clutch switch

T2: 18 (1.8, 13.0)

T2

(5)

(4)

(3)

(2)

(6)

(1)

T2

T2

T1

T1

T2

T1

BR-00595

BR-10

General Description

BRAKE

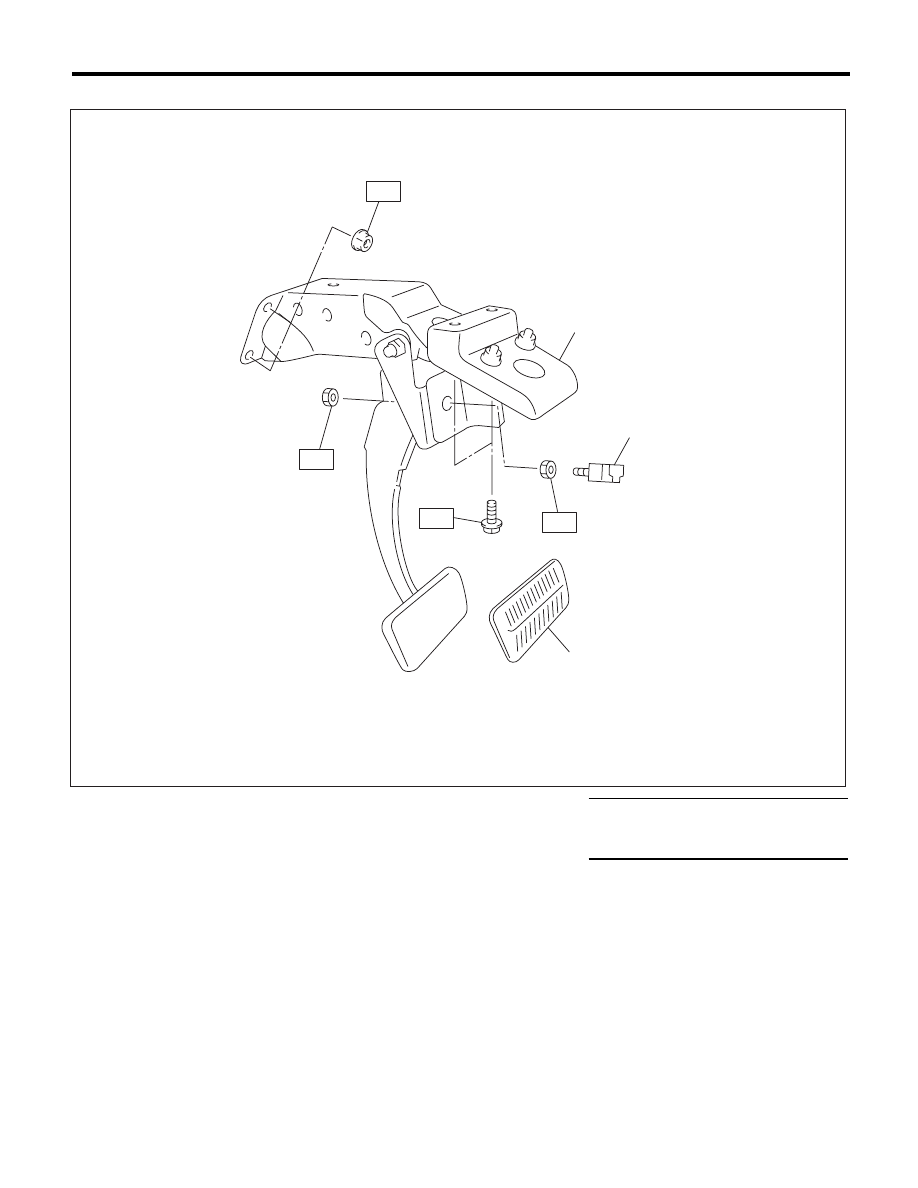

• AT model

(1)

Brake pedal ASSY

(3)

Brake pedal pad

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Stop light switch





T1: 8 (0.8, 5.8)









T2: 18 (1.8, 13.0)

BR-00338

T2

T1

T2

T1

(1)

(2)

(3)

BR-11

General Description

BRAKE

C: CAUTION

• Wear appropriate work clothing, including a cap,
protective goggles and protective shoes when per-
forming any work.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Use SUBARU genuine grease etc. or equivalent.
Do not mix grease etc. of different grades or man-
ufacturers.
• Before securing a part in a vise, place cushioning
material such as wood blocks, aluminum plate or
cloth between the part and the vise.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.

D: PREPARATION TOOL

1. GENERAL TOOL

TOOL NAME

REMARKS

Snap ring pliers

Used for removing and installing snap rings.
