DS-29

Rear Drive Shaft

DRIVE SHAFT SYSTEM

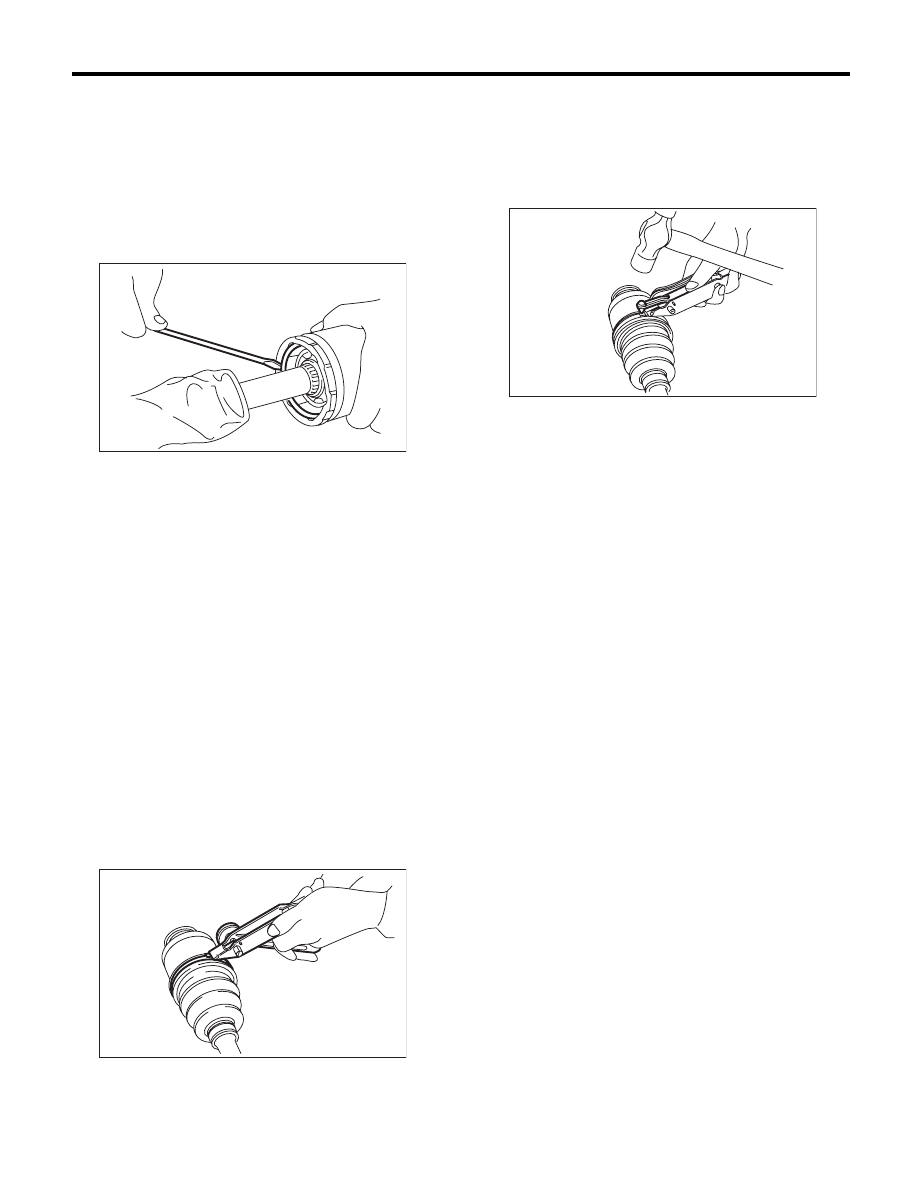

10) Install the snap ring in the groove on the DOJ
outer race.

NOTE:
• Assure that the balls, cage and inner race are
completely fitted in the outer race of DOJ.
• Use care not to place the matched position of
snap ring in the ball groove of outer race.
• Pull the shaft lightly and assure that the snap ring
is completely fitted in the groove.

11) Apply an even coat of the specified grease [20
to 30 g (0.71 to 1.06 oz)] to the entire inner surface
of boot. Also apply grease to the shaft.
12) Install the DOJ boot taking care not to twist it.

NOTE:
• The inside of the large end of DOJ boot and the
boot groove shall be cleaned so as to be free from
grease and other substances.
• When installing the DOJ boot, position the outer
race of DOJ at center of the stroke.
13) Put a new band through the clip and wind twice
in the band groove of the boot.
14) Pinch the end of band with pliers. Hold the clip
and tighten securely.

NOTE:
When tightening boot, use care so that the air with-
in the boot is appropriate.
15) Tighten the band using the ST.
ST

925091000

BAND TIGHTENING TOOL

NOTE:
Tighten the band until it cannot be moved by hand.

16) Tap the clip with the punch provided at the end
of the ST.
ST

925091000

BAND TIGHTENING TOOL

NOTE:
Tap to an extent that the boot underneath is not
damaged.

17) Cut off the band with an allowance of about 10
mm (0.39 in) left from the clip and bend this allow-
ance over the clip.

NOTE:
Be careful so that the end of the band is in close
contact with clip.
18) Install the BJ boot or EBJ boot in the same pro-
cedure as a DOJ boot.
19) Extend and retract the DOJ repeatedly to pro-
vide an equal coating of grease.

E: INSPECTION

Check the removed parts for damage, wear, corro-
sion etc. Repair or replace if defective.
• DOJ (Double Offset Joint)
Check for seizure, corrosion, damage, wear and
excessive play.
• EBJ (High-efficiency Compact Ball Fixed Joint)
Check for seizure, corrosion, damage, wear and
excessive play.
• Shaft
Check for excessive bending, twisting, damage
and wear.
• BJ (Bell Joint)
Check for seizure, corrosion, damage and exces-
sive play.
• Boot
Check for wear, warping, breakage and scratches.
• Grease
Check for discoloration and fluidity.

DS-00125

DS-00132

DS-00133

DS-30

General Diagnostic Table

DRIVE SHAFT SYSTEM

8. General Diagnostic Table

A: INSPECTION

NOTE:
Vibration while cruising may be caused by an unbalanced tire, improper tire inflation pressure, improper
wheel alignment, etc.

Symptom

Possible cause

Corrective action

Noise or vibration from propeller shaft

Center bearing

Check the center bearing. <Ref. to DS-12, CEN-
TER BEARING FREE PLAY, INSPECTION, Pro-
peller Shaft.>

Runout of propeller shaft

Check for deflection of the propeller shaft. <Ref.
to DS-12, RUNOUT OF PROPELLER SHAFT,
INSPECTION, Propeller Shaft.>

Loose or gap at connections

Check the joints and connectors. <Ref. to DS-12,
JOINTS AND CONNECTIONS, INSPECTION,
Propeller Shaft.>

Check the spline and bearing. <Ref. to DS-12,
SPLINES AND BEARING, INSPECTION, Pro-
peller Shaft.>

Abnormal wheel vibration

Wheel is out of balance.

Check the wheel balance. <Ref. to WT-8,
ADJUSTMENT, Wheel Balancing.>

Front wheel alignment

Check the front wheel alignment. <Ref. to FS-6,
INSPECTION, Wheel Alignment.>

Rear wheel alignment

Check the rear wheel alignment. <Ref. to RS-7,
INSPECTION, Wheel Alignment.>

Front strut

Check the front strut. <Ref. to FS-23, INSPEC-
TION, Front Strut.>

Rear shock absorber

Check the rear shock absorber. <Ref. to RS-16,
INSPECTION, Rear Shock Absorber.>

Front drive shaft

Check the front drive shaft. <Ref. to DS-25,
INSPECTION, Front Drive Shaft.>

Rear drive shaft

Check the rear drive shaft. <Ref. to DS-29,
INSPECTION, Rear Drive Shaft.>

Front hub unit bearing

Check the front hub unit bearing. <Ref. to DS-18,
INSPECTION, Front Hub Unit Bearing.>

Rear hub unit bearing

Check the rear hub unit bearing. <Ref. to DS-21,
INSPECTION, Rear Hub Unit Bearing.>

Noise from the underbody

Wheel is out of balance.

Check the wheel balance. <Ref. to WT-8,
ADJUSTMENT, Wheel Balancing.>

Front wheel alignment

Check the front wheel alignment. <Ref. to FS-6,
INSPECTION, Wheel Alignment.>

Rear wheel alignment

Check the rear wheel alignment. <Ref. to RS-7,
INSPECTION, Wheel Alignment.>

Front strut

Check the front strut. <Ref. to FS-23, INSPEC-
TION, Front Strut.>

Rear shock absorber

Check the rear shock absorber. <Ref. to RS-16,
INSPECTION, Rear Shock Absorber.>

ABS-2

General Description

ABS

1. General Description

A: SPECIFICATION

Item

Specification or identification

ABS wheel speed sensor

ABS wheel speed sensor gap
(for reference)

Front

0.77 — 1.43 mm (0.030 — 0.056 in)

Rear

0.64 — 1.56 mm (0.025 — 0.061 in)

Identifications of harness
(marks, color)

Front

RH

K1 (White)

LH

K2 (Yellow)

Rear

RH

K5 (White)

LH

K6 (Yellow)

G sensor

G sensor voltage

2.3

r0.2 V

ABSCM&H/U identification

AT (Except for OUTBACK)

JG

MT (Except for OUTBACK)

JH

AT (OUTBACK)

JK

MT (OUTBACK)

JM

ABS-3

General Description

ABS

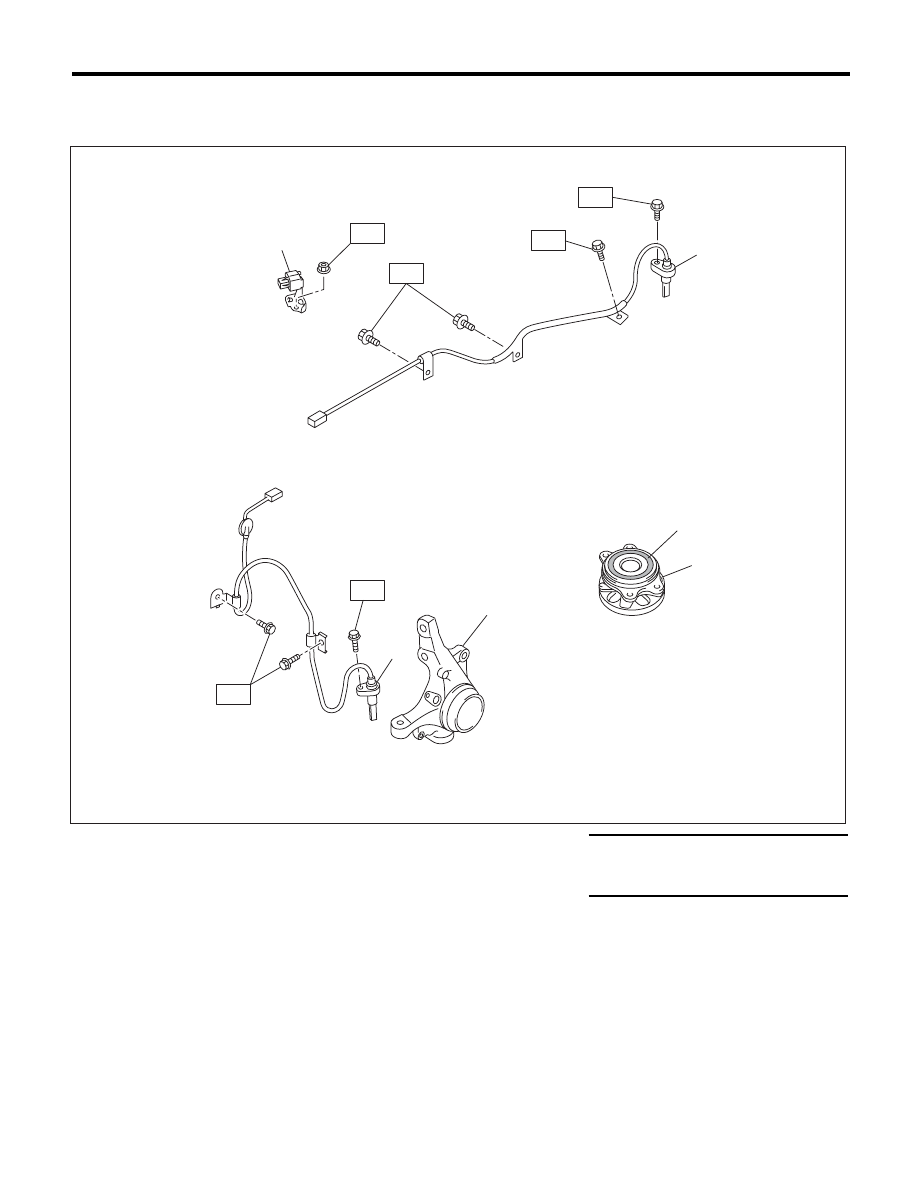

B: COMPONENT

1. ABS WHEEL SPEED SENSOR

(1)

G sensor

(4)

Rear ABS wheel speed sensor LH Tightening torque:N·m (kgf-m, ft-lb)

(2)

Front ABS wheel speed sensor LH

(5)

Hub unit bearing

T1: 7.5 (0.76, 5.5)

(3)

Front housing

(6)

Magnetic encoder

T2: 33 (3.3, 24)

T1

ABS00380

T2

T1

(1)

(5)

(4)

(3)

(2)

T2

T1

(6)

T2
