General Description

DRIVE SHAFT SYSTEM

1. General Description

A: SPECIFICATION

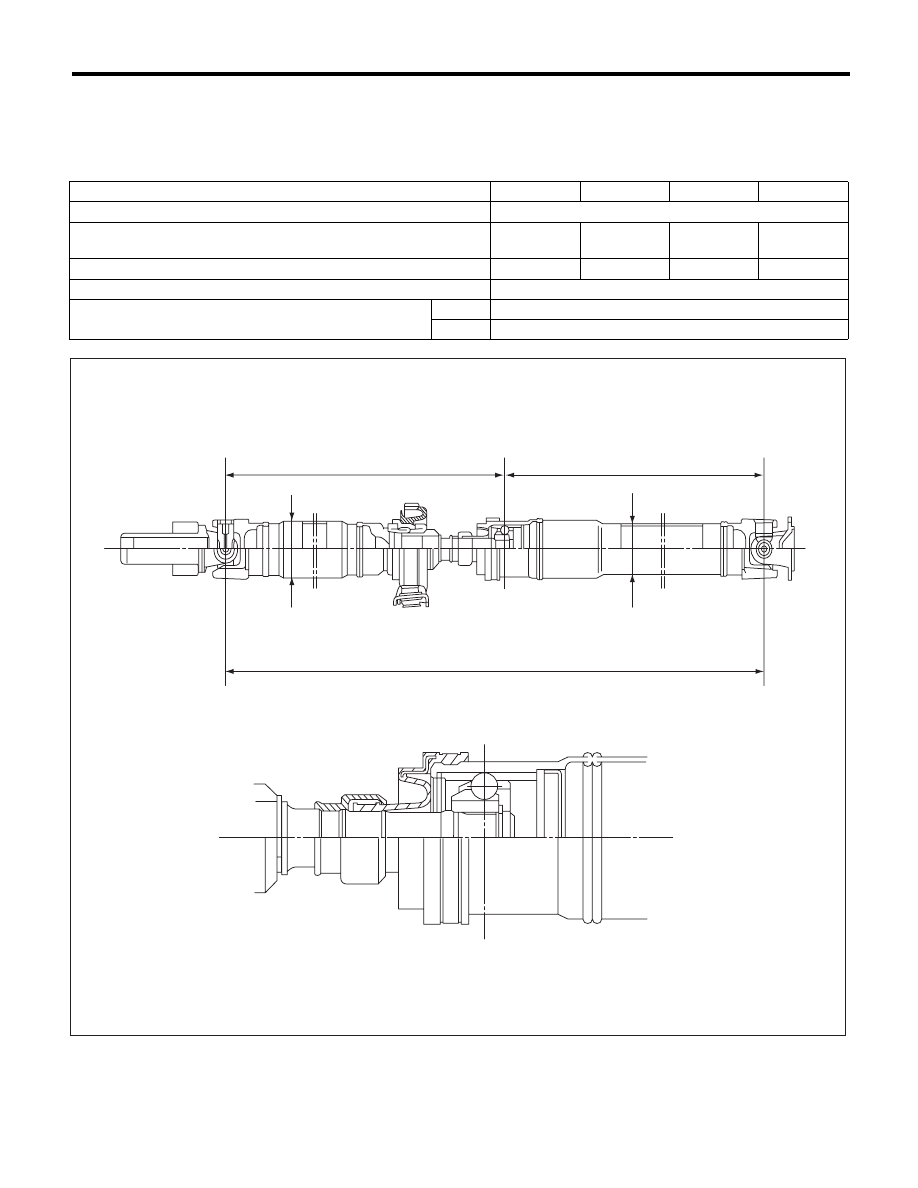

1. PROPELLER SHAFT

Model

5MT

6MT

4AT

5AT

Propeller shaft type

EDJ

Propeller shaft length: L

mm (in)

1,483

(58.39)

1,423

(56.02)

1,423

(56.02)

1,310

(51.57)

Front propeller shaft Joint-to-joint length: L

1

mm (in)

735 (28.9)

675 (26.6)

675 (26.6)

562 (22.1)

Rear propeller shaft Joint-to-Joint length: L

2

mm (in)

748 (29.4)

Outer diameter of tube:

mm (in)

D

1

63.5 (2.50)

D

2

57.5 (2.26)

DS-00226

D1

D2

L

L1

L2

DS-3

General Description

DRIVE SHAFT SYSTEM

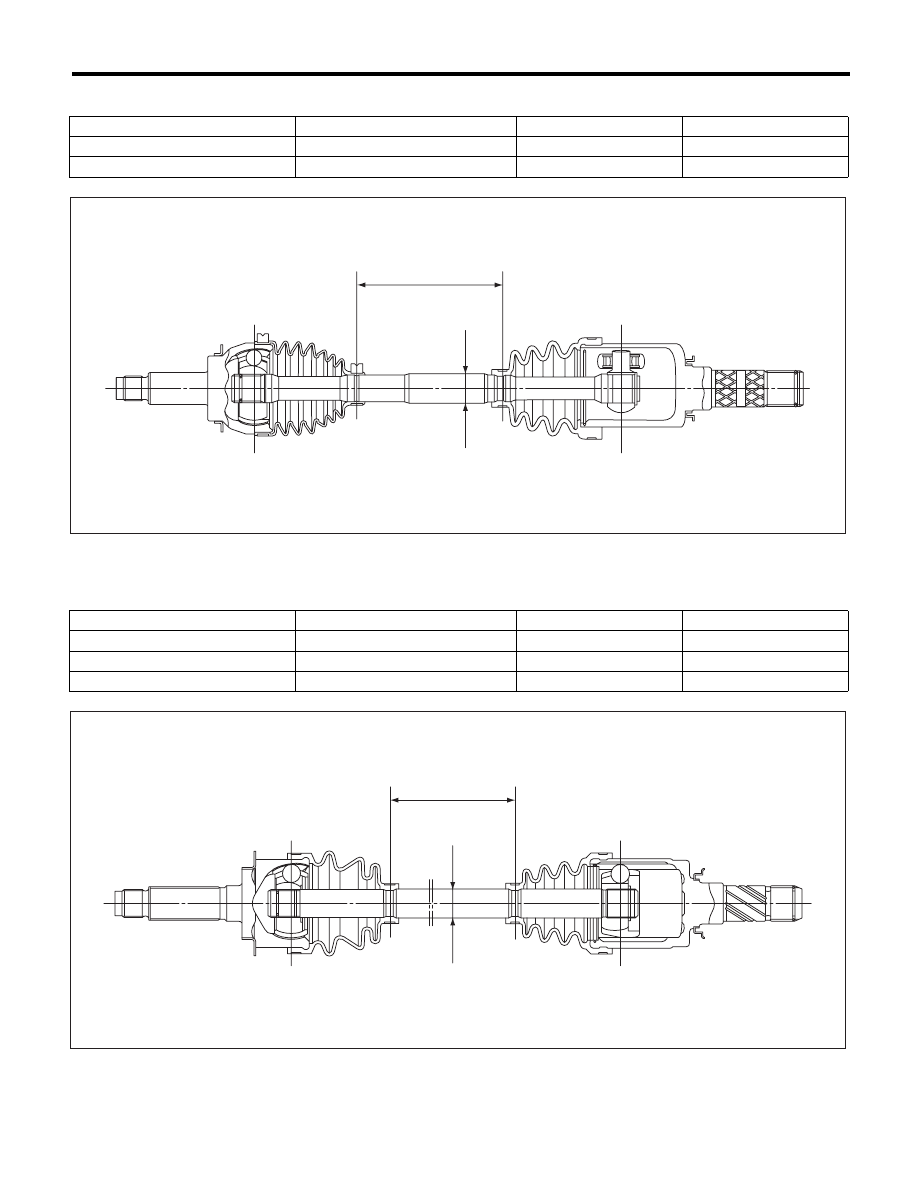

2. FRONT DRIVE SHAFT ASSEMBLY

3. REAR DRIVE SHAFT ASSEMBLY

Model

Type of drive shaft

Axle diameter

I D mm (in)

Axle length L mm (in)

Turbo 5MT, 6MT

EBJ + PTJ

26 (1.0)

332.5 (13.09)

Other than above

EBJ + PTJ

26 (1.0)

349.6 (13.76)

(A)

Axle diameter

(B)

Axle length





Model

Type of drive shaft

Axle diameter

I D mm (in)

Axle length L mm (in)

2.5 i AT

BJ + DOJ

22 (0.87)

382 (15.04)

6MT

EBJ + DOJ

22 (0.87)

331.8 (13.06)

Other than above

EBJ + DOJ

22 (0.87)

375.1 (14.77)

(A)

Axle diameter

(B)

Axle length





DS-00227

(B)

(A)

DS-00228

(A)

(B)

DS-4

General Description

DRIVE SHAFT SYSTEM

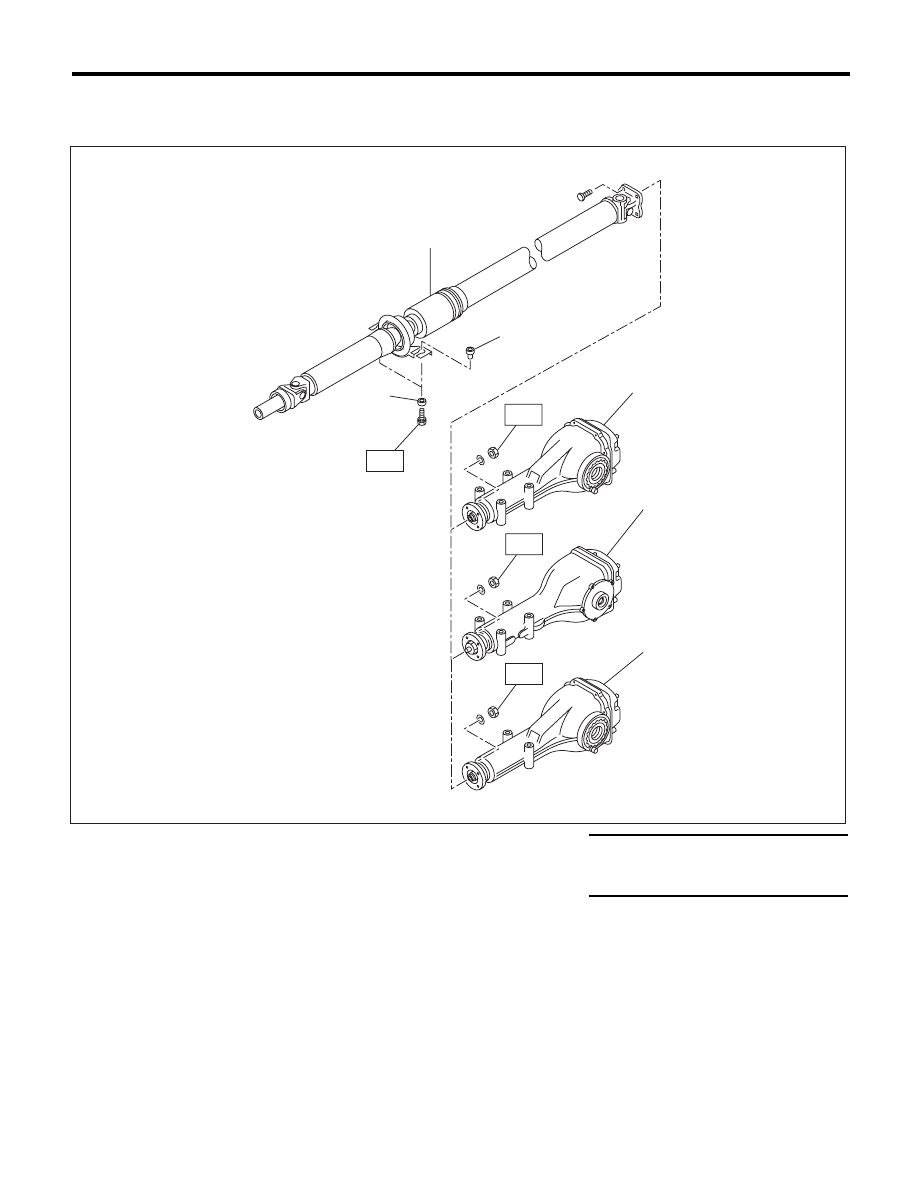

B: COMPONENT

1. PROPELLER SHAFT

(1)

Propeller shaft

(4)

Rear differential (T-type)

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Bushing

(5)

Rear differential (VA2-type)

T1: 31 (3.2, 23.1)

(3)

Rear differential (VA1-type)





T2: 52 (5.3, 38.3)

DS-00229

(2)

(2)

T2

(1)

(3)

T1

T1

(4)

(5)

T1
