WT-3

General Description

WHEEL AND TIRE SYSTEM

3. ADJUSTING PARTS

Wheel balancing

Standard:

Service limit

Dynamic unbalance

10 g (0.35 oz) or less

Balance weight part number

(Knock-on type weight for steel wheels)

Weight

28101AA001

5 g (0.18 oz)

28101AA011

10 g (0.35 oz)

28101AA021

15 g (0.53 oz)

28101AA031

20 g (0.71 oz)

28101AA041

25 g (0.88 oz)

28101AA051

30 g (1.06 oz)

28101AA061

35 g (1.23 oz)

28101AA071

40 g (1.41 oz)

28101AA081

45 g (1.59 oz)

28101AA091

50 g (1.76 oz)

28101AA101

55 g (1.94 oz)

28101AA111

60 g (2.12 oz)

Balance weight part number

(Knock-on type weight for aluminum wheel)

Weight

28101SA000

5 g (0.18 oz)

28101SA010

10 g (0.35 oz)

28101SA020

15 g (0.53 oz)

28101SA030

20 g (0.71 oz)

28101SA040

25 g (0.88 oz)

28101SA100

30 g (1.06 oz)

28101SA110

35 g (1.23 oz)

28101SA120

40 g (1.41 oz)

28101SA130

45 g (1.59 oz)

28101SA140

50 g (1.76 oz)

28101XA000

55 g (1.94 oz)

28101SA150

60 g (2.12 oz)

Balance weight part number

(Adhesive type weight for aluminum wheel)

Weight

28101AE00B

5 g (0.18 oz)

28101AE01B

7.5 g (0.26 oz)

28101AE02B

10 g (0.35 oz)

28101AE03B

12.5 g (0.44 oz)

28101AE04B

15 g (0.53 oz)

28101AE05B

17.5 g (0.62 oz)

28101AE06B

20 g (0.71 oz)

28101AE07B

22.5 g (0.79 oz)

28101AE08B

25 g (0.88 oz)

28101AE09B

27.5 g (0.97 oz)

28101AE10B

30 g (1.06 oz)

28101AE11B

32.5 g (1.15 oz)

28101AE12B

35 g (1.23 oz)

28101AE13B

37.5 g (1.32 oz)

28101AE14B

40 g (1.41 oz)

28101AE15B

42.5 g (1.50 oz)

28101AE16B

45 g (1.59 oz)

28101AE17B

47.5 g (1.68 oz)

28101AE18B

50 g (1.76 oz)

28101AE19B

52.5 g (1.85 oz)

28101AE20B

55 g (1.94 oz)

28101AE21B

57.5 g (2.03 oz)

28101AE22B

60 g (2.12 oz)

28101AE23B

62.5 g (2.20 oz)

28101AE24B

65 g (2.29 oz)

28101AE25B

67.5 g (2.38 oz)

28101AE26B

70 g (2.47 oz)

28101AE27B

72.5 g (2.56 oz)

28101AE28B

75 g (2.65 oz)

28101AE29B

77.5 g (2.73 oz)

28101AE30B

80 g (2.82 oz)

28101AE31B

82.5 g (2.91 oz)

28101AE32B

85 g (3.00 oz)

28101AE33B

87.5 g (3.09 oz)

28101AE34B

90 g (3.17 oz)

28101AE35B

92.5 g (3.26 oz)

28101AE36B

95 g (3.35 oz)

28101AE37B

97.5 g (3.44 oz)

28101AE38B

100 g (3.53 oz)

28101AG50B

102.5 g (3.62 oz)

28101AG51B

105 g (3.70 oz)

28101AG52B

107.5 g (3.79 oz)

28101AG53B

110 g (3.88 oz)

28101AG54B

112.5 g (3.97 oz)

28101AG55B

115 g (4.06 oz)

28101AG56B

117.5 g (4.14 oz)

28101AG57B

120 g (4.23 oz)

WT-4

General Description

WHEEL AND TIRE SYSTEM

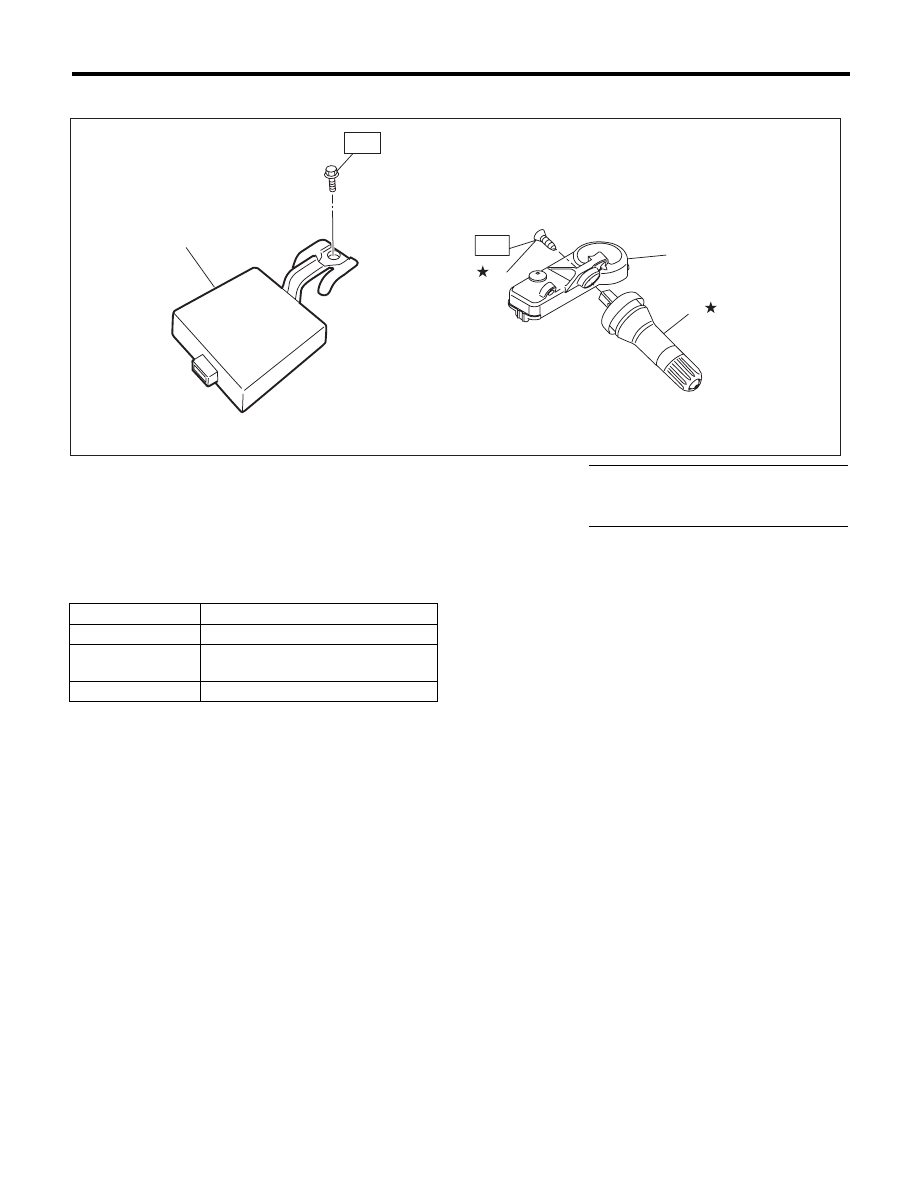

B: COMPONENT

C: PREPARATION TOOL

1. GENERAL TOOL

(1)

Tire pressure monitoring control
module

(3)

Transmitter (Snap in type)

Tightening torque:N·m (kgf-m, ft-lb)

(4)

Valve

T1: 1.4 (0.14, 1)

(2)

Screw



T2: 7.5 (0.76, 5.5)

WT-00131

(1)

T2

(3)

(4)

T1

(2)

TOOL NAME

REMARKS

Air pressure gauge

Used for measuring tire air pressure.

Dial gauge with
magnet stand

Used for measuring wheel runout.

Wheel balancer

Used for adjusting wheel balance.

WT-5

Tire

WHEEL AND TIRE SYSTEM

2. Tire

A: INSPECTION

1) Take stones, glass, nails etc. out of the tread
groove.
2) Replace tires in the following cases.

CAUTION:
• When replacing a tire, make sure to use only
tires of the same size, construction and load
range as originally installed.
• Use a tire changer when removing the tire
from the wheel.
• On models equipped with tire pressure mon-
itoring systems, do not use the bead breaker in
a 90° area centered on the transmitter to pre-
vent damaging the transmitter.

• To prevent damaging the transmitter, set the
tire changer boom in the position as shown in
the figure.

(1) If large cracks on side wall, damage or
cracks on the tread is found.

(2) When the “tread wear indicator” appears as
a solid band across the tread.

3) When a crack on tire valve is found, replace the
tire valve.

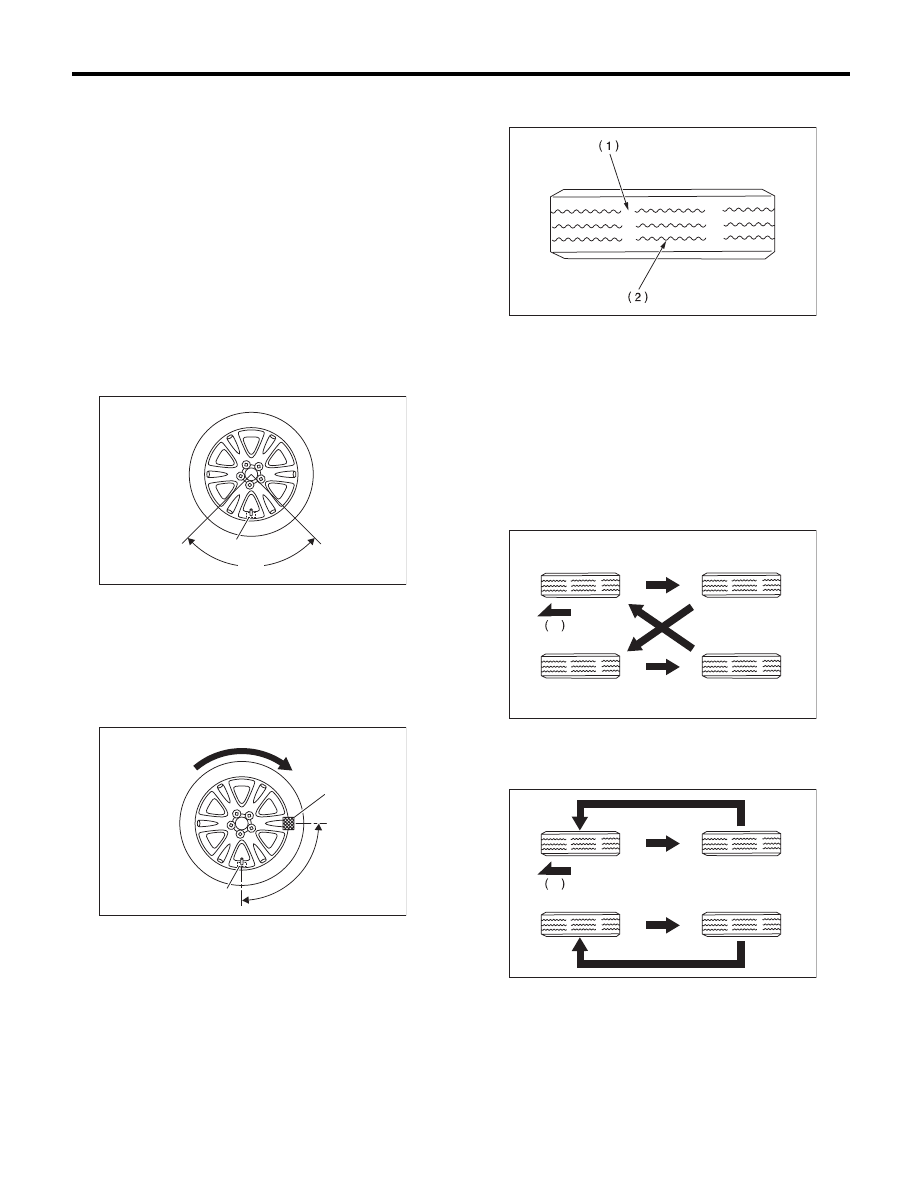

1. TIRE ROTATION

Rotate tires periodically (12,500 km/7,500 miles) as
shown in the figure, in order to prevent them from
uneven wear and to prolong their life.
• Without instruction for the direction of tire rotation

• When the direction of tire rotation is specified

(1) Transmitter

(2) 90°

(use of a bead breaker is prohibited in this area.)

(1) Transmitter

(2) Direction of turn table rotation

(3) 90°

(4) Tire changer boom

(1)

WT-00070

(2)

(1)

WT-00071

(3)

(4)

(2)

(1) Tread wear indicator

(2) Tire tread

(1) Front

(1) Front

WT-00002

WT-00113

1

WT-00115

1

WT-6

Tire

WHEEL AND TIRE SYSTEM

NOTE:
Vehicles equipped with tire pressure monitoring
systems will require re-registration of transmitter
ID. <Ref. to TPM(diag)-10, REGISTER TRANS-
MITTER ID, OPERATION, Subaru Select Moni-
tor.>
