Subaru Legacy IV (2008 year). Manual - part 801

6MT-17

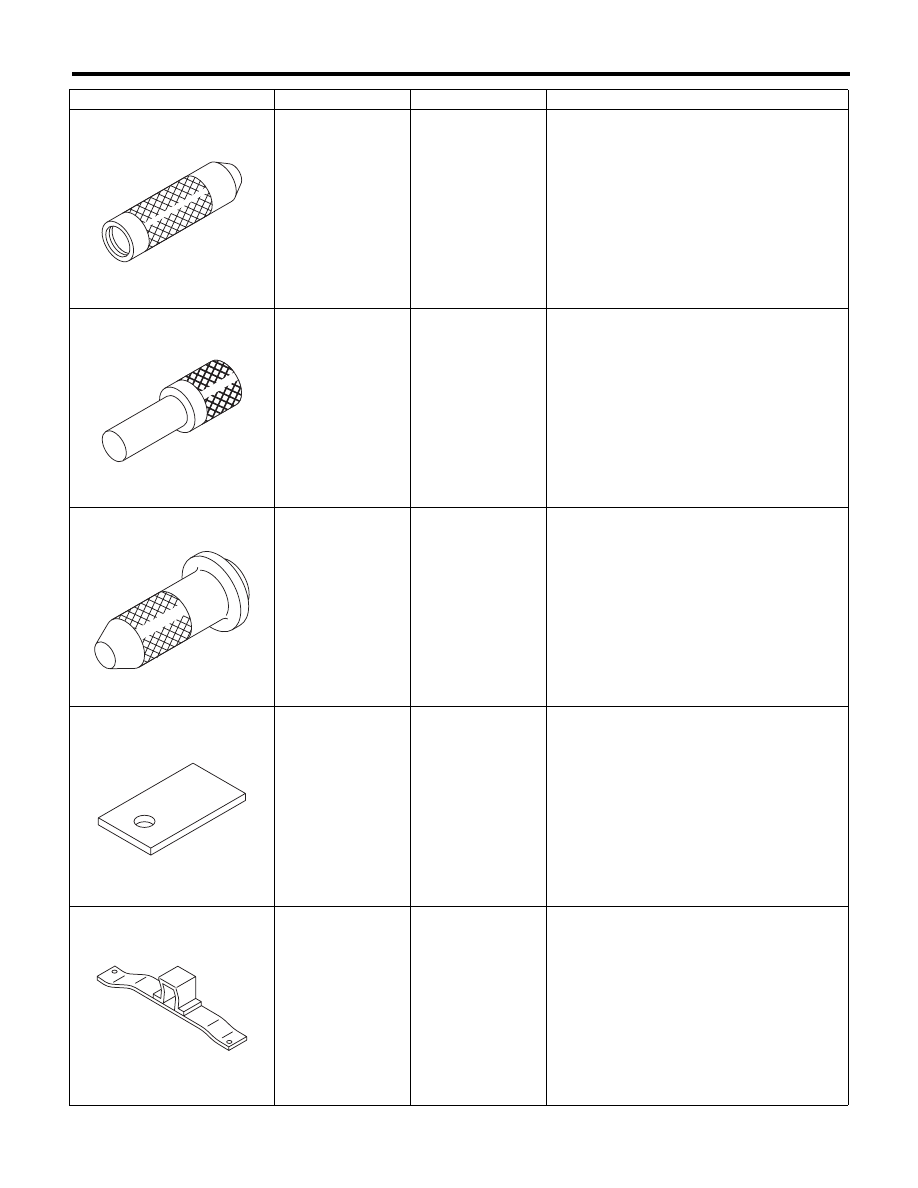

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

499877000

RACE 4-5
INSTALLER

Used for disassembling the driven shaft and
transfer driven gear.

899864100

REMOVER

Used for removing the transmission main shaft
and drive pinion parts.

498057300

INSTALLER

Used for installing the extension oil seal.

498255400

PLATE

Used for measuring backlash.

41099AA010

ENGINE SUPPORT
BRACKET

Used for supporting engine.

ILLUSTRATION

TOOL NUMBER

TOOL NAME

REMARKS

ST-499877000

ST-899864100

ST-498057300

ST-498255400

ST41099AA010

6MT-18

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

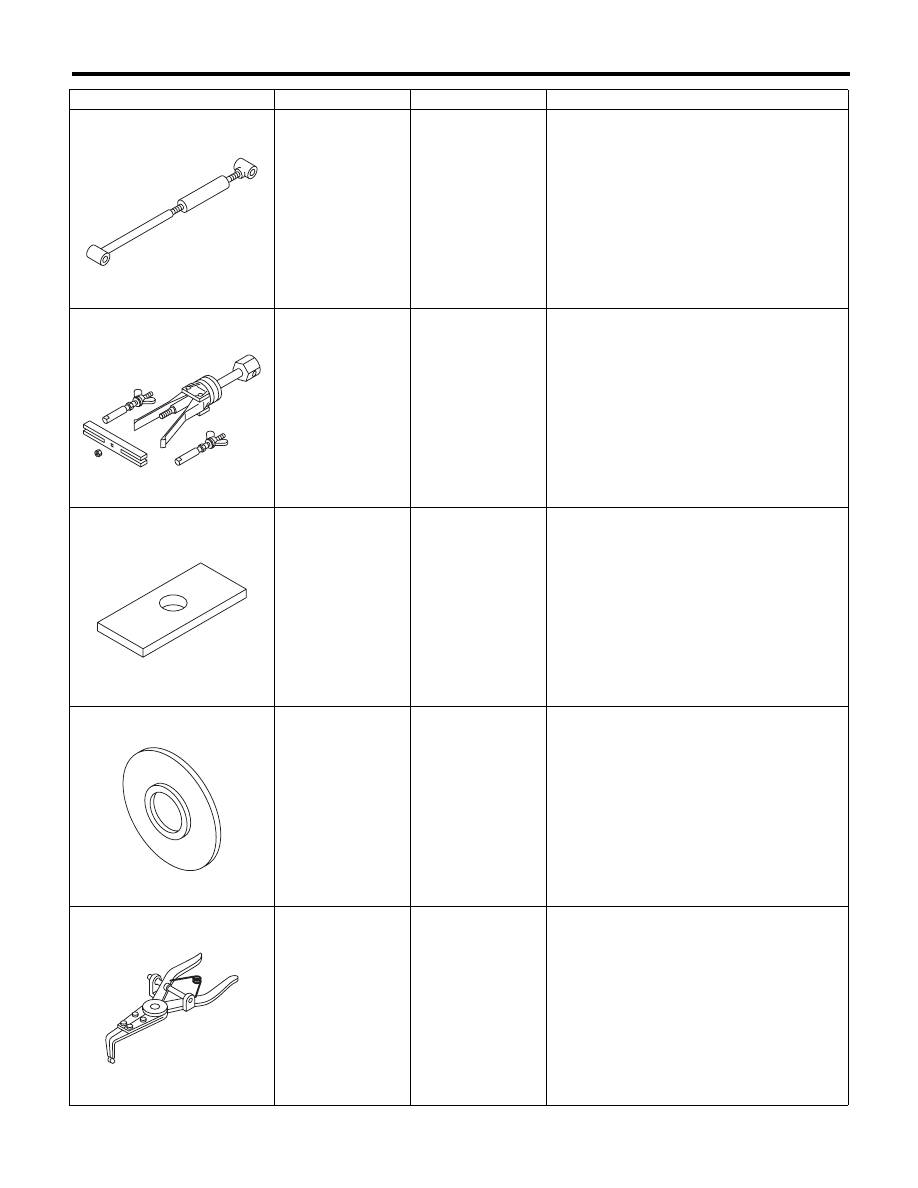

41099AA020

ENGINE SUPPORT

Used for supporting engine.

398527700

PULLER ASSY

Used for removing the extension case oil seal
and the front side retainer bearing outer race.

398643600

GAUGE

Used for measuring the total end play, extension
end play and drive pinion height.

398177700

INSTALLER

Used for assembling the main shaft.

399893600

PLIER

• Used for removing and installing the neutral
set spring.
• Used together with the CLAW (18756AA000).

ILLUSTRATION

TOOL NUMBER

TOOL NAME

REMARKS

ST41099AA020

ST-398527700

ST-398643600

ST-398177700

ST-399893600

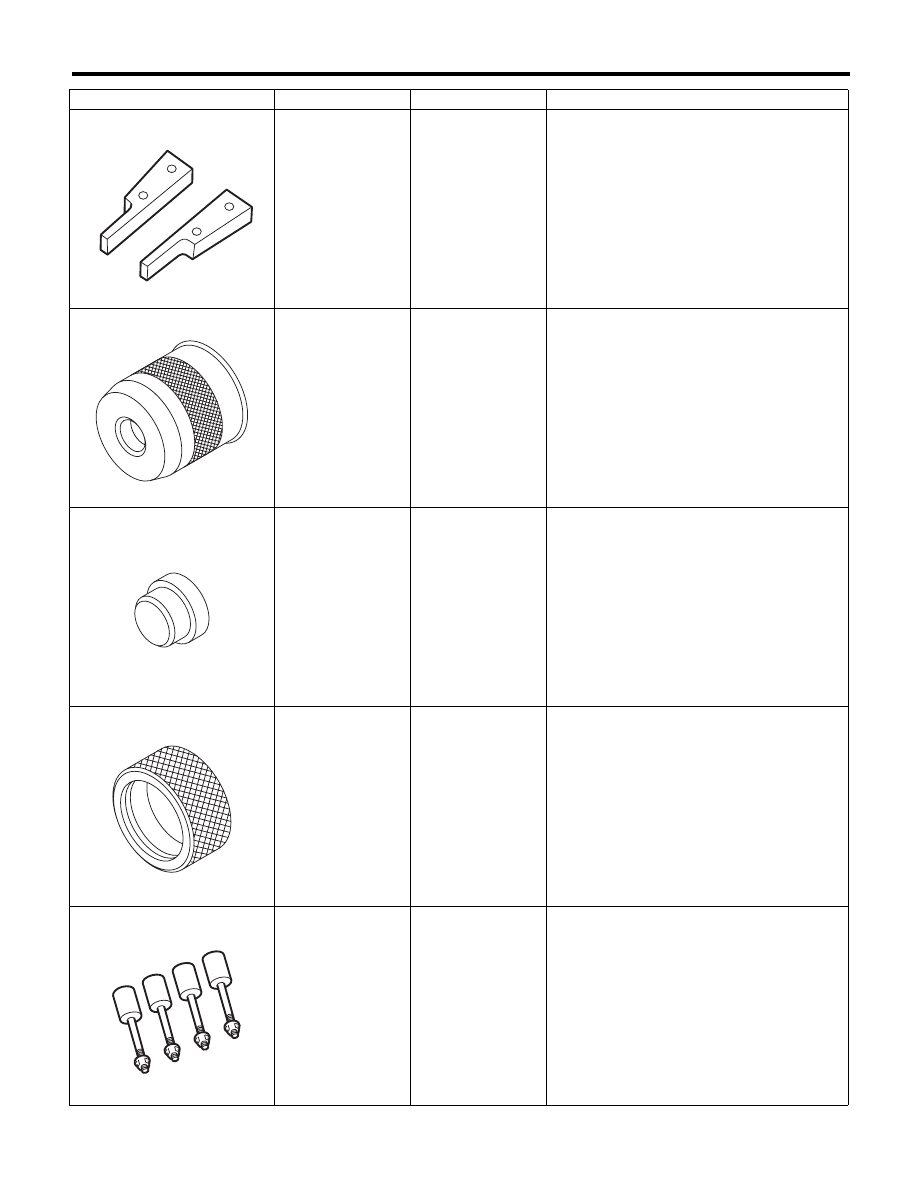

6MT-19

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

18756AA000

CLAW

• Used for removing and installing the neutral
set spring.
• Used together with PLIER (399893600).

499247400

INSTALLER

Used for installing the ball bearing of the transfer
drive gear.

398497701

SEAT

Used for installing the ball bearing of the transfer
drive gear.

398437700

INSTALLER

Used for installing the front differential side bear-
ing.

18632AA000

STAND ASSY

Used for disassembling and assembling the
transmission.

ILLUSTRATION

TOOL NUMBER

TOOL NAME

REMARKS

ST18756AA000

ST-499247400

ST-398497701

ST-398437700

ST18632AA000

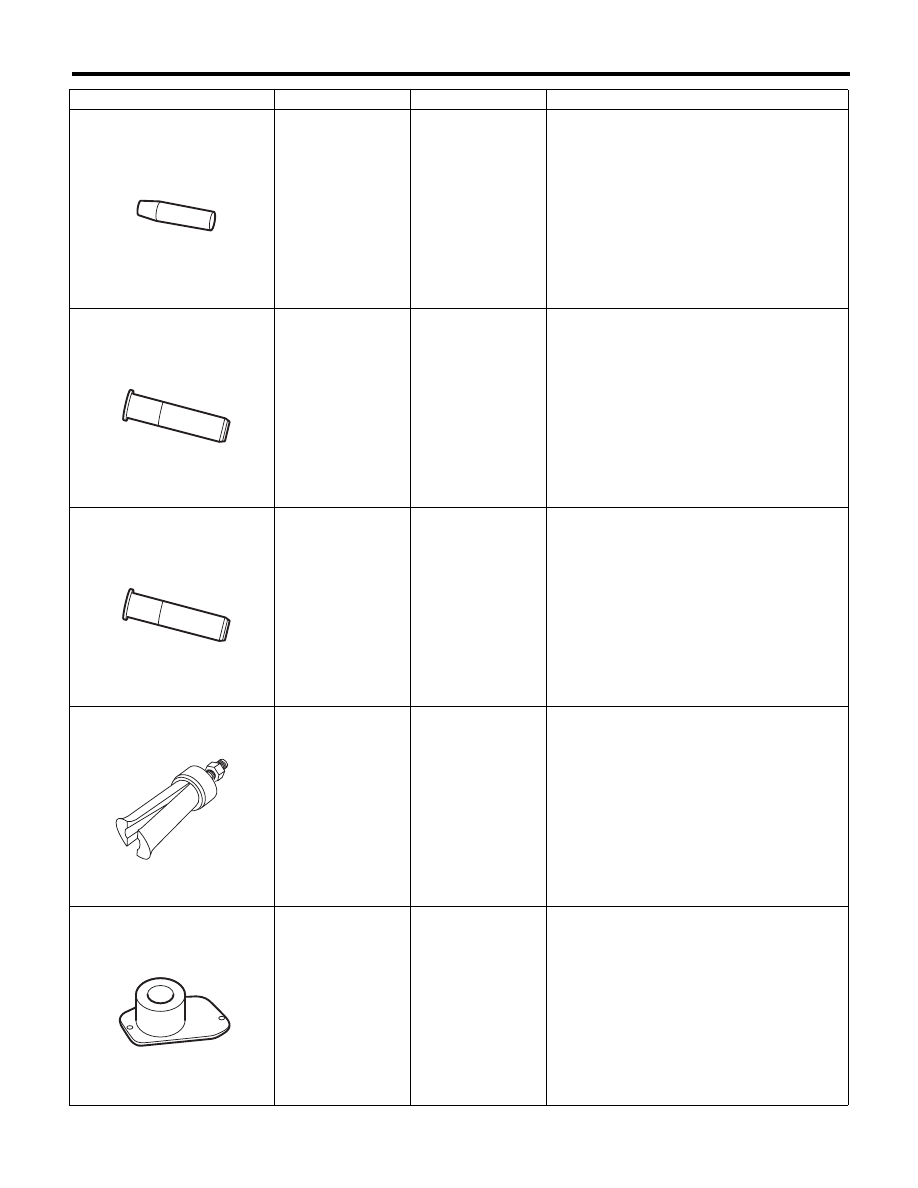

6MT-20

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

18671AA000

OIL SEAL GUIDE

• Used for installing the oil seal to the reverse
check.
• Used with INSTALLER (18657AA010).

18657AA010

INSTALLER

• Used for installing the oil seal to the reverse
check.
• Used with OIL SEAL GUIDE (18671AA000).

18657AA000

INSTALLER

Used for installing the oil seal to the shift rod.

18758AA000

PULLER

Used for removing the extension taper roller
bearing outer race.

18831AA000

GAUGE

Used for measuring the extension taper roller
bearing.

ILLUSTRATION

TOOL NUMBER

TOOL NAME

REMARKS

ST18671AA000

ST18657AA010

ST18657AA000

ST18758AA000

ST18831AA000
