General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

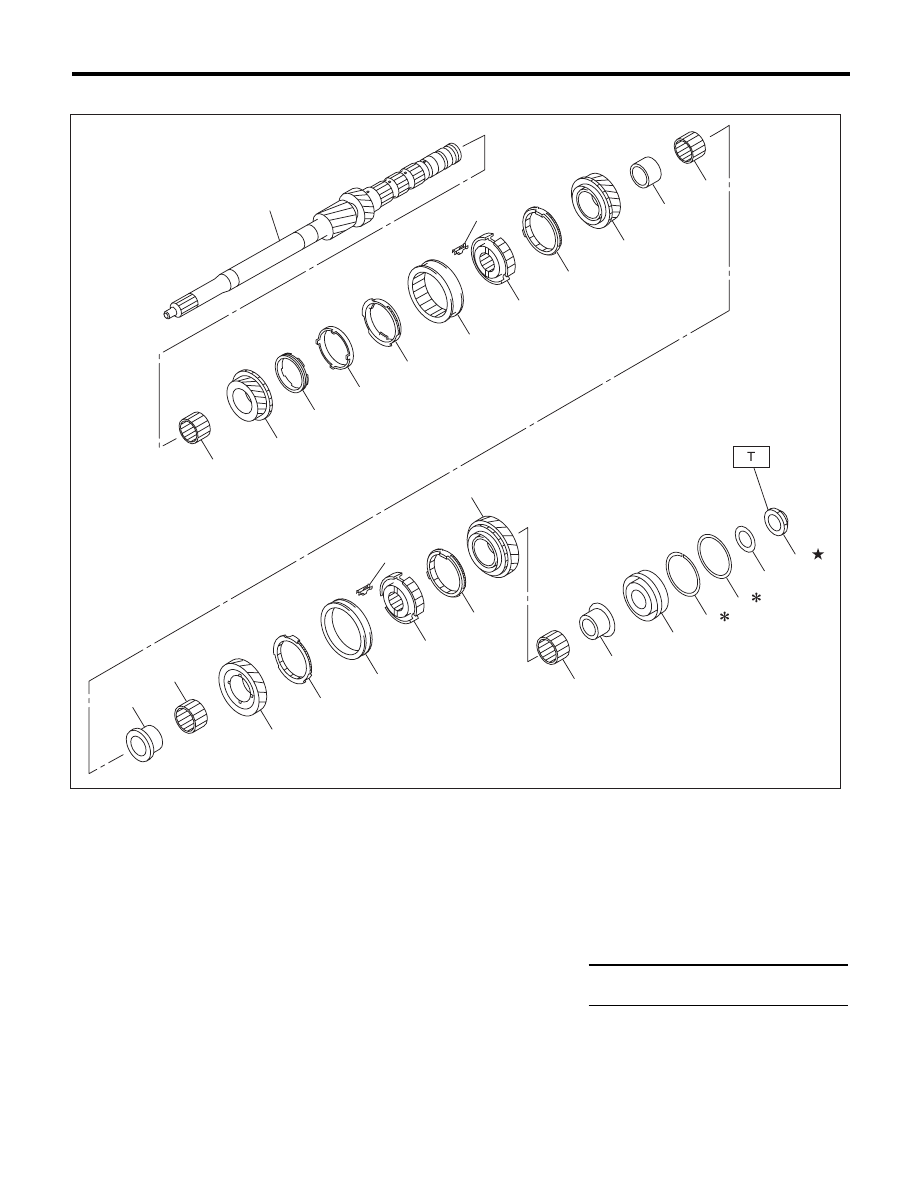

7. MAIN SHAFT ASSEMBLY

(1)

Main shaft

(12)

4th bushing

(23)

Needle bearing

(2)

Needle bearing

(13)

Needle bearing

(24)

6th bushing

(3)

3rd drive gear

(14)

5th bushing

(25)

Taper roller bearing

(4)

Inner baulk ring

(15)

Needle bearing

(26)

Snap ring

(5)

Synchro cone

(16)

5th drive gear

(27)

Washer

(6)

Outer baulk ring

(17)

5th baulk ring

(28)

Washer

(7)

3rd-4th sleeve

(18)

5th-6th sleeve

(29)

Lock nut

(8)

3rd-4th hub

(19)

5th-6th hub





(9)

Shifting insert

(20)

Shifting insert

Tightening torque:N·m (kgf-m, ft-lb)

(10)

4th baulk ring

(21)

6th baulk ring

T: 392 (40.0, 289.1)

(11)

4th gear

(22)

6th drive gear





MT-01499

(2)

(16)

(17)

(18)

(19)

(21)

(22)

(23)

(24)

(25)

(26)

(27)

(28)

(29)

(14)

(15)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(1)

(10)

(11)

(12)

(13)

(20)

6MT-10

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

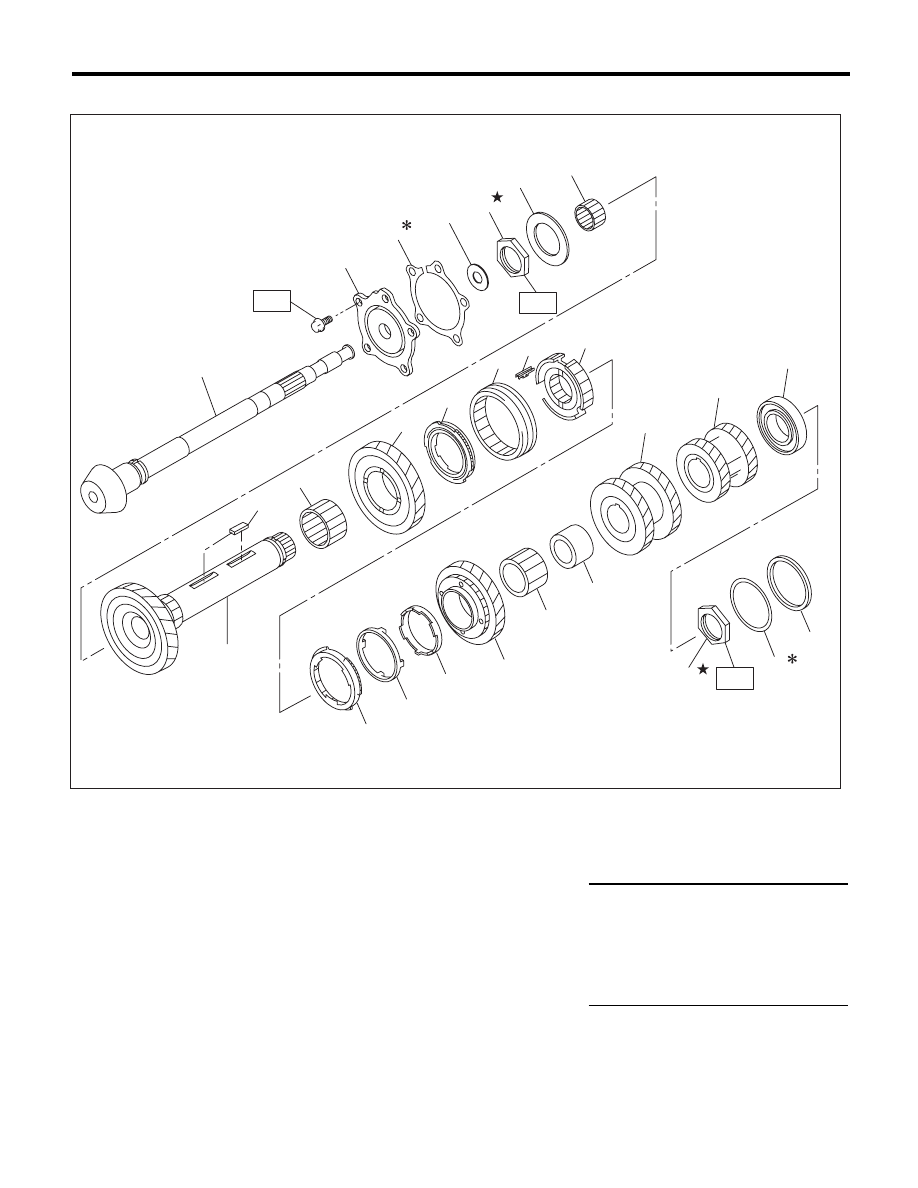

8. DRIVE PINION AND DRIVE SHAFT ASSEMBLY

(1)

Drive pinion shaft

(13)

1st-2nd sleeve

(25)

Lock nut

(2)

Taper roller bearing

(14)

Shifting insert

(26)

Shim

(3)

Shim

(15)

1st-2nd hub

(27)

Collar

(4)

Washer

(16)

Outer baulk ring





(5)

Lock nut

(17)

Synchro cone

Tightening torque:N·m (kgf-m, ft-lb)

(6)

Thrust bearing

(18)

Inner baulk ring

T1: 285 (29.1, 210.2)

(7)

Needle bearing

(19)

2nd driven gear



* 265 (27.0, 195.4)

(8)

Driven shaft

(20)

Needle bearing

T2: 570 (58.1, 420.4)

(9)

Key

(21)

2nd bushing



* 530 (54.0, 390.9)

(10)

Needle bearing

(22)

3rd-4th driven gear

T3: 54 (5.5, 39.8)

(11)

1st driven gear

(23)

5th-6th driven gear

* Tightening torque when using the ST

(12)

1st synchro ring ASSY

(24)

Ball bearing





MT-01498

(26)

(25)

(27)

(16)

(17)

(18)

(19)

(20)

(8)

(1)

(2)

(10)

(9)

(11)

(12)

(13)

(14)

(15)

(22)

(23)

(24)

(3)

(5)

(6)

(7)

T1

T2

(4)

(21)

T3

6MT-11

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

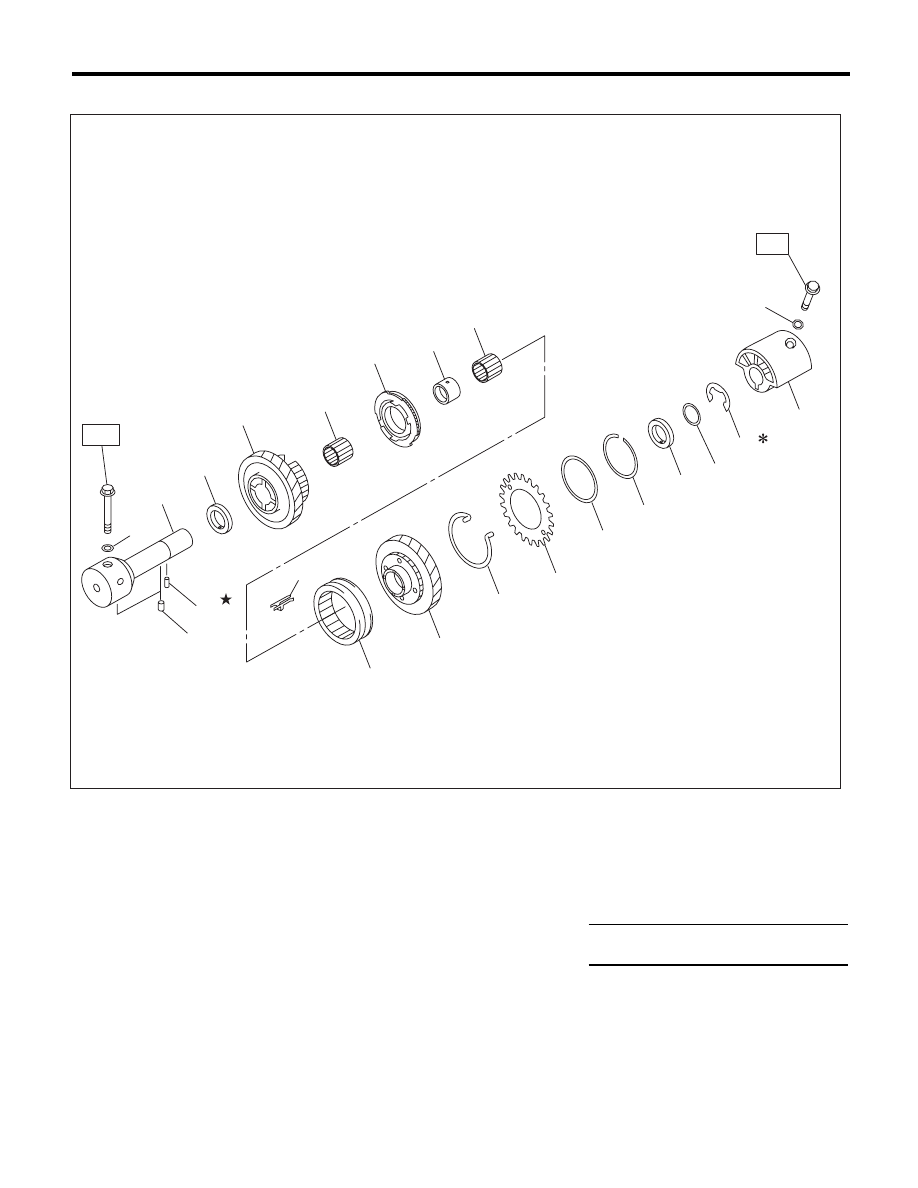

9. REVERSE IDLER GEAR ASSEMBLY

(1)

Base COMPL

(9)

Reverse coupling sleeve

(17)

Reverse idler holder

(2)

Counter high and low washer

(10)

Reverse idler gear

(18)

Spring pin

(3)

Reverse idler gear No. 2

(11)

Spring

(19)

Knock pin

(4)

Needle bearing

(12)

Sub gear

(20)

Washer

(5)

Reverse idler synchro set

(13)

Friction plate

(21)

Gasket

(6)

Reverse idler gear bushing

(14)

Snap ring





(7)

Needle bearing

(15)

Counter high and low washer

Tightening torque:N·m (kgf-m, ft-lb)

(8)

Shifting insert

(16)

Snap ring

T: 25 (2.5, 18.4)

MT-01500

(1)

(9)

(18)

(19)

(8)

(10)

(11)

(12)

(13)

(15)

(16)

(14)

(17)

(2)

(3)

(4)

(5)

(6)

(7)

T

T

(21)

(21)

(20)

6MT-12

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

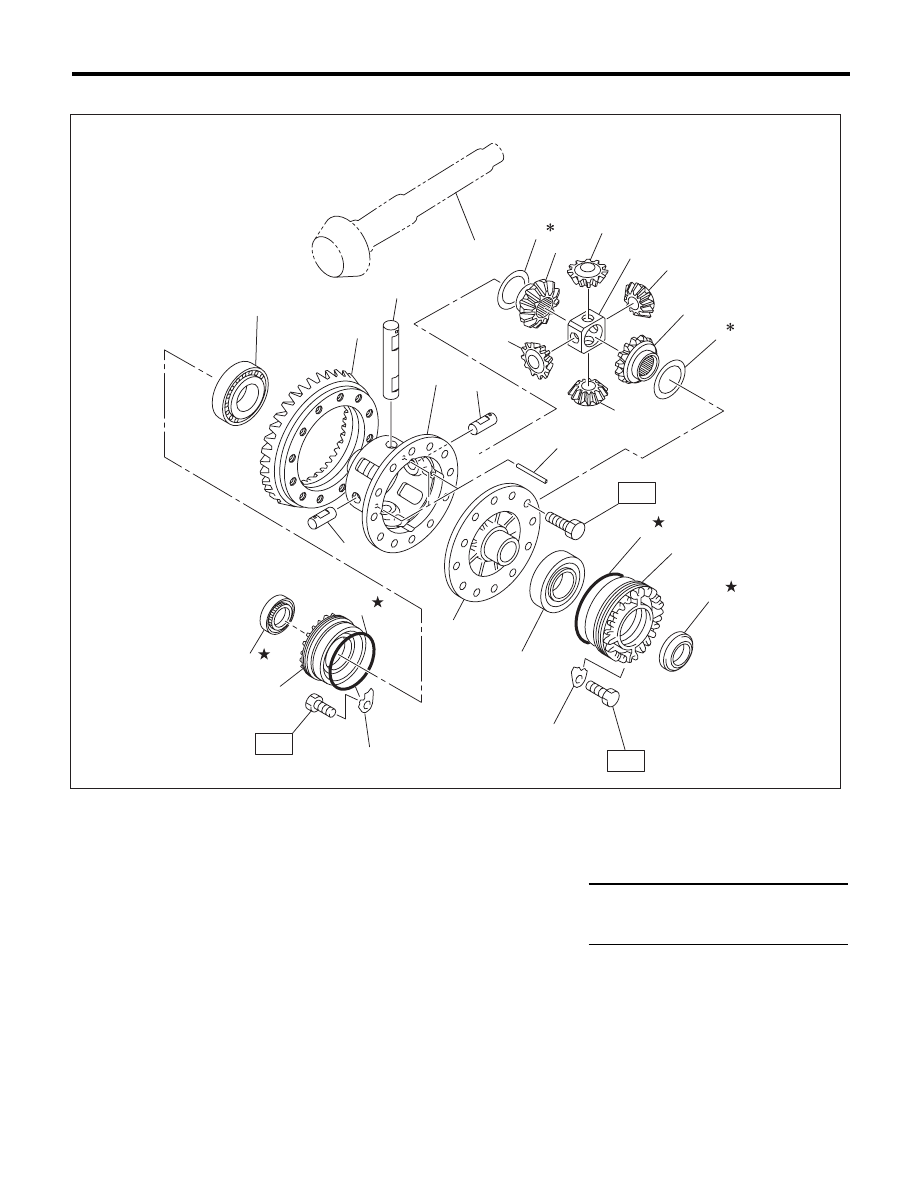

10.FRONT DIFFERENTIAL

(1)

Drive pinion shaft

(8)

Differential bevel gear

(15)

Retainer lock plate RH

(2)

Hypoid driven gear

(9)

Differential bevel pinion

(16)

Retainer lock plate LH

(3)

Pinion shaft

(10)

Pinion shaft joint

(17)

Differential side retainer LH

(4)

Differential case RH

(11)

Roller bearing





(5)

Straight pin

(12)

Oil seal

Tightening torque:N·m (kgf-m, ft-lb)

(6)

Differential case LH

(13)

Differential side retainer RH

T1: 25 (2.5, 18.4)

(7)

Washer

(14)

O-ring

T2: 69 (7.0, 50.9)

MT-01529

(1)

(2)

T2

(3)

(11)

(3)

(3)

(6)

(8)

(9)

(9)

(9)

(11)

(14)

(14)

(12)

(12)

(17)

(15)

T1

T1

(16)

(13)

(7)

(7)

(9)

(10)

(5)

(8)

(4)
