Subaru Legacy IV (2008 year). Manual - part 798

6MT-5

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

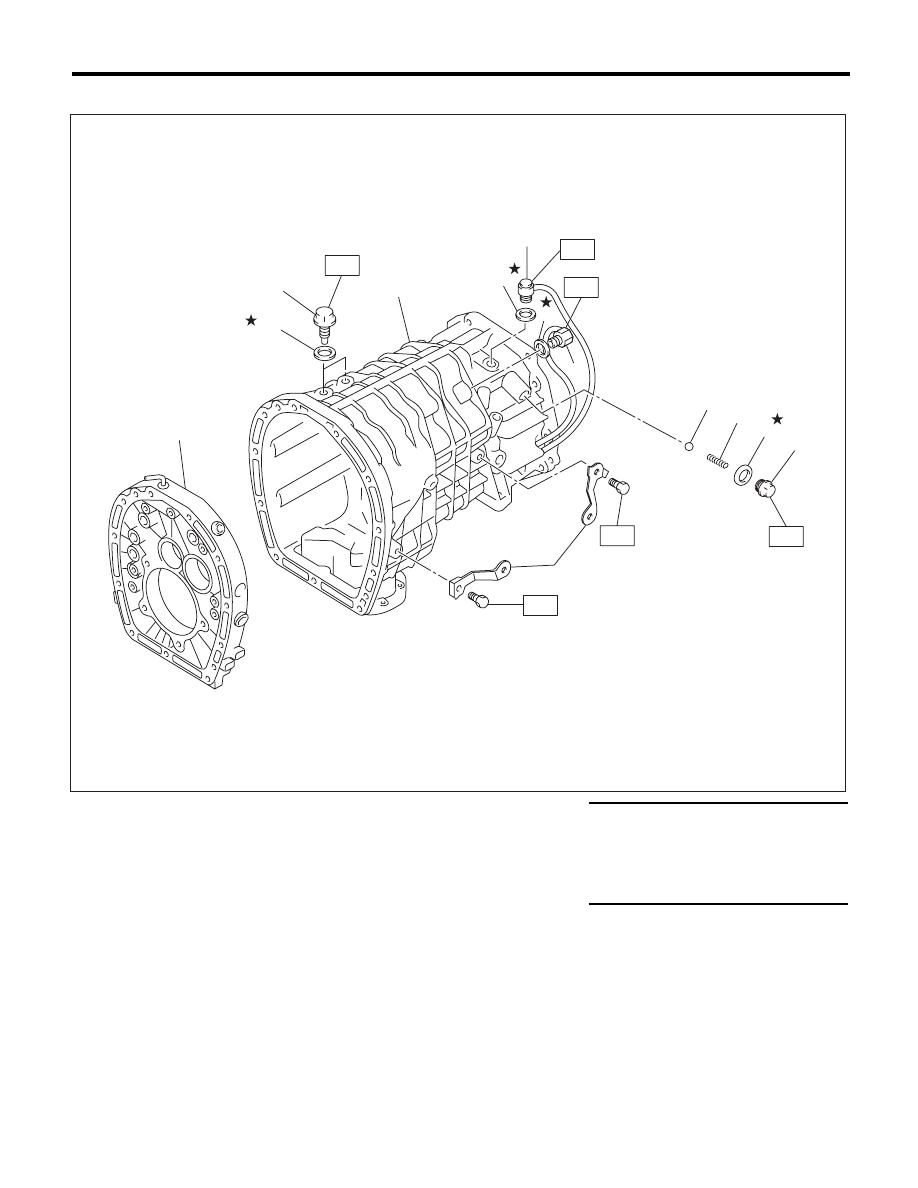

3. TRANSMISSION CASE

(1)

Pilot bolt

(6)

Harness bracket

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Neutral switch

(7)

Ball

T1: 16 (1.6, 11.8)

(3)

Back-up light switch

(8)

Spring

T2: 32 (3.3, 23.6)

(4)

Adapter plate

(9)

Plug

T3: 34 (3.5, 25.1)

(5)

Transmission case

(10)

Gasket

T4: 41 (4.2, 30.2)

MT-01810

(2)

(3)

(1)

(10)

(10)

(10)

(4)

(5)

T2

T3

T2

T1

(6)

T1

(9)

(10)

(8)

(7)

T4

6MT-6

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

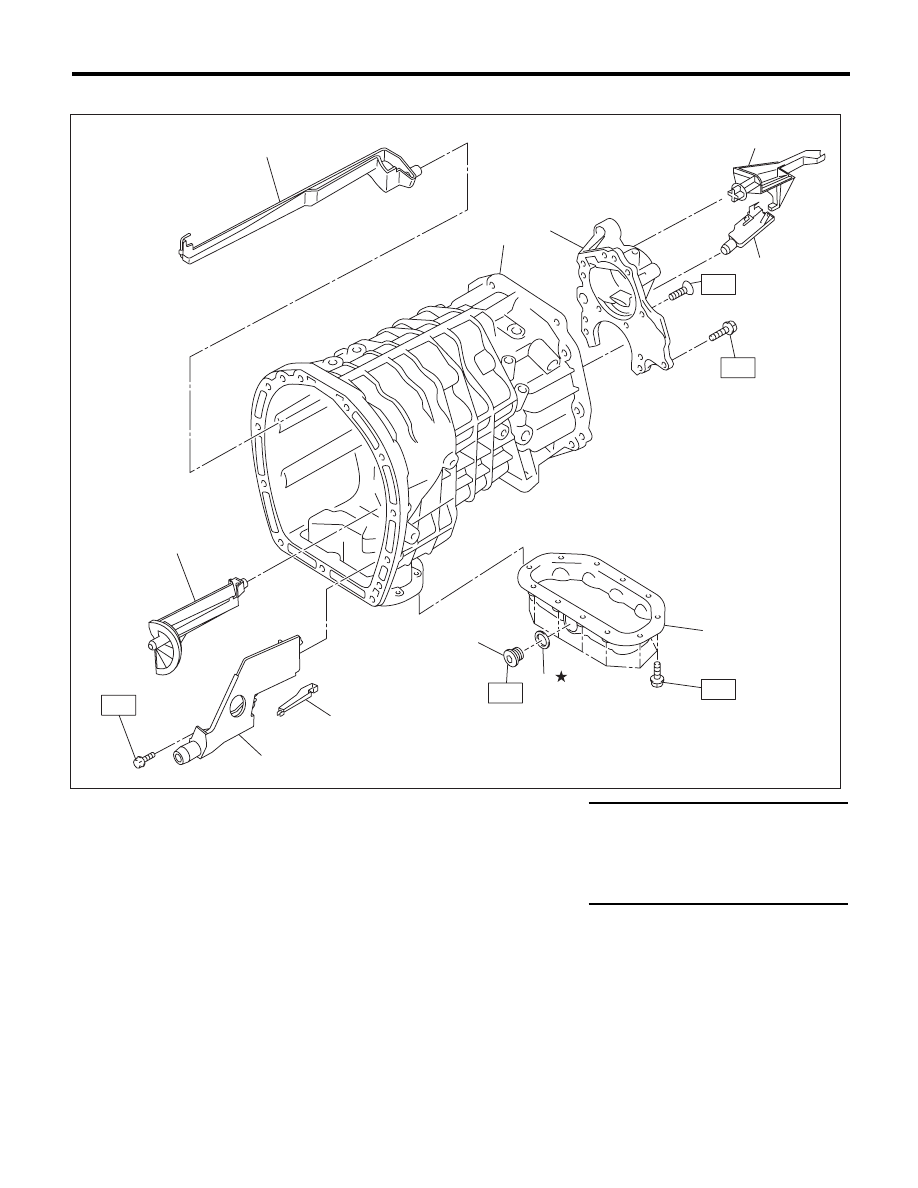

4. OIL PAN & OIL GUIDE

(1)

Transmission case

(7)

Oil guide F

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Transfer bearing holder

(8)

Oil guide D

T1: 6.4 (0.7, 4.7)

(3)

Oil guide G

(9)

Oil guide E

T2: 18 (1.8, 13.3)

(4)

Oil guide H

(10)

Oil guide C

T3: 25 (2.5, 18.4)

(5)

Oil pan

(11)

Drain plug

T4: 50 (5.1, 36.9)

(6)

Gasket





MT-01811

(2)

(3)

(4)

T3

T3

(5)

(6)

T1

T4

(1)

T2

(10)

(7)

(8)

(9)

(11)

6MT-7

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

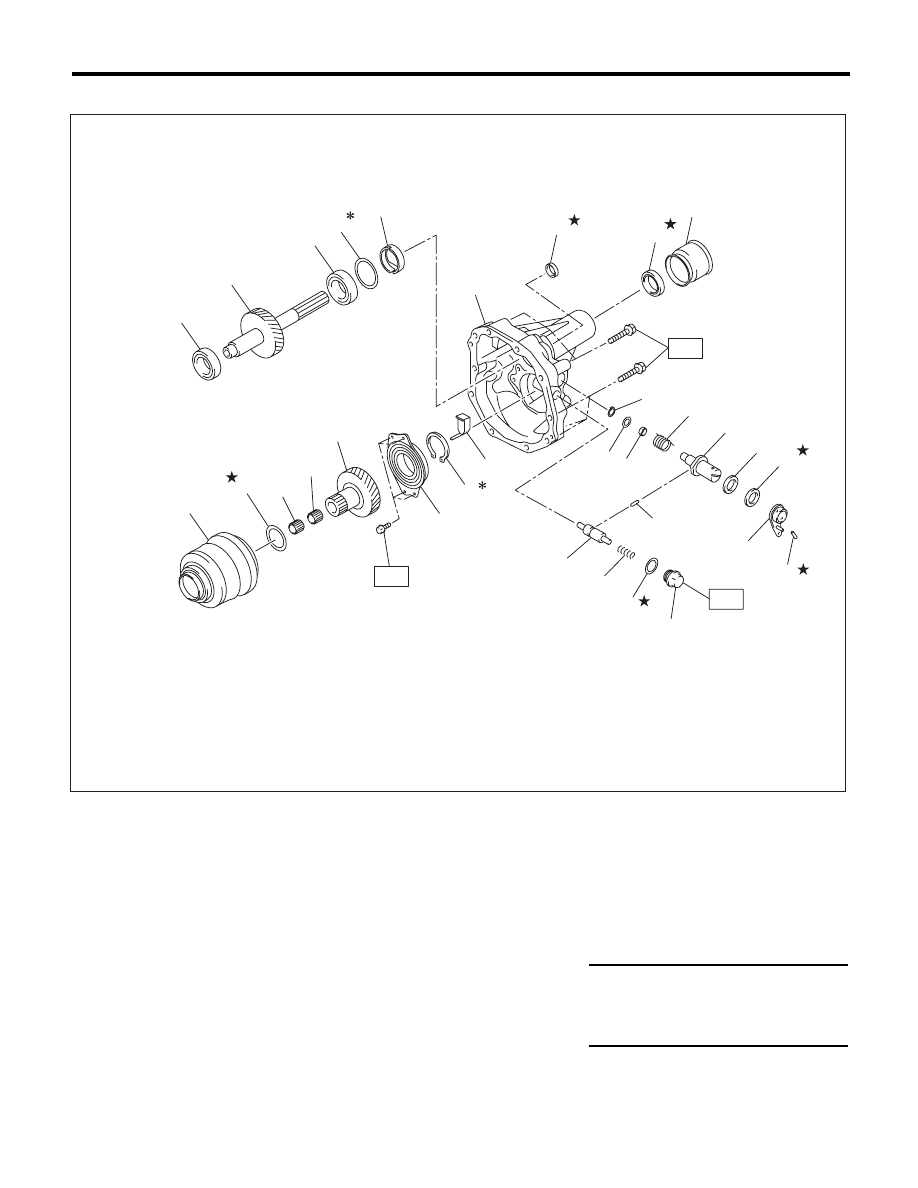

5. EXTENSION CASE AND CENTER DIFFERENTIAL

(1)

Taper roller bearing

(13)

Oil guide

(25)

Reverse check lever COMPL

(2)

Transfer driven gear

(14)

Extension Case

(26)

Straight pin

(3)

Taper roller bearing

(15)

Oil seal

(27)

Reverse check plug

(4)

Shim

(16)

Oil seal

(28)

Spring

(5)

Oil plate

(17)

Dust cover

(29)

Gasket

(6)

Center differential

(18)

Snap ring

(30)

Plug

(7)

Shim

(19)

Washer

(31)

Plunger

(8)

Needle bearing

(20)

Bushing





(9)

Needle bearing

(21)

Spring

Tightening torque:N·m (kgf-m, ft-lb)

(10)

Transfer drive gear

(22)

Reverse check shaft

T1: 25 (2.5, 18.4)

(11)

Ball bearing (with flange)

(23)

Ball bearing

T2: 41 (4.2, 30.2)

(12)

Snap ring

(24)

Oil seal

T3: 48 (4.9, 35.4)

MT-01817

(30)

(29)

(28)

(27)

(31)

(24)

(23)

(22)

(20)

(19)

(21)

(18)

(17)

(16)

(15)

(14)

(13)

(12)

(11)

(10)

(9)

(8)

(7)

(5)

(4)

(3)

(2)

(6)

(1)

(25)

(26)

T3

T1

T2

6MT-8

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

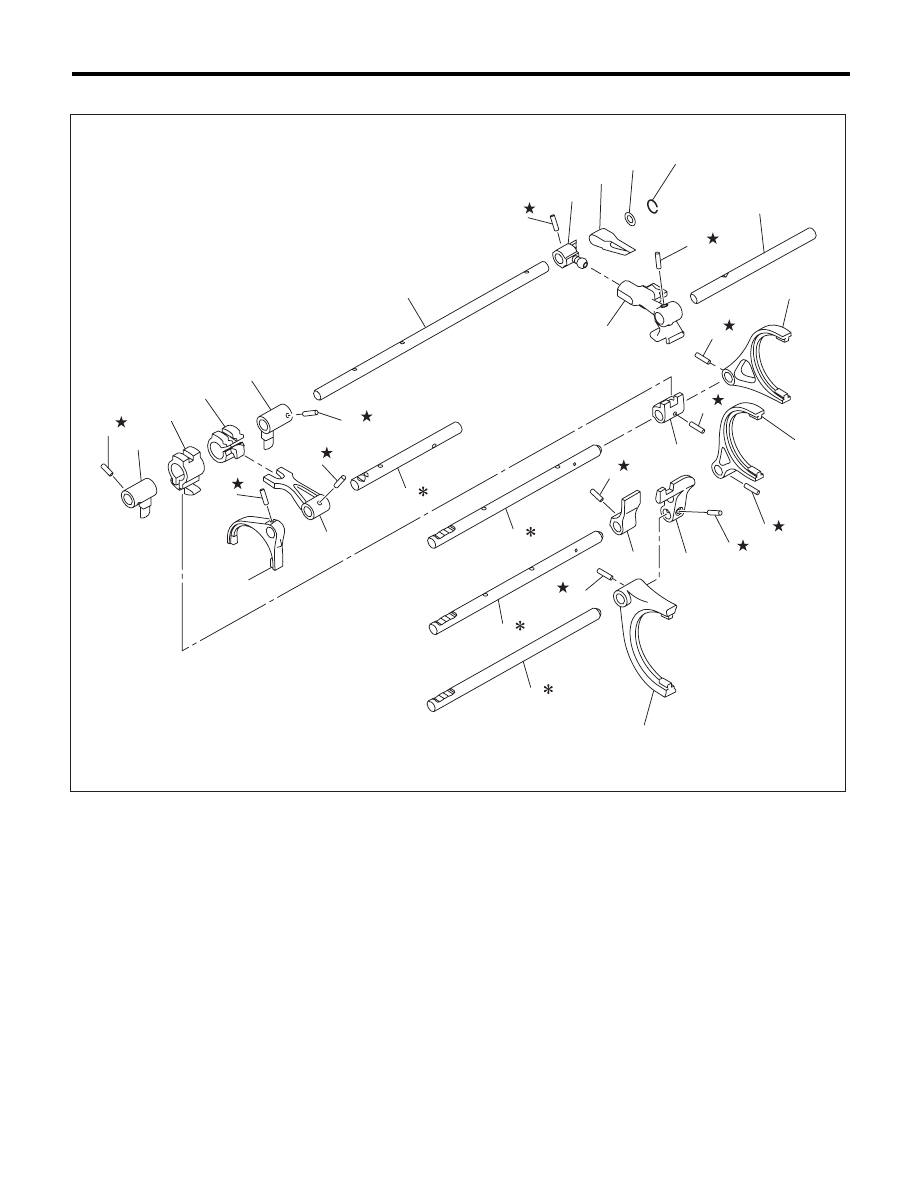

6. SHIFTER FORK AND FORK ROD

(1)

Spring pin

(9)

Washer

(17)

5th-6th shifter arm

(2)

Interlock arm

(10)

Snap ring

(18)

5th-6th fork COMPL

(3)

Interlock block

(11)

Reverse fork COMPL

(19)

3rd-4th fork rod

(4)

Reverse interlock block

(12)

Reverse shifter arm

(20)

3rd-4th shifter arm

(5)

Interlock arm

(13)

Reverse fork rod

(21)

1st-2nd shifter arm

(6)

Striking rod

(14)

Selector arm

(22)

3rd-4th fork COMPL

(7)

Selector arm No. 2

(15)

Shifter arm shaft

(23)

1st-2nd fork rod

(8)

Neutral set spring

(16)

5th-6th fork rod

(24)

1st-2nd fork COMPL

(7)

(8)

(9)

(10)

(15)

(14)

(18)

(17)

(22)

(1)

(1)

(20)

(1)

(1)

(1)

(1)

(1)

(21)

(24)

(1)

(19)

(16)

(13)

(12)

(11)

(23)

(1)

(1)

(1)

(1)

(5)

(6)

(4)

(3)

(2)

MT-01735
