General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

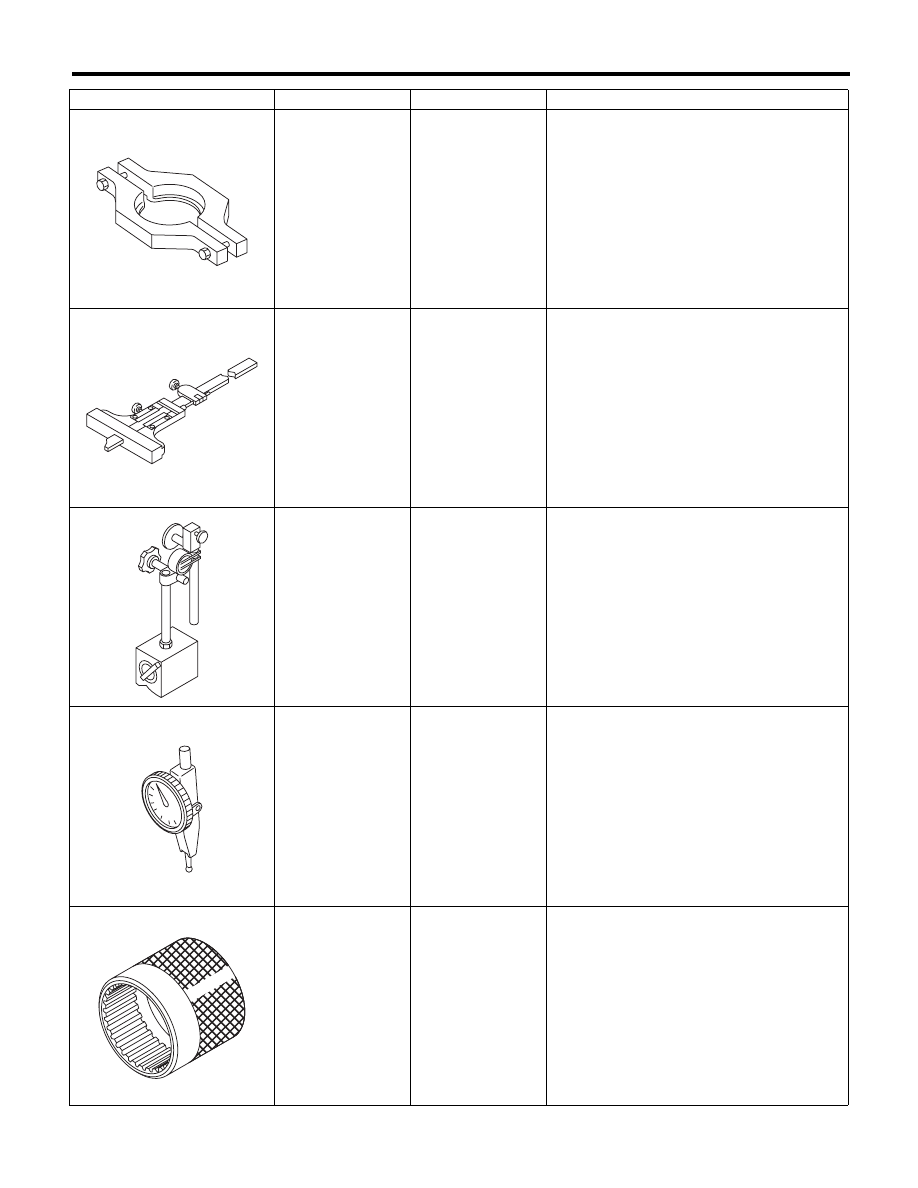

498077300

CENTER
DIFFERENTIAL
BEARING
REMOVER

Used for removing the center differential cover
ball bearing.

498147001

DEPTH GAUGE

Used for measuring the free play of the main
shaft.

498247001

MAGNET BASE

• Used for measuring backlash between the
side gear and pinion, and the hypoid gear.
• Used together with DIAL GAUGE
(498247100).

498247100

DIAL GAUGE

• Used for measuring backlash between the
side gear and pinion, and the hypoid gear.
• Used together with MAGNET BASE
(498247001).

498427100

STOPPER

Used for securing the drive pinion shaft assem-
bly and the driven gear assembly when removing
the drive pinion shaft assembly lock nut.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498077300

ST-498147001

ST-498247001

ST-498247100

ST-498427100

5MT-17

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

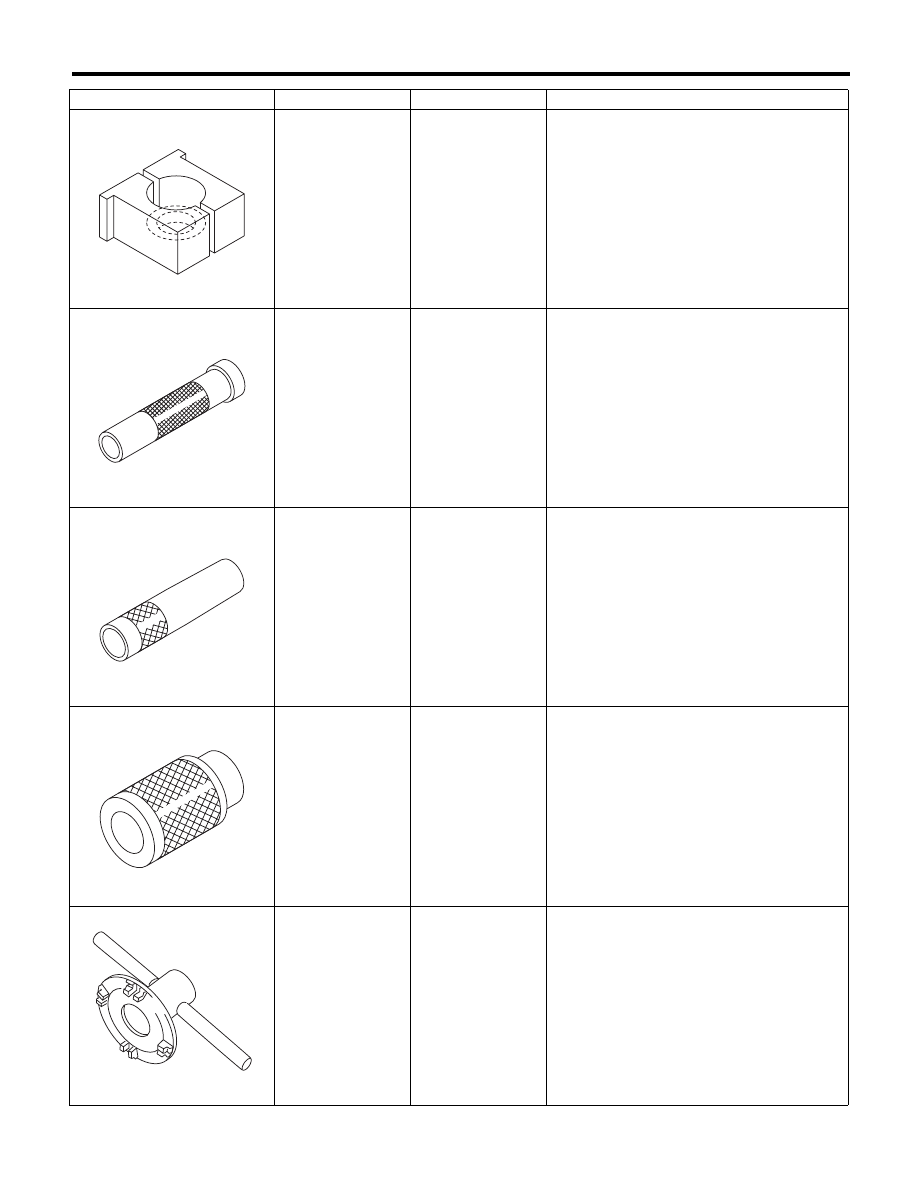

498937000

TRANSMISSION
HOLDER

Used for removing and installing the lock nut of
the transmission main shaft.

499277100

BUSHING 1-2
INSTALLER

• Used for installing the 1st driven gear thrust
plate and the 1st-2nd driven gear bushing.
• Used for installing the roller bearing outer race
to the differential case.

499277200

INSTALLER

Used for press-fitting the 2nd driven gear, roller
bearings and the 5th driven gear onto the driven
shaft.

499757002

INSTALLER

• Used for installing the snap ring (OUT 25), and
ball bearing (25 × 26 × 17).
• Used for installing the bearing cone of the
transfer driven gear (extension core side).

18630AA010

WRENCH COMPL
RETAINER

• Used for removing and installing the differen-
tial side retainer.
• WRENCH ASSEMBLY (499787000) can also
be used.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498937000

ST-499277100

ST-499277200

ST-499757002

ST18630AA010

5MT-18

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

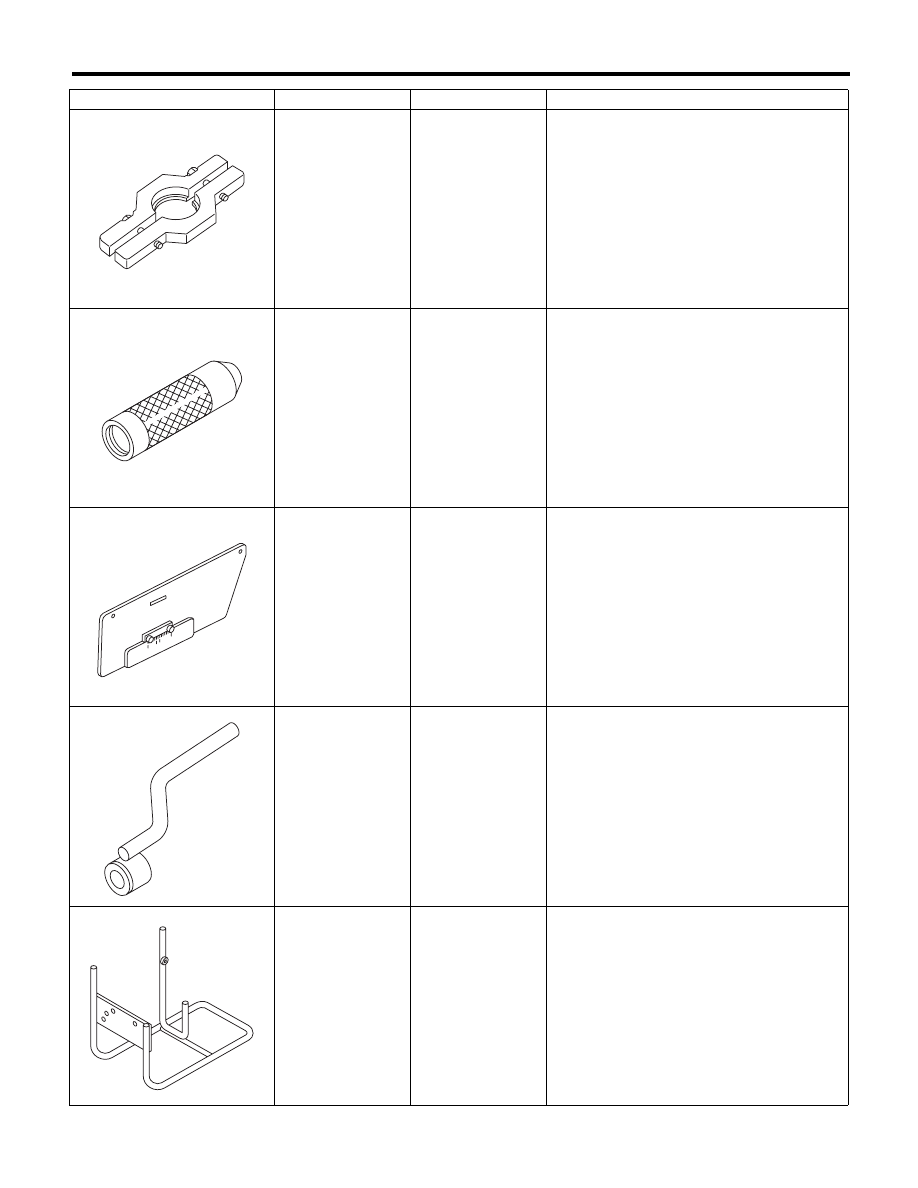

499857000

5TH DRIVEN GEAR
REMOVER

Used for removing the 5th driven gear.

499877000

RACE 4-5
INSTALLER

• Used for installing the 4th needle bearing race
and ball bearing onto the transmission main
shaft.
• Used together with REMOVER (899714110).

499917500

DRIVE PINION
GAUGE ASSY

Used for adjusting the drive pinion shim.

499927100

HANDLE

Used for fitting the transmission main shaft.

499937100

TRANSMISSION
STAND

Used for disassembling and assembling the
transmission.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499857000

ST-499877000

ST-499917500

ST-499927100

ST-499937100

5MT-19

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

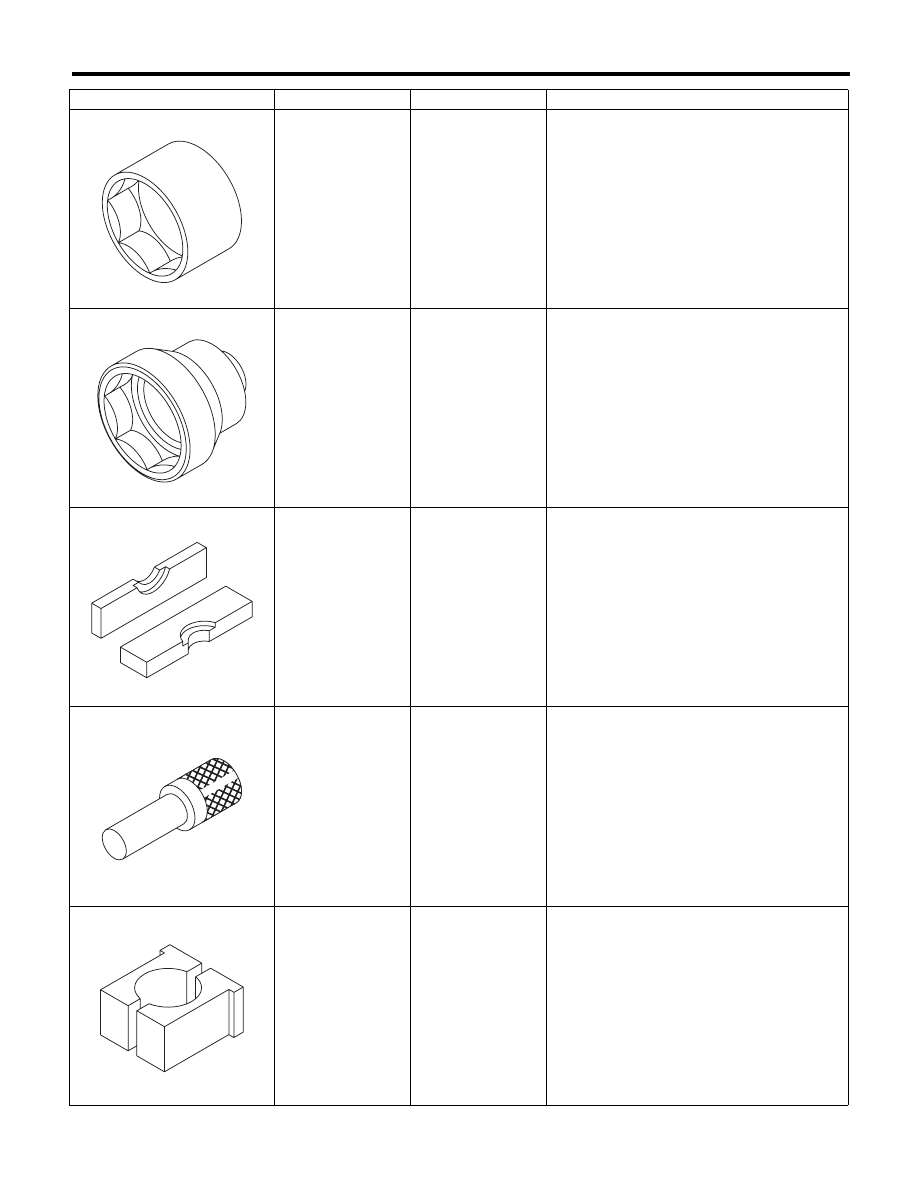

499987003

SOCKET WRENCH
(35)

Used for removing and installing the driven pin-
ion lock nut and main shaft lock nut.

499987300

SOCKET WRENCH
(50)

Used for removing and installing the driven gear
assembly lock nut.

899714110

REMOVER

Used for fixing the transmission main shaft, drive
pinion and rear drive shaft.

899864100

REMOVER

Used for removing transmission main shaft and
drive pinion parts.

899884100

HOLDER

Used for tightening the lock nut on the sleeve.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499987003

ST-499987300

ST-899714110

ST-899864100

ST-899884100
