Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

DI: DTC P1443 VENT CONTROL SOLENOID VALVE FUNCTION PROBLEM

DTC DETECTING CONDITION:
• Immediately at fault recognition
• GENERAL DESCRIPTION <Ref. to GD(H6DO)-173, DTC P1443 VENT CONTROL SOLENOID VALVE
FUNCTION PROBLEM, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Improper fuel supply

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H6DO)(diag)-52,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H6DO)(diag)-44, PROCEDURE,
Inspection Mode.>.

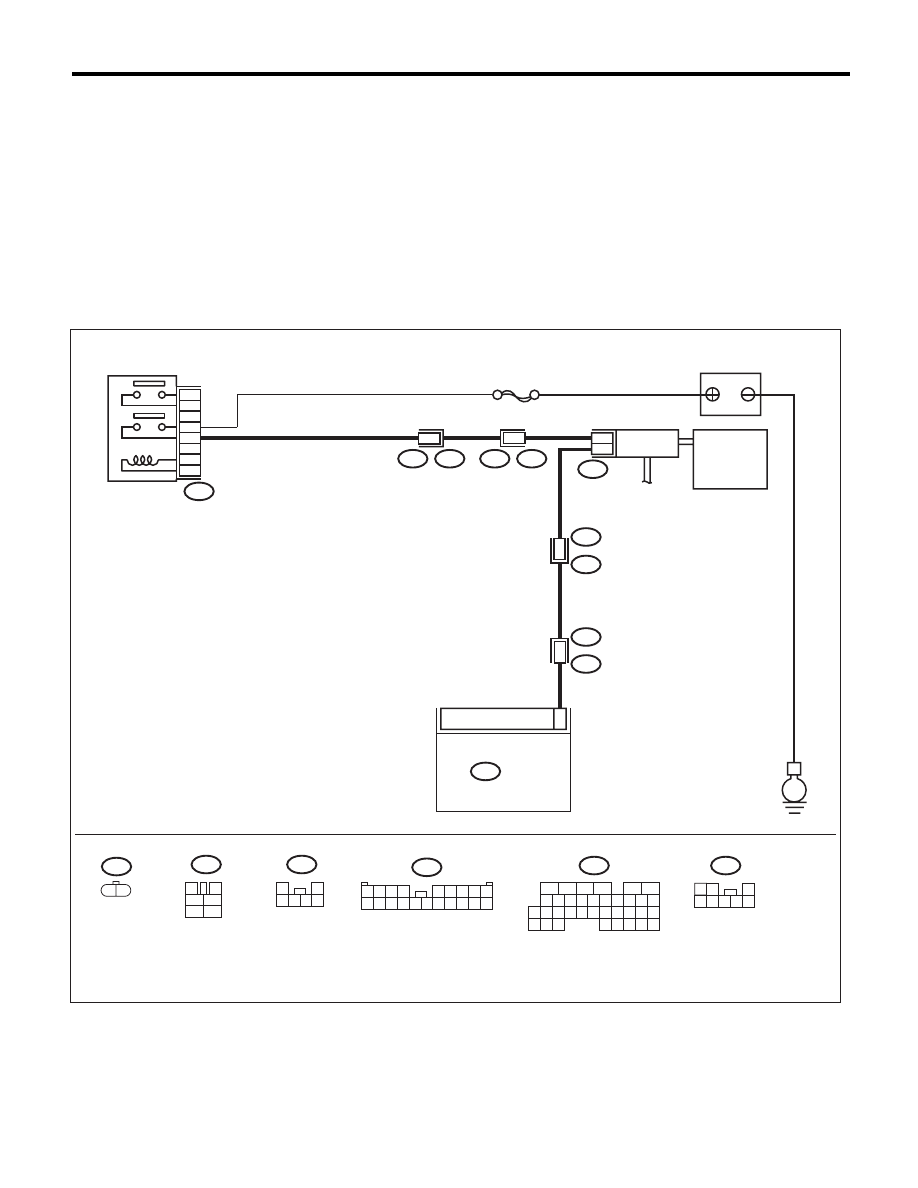

WIRING DIAGRAM:

16

10 11 12 13 14 15

25

24

30

9

8

7

17 18 19 20
28

21 22 23

29

32

31

1

2

3

4

5

6

27

26

33 34 35

SBF-7

R144

R67

R213

R46

R15

R1

R1

B97

B97

B47

ECM

E

17

1
2

5
3

6
4

2
1

6

1

14

B136

CANISTER

DRAIN
VALVE

MAIN RELAY

BATTERY

7

R144

R67

B97

B47

3

4

1

2

5

6

B136

R213

1

2

3 4 5 6

1 2 3 4

5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20

1 2

1 2

3

4 5 6 7 8

EN-05232

EN(H6DO)(diag)-286

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK FOR ANY OTHER DTC ON DISPLAY. Is any other DTC displayed?

Check the appro-
priate DTC using
the “List of Diag-
nostic Trouble
Code (DTC)”.
<Ref. to
EN(H6DO)(diag)-
81, List of Diagnos-
tic Trouble Code
(DTC).>

Go to step 2.

2

CHECK DRAIN HOSE.
Check the drain hose for clogging.

Is there clogging in the drain
hose?

Replace the drain
hose.

Go to step 3.

3

CHECK DRAIN VALVE OPERATION.
1) Turn the ignition switch to OFF.
2) Connect the delivery (test) mode connector
at the lower portion of instrument panel (on the
driver’s side).
3) Turn the ignition switch to ON.
4) Operate the drain valve.

NOTE:
Drain valve can be operated using the Subaru
Select Monitor. For the procedures, refer to
“Compulsory Valve Operation Check Mode”.
<Ref. to EN(H6DO)(diag)-53, Compulsory
Valve Operation Check Mode.>

Does the drain valve operate?

Repair the poor
contact of ECM
connector.

Replace the drain
valve. <Ref. to
EC(H6DO)-16,
Drain Valve.>

EN(H6DO)(diag)-287

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

DJ:DTC P1492 EGR SOLENOID VALVE SIGNAL #1 CIRCUIT MALFUNCTION

(LOW INPUT)

NOTE:
For the diagnostic procedure, refer to DTC P1498. <Ref. to EN(H6DO)(diag)-288, DTC P1498 EGR SOLE-
NOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>

DK:DTC P1493 EGR SOLENOID VALVE SIGNAL #1 CIRCUIT MALFUNCTION

(HIGH INPUT)

NOTE:
For the diagnostic procedure, refer to DTC P1499. <Ref. to EN(H6DO)(diag)-291, DTC P1499 EGR SOLE-
NOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>

DL:DTC P1494 EGR SOLENOID VALVE SIGNAL #2 CIRCUIT MALFUNCTION

(LOW INPUT)

NOTE:
For the diagnostic procedure, refer to DTC P1498. <Ref. to EN(H6DO)(diag)-288, DTC P1498 EGR SOLE-
NOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>

DM:DTC P1495 EGR SOLENOID VALVE SIGNAL #2 CIRCUIT MALFUNCTION

(HIGH INPUT)

NOTE:
For the diagnostic procedure, refer to DTC P1499. <Ref. to EN(H6DO)(diag)-291, DTC P1499 EGR SOLE-
NOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>

DN:DTC P1496 EGR SOLENOID VALVE SIGNAL #3 CIRCUIT MALFUNCTION

(LOW INPUT)

NOTE:
For the diagnostic procedure, refer to DTC P1498. <Ref. to EN(H6DO)(diag)-288, DTC P1498 EGR SOLE-
NOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>

DO:DTC P1497 EGR SOLENOID VALVE SIGNAL #3 CIRCUIT MALFUNCTION

(HIGH INPUT)

NOTE:
For the diagnostic procedure, refer to DTC P1499. <Ref. to EN(H6DO)(diag)-291, DTC P1499 EGR SOLE-
NOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT), Diagnostic Procedure with Diagnostic
Trouble Code (DTC).>

EN(H6DO)(diag)-288

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

DP:DTC P1498 EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION

(LOW INPUT)

DTC DETECTING CONDITION:
• Immediately at fault recognition
• GENERAL DESCRIPTION <Ref. to GD(H6DO)-175, DTC P1492 EGR SOLENOID VALVE SIGNAL #1
CIRCUIT MALFUNCTION (LOW INPUT), Diagnostic Trouble Code (DTC) Detecting Criteria.> <Ref. to
GD(H6DO)-179, DTC P1494 EGR SOLENOID VALVE SIGNAL #2 CIRCUIT MALFUNCTION (LOW IN-
PUT), Diagnostic Trouble Code (DTC) Detecting Criteria.> <Ref. to GD(H6DO)-179, DTC P1496 EGR SO-
LENOID VALVE SIGNAL #3 CIRCUIT MALFUNCTION (LOW INPUT), Diagnostic Trouble Code (DTC)
Detecting Criteria.> <Ref. to GD(H6DO)-179, DTC P1498 EGR SOLENOID VALVE SIGNAL #4 CIRCUIT
MALFUNCTION (LOW INPUT), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Improper idling
• Poor driving performance
• Engine breathing

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H6DO)(diag)-52,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H6DO)(diag)-44, PROCEDURE,
Inspection Mode.>.
