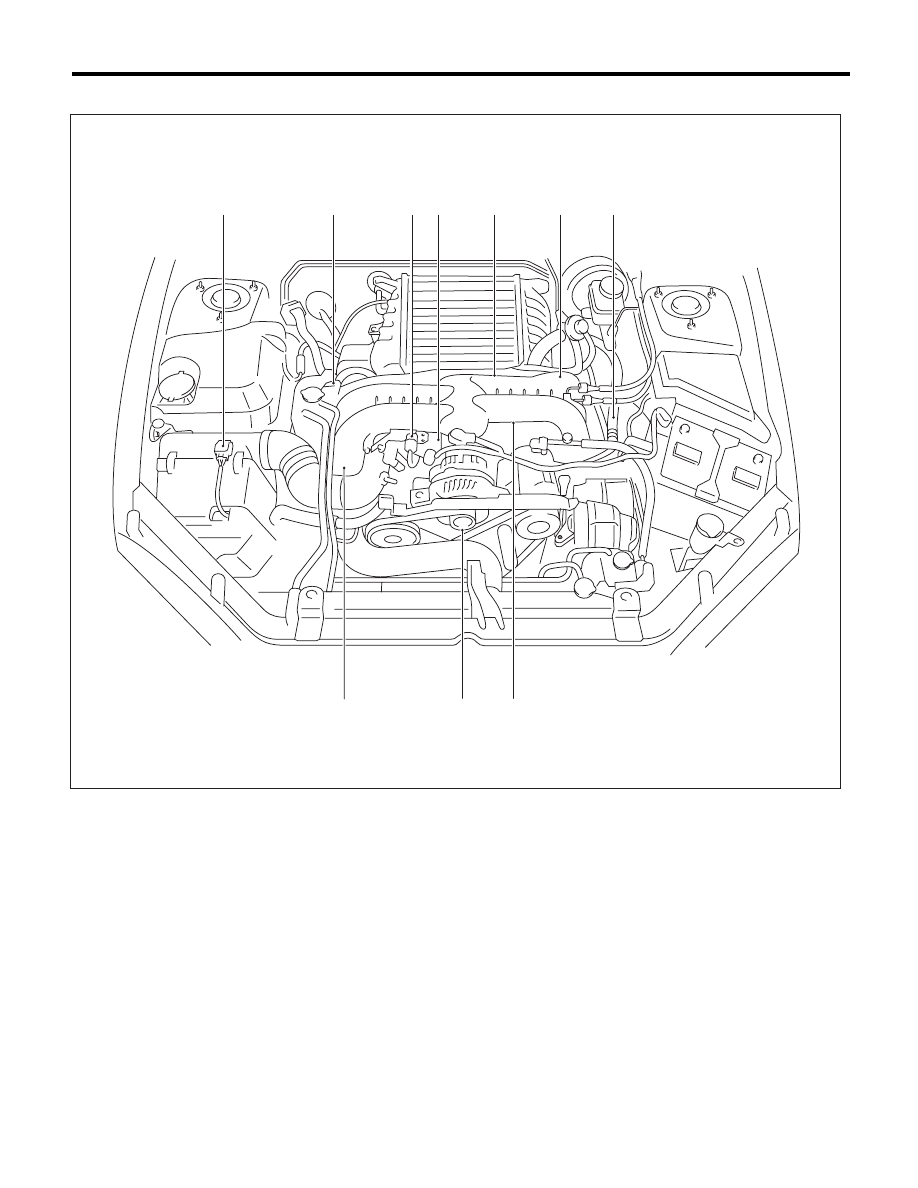

EN(H4DOTC)(diag)-9

Electrical Component Location

ENGINE (DIAGNOSTICS)

2. SENSOR

(1)

Manifold absolute pressure sensor

(4)

Knock sensor

(7)

Mass air flow and intake air tem-
perature sensor

(2)

Engine coolant temperature sensor

(5)

Intake camshaft position sensor

(3)

Electronic throttle control

(6)

Crankshaft position sensor

(8)

Tumble generator valve ASSY

EN-05066

(6)

(3)

(2)

(7)

(5)

(8)

(1)

(5)

(4)

(8)

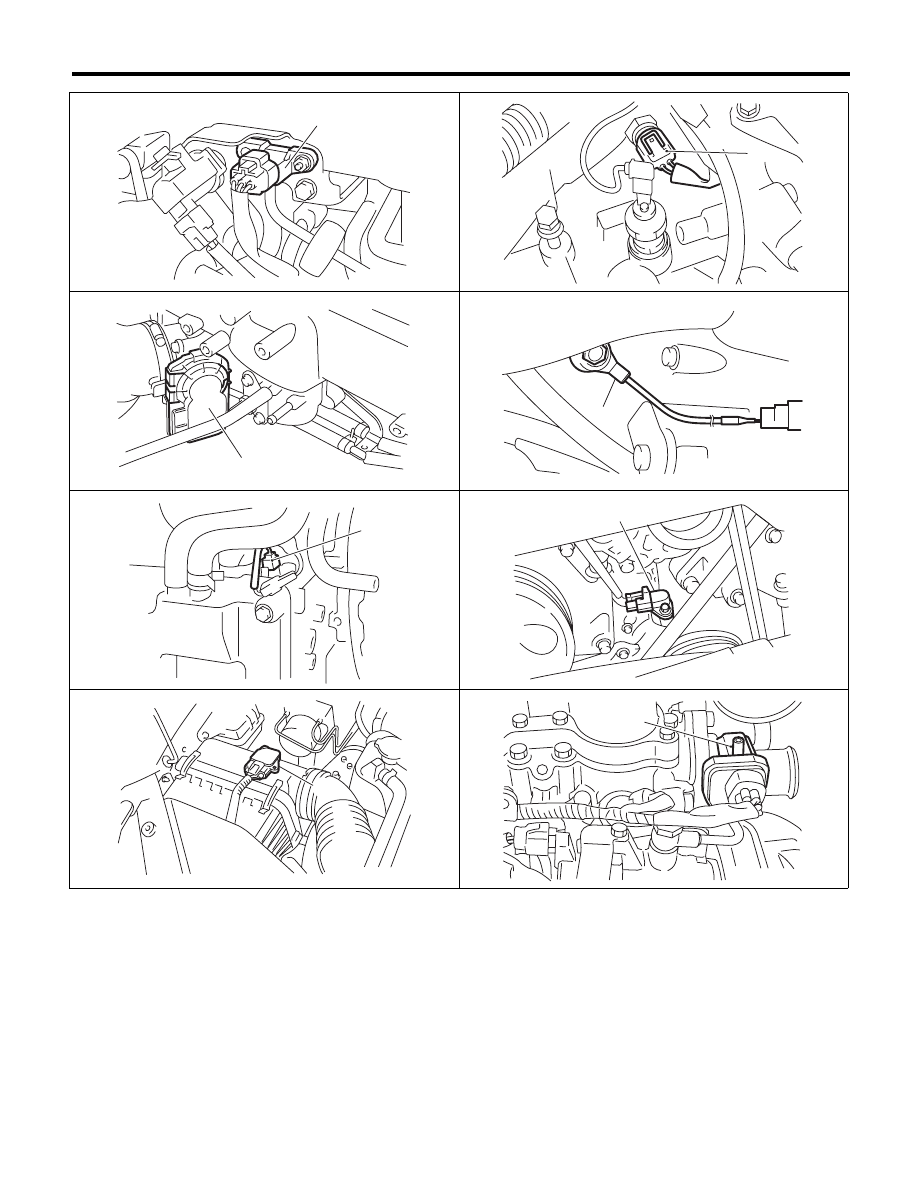

EN(H4DOTC)(diag)-10

Electrical Component Location

ENGINE (DIAGNOSTICS)

EN-01927

(1)

(2)

EN-00295

EN-01928

(3)

EN-02169

(4)

EN-01798

(5)

EN-02919

(6)

EN-02920

(7)

EN-05373

(8)

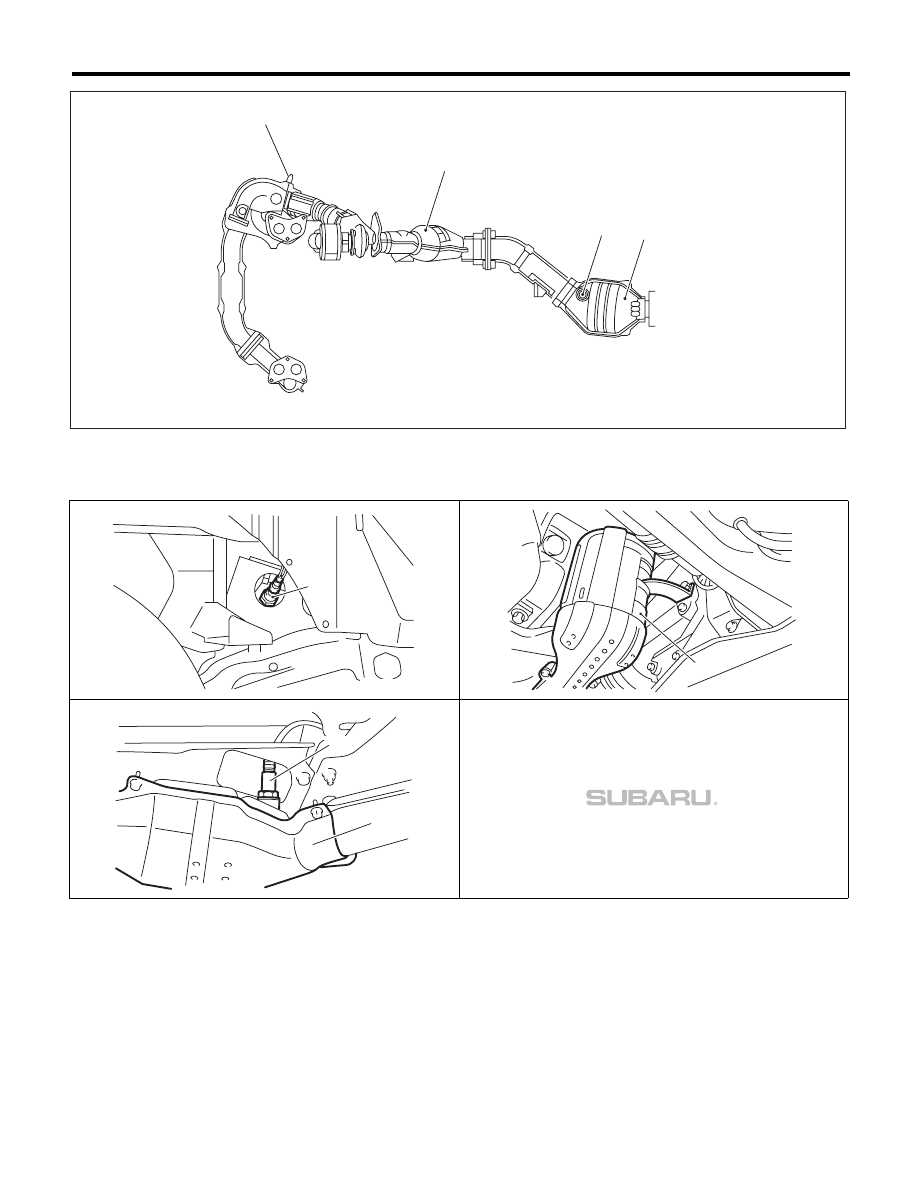

EN(H4DOTC)(diag)-11

Electrical Component Location

ENGINE (DIAGNOSTICS)

(1)

Front oxygen (A/F) sensor

(3)

Rear oxygen sensor

(4)

Rear catalytic converter

(2)

Front catalytic converter









(1)

(2)

(3)

(4)

EN-06854

(1)

EN-00303

EN-01800

(2)

EN-01933

(4)

(3)

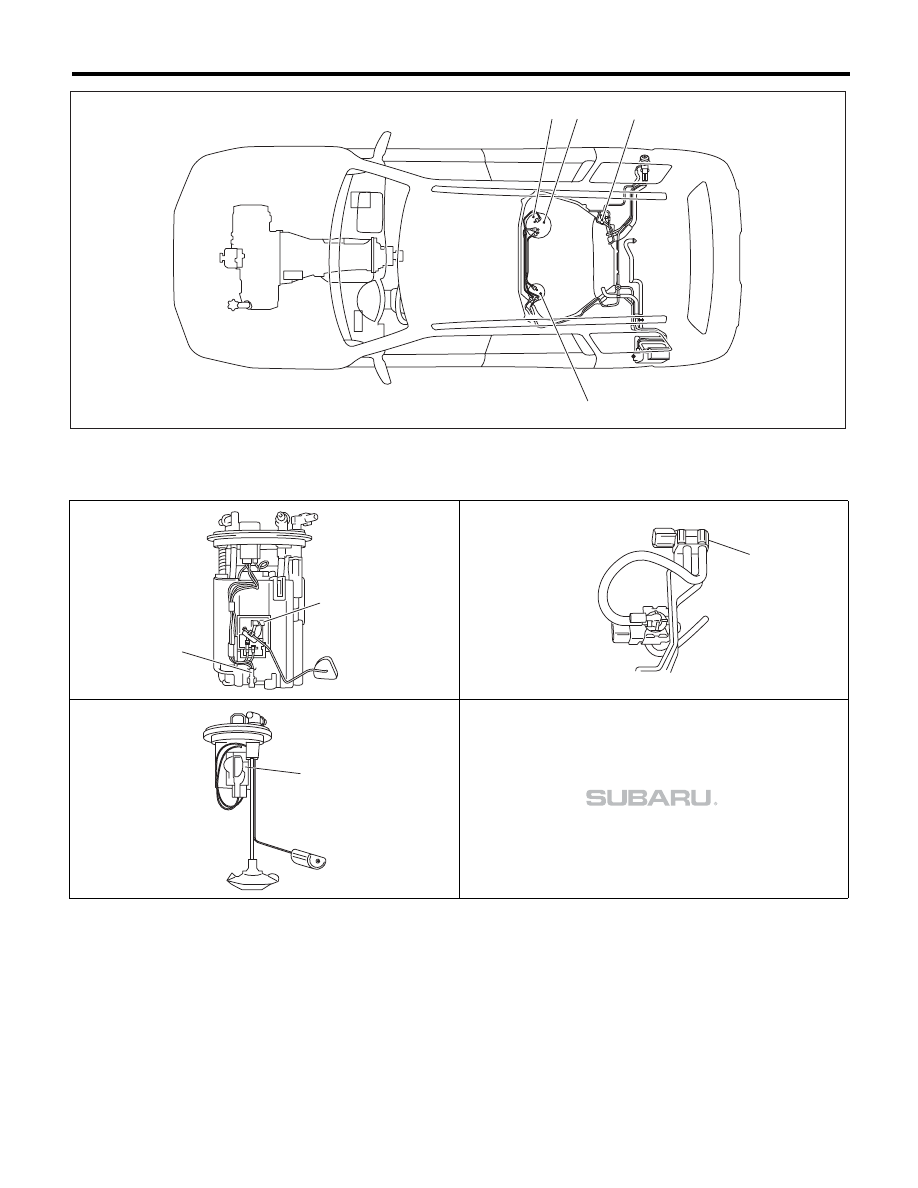

EN(H4DOTC)(diag)-12

Electrical Component Location

ENGINE (DIAGNOSTICS)

(1)

Fuel level sensor

(3)

Fuel tank pressure sensor

(4)

Fuel sub level sensor

(2)

Fuel

temperature

sensor





EN-03146

(1)

(4)

(2)

(3)

EN-03147

(2)

(1)

EN-03003

(3)

EN-03132

(4)
