Subaru Legacy IV (2008 year). Manual - part 266

ME(H4DOTC)-44

Crank Pulley

MECHANICAL

13.Crank Pulley

A: REMOVAL

NOTE:
When replacing the single part, perform the work
with the engine installed to body.
1) Remove the V-belts. <Ref. to ME(H4DOTC)-41,
REMOVAL, V-belt.>

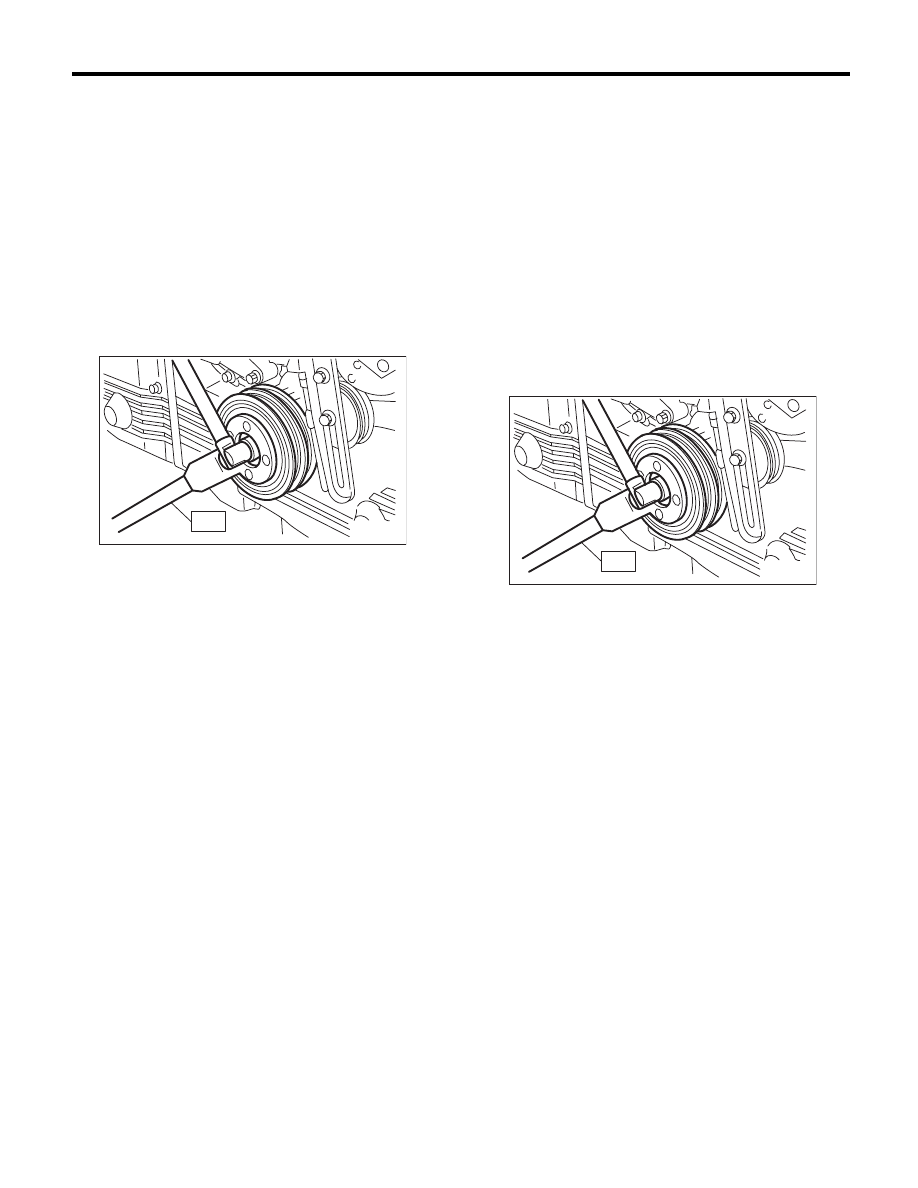

2) Use the ST to lock the crank pulley, and remove
the crank pulley bolts.
ST

499977100

CRANK PULLEY WRENCH
(MT MODEL)

ST

499977400

CRANK PULLEY WRENCH
(AT MODEL)

3) Remove the crank pulley.

B: INSTALLATION

1. AT MODEL

1) Install the crank pulley.
2) Use the ST to lock the crank pulley, and install
the crank pulley bolt.
ST

499977400

CRANK PULLEY WRENCH

(1) Clean the crankshaft thread using com-
pressed air.
(2) Apply engine oil to the crank pulley bolt seat
and thread.
(3) Tighten the bolts temporarily with tightening
torque of 44 N·m (4.5 kgf-m, 32.5 ft-lb).
(4) Tighten the crank pulley bolts.

Tightening torque:

130 N·m (13.3 kgf-m, 95.9 ft-lb)

3) Check that the tightening angle of the crank pul-
ley bolt is 45° or more. Perform the following proce-
dure when less than 45°.

CAUTION:
If the tightening angle of crank pulley bolt is
less than 45°, the bolt is damaged. In this case,
the bolt must be replaced.

(1) Replace the crank pulley bolts and clean
them.

Crank pulley bolt:

Part No. 12369AA011

(2) Clean the crankshaft thread using com-
pressed air.
(3) Apply engine oil to the crank pulley bolt seat
and thread.
(4) Tighten the bolts temporarily with tightening
torque of 44 N·m (4.5 kgf-m, 32.5 ft-lb).
(5) Tighten the crank pulley bolts by 45° to 60°.

NOTE:
Conduct the tightening procedures by confirming
the turning angle of crank pulley bolt referring to the
gauge indicated on timing belt cover.
4) Install the V-belts. <Ref. to ME(H4DOTC)-42,
INSTALLATION, V-belt.>

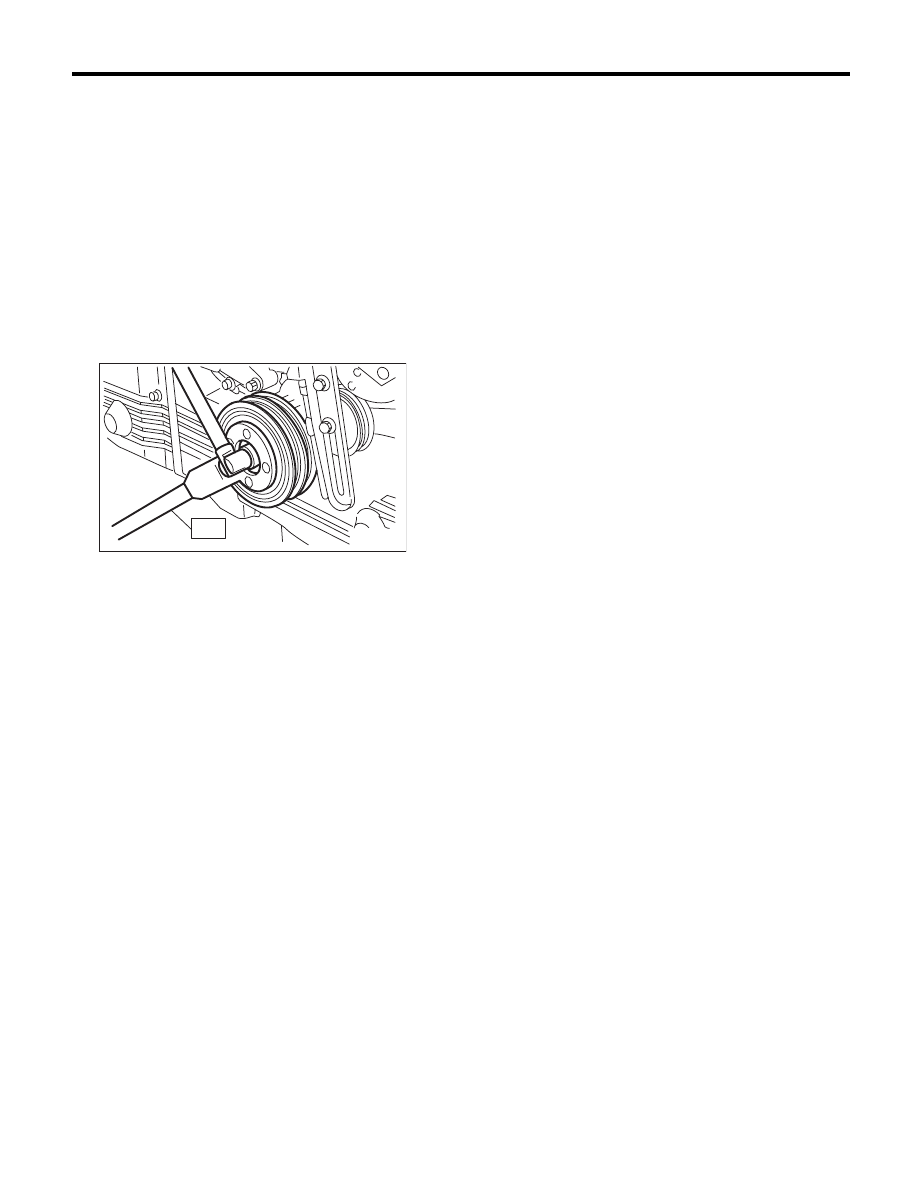

ME-00063

ST

ME-00063

ST

ME(H4DOTC)-45

Crank Pulley

MECHANICAL

2. MT MODEL

1) Install the crank pulley.
2) Use the ST to lock the crank pulley, and install
the crank pulley bolt.
ST

499977100

CRANK PULLEY WRENCH

(1) Clean the crankshaft thread using com-
pressed air.
(2) Apply engine oil to the crank pulley bolt seat
and thread.
(3) Tighten the bolts temporarily with tightening
torque of 44 N·m (4.5 kgf-m, 32.5 ft-lb).
(4) Tighten the crank pulley bolts.

Tightening torque:

180 N·m (18.4 kgf-m, 132.8 ft-lb)

3) Check that the tightening angle of the crank pul-
ley bolt is 65° or more. Perform the following proce-
dure when less than 65°.

CAUTION:
If the tightening angle of crank pulley bolt is
less than 65°, the bolt is damaged. In this case,
the bolt must be replaced.

(1) Replace the crank pulley bolts and clean
them.

Crank pulley bolt:

Part No. 12369AA011

(2) Clean the crankshaft thread using com-
pressed air.
(3) Apply engine oil to the crank pulley bolt seat
and thread.
(4) Tighten the bolts temporarily with tightening
torque of 44 N·m (4.5 kgf-m, 32.5 ft-lb).
(5) Tighten the crank pulley bolts by 65° to 75°.

NOTE:
Conduct the tightening procedures by confirming
the turning angle of crank pulley bolt referring to the
gauge indicated on timing belt cover.
4) Install the V-belts. <Ref. to ME(H4DOTC)-42,
INSTALLATION, V-belt.>

C: INSPECTION

1) Make sure the belt is not worn or otherwise dam-
aged.
2) Check the tension of the belt. <Ref. to
ME(H4DOTC)-43, INSPECTION, V-belt.>

ME-00063

ST

ME(H4DOTC)-46

Timing Belt Cover

MECHANICAL

14.Timing Belt Cover

A: REMOVAL

NOTE:
When replacing the single part, perform the work
with the engine installed to body.
1) Remove the secondary air pump. <Ref. to
EC(H4DOTC)-21, REMOVAL, Secondary Air
Pump.>
2) Remove the V-belts. <Ref. to ME(H4DOTC)-41,
REMOVAL, V-belt.>
3) Remove the crank pulley. <Ref. to
ME(H4DOTC)-44, REMOVAL, Crank Pulley.>

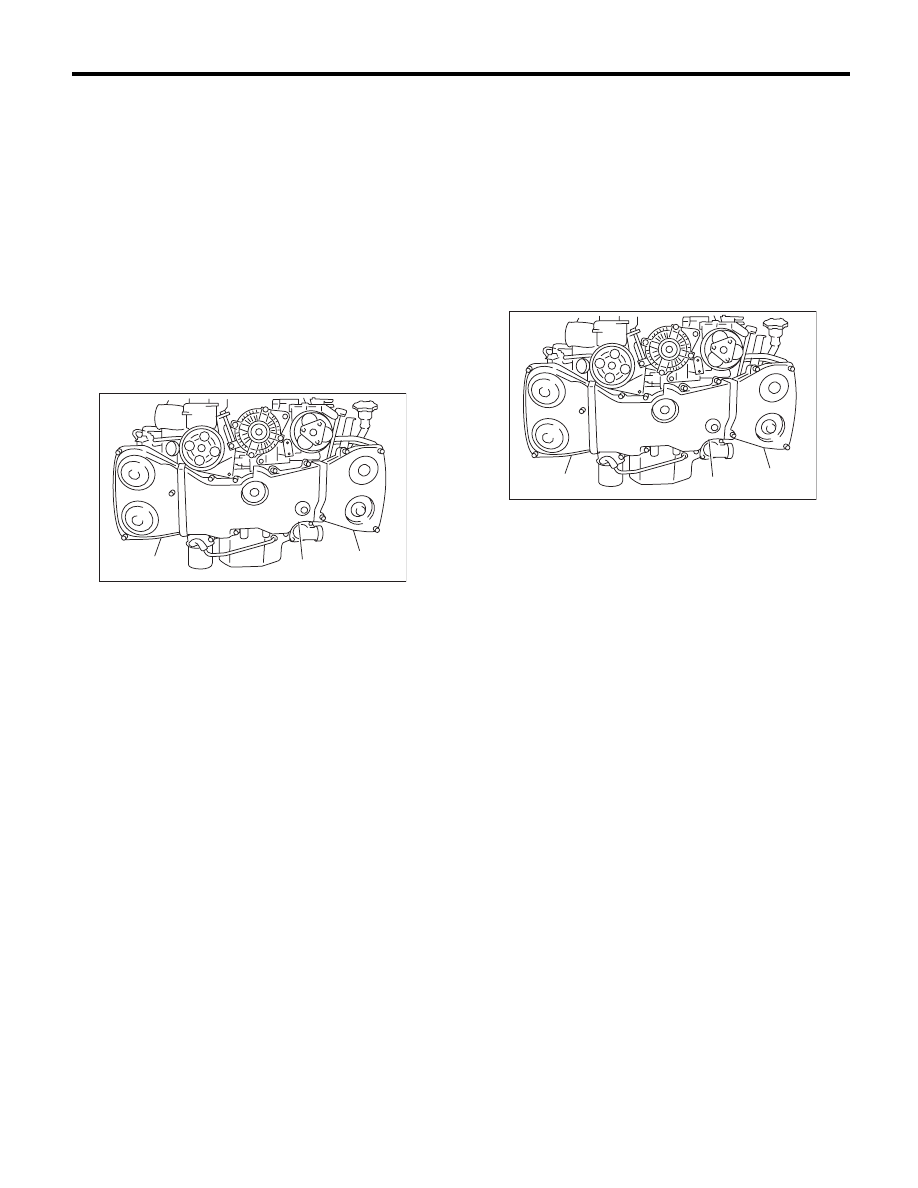

4) Remove the timing belt cover LH (A).
5) Remove the timing belt cover RH (B).
6) Remove the front timing belt cover (C).

B: INSTALLATION

1) Install the front timing belt cover (C).

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

2) Install the timing belt cover RH (B).

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

3) Install the timing belt cover LH (A).

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

4) Install the crank pulley. <Ref. to ME(H4DOTC)-
44, INSTALLATION, Crank Pulley.>
5) Install the V-belts. <Ref. to ME(H4DOTC)-42,
INSTALLATION, V-belt.>
6) Install the secondary air pump. <Ref. to
EC(H4DOTC)-21, INSTALLATION, Secondary Air
Pump.>

C: INSPECTION

Check the timing belt cover for damage.

ME-00064

(A)

(C)

(B)

ME-00064

(A)

(C)

(B)

ME(H4DOTC)-47

Timing Belt

MECHANICAL

15.Timing Belt

A: REMOVAL

NOTE:
When replacing the single part, perform the work
with the engine installed to body. For operation pro-
cedures, refer to “Timing Belt” in the PM section.
<Ref. to PM-20, Timing Belt.>

1. TIMING BELT

1) Remove the V-belts. <Ref. to ME(H4DOTC)-41,
REMOVAL, V-belt.>
2) Remove the crank pulley. <Ref. to
ME(H4DOTC)-44, REMOVAL, Crank Pulley.>
3) Remove the timing belt cover. <Ref. to
ME(H4DOTC)-46, REMOVAL, Timing Belt Cover.>
4) Remove the timing belt guide. (MT model)

5) If the alignment mark or arrow mark (which indi-
cates the direction of rotation) on timing belt fade
away, put new marks before removing the timing
belt as shown in procedures below.

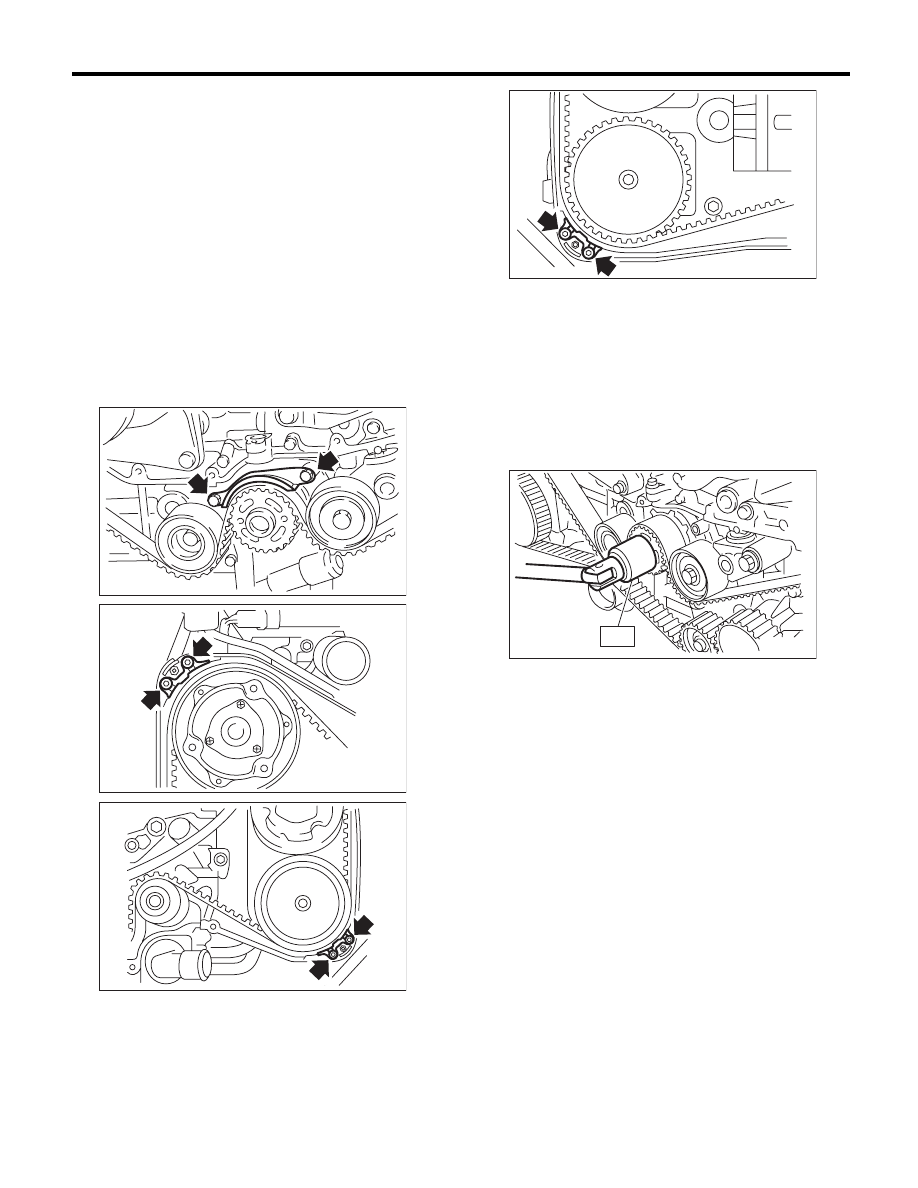

(1) Turn the crankshaft using ST, and align the
alignment marks on crank sprocket, intake cam
sprocket LH, exhaust cam sprocket LH, intake cam
sprocket RH and exhaust cam sprocket RH with
marks on oil pump and notches of timing belt cover.

ST

499987500

CRANKSHAFT SOCKET

ME-00230

ME-03124

ME-00728

ME-00729

ME-00231

ST
