EC(H4DOTC)-16

Pressure Control Solenoid Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

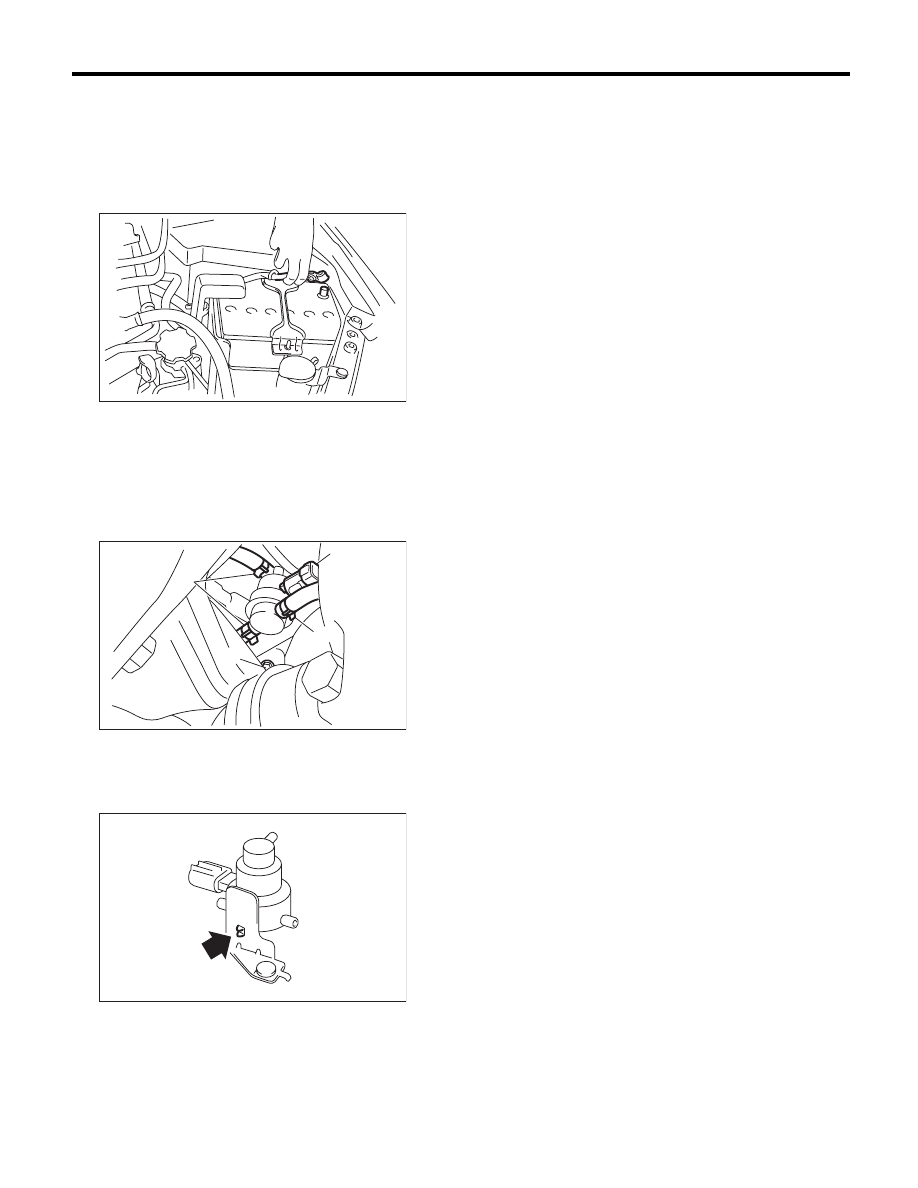

10.Pressure Control Solenoid

Valve

A: REMOVAL

1) Set the vehicle on a lift.
2) Disconnect the ground cable from the battery.

3) Lift up the vehicle.
4) Disconnect connector (A) from the pressure con-
trol solenoid valve.
5) Disconnect the evaporation hose (B) from the
pressure control solenoid valve.
6) Remove the bolts (C) which secure the bracket
to the fuel tank.

7) Remove the pressure control solenoid valve and
bracket as a unit.
8) Remove the pressure control solenoid valve
from the bracket.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.35 N·m (0.7 kgf-m, 5.4 ft-lb)

C: INSPECTION

Make sure the hoses are not cracked or loose.

IN-00203

(C)

(B)

EC-02086

(B)

(A)

EC-02087

EC(H4DOTC)-17

Drain Filter

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

11.Drain Filter

A: SPECIFICATION

Canister is a non-disassembled part, so do not re-
move the drain filter from canister. Refer to “Canis-
ter” for removal and installation procedures. <Ref.
to EC(H4DOTC)-7, REMOVAL, Canister.> <Ref. to
EC(H4DOTC)-8, INSTALLATION, Canister.>

EC(H4DOTC)-18

Shut Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

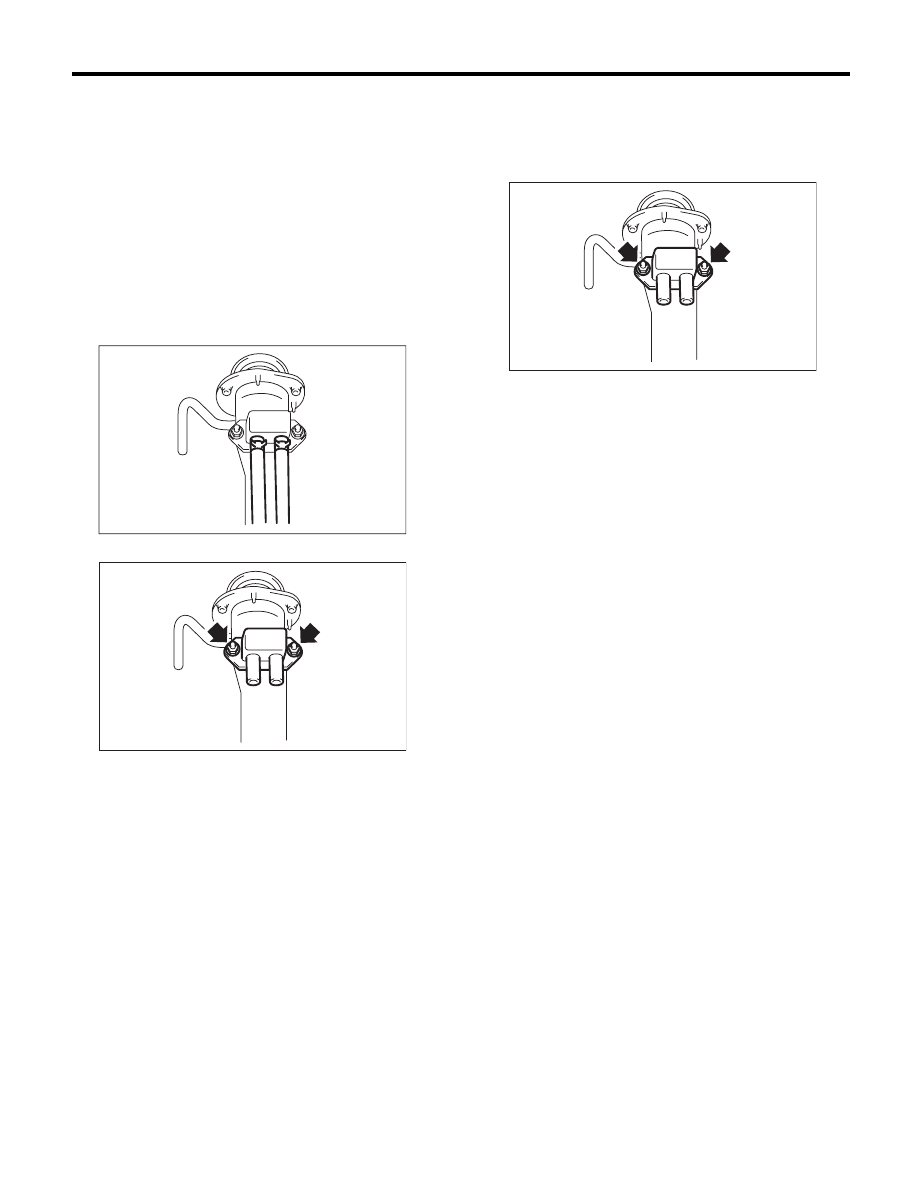

12.Shut Valve

A: REMOVAL

WARNING:
Place “NO OPEN FLAMES” signs near the
working area.

CAUTION:
Be careful not to spill fuel.
1) Remove the fuel filler pipe.
<Ref. to FU(H4DOTC)-66, REMOVAL, Fuel Filler
Pipe.>
2) Disconnect the evaporation hose from the shut
valve.

3) Remove the shut valve from the fuel filler pipe.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

4.5 N·m (0.5 kgf-m, 3.3 ft-lb)

C: INSPECTION

Make sure the hoses are not cracked or loose.

EC-02088

EC-02089

EC-02089

EC(H4DOTC)-19

Drain Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

13.Drain Valve

A: SPECIFICATION

Canister is a non-disassembled part, so do not re-
move the drain valve from canister.
Refer to “Canister” for removal and installation pro-
cedures. <Ref. to EC(H4DOTC)-7, REMOVAL,
Canister.> <Ref. to EC(H4DOTC)-8, INSTALLA-
TION, Canister.>
