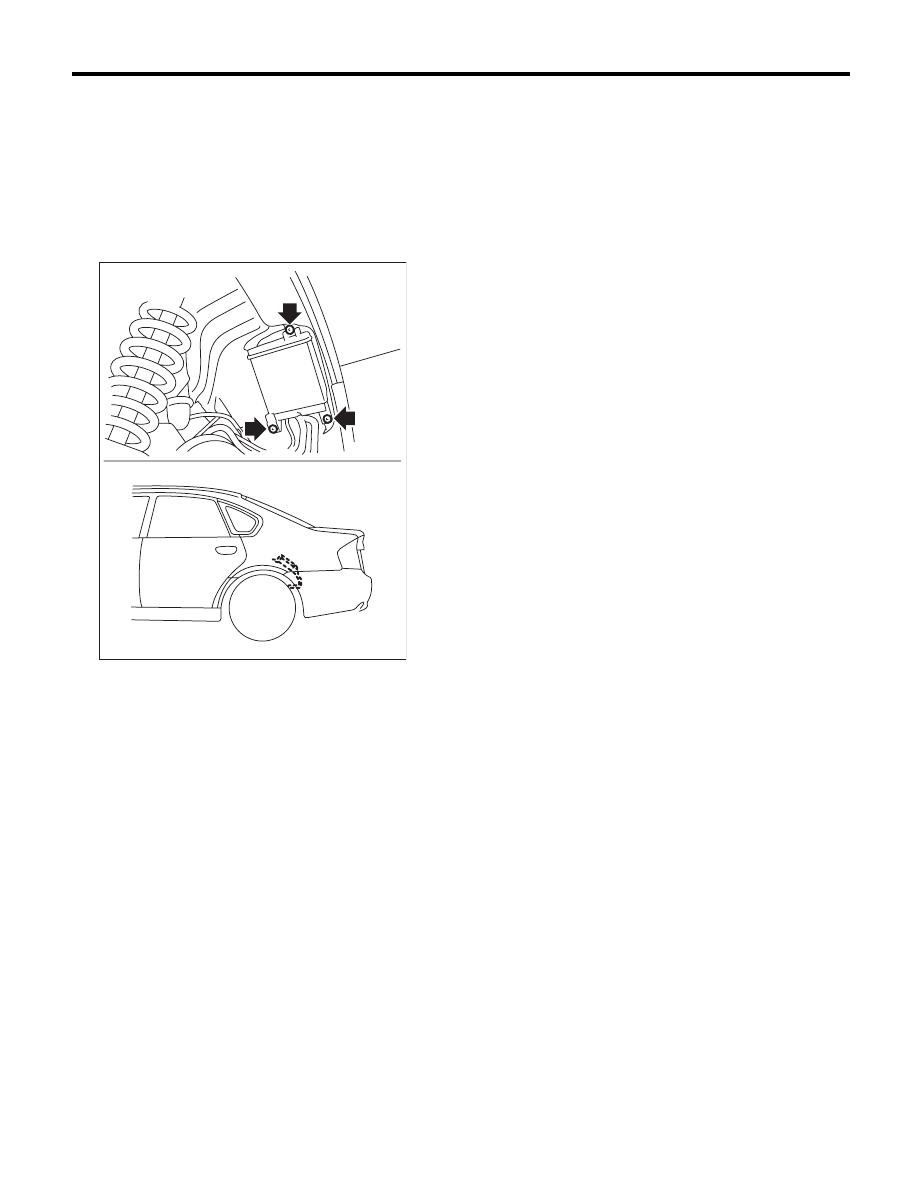

EC(H4DOTC)-8

Canister

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Check that there is no damage or dust on the quick
connector. If necessary, clean the seal surface of
the pipe.

Tightening torque:

8 N·m (0.8 kgf-m, 5.9 ft-lb)

C: INSPECTION

Make sure the canister and canister hoses are not
cracked or loose.

EC-02080

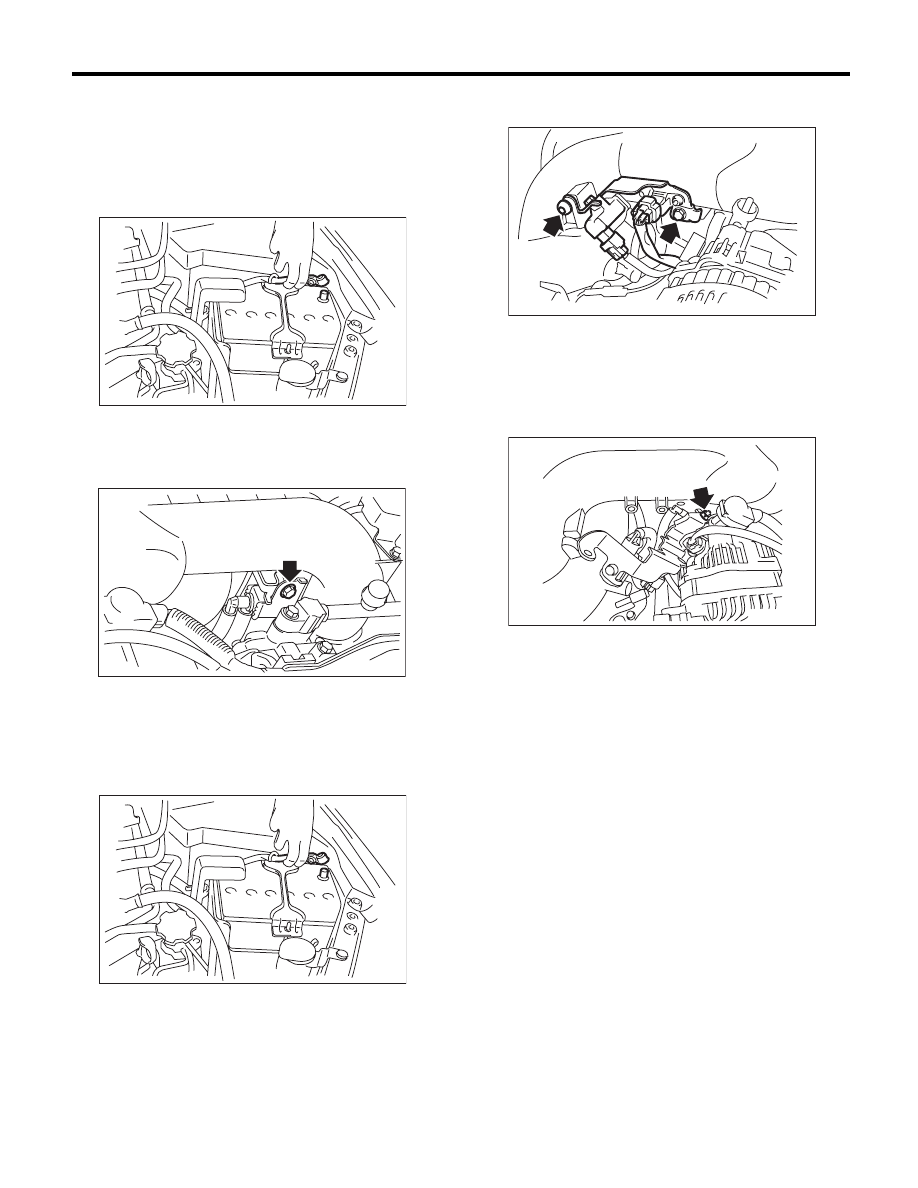

EC(H4DOTC)-9

Purge Control Solenoid Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

5. Purge Control Solenoid Valve

A: REMOVAL

1. PURGE CONTROL SOLENOID VALVE 1

1) Remove the collector cover.
2) Disconnect the ground cable from battery.

3) Remove the bolts which install purge control so-
lenoid valve 1 to the intake manifold, and discon-
nect the connector from the purge control solenoid
valve 1.

4) Disconnect the evaporation hose from the intake
manifold and fuel pipe assembly.

2. PURGE CONTROL SOLENOID VALVE 2

1) Remove the collector cover.
2) Disconnect the ground cable from battery.

3) Remove the solenoid valve bracket assembly
from intake manifold.

4) Disconnect the connector from purge control so-
lenoid valve 2.
5) Disconnect the evaporation hose from the intake
duct and fuel pipe assembly.
6) Remove the purge control solenoid valve 2 from
the solenoid valve bracket assembly.

IN-00203

EC-02424

IN-00203

EC-00219

EC-02266

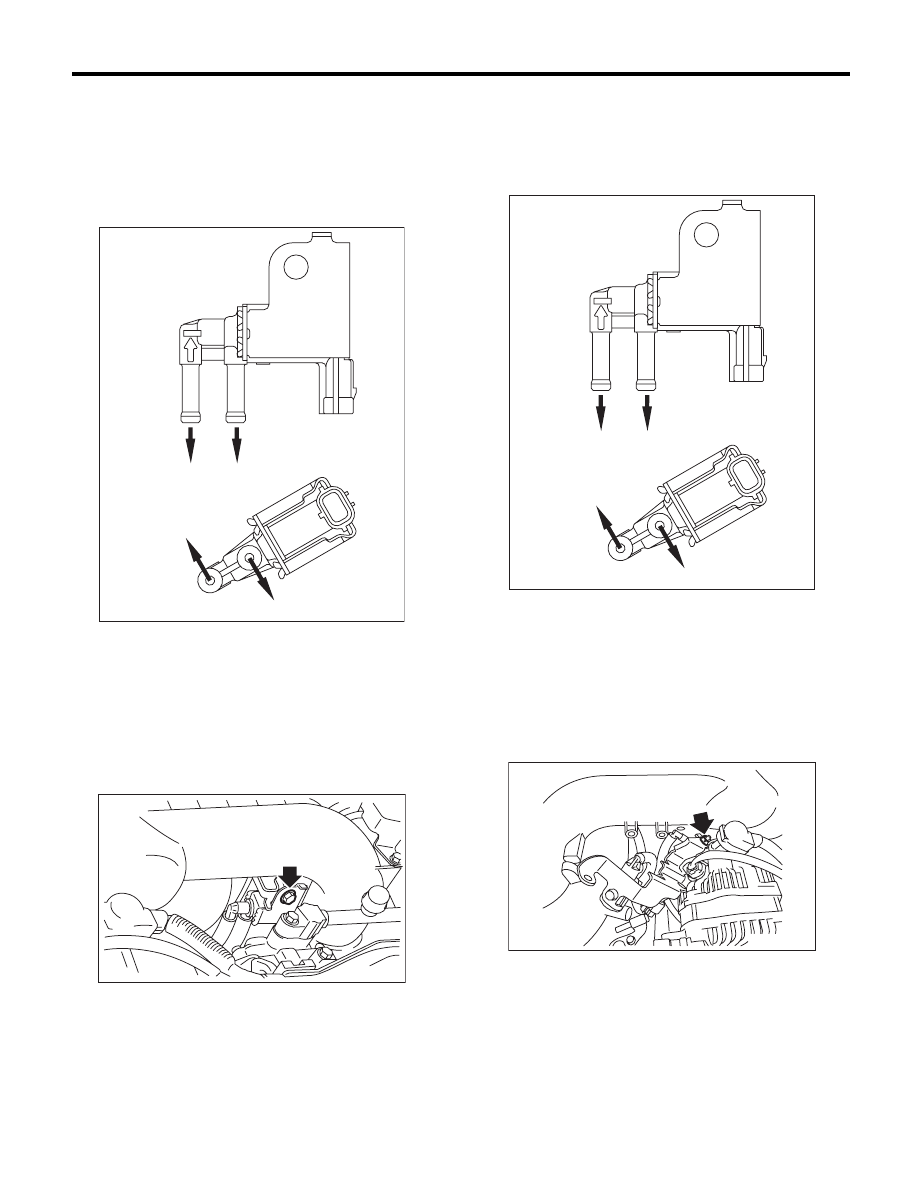

EC(H4DOTC)-10

Purge Control Solenoid Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

B: INSTALLATION

1. PURGE CONTROL SOLENOID VALVE 1

Install in the reverse order of removal.

NOTE:
Connect the evaporation hose as shown in the fig-
ure.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

2. PURGE CONTROL SOLENOID VALVE 2

Install in the reverse order of removal.

NOTE:
Connect the evaporation hose as shown in the fig-
ure.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

(A) Purge control solenoid valve 1

(B) Purge control solenoid valve 2

(a) To intake manifold

(b) To intake duct

(c) To fuel pipe

EC-02201

(A)

(B)

(b)

(c)

(c)

(a)

EC-02424

(A) Purge control solenoid valve 1

(B) Purge control solenoid valve 2

(a) To intake manifold

(b) To intake duct

(c) To fuel pipe

EC-02201

(A)

(B)

(b)

(c)

(c)

(a)

EC-02266

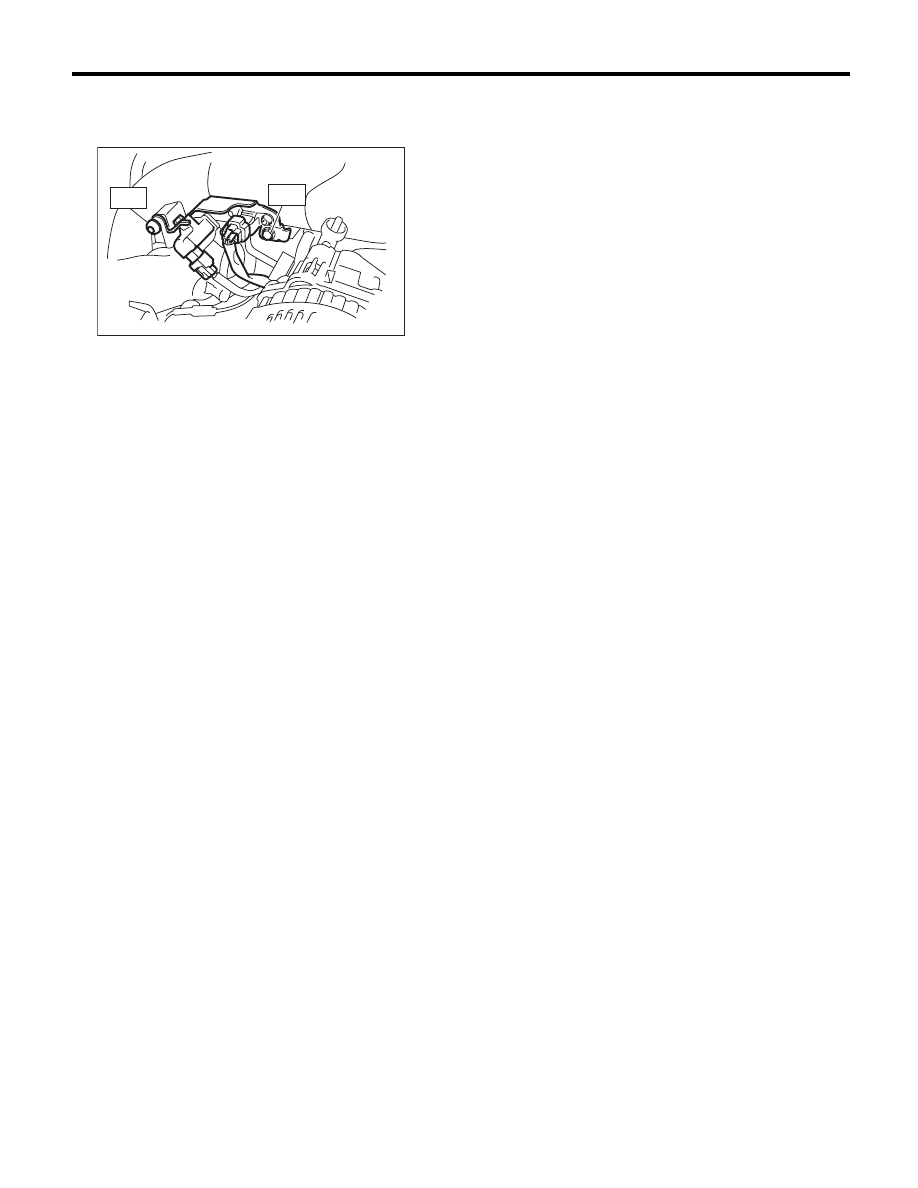

EC(H4DOTC)-11

Purge Control Solenoid Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

Tightening torque:

T1: 17 N·m (1.7 kgf-m, 12.5 ft-lb)
T2: 19 N·m (1.9 kgf-m, 14.0 ft-lb)

C: INSPECTION

Make sure the hoses are not cracked or loose.

EC-02252

T2

T1
