Subaru Legacy IV (2008 year). Manual - part 147





EN(H4SO)(diag)-191

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN ECM AND
CAMSHAFT POSITION SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
camshaft position sensor.
3) Measure the resistance of harness between
ECM and camshaft position sensor connector.

Connector & terminal

(B134) No. 12 — (E15) No. 1:
(B134) No. 22 — (E15) No. 2:

Is the resistance less than 1

:? Go to step 2.

Repair the harness
and connector.

NOTE:
In this case, repair
the following item:
• Open circuit in
harness between
the ECM and cam-
shaft position sen-
sor connector
• Poor contact in
ECM connector
• Poor contact of
coupling connector

2

CHECK HARNESS BETWEEN ECM AND
CAMSHAFT POSITION SENSOR.
Measure the resistance between camshaft
position sensor connector and engine ground.

Connector & terminal

(E15) No. 1 — Engine ground:

Is the resistance 1 M

: or

more?

Go to step 3.

Repair the short
circuit to ground in
harness between
ECM and camshaft
position sensor.

NOTE:
The harness be-
tween both con-
nectors are
shielded. Remove
the shield and re-
pair the ground
short circuit of the
harness circuit.

3

CHECK INSTALLATION CONDITION OF
CAMSHAFT POSITION SENSOR.

Is the camshaft position sensor
installation bolt tightened
securely?

Go to step 4.

Tighten the cam-
shaft position sen-
sor installation bolt
securely.

4

CHECK CAMSHAFT POSITION SENSOR.
1) Remove the camshaft position sensor.
2) Measure the resistance between connector
terminals of camshaft position sensor.

Terminals

No. 1 — No. 2:

Is the resistance between 1 and
4 k

:?

Go to step 5.

Replace the cam-
shaft position sen-
sor. <Ref. to
FU(H4SO)-24,
Camshaft Position
Sensor.>

5

CHECK CAM SPROCKET.
Remove the timing belt cover. <Ref. to
ME(H4SO)-43, Timing Belt Cover.>

Are cam sprocket teeth cracked
or damaged?

Replace the cam
sprocket. <Ref. to
ME(H4SO)-49,
Cam Sprocket.>

Go to step 6.

6

CHECK INSTALLATION CONDITION OF
TIMING BELT.
Turn the crankshaft using ST, and align align-
ment mark on cam sprocket with alignment
mark on timing belt cover LH.
ST

499987500

CRANKSHAFT
SOCKET

Is the timing belt dislocated
from its proper position?

Repair the installa-
tion condition of
timing belt. <Ref. to
ME(H4SO)-44,
Timing Belt.>

Replace the cam-
shaft position sen-
sor. <Ref. to
FU(H4SO)-24,
Camshaft Position
Sensor.>

EN(H4SO)(diag)-192

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

BD:DTC P0400 EXHAUST GAS RECIRCULATION FLOW

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H4SO)-96, DTC P0400 EXHAUST GAS RECIRCULATION
FLOW, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Movement performance problem when engine is low speed.
• Improper idling
• Movement performance problem

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO)(diag)-50,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4SO)(diag)-41, PROCEDURE,
Inspection Mode.>.

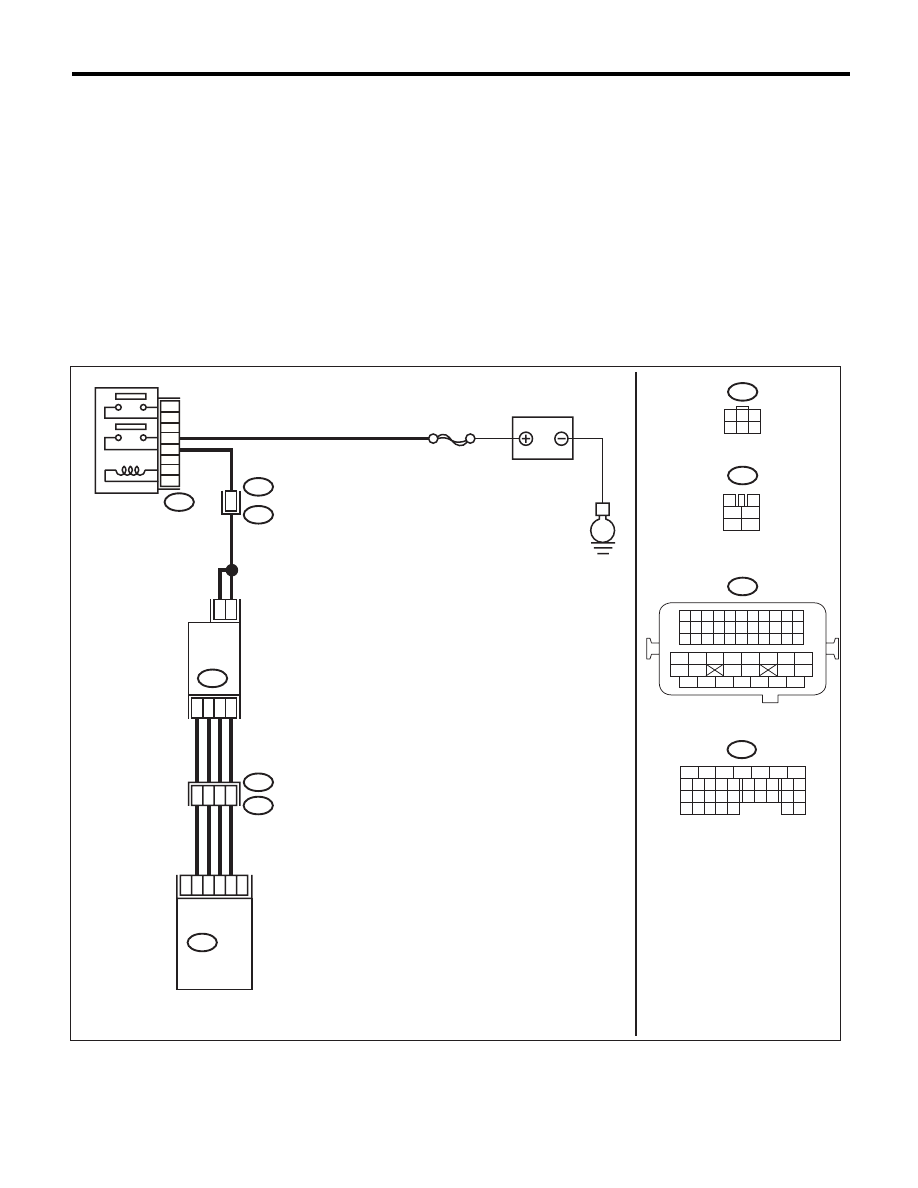

WIRING DIAGRAM:

EN-06839

E

B47

E18

2

5

6

4

3

1

B21

E2

E2

B21

5
3

6
4

2
1

48

30

25

29

26

SBF-7

B134

ECM

B47

E18

3

4

1

2

5

6

1

3

4 5 6

2

MAIN RELAY

BATTERY

EGR

VALVE

B134

8

5

6

10 11 12 13 14 15

7

2

1

3

4

16

30

19 20

22

28 29

9

17

18

25

21

23 24

32

31

26 27
33 34

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

20

10

8

9

EN(H4SO)(diag)-193

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK CURRENT DATA.
1) Start the engine.
2) Read data of intake manifold absolute pres-
sure signal using Subaru Select Monitor or gen-
eral scan tool.

NOTE:
• SUBARU SELECT MONITOR
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4SO)(diag)-33, Subaru Select Moni-
tor.>
• General Scan Tool
For detailed operation procedures, refer to the
general scan tool operation manual.

Is the measured value 53.3 kPa
(400 mmHg, 15.75 inHg) or
more?

Make sure that the
EGR valve, mani-
fold absolute pres-
sure sensor and
throttle body are
installed securely.

Go to step 2.

2

CHECK EGR VALVE.
Remove the EGR valve.

Are there holes, plugged piping
or foreign objects caught in the
EGR system?

Repair the EGR
system.

Replace the EGR
valve. <Ref. to
FU(H4SO)-29,
EGR Valve.>

EN(H4SO)(diag)-194

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

BE:DTC P0420 CATALYST SYSTEM EFFICIENCY BELOW THRESHOLD (BANK 1)

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H4SO)-99, DTC P0420 CATALYST SYSTEM EFFICIENCY BE-
LOW THRESHOLD (BANK 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Engine stalls.
• Idle mixture is out of specifications.

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO)(diag)-50,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4SO)(diag)-41, PROCEDURE,
Inspection Mode.>.

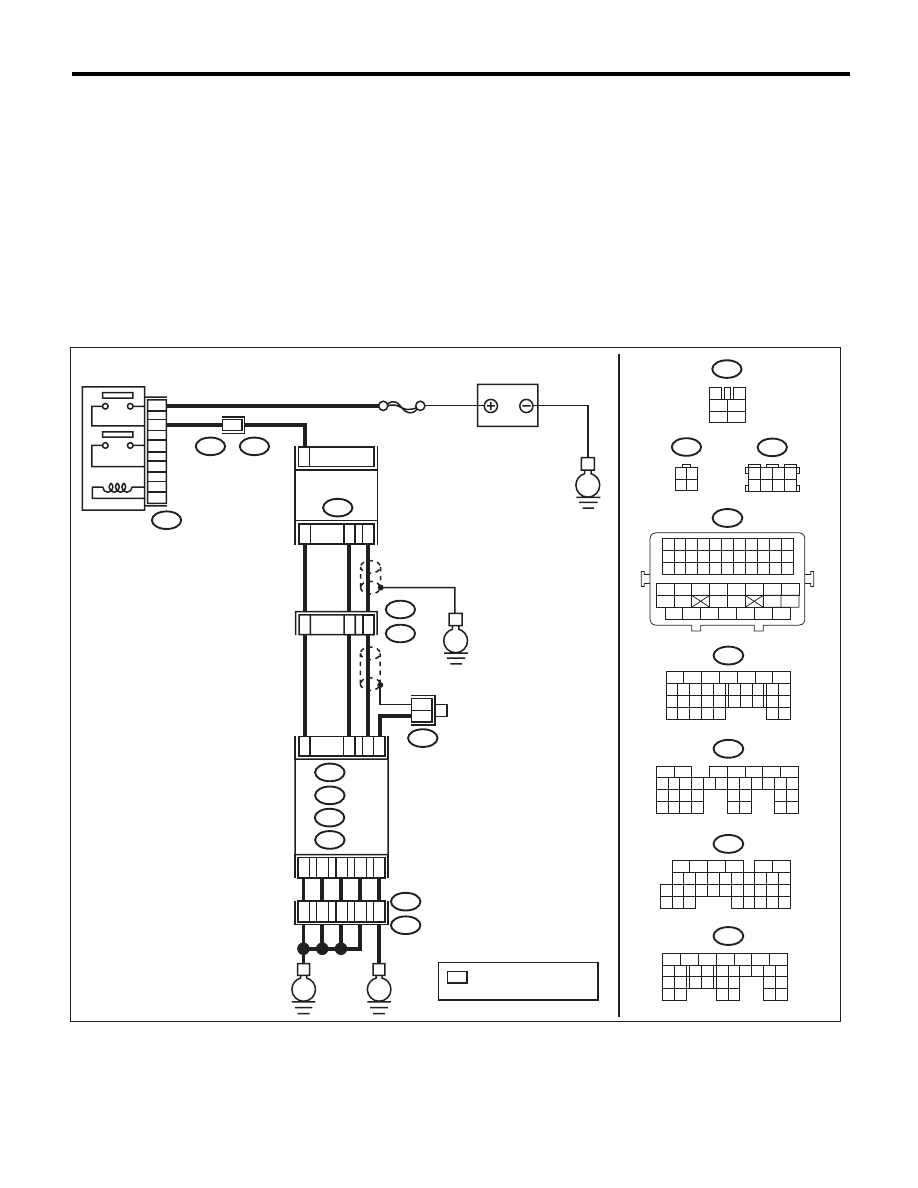

WIRING DIAGRAM:

EN-06836

A5

D1

D2

D3

D7

36

34

35

37

52

ECM

B21

B138

E2

B135

B:

D: B137

C: B136

E

E

A: B134

B137

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

B136

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

A:

B:

C:

D:

*

*

3

4

1

2

5

6

B327

SBF-5

E

B327

E23

6

4

5

3

2
1

1

B21

E2

50

53

1

19

E2

B21

E

E23

BATTERY

REAR OXYGEN

SENSOR

A/F, OXYGEN
SENSOR RELAY

1
3 4

2

2

3

4

B1

B4

A29

C4

B138

3 4

5 6

1 2

7 8

B21

1 2 3 4 5 6 7 8 9 10 11

12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33

34

35

42

43

36

37

38

39

48

49

50

51

52

53

54

40

41

44

45

46

47

 : TERMINAL No. OPTIONAL
 ARRANGEMENT

*
